Vehicle Exhaust - Cars, Trucks, Heavy Equipment & Generators

Learn More About our Portable Vehicle Exhaust on our New "Product Niche" Website

The best way to protect mechanics and garage employees from harmful gases released from automotive vehicles such as cars & trucks is CAPTURE AT SOURCE. This means directly at the tailpipe.

This process involves 3 steps:
  • 1. Capture of the gases at source through suction nozzles
  • 2. Transporting the gases through exhaust hoses to an exhaust fan
  • 3. Transport the gases to atmosphere.

    Below is a list of the information that needs to be gathered prior to selecting the appropriate VEHICLE EXHAUST ventilation system:
  • 1 – Max Engine HP
  • 2 – Max RPM engines to be run at:
  • 3 – Engine being run A - under load? or B - at idle?
  • 4 – Diameter of smallest and largest tailpipes?
  • 5 – Configuration of tailpipes? (EG: are they exposed, behind a grill, overhead stack, under carriage, etc…)
  • 6 – Voltage and Amperage available
  • 7 – Fixed or Portable system
  • 14-001
    Touchless -Vehicle Exhaust Extraction Arms- up to 43 feet long-600 to 1500 CFM
    flexi-touchless-vehicle-exhaust-extraction-arm - Main Image
    “Ready to install and use” Hight Temp FLEXI Extraction Arms for vehicle exhaust and other applications. These internally supported extraction arms do not interfere with overhead cranes as they do not require overhead supporting/anchoring.

    Suitable for exhaust gases applications up to 1000 degrees F. Excellent solutions for capturing and exhausting a variety of fumes, dust at source and exhausting to atmosphere.
    • MELT PROOF - all steel construction
    • Built in damper
    • 1000 degree Flameproof triple-ply flexible hose
    • Wall bracket
    • "Stay in place" internally supported Extractor arm
    • Optional components available such as: Exhaust Fan c/w motor overload, bird screen, backdraft damper, Exhaust duct, wall flashing and extensions hoses and hoods are available.
    14-002
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Single Extractor w/ pulley kit - 4''/5”/6”/8” dia. (300/475/700/1,200 CFM)
    economical-vehicle-exhaust-extraction-system-with-pulley-suspension - Main Image
    Vehicle exhaust single extractor system c/w rope, pulley kit and saddle. Available in both Low Temp. as well as High Temp Hose.

    Adjustable drop height via pulley and rope system. Used in high temp vehicle exhaust applications.
    • Low Temp. Hose: suitable for temps. up to 250º F
    • High Temp. Hose: suitable for temps. up to 600º F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-003
    Vehicle Exhaust (Car, truck, Heavy equip., etc.) Single Extractor w/ balancer - Hose dia.& flow rates to suit application
    vehicle-exhaust-extraction-system-with-balancer-hose-suspension - Main Image
    Vehicle exhaust single extractor system c/w hose, balancer and saddle. Locking ratcheting mechanism for precise hose placement on tailpipe or stack. Available in both Low Temp. as well as High Temp Hose.

    • Low Temp. Hose: suitable for temperatures up to 350º F.
    • High Temp. Hose: suitable for temperatures up to 850º F.
    • Ultra High Temp Hoses: suitable for temperatures from 750 to 2500º F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    003 - Client Installations - Case Studies with Photos:
    003a - Client Installations - Case Studies with Video:
    006 - Local Exhaust and Ventilation Duct 3D Layouts:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-004

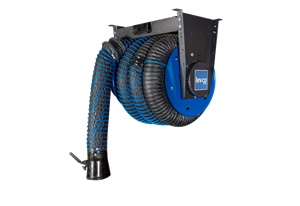

    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Hose Reel - Spring Recoil - 4''/5”/6”/8” dia. (300/475/700/1,200/2000 CFM)
    spring-recoil-hose-reel-for-vehicle-exhaust-extraction - Main Image
    Spring recoil hose reels are designed for removing exhaust gas emitted by exhaust pipes of every type of vehicle (cars, trucks, tractors, armored vehicles and means of public transport).

    Mechanical spring hose reels have a locking ratcheting mechanism for precise hose placement on tailpipe or stack. Allows for easy retraction onto reel. They are perfect for bus depots, garages or service stations. They may be mounted under a roof as well as in a wall, supporting column or at the end of an extension boom.
    The hose is lowered manually against spring tension. The reel is equipped with a locking catch, which locks the reel at the required position. A further pulling of the hose releases the locking catch and then the hose reels automatically. Available in both Low Temp. as well as High Temp Hoses.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    003a - Client Installations - Case Studies with Video:
    004 - Product Videos:
    006 - Local Exhaust and Ventilation Duct 3D Layouts:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-007

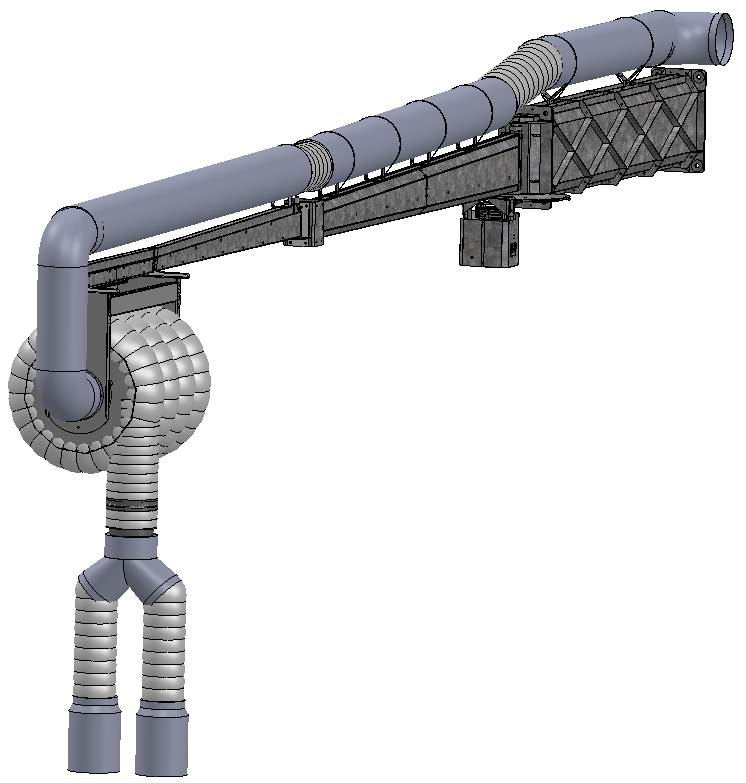

    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Articulating Crane for Hoses - 4'' to 24'' dia. (300 to 18,000 CFM)
    vehicle-exhaust-articulating-crane-hose-drop-with-balancer-recoil - Main Image
    The VE Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to fold the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease.


    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 600º F
    • Ultra High temperatures available up to 1200º F
    • "Dyno" hoses for temperatures up to 2500º F
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    007 - Written Specifications:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-011
    Vehicle Exhaust Accessories (Car, truck, Heavy equip.) Hoses, Nozzles, Hose clamps, couplers, WYE’s.
    vehicle-exhaust-nozzles-fittings-and-accessories - Main Image
    Vehicle Exhaust Accessories, dual tailpipe connectors, extension nozzles, magnetic hoods, duct fittings, and other accessories for all vehicle exhaust systems.

    • Hoses
    • Tailpipe Nozzles
    • Hose Clamps
    • Overhead Stack Nozzles
    • Dual Tailpipe 'Y' Fittings and assemblies
    • Etc.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    003a - Client Installations - Case Studies with Video:
    14-025
    PnP Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Single or Double Extractor w/ pulley kit - 4''/5”/6”/8” dia. (300/475/700/1,200 CFM)
    pnp-vehicle-exhaust-single-and-dual-extractor-kit - Main Image
    PnP Vehicle exhaust single or double extractor system c/w rope, pulley kit and saddle. Available in both Low Temp. as well as High Temp Hose.

    • Low Temp. Hose: suitable for temps. up to 300º F
    • High Temp. Hose: suitable for temps. up to 600º F
    Attachments
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    14-071
    Vehicle Exhaust (Trucks & Heavy equipment.) Herculean Crane Drop for Hose - 8/10/12/14 inch Hoses
    vehicle-exhaust-high-reach-herculean-crane-drop-for-extraction-hose - Main Image
    The VE Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to fold the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease.


    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 850º F
    • Ultra High temperatures available up to 3500º F
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    004 - Product Videos:
    14-005

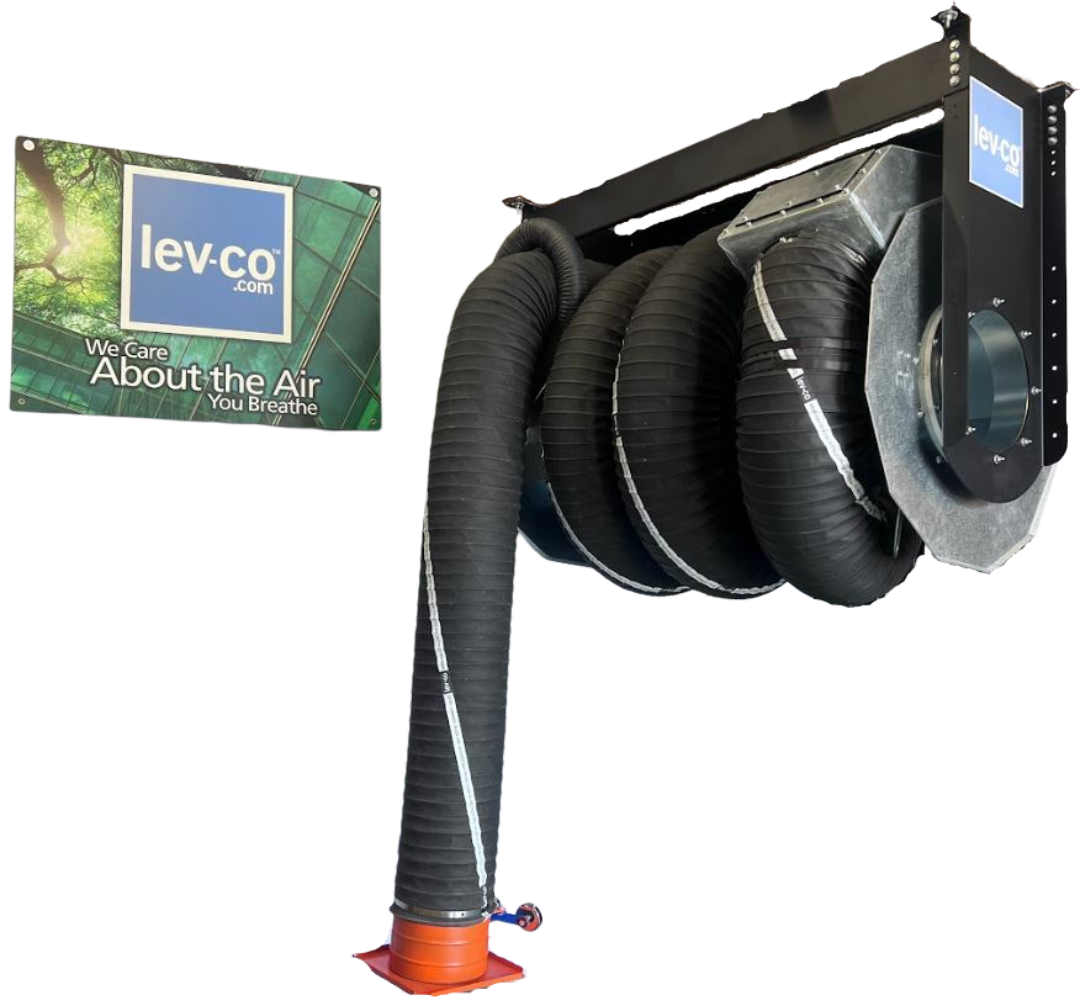

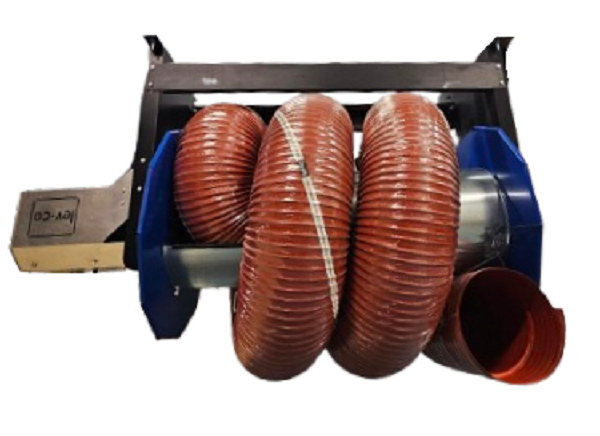

    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Hose Reel - Motorized - 4''/5”/6”/8”/10''/12''/14'' dia. (300/475/700/1,200/2000/2900/4300CFM)
    motorized-hose-reel-for-vehicle-exhaust-extraction - Main Image
    Electric - driven hose reels are for removing exhaust gas emitted by exhaust pipes of every type of vehicle (cars, trucks, tractors, armored vehicles). Hose is coiled and lowered easily via a wireless remote controller.

    They are perfect for bus depots, garages, service stations and repair shops. One universal hose reel allows the attaching of hoses of different diameters, lengths, and temperature ratings. The Lev-co hose reel stands out due to its unique high temperature 2500 degree bearings mounted within is side plates, duct connection and supporting frame. The motor is a sealed IP 66 electric motor with back up coil and recoil handle that allows the reel to be operated when no power is available. The reel may be mounted under a roof, within a ceiling structure as well as in a wall or at the end of an extension boom. Available in both Low Temp. as well as High Temp Hose.
    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 850º F
    • Ultra High temp: suitable for temperatures up to 2500 º F
    NB: This reel is also an excellent solution for heavy welding, gouging, plasma and flame cutting.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
