Model Number

14-045

model_icon

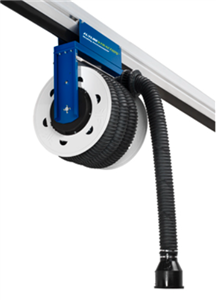

Sliding Hose Reel System - Vehicle Exhaust

The Sliding Hose Reel System is a versatile system that can be used on different vehicle applications.

Function:

The Sliding Hose Reel System is a compact system with the ability to move the hose reel on the entire length of a track and provides excellent mobility for where capture at source is needed. This system is an ideal solution for facilities with compact floor space and ample overhead area.

The FUTURE sliding rail/track exhaust extraction system is applicable to both light and heavy vehicles. It is characterized by aerodynamic design and a large suction surface. By incorporating wheels on the outside, it avoids contact with dirt, and they allow this space to circulate freely without obstacles, avoiding turbulence and achieving greater airflow. The rail can be equipped with a hose trolley or mobile hose reels

Main options include:
  • High Temp. Hose: suitable for temperatures up to 850º F
  • Variable Frequency Drives

Construction:

  • Made with a solid chassis and triple-fold sides
  • Painted in the oven with an anticorrosive finish in polyester resin polymerized at 190ºC
  • The end of the race bar, the reinforcement brackets and the adapter from the vacuum cleaner to the reel are made of stainless steel
  • The rail structure is extruded aluminum.
  • The connection to the vacuum cleaner can be top or side, depending on the needs of each installation.
  • Large area of extraction equivalent to 250 cm2
  • Free of obstacles to facilitate aerodynamic movement
  • Wheels on the outside to avoid contact with the dirt

Key Buying Criteria:

  • Distance coverage: With the use of the sliding rail, the hose reel can reach even further, across multiple bays. Suitable for multi-bay mechanic facilities
  • Space saving: With the entire system being overhead, it takes up virtually no floorspace
  • Versatile: With the use of flexible hose, our system can be manipulated for various exhaust configurations, including stack exhaust, and tailpipe
  • Eliminates hazards: By suspending the entire system, the hose is kept off the floor, eliminating safety hazards, and the potential to damage the system
  • Reliable: Simple retraction system minimizes the risk of mechanical failure

Suitable For:

Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Chemical Fumes
  • Grinding Sparks
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Frequently bought together these options:

Part #
Qty
Description
PYRO-12-850
12Ø, 2ply hose 850 deg F - Suitable for use in constant flexing applications or with hose reels color BLACK .
  • Rated up to 25in of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approx. 2.1 lbs/foot
Part #
Qty
Description
HR-Handle
Break-away handle to hang from hose reels and boom arms for easy positioning. Orange cord and break-away handle to be used to uncoil hose on hose reel drum or to position boom arms. Handle to break off cord at 25lbs of force if caught on vehicle as to not pull down hose reel equipment.
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
