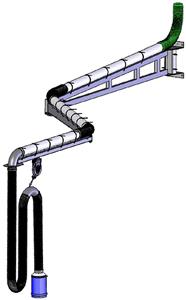

Herculean Crane Drop for Hose - Vehicle Exhaust

The Herculean Crane Drops effectively support and use heavy exhaust hoses while eliminating the tripping and safety hazards caused by alternative floor-based hose solutions.

Function:

The Herculean Crane Drops with Hose for Vehicle Exhaust allows you to position an extraction hose on any side of the vehicle and capture fumes at the source. The extraction system can easily fold against the wall and out of the way and is perfect for trucks and heavy equipment.

The Herculean Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease. The system comes with a saddle and pulley balancer kit, for easy manual control of the hose drop.

The Articulating Crane Drop have typical flow rates between 300CFM and 18,000CFM and supports hoses that are manufactured to withstand a wide array of temperatures, based on your needs:
  • Low Temp. Hose: suitable for temperatures up to 250º F
  • High Temp. Hose: suitable for temperatures of 850º F
  • Ultra High temperatures available up to 2000º F

Other main options include:
  • High Temperature Exhaust Fans between 2HP and 30HP
  • Overhead Stack Adapters
  • Variable Frequency Drives
  • Nozzle/Tailpipe Adapter

Construction:

  • Spiral duct kit with flexible hose at joints across the top of the boom
  • End Elbow and fixing bracket
  • Std. 20ft, 8'' to 14'' dia., Hose drop (longer lengths available)
  • OPTIONAL: Hose lifting mechanism (Balancer or Pulley Kit)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
VE-ACD-6-14-1000 48"H x 52"W x 192"D 700 lbs
VE-ACD-10-16-1000 48"H x 52"W x 192"D 700 lbs

Key Buying Criteria:

  • Eliminates hazards: This arm eliminates tripping hazards by suspending the hose otherwise kept on the floor
  • Modular: Accessories can be bolted straight up to the arm, making it very adaptable to add-ons down the line
  • Distance coverage: With the use of articulated joints, this arm allows your extraction system to reach far distances, making setup time much quicker without floor traffic
  • Compact storage: When not in use, the articulating crane folds neatly up again the wall, keeping the workspace accessible for other equipment
  • Retraction mechanism: Simple mechanical balancer included, making the system one-hand operable, just like a standard extraction arm

Suitable For:

Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Chemical Fumes
  • Grinding Sparks
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Frequently bought together these options:

Part #
Qty
Description
89183-H-MAX-HERC-350-SW-JNT
Additional articulating Joint for H-max and Herc combo to allow 350 degrees of rotation of H-max around herc.
  • Adds 6.5" to overall boom lenght
Part #
Qty
Description
VE-ACD-10-10-850
10m (30') Articulating crane for VE drops c/w 23' of 10 diameter 850 deg. (F) hose.
VE-ACD-10-12-2000
10m (30') Articulating crane for VE drops c/w 23' of 12 diameter 2000 deg. (F) hose.
VE-ACD-10-16-1000
10m (30') Articulating crane for VE drops c/w 23' of 16 diameter 1000 deg. (F) hose.
VE-ACD-10-4-600
10m (33') Articulating crane for VE drops c/w 23' of 4 diameter 600 deg. (F) hose.
VE-ACD-6-14-1000
6m (20') Articulating crane for VE drops c/w 25' of 14 diameter 1000 deg. (F) hose.
Part #
Qty
Description
PYRO-12-850
12Ø, 2ply hose 850 deg F - Suitable for use in constant flexing applications or with hose reels color BLACK .
  • Rated up to 25in of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approx. 2.1 lbs/foot
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
