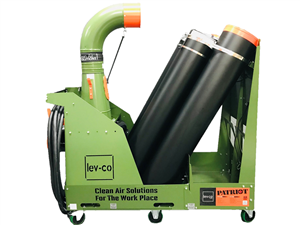

PATRIOT - Portable Vehicle Exhaust

The PATRIOT is a heavy-duty portable Local Exhaust Ventilation system for almost any heavy industrial application.

Function:

The heavy-duty PATRIOT is an "All-in-one" design with the purpose to capture 99%+ of all airborne emissions “at-Source” before the emissions reach the operators' breathing zone. This unit is ideal for capturing smoke and fumes for Diesel Trucks & heavy equipment.

This system is suitable for outdoor use with IP66 controls and a Chasis fabricated from combination satin coat steel, powder-coated for additional protection and appeal. The unit transports well to and from job sites, under the garage door or through door/wall exhaust. The portable, easy to position and quick set-up with tool-less "quick-connect" hoses and accessories allows the PATRIOT to be deployed and operated by a single person.

This Plug & Go unit is designed to be energy efficient, by eliminating peak electrical charges and wasted heat, and be set to an Ultra-Quiet mode, by controlling the VFD to the noise level, frequency and flow rate This unit has a typical flow rate between 700CFM and 7000CFM.

Main options include:
  • Variety of Capture and Receiving Hoods
  • Variety of Hoses (EG: Chemical, ESD, Abrasion, Hi-temp>2000 C)
  • Variable Frequency Drive
  • Fan, Light & Electrical Accessories
  • Overhead Stack Adapters
  • Casters

Construction:

  • Portable & Easy to position - 6 Heavy-duty casters (2 straight, 4 swivel)
  • “All-in-one” design – “on-cart” storage for all hoses, hoods, etc.
  • All steel heavy duty construction - 3/14/16 ga.
  • Spark Proof design and construction
  • Environmentally friendly VFD control – exhaust only the flow required
  • Hose storage tubes – Ensure the hoses will last
  • 8''/10'' Diameter Hoses

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PATRIOT-HT 96"H x 36"W x 36"D 400 lbs
PATRIOT-BM 96"H x 36"W x 36"D 325 lbs

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Welding Fumes
  • Explosive Gasses
  • Arc Air Gouging
  • Flame Cutting
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: Make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
PATRIOT-HT
Portable Vehicle Exhaust system with 50' 8" dia. inlet hose and 66' 10" diameter exhaust hose. MOTOR/FAN and VFD not included but selected as options. Please select voltage package within the "OPTIONS" section System comes complete with:
  • Motor Starter and Overload protection
  • Storage for both the exhaust and inlet hoses
  • CSA approved AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
  • PATRIOT-BM
    Base Model Portable Vehicle Exhaust system NO INLET HOSE OR MOTOR. System comes complete with:
  • Storage for both the exhaust and inlet hoses
  • CSA approved AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
  • Frequently bought together these options:

    Part #
    Qty
    Description
    G-HOOD-MAG-8
    Quick Connect gouging hood with magnetic base. C/W carry handle, suitable for use with 8" diameter hose. Bungee cord to quick connect to 8" dia flexi-hood. Equipped with 4 mangets with individual swivels. With 10' of low temp hose.
    OM-071-MK-C
    Magnetic Hood-200mm (8)Ø. Two 40-lb magnets affixed to hood. Magnets can pivot to allow for a high range of motion whilst positioning the hood.
    Part #
    Qty
    Description
    PYRO-12-850
    12Ø, 2ply hose 850 deg F - Suitable for use in constant flexing applications or with hose reels color BLACK .
  • Rated up to 25in of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approx. 2.1 lbs/foot
  • Part #
    Qty
    Description
    RCA-8/D
    10" Diesel Stack Adapter with:
  • 8" opening for exhaust pipe
  • Manual damper
  • Part #
    Qty
    Description
    PATRIOT-ELEC-7.5-1
    Fan and electrical option for PATRIOT. 7.5HP @ 220V/3/60. Includes;
  • 7.5HP fan @ 220V
  • VFD rated for 7.5HP @ 220V
  • 60A Fuse Box (complete)
  • Twist lock weld plug rated for 220V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 60A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • PATRIOT-ELEC-7.5-2
    Fan and electrical option for PATRIOT. 7.5HP @ 480V/3/60. Includes;
  • 7.5HP fan @ 480V
  • VFD rated for 7.5HP @ 480V
  • 30A Fuse Box (complete)
  • Twist lock weld plug rated for 480V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 30A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • PATRIOT-ELEC-7.5-3
    Fan and electrical option for PATRIOT. 7.5HP @ 575V/3/60. Includes;
  • 7.5HP fan @ 575V
  • VFD rated for 7.5HP @ 575V
  • 30A Fuse Box (complete)
  • Twist lock weld plug rated for 575V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 30A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • P2D2-R3-ELEC-10-3
    Fan and electrical option for P2D2-R3. 10HP @ 575V/3/60. Includes;
  • VFD rated for 10HP @ 575V
  • Nema 4 VFD enclosure
  • 60A Fuse Switch (complete)
  • Twist lock weld plug rated for 575V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 30A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components, wired and installed with mounting Brakets
  • PATRIOT-ELEC-10-1
    Fan and electrical option for PATRIOT. 10HP @ 220V/3/60. Includes;
  • 10HP fan @ 220V
  • VFD rated for 10HP @ 220V
  • 60A Fuse Box (complete)
  • Twist lock weld plug rated for 220V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 60A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • PATRIOT-ELEC-10-2
    Fan and electrical option for PATRIOT. 10HP @ 480V/3/60. Includes;
  • 10HP fan @ 480V
  • VFD rated for 10HP @ 480V
  • 30A Fuse Box (complete)
  • Twist lock weld plug rated for 480V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 30A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • PATRIOT-ELEC-10-3
    Fan and electrical option for PATRIOT. 10HP @ 575V/3/60. Includes;
  • 10HP fan @ 575V
  • VFD rated for 10HP @ 575V
  • 30A Fuse Box (complete)
  • Twist lock weld plug rated for 575V
  • 50ft of cabtire
  • Low voltage HI/LOW/OFF switch
  • 30A mounting plate for VFD/fuse box
  • Pre-assembly of all electrical components wired and installed onto mounting plate
  • Part #
    Qty
    Description
    P2D2-R1-V2-PNEUMATIC-WHEEL
    10 in. Pneumatic Swivel Caster. Kit includes QTY 4 wheels. 330lb capacity per wheel. Includes bracket to bolt onto P2D2-R1.
    Part #
    Qty
    Description
    PYRO-8-850
    8inch dia 2 ply hose 850 deg F - Suitable for use in constant flexing applications or with hose reels (per foot), color BLACK.
  • Minimum length 25' Max length 50'
  • XH-850-8-2
    8" dia Exhaust Hose 2 ply rated up to 850F-ideal for hose reels. Comes with wear strip.
    Part #
    Qty
    Description
    VFD-KIT-1HP-115-230-3
    1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 1 HP Motor
    • Able to support HP lower than 1HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
    VFD-KIT-2HP-115-230-3
    2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 2 HP Motor
    • Able to support lower HP between 1HP - 2HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
    VFD-KIT-3HP-220-230-3
    3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 3 HP Motor
    • Able to support lower HP between 2HP - 3HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
    Part #
    Qty
    Description
    Arktite Weld Lock Plug-60-575
    Eaton Arktite 3 wire/4 pole 60a plug Part #: APJ6485 - 575V
