Model

14-073

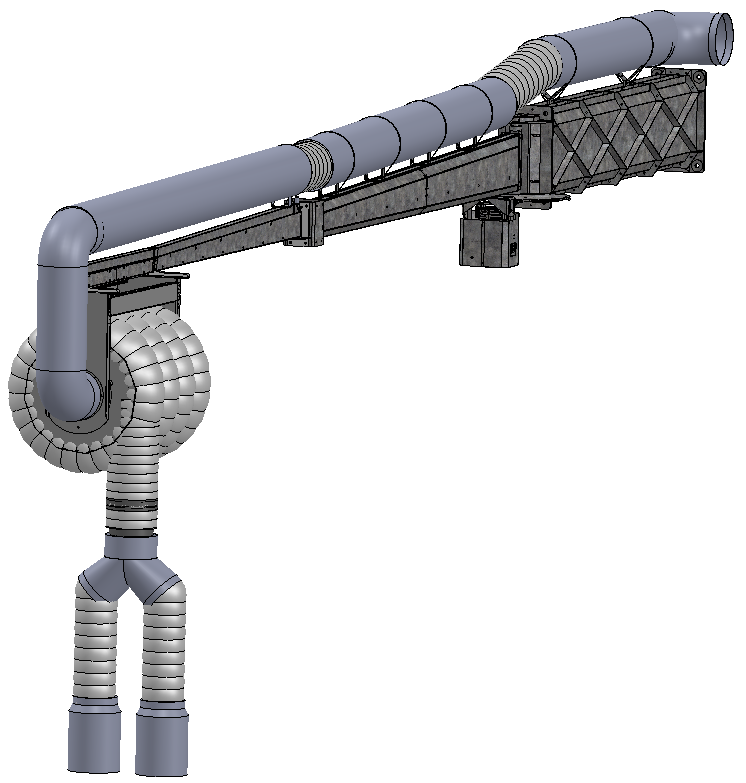

Patriot Herculean + H MAX Series Articulating Crane Drop with Hose Reel - Ø8'' /10'' /12'' /14'' Hoses

The Patriot Herculean + H MAX Series Articulating Crane Drop with Hose Reel (Model 14-073) is purpose-built to capture airborne contaminants directly at the source—before they can be inhaled by the operator or nearby personnel. Featuring a precision-engineered hood or nozzle, a large-diameter retractable hose, and a robust articulating boom, the system delivers near-total containment of exhaust, dust, and vapors right at the point of emission.

Function:

Motorized booms and hose retractors enable rapid deployment of the capture system to the emission zone. Once in place, contaminants are intercepted instantly upon release, ensuring immediate and effective capture. Engineered for industrial performance, the unit supports airflow rates up to 7000 CFM and velocities reaching 7500 FPM (yes, you read that correctly).

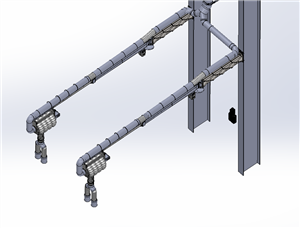

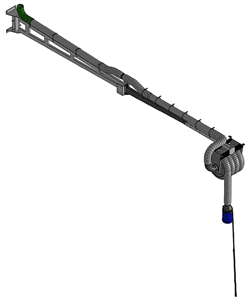

The articulating crane arm extends over 45 feet, offering full access to all sides of a vehicle. When not in use, it folds cleanly against the wall to maintain a clutter-free workspace.

Construction:

The H-MAX boom and Herculian Boom are fabricated from powder-coated and galvanized steel, with ball-bearing articulation at each pivot and integrated disc-brake friction locks for precise positioning. Each joint provides 180° rotation. The 14" hose reel assembly is constructed from heavy-gauge (10–18 ga) galvanized steel and houses a high-torque 120V Centris motor rated at 200 N·m.

Drawing a maximum of 790 Watts at 6.6 amps, the motor enables 12 full rotations of hose. The drum is supported by sealed bearings on the motor side and a laser-cut Teflon bearing on the duct side, ensuring smooth retraction and long service life with minimal maintenance

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P-025-XCPA-1204E9A-N4-20HP 18"H x 55"W x 48"D 80 lbs
MB-HERC 2"H x 17"W x 34"D 100 lbs
LD-240-BRACKET 7"H x 17"W x 21"D 40 lbs
LD-240-3 48"H x 42"W x 44"D 452 lbs
IN-RED-LIN-16-14 10"H x 16"W x 16"D 5 lbs
HRE-14-25-HT 44"H x 35"W x 44"D 250 lbs
HRE-12-33-HT 44"H x 35"W x 44"D 250 lbs
HRE-12-25-HT 44"H x 35"W x 44"D 250 lbs
HRE-10-33-HT 44"H x 35"W x 44"D 250 lbs
HRE-10-25-HT 44"H x 35"W x 44"D 250 lbs
H-MAX-HT-8D-4.5M "H x "W x "D 0 lbs
H-MAX-HT-8D-3M "H x "W x "D 0 lbs
H-MAX-HT-14D-4.5M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-12D-4M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-12D-4.5M "H x "W x "D 0 lbs
H-MAX-HT-12D-3M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-10D-4.5M "H x "W x "D 0 lbs
HERC-HD-4.5M-850-14D 24"H x 20"W x 161"D 300 lbs

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.

Part # Qty Description
HRE-10-25-HT 10" (250mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-10-33-HT 10" (250mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-25-HT 12" (305mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-33-HT 12" (305mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-14-25-HT 14" (350mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*

Part # Qty Description
H-MAX-HT-10D-4.5M HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-3M 10 (3000mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-12D-4.5M HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-4M 14' (4270mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-14D-4.5M 14' (4270mm) H-MAX Boom Kit 14" (350mm)Ø comes complete with:
  • 850° High temp 14" (350mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-8D-3M HMAX EXTENSION 10' (3000mm), 8" (200mm) HIGH TEMPERATURE 850° F.
H-MAX-HT-8D-4.5M HMAX EXTENSION 14' 7" (4500mm), 8" (200mm) HIGH TEMPERATURE 850° F.

Part # Qty Description
HERC-HD-3M-850-8D 10' (3000mm) HERCULIAN HD Articulating Extension Boom with 850º 8" (200mm) duct kit.
HERC-HD-4.5M-850-14D 4.5m (15') HERCULIAN Articulating Extension Boom complete with 14" (300mm)Ø 850° F hose & duct kit

Part # Qty Description
IN-RED-LIN-16-14 16" - 14" Duct Reducers, 22 gauge. RD
LD-240-3 10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP, 575/3/60, 1750 RPM
MB-HERC Entire assembly for Mounting Bracket for Herculian to mount to structural beam. Includes:
  • (2) mount clamps
  • Threaded rod
  • Required hardware
Only order 1 "MB-HERC" for each HERC boom
P-025-XCPA-1204E9A-N4-20HP Custom Thermal Feedback Loop Enclosed Panel Assembly. Controls fan ramp speed up/down based upon temperature and pressure in the system.

• 1x 60A Non-Fusible Disconnect – Rotary Type • 1x Line Side Fuse Holders (Fuses Included) • 1x Hand/Off/Auto Selector Switch • 1x “High Temp” Pushbutton • 1x Green LED Pilot Light – 24V • 2x Red LED Pilot Light – 24V • 2x Control Relays • 1x Buzzer • Terminal Blocks • English Labelling • 600 – 24V Control Transformer – 100VA (Fuses Included) • 600 – 240V Control Transformer – 500VA (Fuses Included) • NEMA 4/12 Metal Enclosure – Ventilated • Wired, Assembled & ETL/UL/CSA Approved • Made in Canada!
PYRO-6-850 6" (150mm)Ø, 2ply Silicone/Nomex hose (price per foot), colour Orange.
  • Standard factory cut ends

Frequently bought together these options:


Part # Qty Description
PYRO-12-1200 12” (300mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-14-1200 14” (350mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-16-1200 16” (400mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot
PYRO-8-1200 8" (200mm)Ø, 2 ply hose 1200° F - Suitable for use in constant flexing applications or with hose reels (price per foot). Color BLACK

Part # Qty Description
PYRO-10-850 10" (250mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-12-850 12" (300mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels color BLACK.
  • Rated up to 25" (630mm) of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approximately 2.1 lbs/foot
PYRO-14-850 14" (350mm)Ø, 2ply hose 850° F - price per foot.
PYRO-16-850 16" (400mm)Ø, 2ply hose 850° F - (1) piece 20ft length.
PYRO-8-850 8" (200mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: Orange
  • Minimum length 25' Max length 50'

Part # Qty Description
HERC-EXTENSION-120 HERC EXTENSION - 120" (10ft) in length. Used to increase length of HERC boom assemblies. Made of 1/4" steel. Same bolt pattern as the HERC bracket. Modular Assembly. To be bolted (1 1/8" bolts) and welded to a column.
HERC-EXTENSION-48 HERC EXTENSION - 48" in length. Used to increase length of HERC boom assemblies. Made of 1/4" steel. Same bolt pattern as the HERC bracket. Modular Assembly.To be bolted (1 1/8" bolts) and welded to a column.

Part # Qty Description
RCA-UCC Under Carriage Clip for RCA Nozzle. For quick connection to under carriage tailpipes

Part # Qty Description
RCA-12 12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipes

Part # Qty Description
14-QC-BS-SW-LWR Lower half of 14" (350mm) quick connect swivel.
Wall Hanger Wall Hanger for extra hose.
