Model

14-070

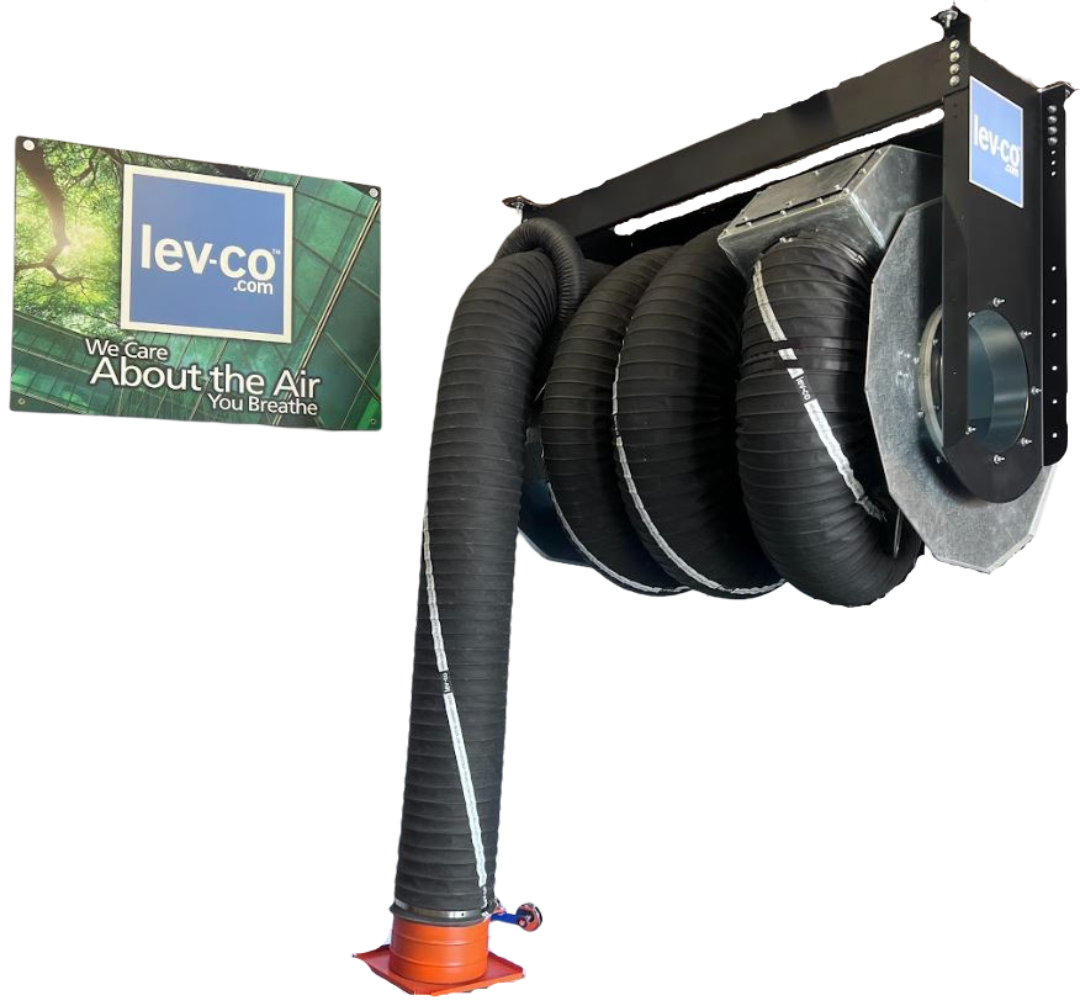

Image for hose reel -trans.png

Motorized Hose Reel - Ø 10''/12''/14'' hose up to 35' in length

The Patriot 7000 series hose reels are designed and engineered to safely capture airborne contaminants at the source — before an operator or nearby worker has the chance to inhale them. Using a purpose-built nozzle or hood attached to a durable, retractable hose, the system is deployed directly to the emission point. Once in position, it efficiently captures exhaust fumes, dust, and vapours the moment they are released, ensuring immediate containment. These systems are suitable for flow rates up to 7000 CFM.

Function:

By utilizing these reels and their compatible accessories, you ensure that exhaust gases, dusts, VOCs, and fumes — are captured right at the point of origin. The system is built to withstand high flowrates, extreme temperatures, high pressures, and abrasive conditions — making it ideal for continuous-duty, 24/7, heavy-duty operations. The reel’s motorized mechanism allows for fast, safe deployment and retraction of heavy-duty hoses and nozzles — reducing trip hazards, improving ergonomics, and supporting a cleaner, safer workspace. This solution empowers operators with the tools to maintain a healthy working environment and meet demanding industrial requirements with confidence. Main Options include:
  • Ambient Temperature Hose: suitable for temperatures up to 150º F
  • Low Temperature Hose: suitable for temperatures up to 350º F
  • High Temperature Hose: suitable for temperatures of 850º F
  • Ultra High temperature: suitable for temperatures up to 2000º F
  • Direct Mount Fans between 1HP to 30HP
  • Overhead Stack Adapters
  • Variable Frequency Drives
  • Horizontal Boom Extensions
NB: This reel is also an excellent solution for heavy welding, gouging, plasma, and flame cutting.

Construction:

    The hose reel is constructed from heavy-gauge (10-18 ga), powder-coated/galvanized steel for maximum durability in harsh industrial environments. It features a 120V high-torque 200 NM electric motor rewind system for smooth hose retraction and deployment. The motor is mounted internally, draws a maximum of 790 Watts at 6.6 amps, and provides access to 12 rotations of hose. The drum is supported by a motor-mounted sealed ball bearings on one end and a laser-cut Teflon bearing on the duct side, ensuring long service life with minimal maintenance.

    The hoses are high-temperature rated, reinforced with a steel wire helix and abrasion-resistant outer cover. All fittings are temperature- and chemical-resistant, with available options for tailpipe adapters, rubber nozzles, and hoods that are available both off the shelf and purpose-built. The entire assembly is designed to operate in high-flow, high-temperature exhaust applications, including those exceeding 850°F, and is suitable for continuous-duty 24/7 use. In addition to exhausting contaminated air, Patriot Hose reels can be used for exhausting and supply clean air to any indoor environment.
Note: The Hose will be shipped in a separate box unless stated otherwise

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
HRE-14-NH 44"H x 35"W x 44"D 250 lbs
HRE-14-25-HT 44"H x 35"W x 44"D 250 lbs
HRE-12-NH 44"H x 35"W x 44"D 250 lbs
HRE-12-33-HT 44"H x 35"W x 44"D 250 lbs
HRE-12-25-HT 44"H x 35"W x 44"D 250 lbs
HRE-10-NH 44"H x 35"W x 44"D 250 lbs
HRE-10-33-HT 44"H x 35"W x 44"D 250 lbs
HRE-10-25-HT 44"H x 35"W x 44"D 250 lbs
H-MAX-HT-14D-4.5M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-12D-4M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-12D-4.5M "H x "W x "D 0 lbs
H-MAX-HT-12D-3M 6"H x 6"W x 168"D 135 lbs
H-MAX-HT-10D-4.5M "H x "W x "D 0 lbs

Key Buying Criteria:

  • Space Saving: The hose reel is capable of holding up to 37'/32'/27' feet of 10"/12"/14" hose in a compact package
  • Perfect for bus stations, garages, or service stations
  • Easy Installation: Saves money on the need for an third party contractor
  • Hoods and nozzles weighing up to 44 lbs can be secured to end of the hose.
  • Additional non-retracting hose lengths can be added to the reel
  • Available as either wall, ceiling, or arm mounted, to accommodate multiple configurations
  • Versatile: With the use of flexible hose, our system can be manipulated for various exhaust configurations, including stack exhaust, and tailpipe

Suitable For:

Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Arc Air (Air Arcing) sparks, fumes, and smoke
  • Lancing sparks Fumes and smoke
  • Plasma Cutting and Gouging smoke, fumes and sparks
  • Chemical Fumes
  • Grinding Sparks
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
HRE-10-NH 10" (250mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 37ft of Hose Length
  • Driven by a 120 V Single Phase Motor
HRE-12-NH 12" (300mm) Motorized hose reel with no hose, suitable for applications:
  • Up to 2000° F
  • Up to 32ft of Hose Length
  • Driven by a 120 V Single Phase Motor
HRE-14-NH 14" (350mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 27ft of Hose Length
  • Driven by a 120 V Single Phase Motor

Part # Qty Description
HRE-10-25-HT 10" (250mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-10-33-HT 10" (250mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-25-HT 12" (305mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-33-HT 12" (305mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-14-25-HT 14" (350mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 220V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*

Part # Qty Description
H-MAX-HT-10D-4.5M HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-4.5M HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-3M 10 (3000mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-12D-4M 14' (4270mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-14D-4.5M 14' (4270mm) H-MAX Boom Kit 14" (350mm)Ø comes complete with:
  • 850° High temp 14" (350mm)Ø hose
  • Spiral duct kit across the top of the boom

Frequently bought together these options:


Part # Qty Description
RCA-10 10" (250mm) Diesel Stack Adapter with:
  • 12" (300mm) opening for exhaust pipes
RCA-12 12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipes
RCA-12/D 12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipe
  • Manual damper
RCA-12-12 12" (300mm) Diesel Stack Adapter with:
  • 12" (300mm) opening for exhaust pipes
RCA-14 10" (250mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipe
RCA-2MAG-KIT Magnet Mounting Kit for RCA nozzle with:
  • (2) 30lb magnets for sticking the nozzle to the side of metal equipment

Part # Qty Description
PYRO-12-1200 12” (300mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-14-1200 14” (350mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-10-850 10" (250mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-12-850 12" (300mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels color BLACK.
  • Rated up to 25" (630mm) of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approximately 2.1 lbs/foot
PYRO-14-850 14" (350mm)Ø, 2ply hose 850° F - price per foot.

Part # Qty Description
RELH-10-18-EXT Conical hood extension for 10" (250mm) hoods.
  • 18" (460mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-24-EXT Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-36-EXT Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-36-EXT-MG MAGNETIC Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum.
  • Bell Mouth Version
RELH-12-18-EXT Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 18" (460mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
90657-RELH-10-36-EXT Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-24-EXT Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-36-EXT Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
HOOD-CM-250-4-3-1 Gouging hood for 10" (250mm) hose connection.
  • 12 sq.ft Opening
  • 18G, Aluminum.
  • Hose Swivel Positioning Handle
  • High Heat Flame-resistant fabric liner with 45° flair around perimeter.
AG-Hood Air Gouging hood for 8" (200mm) hose connection.
  • 12 sq.ft Opening
  • 14G, Aluminum
  • For sparks/molten metal up to 3000° F
To be used for Arc Air Gouging process

Part # Qty Description
P-155-1 5 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-155-2 5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
RCA-UCC Under Carriage Clip for RCA Nozzle. For quick connection to under carriage tailpipes

Part # Qty Description
P-156-1 7.5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-156-2 7.5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
P-156-HF-1 10 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø nlet & outlet collar
P-156-HF-2 10 HP direct drive fan 575/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø inlet & outlet collar

Part # Qty Description
BI-270-65-2 10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 230-460V/3/60, 1750 RPM.
BI-270-65-3 10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 575V/3/60, 1750 RPM.
