Model

14-072

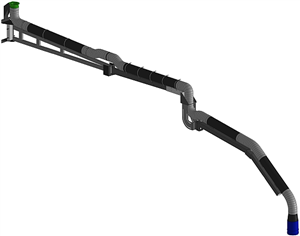

Vehicle Exhaust (Trucks & Heavy equipment.) Herculean Articulating Crane Drop with extraction arm - 8/10/12/14 inch dia Hoses

The VE Articulating Crane Drop with high temp "Self-Supporting" extraction arm allows you to position the nozzle/hood directly over the tailpipe of the vehicle without any mechanical connection. The entire assembly folds out of the way and against the wall (if applicable) the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (38')into the service bay and pass over the top of heavy equipment with ease.
  • Low Temp. Hose: suitable for temperatures up to 250º - 350º F
  • High Temp. Hose: suitable for temperatures of 850º - 1000º F
  • Ultra High temperatures available up to 2500º - 3500º F

Function:

The VE Articulating Crane Drop with high temp "Self-Supporting" extraction arm allows you to position the nozzle/hood directly over the tailpipe of the vehicle without any mechanical connection. The entire assembly folds out of the way and against the wall (if applicable) the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (38')into the service bay and pass over the top of heavy equipment with ease.
  • Low Temp. Hose: suitable for temperatures up to 250º - 350º F
  • High Temp. Hose: suitable for temperatures of 850º - 1000º F
  • Ultra High temperatures available up to 2500º - 3500º F

Construction:

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
VE-ACD-6-14-1000 48"H x 52"W x 192"D 700 lbs
VE-ACD-10-16-1000 48"H x 52"W x 192"D 700 lbs

Part # Qty Description
VE-ACD-10-16-1000 10m (30') Articulating crane for VE drops c/w 23' of 16 diameter 1000 deg. (F) hose.
VE-ACD-6-14-1000 6m (20') Articulating crane for VE drops c/w 25' of 14 diameter 1000 deg. (F) hose.

Frequently bought together these options:


Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD

Part # Qty Description
Wall Hanger Wall Hanger for extra hose.
