Model

14-082

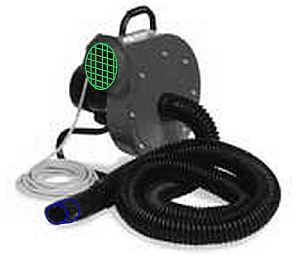

4.5''Ø Portable Vehicle Exhaust Solution VES-4 Fan (340 CFM up to 450 CFM with fan upgrade)

340 CFM*, 4.5” (115mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 340 CFM collection fan in a portable package. (See Options for Higher flow rates / CFM )
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher 208/230/460/575V).
Please Note: 340 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM.

Function:

340 CFM*, 4.5” (115mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 340 CFM collection fan in a portable package. (See Options for Higher flow rates / CFM )
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher 208/230/460/575V).
Please Note: 340 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM.

Construction:


Part # Qty Description
VES4-P-1/2HP 340 CFM*, 4.5” (115mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Portable exhaust collection system consisting of:
  • 1/2 HP TEFC motor/blower
  • 115V/1/60Hz with stand/mounting bracket
  • 25 ft of 4.5" (115mm)Ø inlet hose
  • 4.5" (115mm)Ø oval tailpipe connector
  • 8' of 6" 275° exhaust hose

Frequently bought together these options:


Part # Qty Description
2TL0-9012 5" (125mm) Tailpipe Connector for Trucks, Aluminum - connects to 4.5" (115mm)Ø hose.

Part # Qty Description
VES-1.0HP 1.0 HP 115V or 3 phase blower in place of standard 1/2 HP TEFC motor/blower.
VES-1.5HP Upgrade to 1.5HP 115V/1/60 Blower Option for Portable VES Unit.
VES-TAILPIPE-4 Delete Standard 4.5" (115mm) Oval Tailpipe connector without clamp and replace with 4.5" (115mm) oval connector with toggle-clamp option for VES Hose System.
