Model

14-081

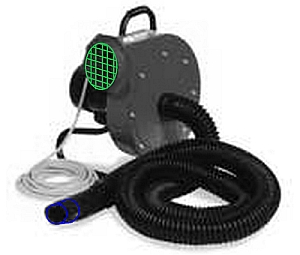

3''Ø Portable Vehicle Exhaust Solution VES-3 Fan (220 CFM)

220 CFM*, 3” (75mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 220 CFM collection fan in a portable package. (See Options for Higher flow rates/CFM)
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher voltages 208/230/460/575V).
Please Note: 220 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM.

Function:

220 CFM*, 3” (75mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 220 CFM collection fan in a portable package. (See Options for Higher flow rates/CFM)
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher voltages 208/230/460/575V).
Please Note: 220 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM.

Construction:

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
VES3-P-1/2HP 42"H x 27"W x 37"D 162 lbs

Part # Qty Description
VES3-P-1/2HP 220 CFM*, 3" (75mm)Ø Portable Vehicle Exhaust systems for exhaust removal applications. Portable VE System complete with the following components:
  • 1/2hp exhaust Fan
  • 115v Motor complete with Switch, 25’ cord and plug
  • 25' of 3" hose inlet / suction hose
  • Stand/mounting bracket
  • 3” (75mm)Ø twist lock round Tailpipe adapter
  • 8' of 6"Ø exhaust hose

Frequently bought together these options:


Part # Qty Description
7HD7-7302 3 x 25' long Rubber-Flex 275° rubber hose, price per 25 ft length.
VES-1.0HP 1.0 HP 115V or 3 phase blower in place of standard 1/2 HP TEFC motor/blower.
VES-1.5HP Upgrade to 1.5HP 115V/1/60 Blower Option for Portable VES Unit.
VES-TAILPIPE-3 Delete Standard 3" (75mm) Tailpipe connector with twist-lock and replace with 3" (75mm) oval connector with toggle-clamp option for VES Hose System.
