Model

14-055

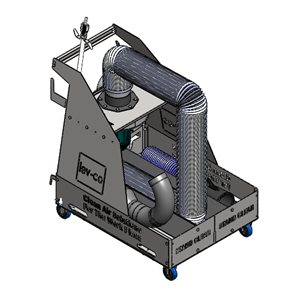

P2D2-R3 Multi-Purpose - 1150 CFM

The P2D2-R3 Multi-Purpose Portable Vehicle Exhaust System is an easy-to-position solution for removing diesel and car exhaust gases. This unit can capture exhaust fumes from a tall vertical stack or a common tailpipe. (Patent Pending)

Function:

The Multi-Purpose P2D2 is an "all-in-one" design with the purpose to capture 99%+ of all air-born emissions "at-source" before the emissions reach the operators' breathing zone. This unit is ideal for capturing smoke and fumes for cars, busses, motorcycles, as well as gas from diesel trucks and heavy equipment.

The system is suitable for servicing entire facilities, all bays (extra door ports may be required), and can service both overhead and under-carriage exhaust pipes. With ball-bearing castors, the unit is easily transported to and from job sites, under the garage door, or through door/wall exhaust. This portable unit is centered around one-person deployment and operation, allowing the operator to position the nozzle on an OVERHEAD stack without the use of a ladder.

This Plug and Go unit has a sturdy trolley that allows for storing all ventilation components, easy-to-store exhaust hose, and locking casters that ensure the base unit stays in place during use. The powerful exhaust fan removes exhaust gases directly into the atmosphere, with a typical flow rate of 1150CFM for the system.

Main options include:
  • Exhaust Hose: Up to 100' length and 2500° F. rating
  • Overhead Stack Adapter
  • Variable Frequency Drive
  • Hose Accessories

Construction:

  • Portable and Easy to Position - (6) Heavy-duty casters (2 straight, 4 swivel)
  • “All-In-One” Design – “on-cart” storage for all hoses, hoods, etc.
  • All Steel Heavy Duty Construction - 3/14/16 ga.
  • Spark Proof Design and Construction
  • Environmentally Friendly VFD Control – Variable exhaust rate to ensure energy-saving efficiency
  • 6.5''/8''Ø Hoses
  • Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
  • Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
  • Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
  • Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
  • Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
  • Equipment over 500HP - Call Lev-co for exact product selection

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P2D2-R3-8D 86"H x 40"W x 48"D 280 lbs
P2D2-R3 86"H x 40"W x 48"D 280 lbs

Key Buying Criteria:

  • All-In-One: The whole assembly has the ability to store everything related to the unit, making teardown and setup times much shorter, as well as taking up less storage space
  • Maneuverable: With the use of ball-bearing castors, moving the unit around can easily be done by one person
  • Point-Source Extraction: With 25 feet of flexible hose, and the maneuverability of the system, fumes can be extracted before escaping the source
  • Energy-Saving: With the use of a VFD, you can program the suitable flowrate for any application, which is energy-saving, and efficient
  • Distance Coverage: With the use of exhaust up to 100' long, point-source extraction can be achieved from almost anywhere within a 100' distance to outdoor access

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Chemical Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
P2D2-R3 Portable Vehicle Exhaust system. 1.5HP 115V/1/60. 1150 CFM System comes complete with:
  • 25' of 8" (200mm)Ø exhaust hose
  • 10' of 6" (150mm)Ø inlet hose
  • 6" (150mm) to 8" (200mm)Ø Vice-Grip nozzle - 600° silicon rubber for bottom exhaust
  • 6" (150mm) to 10" (250mm)Ø nozzle - 15' of 600° silicon extension hose for top exhaust
  • 15' power cord
  • Motor Starter and Overload protection
  • Storage for both the exhaust and inlet hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
P2D2-R3-8D Portable Vehicle Exhaust system. Fan ordered separately with motor mounting plate to suit.
  • 25' of 10" (250mm)Ø exhaust hose
  • 10' of 8" (200mm)Ø inlet hose
  • 8" (200mm)Ø Vice-Grip nozzle - 600° silicon rubber for bottom exhaust
  • 8" (200mm) to 10" (250mm) nozzle - 15' of 600° silicon extension hose for top exhaust
  • Storage for both the exhaust and inlet hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety

Frequently bought together these options:

Part # Qty Description
P2D2-R3-FLEXI-160-10 Portable Vehicle Exhaust system. 1.5HP 115V/1/60. 1150 CFM System comes complete with:
  • 25' of 8" (200mm) exhaust hose
  • 10' FLEXII 6.33" (160mm) inlet extraction arm
  • 15' power cord
  • Motor starter & overload protection
  • Storage for exhaust hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
P2D2-R3-FLEXI-160-7 Portable Vehicle Exhaust system. 1.5HP 115V/1/60. 1150 CFM System comes complete with:
  • 25' of 8" (200mm)Ø exhaust hose
  • 7' FLEXII 6.33" (160mm) inlet extraction arm
  • 15' power cord
  • Motor starter & overload protection
  • Storage for exhaust hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
Part # Qty Description
P2D2-R3-FLEXI-200-10 Portable Vehicle Exhaust system. 1.5HP 115V/1/60. 1150 CFM System comes complete with:
  • 25' of 8" (200mm)Ø exhaust hose
  • 10' FLEXII-8" (200mm) inlet extraction arm
  • 15' power cord
  • Motor Starter and Overload protection
  • Storage for exhaust hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
P2D2-R3-FLEXI-200-7 Portable Vehicle Exhaust system. 1.5HP 115V/1/60. 1150 CFM System comes complete with:
  • 25' of 8" (200mm)Ø exhaust hose
  • 7' FLEXII-8" inlet extraction arm
  • 15' power cord
  • Motor Starter and Overload protection
  • Storage for exhaust hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
Part # Qty Description
P2D2-R3-LFR Layflat hose reel/storage for the P2D2-R3 model.
  • This part # includes all bolt-on parts to reto-fit a P2D2-R3 model with the layflat hose reel storage system
  • Extension push handle included
Part # Qty Description
PT-SFH-14 Silicone fiberglass hose 14" (350mm) - not suitable for hose reels.
  • Sold per ft. 25ft minimum
PT-SFH-8 Silicone fiberglass hose 8" (200mm)Ø.
Part # Qty Description
RCA-8/D 10" (250mm) Diesel Stack Adapter with:
  • 8" (200mm) opening for exhaust pipe
  • Manual damper
Part # Qty Description
P2D2-STK-SUP P2D2 R3 "Shopping cart" swivel stack and clasp support structure assembly
  • 10 Ga mild steel
US-D-Y-RL-8X8X8-45 8" x 8" x 8" 45-Degree wye fitting with Rolled lip connection on all sides for use with Quick lock ducting and clamps
LFD-14-50-HT 50' Exhaust hose x 14" (350mm)Ø - Lay Flat Ducting for Portable Fan.
Part # Qty Description
RCA-6-EXT-PVEC 10" (250mm) Diesel Stack Adapter with:
  • 6' extension hose for portable vehicle exhaust cart (P2D2-R1-V3)
RCA-8-EXT-PVEC 10" (250mm) Diesel Stack Adapter with:
  • 15' extension hose for portable vehicle exhaust cart
IN-RED-LIN-14-8 Reducer 14-8
IN-RED-LIN-14-8 Reducer 14-8
LFD-14-25-HT 25' Exhaust Hose x for 14" (350mm)Ø duct - Lay Flat Ducting for Portable Fan.
LFD-8-100-HT 100' Exhaust hose x 8" (200mm)Ø - Lay Flat Ducting for Portable Fan with velcro.
  • One end with 1" (25mm) hook
  • One end with 1" (25mm) loop
LFD-8-25-HT 25' Exhaust hose x 8" (200mm)Ø - Lay Flat Ducting - for Portable Fan with velcro
  • One end with 1" (25mm) hook
  • One end with 1" (25mm) loop
