Model

14-056

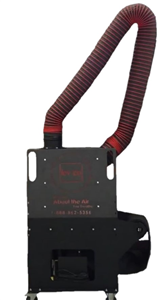

Image for P2D2-R2.jpg

P2D2-R2 - 1800 CFM

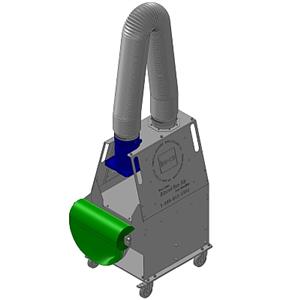

The P2D2-R2 Portable Vehicle Exhaust System is an easy-to-position solution for removing diesel and car exhaust gases. Ideally suited in areas where conventional exhaust systems cannot reach or exceed budgetary limits. (Patent Pending)

Function:

The P2D2 is an "All-in-one" design with the purpose to capture 99%+ of all air-born emissions "at-Source" before the emissions reach the operators' breathing zone. This unit is ideal for capturing smoke and fumes for cars, busses, motorcycles, gas & diesel trucks & heavy equipment.

The system is suitable for servicing entire facilities, all bays (extra door ports may be required), and servicing both overhead and under-carriage exhaust pipes. The unit transports well to and from job sites, under the garage door, or through door/wall exhaust. This portable unit is centered around one-person deployment and operation, allowing the operator to position the nozzle on an OVERHEAD stack without the use of a ladder.

This Plug & Go unit has a sturdy trolley that allows for storing all ventilation components, easy-to-store exhaust hose, and locking casters that ensure the base unit stays in place during use. The powerful exhaust fan removes exhaust gases directly into the atmosphere, with a typical flow rate between 100CFM and 1800CFM depending on the fan size for the system.

Main options include:
  • Exhaust Hose: Up to 100 feet length and 2500 degrees F. Temp. rating
  • Exhaust fans ranging from 1.5HP to 20HP
  • Overhead Stack Adapter
  • Variable Frequency Drive

Construction:

  • Portable & Easy to position - 6 Heavy-duty casters (2 straight, 4 swivel)
  • “All-in-one” design – “on-cart” storage for all hoses, hoods, etc.
  • All steel heavy duty construction - 3/14/16 ga.
  • Spark Proof design and construction
  • Environmentally friendly VFD control – Variable exhaust rate ensures energy-saving efficiently
  • Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
  • Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
  • Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
  • Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
  • Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
  • Equipment over 500HP - Call Lev-co for exact product selection

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P2D2-R2-V4-00 96"H x 96"W x 42"D 400 lbs
P2D2-R2-5HP-3 96"H x 96"W x 42"D 400 lbs
P2D2-R2-5HP-2 106"H x 38"W x 49"D 300 lbs
P2D2-R2-3HP-3 106"H x 38"W x 49"D 300 lbs
P2D2-R2-3HP-2 106"H x 38"W x 49"D 300 lbs
P2D2-R2-3HP-1 106"H x 38"W x 49"D 300 lbs
P2D2-R2-20HP-2 106"H x 38"W x 49"D 300 lbs
P2D2-R2-10HP-3 106"H x 38"W x 49"D 300 lbs
P2D2-R2-10HP-2 106"H x 38"W x 49"D 300 lbs
P2D2-R2-1.5HP-3 106"H x 38"W x 49"D 300 lbs
P2D2-R2-1.5HP-2 106"H x 38"W x 49"D 300 lbs
P2D2-R2-1.5HP-1 106"H x 38"W x 49"D 300 lbs

Key Buying Criteria:

  • All-in-one: The whole assembly has the ability to store everything related to the unit, making teardown and setup times much shorter, as well as taking up less storage space
  • Maneuverable: Ball-bearing castors allows for easy movement by a single operator
  • Point-source extraction: 25 feet of flexible non-kink hose allows extraction from awkward locations with minimal setup
  • Energy-saving: VFD technology means that you can program the suitable flowrate for any application, which is energy-saving, and efficient
  • Distance coverage: With the use of exhaust up to 100 feet long, point-source extraction can be achieved from almost anywhere within a 100 foot distance to outdoor access

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Chemical Fumes
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
P2D2-R2-1.5HP-1 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850 hose 200 mmØ (8)
  • 1.1 KW (1.5 hp) fan
  • 115V/1/60
  • 12 Amp
  • Electric switch with overload protection bracket
  • 15' Cable and plug
  • ESA (Electrical safety Authority) approved
  • 5" dia. straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8") diameter layflat 600 degree hose.
P2D2-R2-1.5HP-2 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850 hose 200 mmØ (8)
  • 1.1 KW (1.5 hp) fan
  • 460V/3/60
  • 12 Amp
  • Electric switch with overload protection bracket
  • 15' Cable and plug
  • ESA (Electrical safety Authority) approved
  • 5" dia. straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8) diameter layflat 600 degree hose.
P2D2-R2-1.5HP-3 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850 hose 200 mmØ (8)
  • 1.1 KW (1.5 hp) fan
  • 575V/3/60
  • 12 Amp
  • Electric switch with overload protection bracket
  • 15' Cable and plug
  • ESA (Electrical safety Authority) approved
  • 5" dia. straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8) diameter layflat 600 degree hose.
P2D2-R2-3HP-1 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850° hose 200 mmØ (8)
  • 2.2 KW (3 hp) fan (P-154 Fan)
  • 115-230V/1/60
  • Electric switch with overload protection bracket
  • 15' Cable
  • ESA (Electrical safety Authority) approved
  • 5" straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8") diameter layflat 600 degree hose.
P2D2-R2-3HP-2 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850° hose 200 mmØ (8)
  • 2.2 KW (3 hp) fan (P-154 Fan)
  • 230v-460v/3/60
  • Electric switch with overload protection bracket
  • 15' Cable
  • ESA (Electrical safety Authority) approved
  • 5" straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8") diameter layflat 600 degree hose.
P2D2-R2-3HP-3 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850° hose 200 mmØ (8)
  • 2.2 KW (3 hp) fan (P-154 Fan)
  • 575v/3/60
  • Electric switch with overload protection bracket
  • 15' Cable
  • ESA (Electrical safety Authority) approved
  • 5" straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 200 mm (8") diameter layflat 600 degree hose.
P2D2-R2-5HP-2 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850 hose 200 mmØ (8)
  • 5 hp fan
  • 230,460,/3/60
  • Electric switch with overload protection bracket
  • 15' Cable and plug
  • ESA (Electrical safety Authority) approved
  • 5" straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 16" diameter layflat 600 degree hose.
P2D2-R2-5HP-3 Portable P2D2 base unit which comes with the following components:
  • 3M (10') Flexi-II extraction arm
  • 850 hose 200 mmØ (8)
  • 5 hp fan
  • 575V/3/60
  • Electric switch with overload protection bracket
  • 15' Cable and plug
  • ESA (Electrical safety Authority) approved
  • 5" straight and locking caster
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 14" diameter layflat 600 degree hose.
P2D2-R2-10HP-2 Portable P2D2 base unit which comes with the following components:
  • NOW COMES COMPLETE WITH HOSE RECOILER
  • 3M (10') Flexi-II extraction arm
  • 1500° hose 200 mmØ (8)
  • 7.5 KW (10 hp) fan
  • 230-460V/3/60
  • Electric switch with overload protection bracket
  • 15' Cable, switch, overload and twist-lock plug
  • ESA (Electrical safety Authority) approved
  • Heavy Duty locking/swivel casters
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel
* Heat dissipation nozzle/hood for vertical stacks
P2D2-R2-10HP-3 Portable P2D2 base unit which comes with the following components:
  • NOW COMES COMPLETE WITH HOSE RECOILER
  • 3M (10')High Temperature Flexi-II extraction arm
  • 1500° hose
  • 7.5 KW (10 hp) fan
  • 575V/3/60
  • Electric switch with overload protection bracket
  • 15' Cable, switch, overload and twist-lock plug
  • ESA (Electrical safety Authority) approved
  • Heavy Duty locking/swivel casters
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel
P2D2-R2-20HP-2 Portable P2D2 base unit which comes with the following components:
  • NOW COMES COMPLETE WITH HOSE RECOILER
  • 3M (10') Flexi-II extraction arm
  • 1500° hose 250 mmØ (10)
  • 20hp fan
  • 230-460V/3/60
  • Electric switch with overload protection bracket
  • 15' Cable, switch, overload and twist-lock plug
  • ESA (Electrical safety Authority) approved
  • Heavy Duty locking/swivel casters
  • Handholds that double as lifting points when using an overhead crane
  • Safety rubber covers on all hose clamps wheels and exhaust hose
  • Positioning telescopic pole for positioning hood over Vertical tailpipe
  • 7.5M (25') of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel
* Heat dissipation nozzle/hood for vertical stacks
P2D2-R2-V4-00 P2D2-R2 laser cut components - V4

Frequently bought together these options:

Part # Qty Description
PT-SFH-14 silicone fiberglass hose 14 dia.-not suitable for hose reels
  • sold per ft. 25ft min.
PT-SFH-8 silicone fiberglass hose 8 dia.-can we have this cut in two peices of 5'
Part # Qty Description
RCA-8/D 10" Diesel Stack Adapter with:
  • 8" opening for exhaust pipe
  • Manual damper
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part # Qty Description
IN-RED-LIN-14-8 Reducer 14-8
IN-RED-LIN-14-8 Reducer 14-8
LFD-14-25-HT 25' Exhaust hose x for 14" dia duct. - Lay Flat Ducting - for Portable Fan
LFD-8-100-HT 100' Exhaust hose x 8dia. - Lay Flat Ducting - for Portable Fan with velcro(one end with 1"hook/one end with 1"loop).
LFD-8-25-HT 25' Exhaust hose x 8dia. - Lay Flat Ducting - for Portable Fan with velcro(one end with 1"hook/one end with 1"loop).
