Model

14-075

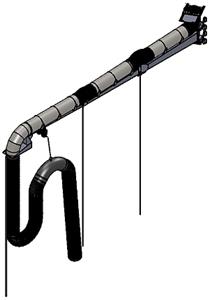

G-MAX Heavy Vehicle Exhaust (Mining equipment, Other Heavy equip.) Articulated Crane Drop for Hose - up to 30” dia. (up to 25,000 CFM)

The G-MAX Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to position the extraction system against the wall and out of the way. The G-MAX Articulating Crane will reach as far as 36ft into the service bay and pass over the top of heavy equipment with ease, it is made from three articulated booms which allows you also to avoid any obstacles in the bay.
  • Low Temp. Hose: suitable for temperatures up to 250º F
  • High Temp. Hose: suitable for temperatures of 600º F
  • Ultra High temperatures available up to 2500º F

Function:

The G-MAX Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to position the extraction system against the wall and out of the way. The G-MAX Articulating Crane will reach as far as 36ft into the service bay and pass over the top of heavy equipment with ease, it is made from three articulated booms which allows you also to avoid any obstacles in the bay.
  • Low Temp. Hose: suitable for temperatures up to 250º F
  • High Temp. Hose: suitable for temperatures of 600º F
  • Ultra High temperatures available up to 2500º F

Construction:


Part # Qty Description
G-MAX-32-v14-2X-R0 double articulating GMAX complete with the following features and specifications.
  • double articulation complete with 12' primary boom and 20' secondary boom
  • internal honeycomb design
  • 40 feet of 14" dia 1500 degree hose.
  • dual position pneumatic blast gate
  • electric balancer
  • motorized primary articulation (complete with remote control
  • 3 hose swivels
  • quick connection (male and female supplied)
  • orbital brake on secondary articulation
G-MAX-36-v18-00-R0 33' Articulating Crane for VE drops c/w 40' of 18 diameter hose... Suitable for 700 degree applications including with:
  • Lifting elbow
  • Swivels
  • Electric Balancer
This was originally called 'G-MAX-36' when it was added as a custom product by the sales rep.
G-MAX-36-v24-00-R0 10m (33') Articulating crane for VE drops c/w 40' of 24 diameter 1000 deg. (F) hose. This was originally called 'G-MAX-36' when it was added as a custom product by the sales rep.
G-MAX-36-v24-B1-00-R0 G-MAX FIRST BOOM SECTION
WBB-36 G-MAX Wall Bracket with Boom Sections

Frequently bought together these options:


Part # Qty Description
___" S-NOZ Single Nozzle ___" Diameter
___" W-HOOD Welding hood ___" Diameter
___" Y-NOZ Wye Nozzle ___" Diameter
WBB-36H-___ ___ diameter Hose
WBB-36H-DECR-___ ___ Long - _______ Temp Hose - ______ KG

Part # Qty Description
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD

Part # Qty Description
LEV-PBG-3P-24-00 24Ø, 3 POSITION PNEUMATIC BLAST GATE
LEV-QC-18-00-R0 18"D Quick Connector for the end of the G-Max hose for fast connecting to tailpipe adaptor
ROPE-YELLOW-3/8 3/8" Yellow Rope,sold by complete spool of 630feet
