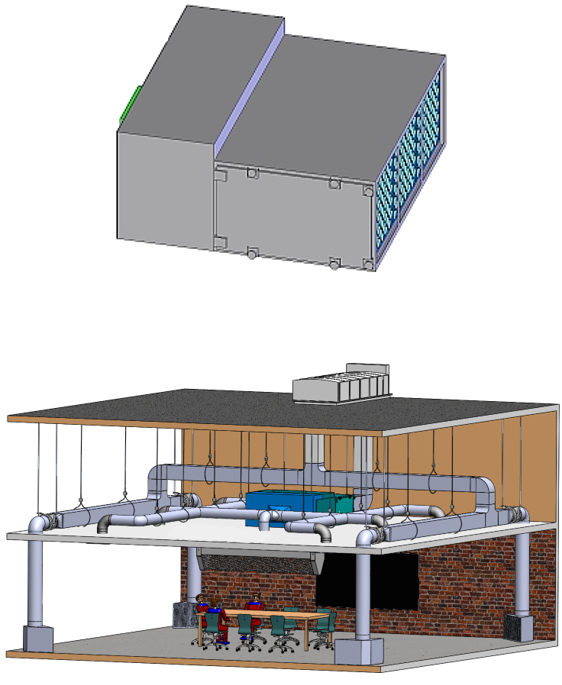

Animated diagram for Ducted Air Cleaners

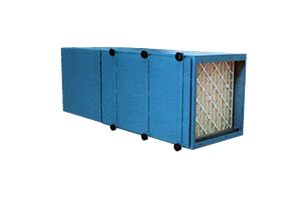

Ducted Air Cleaners
1. What is it?
Ducted Air Cleaners are used in a variety of applications where the filter selection often requires a specific configuration. With these collectors you can select a variety of particulate, liquid or gas phase filters such as “HEPA” filters, “Mist Agglomerators” and “Gas Adsorbers” respectively. These systems are available with or without pre-engineered and installed fan packages.

Here are some general design velocities when using "CAPTURE" Hoods:

Smoke (e.g. Welding):
  • Capture Velocity 100 FPM
  • Transport Velocity 3000 FPM
  • Minimum Face Velocity 2355 FPM
Dust (e.g. Grinding):
  • Capture Velocity 500 FPM
  • Transport Velocity 4000 FPM
  • Minimum Face Velocity 4000 FPM
Gas (e.g. V.O.C.'s):
  • Capture Velocity 50 FPM
  • Transport Velocity 2000 FPM
  • Minimum Face Velocity 785 FPM
Mist:
  • Capture Velocity 100 FPM
  • Transport Velocity 2250 FPM
  • Minimum Face Velocity 1766 FPM
3. Will it make my workplace safer?
Yes, but only when systems are configured, installed, and maintained for the correct use application. Choosing the right filter is essential for ensuring the reliability, effectiveness, and safety of your unit.
4. Suitable industries & environments
For a full list of industries, refer to our Industry solution page.
5. Available models and variants
For a list of available models, check out our catalog below.
6. Preventing the spread of airborne fumes & chemicals
Industrial workers are exposed to a variety of health hazards every day. As a result, these workers risk the possibility of becoming sick, ill, and disabled for life. In the year 2000, WHO estimates that unintentional poisonings caused 300 000 deaths.

This is our mission, but it will only succeed if we use and configure the right equipment. Our team works to make the logistics of those questions as straightforward and coherent as possible, and as such, will work with you to provide you with the best extraction system that fits your worker's needs. Including accessibility, usability, and reliability.

You can read more about the risks and preventions of fume extraction below:

OSHA
WHO
08-006
VOC2.0 Air Cleaner - Ducted Air Cleaner
voc2.0-gas-phase-industrial-voc-air-purifier - Main Image
The VOC2.0 industrial air cleaner units are designed to adsorb and remove VOCs and odours from industrial applications. It is typically used to treat gases released from painting operations and other odour and “Gas-Phase” contaminants.

VOC industrial air cleaner has the ability to store large amounts of adsorption media (Eg: activated carbon) is where this solution stands out.

The VOC2.0 air purifier allows for long DWELL times as required in many applications. Also can be equipped with various adsorption media such as Activated Carbon, Potassium Permanganate, Zeolite, Porocel, Activated Bauxite, activated alumina and others.

This extended dwell time coupled with a wide range of adsorbents helps you design an air purifier VOC solution that is precise and complies with most air quality regulations.

Main Options Include:
  • Inlet Plenums
  • Casters
  • Hose with temp range up to 300°F (150°C)


NB: Lev-co strongly recommends using preventative maintenance and air quality assurance accessories such as Pressure gauges, Air quality monitors, Run-timers/counters, etc. Please review these options with your Lev-co SME for more information.
Attachments
001 - Equipment Specification and Dimension Drawings:
10-000
1000-D - Ducted Air Cleaner
1000-d-ducted-ceiling-mount-air-cleaner - Main Image
The 1000-D above ceiling air cleaner features a flow rate of 1000 CFM. This model is great for rooms where space below the ceiling is challenging but has space above the ceiling for mounting.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options. Can be configured for congested areas


The first stage pre-filter is a multi-density, 2" thick polyester that removes dust and larger particles with 88% dust resistance and can be cleaned or replaced when dirty.

The second stage multi-pocket extended surface high-efficiency filter has 99% dust arrestance efficiency and 95% efficiency on atmospheric dust removing smoke, dust, bacteria, and other sub-micron size particles from the air. Its large surface area ensures long life.

The third stage, 1/2" thick charcoal filter traps odours and gases. Final ODOR/EX cartridge permits room deodorization in addition to odour removal.

The mounting solutions for this model can be either from the wall or tucked up inside the ceiling.

Main options:
  • Filter options
  • Replacement Hoses
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
10-001
F90 - Ducted Air Cleaner
f90-pre-engineered-ducted-ceiling-mount-air-cleaner-fan-filters-dust-gases-smoke - Main Image
F90 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stage filtration . This model features a flow rate of 2800 CFM .

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options, allowing for installation in congested areas


The F-90 ducted Industrial Air Cleaner comes standard with (1) 4” deep 30% pleated pre-filter, (1) 65% bag filter, 96ft² of media, and a 1.5 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
10-002
F120 - Ducted Air Cleaner
f120-pre-engineered-ducted-ceiling-mount-air-cleaner-fan-filters-dust-gases-smoke - Main Image
F120 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stage filtration . This model features a flow rate of 3800 CFM .

  • Largest filtration, smallest dimensions
  • Multiple configurations available, allows for installation in tight/congested areas


The F120 ducted Industrial Air Cleaner comes standard with (1) 4” deep 30% pleated pre-filter, (1) 65% bag filter, 120ft² of media, and a 2.0 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
002 - Brochures:
004 - Product Videos:
10-003
F240 - Ducted Air Cleaner
f240-pre-engineered-ducted-ceiling-mount-air-cleaner-fan-filters-dust-gases-smoke - Main Image
F240 models are designed to collect airborne dust, smoke, oil mist, oil smoke and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration . This model features a flow rate of 6000 CFM .

  • Largest filtration, smallest dimensions
  • Multiple configurations allows for installation in tight/congested areas


The F240 ducted Industrial Air Cleaner comes standard with (2) 4” deep 30% pleated pre-filter, (2) 65% bag filter, 120ft² of media ea. and a 5 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
  • Sound Attenuation
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
10-004
F360 - Ducted Air Cleaner
f360-pre-engineered-ducted-ceiling-mount-air-cleaner-fan-filters-dust-gases-smoke - Main Image
F360 models are designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration . This model features a flow rate of 9000 CFM .

  • Largest filtration, smallest dimensions
  • Multiple configurations allows for installation in congested areas


The F360 ducted Industrial Air Cleaner comes standard with (3) 4” deep 30% pleated pre-filter, (3) 65% bag filter, 96ft² of media each, and a 10 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

The unit can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
10-005
F480 - Ducted Air Cleaner
f480-pre-engineered-ducted-ceiling-mount-air-cleaner-fan-filters-dust-gases-smoke - Main Image
F480 models are designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration . This model features a flow rate of 12000 CFM .

  • Largest filtration, smallest dimensions
  • Multiple configurations makes installation possible in congested/tight areas


The F480 ducted Industrial Air Cleaner comes standard with (4 pcs) 4” deep 30% pleated pre-filter, (4 pcs) 65% bag filter, 96ft² of media each, and a 15 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The filter unit can be upgraded to have different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
  • Sound Attenuation
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
10-006
200 - Ducted Air Cleaner
200-pre-engineered-ducted-ceiling-mount-air-filters-dust-gases-smoke-no-fan - Main Image
The 200 Ducted Air Cleaner is a blower-less unit designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration. This model features a flow rate anywhere from 1000 - 2000 CFM (multiple units can be combined for greater CFM).

  • Largest filtration, smallest dimensions
  • Modular configuration allows for installation in congested areas


Blower-less filtration housing designed with up to 4 stages of filtration for industrial applications. Filter system comes standard with (1) 4” deep 30% pleated pre-filter, (1) 65% bag filter, 120ft² of media. System can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Filter Options
  • Backward Inclined Centrally Ducted Fans
  • Pressure Gauges
  • Variable Frequency Drives
10-007
202 - Ducted Air Cleaner
202-pre-engineered-ducted-ceiling-mount-air-filters-dust-gases-smoke-no-fan - Main Image
The 202 Ducted Air Cleaner is a blower-less unit designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration. This model features a flow rate anywhere from 2000 - 4000 CFM (multiple units can be combined for greater CFM).

  • Largest filtration, smallest dimensions
  • Modular configuration options allow for installation in congested/tight areas


Blower-less filtration housing designed with up to 4 stages of filtration for industrial applications. Filter system comes standard with (2) 4” deep 30% pleated pre-filter, (2) 65% bag filter, 120ft² of media (per filter). The system can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
10-008
203 - Ducted Air Cleaner
203-pre-engineered-ducted-ceiling-mount-air-filters-dust-gases-smoke-no-fan - Main Image
The 203 Ducted Air cleaner is a blower-less unit designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration. This model features a flow rate anywhere from 3000 - 6000 CFM (multiple units can be combined for greater CFM).

  • Largest filtration, smallest dimensions
  • Multiple configurations allows for installation in congested areas


Blower-less filtration housing designed with up to 4 stages of filtration for industrial applications. Filter system comes standard with (3) 4” deep 30% pleated pre-filter, (3) 65% bag filter, 120ft² of media (per filter). The system can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
10-010
1500-D - Ducted Air Cleaner
1500-d-ducted-ceiling-mount-air-cleaner - Main Image
The 1500-D ducted air cleaner features a flow rate of 1500 CFM, and is designed to remove dust, bacteria, pollen, and lint while maintaining low noise, low visibility, and high filter capacity and efficiency.

The 1500-D air cleaner features a 2” polyester pre-filter, 95% main filter that is 54 ft2, ½” charcoal after filter, and ODOR/EX deodorizer cartridge. The included fan features a ½HP, 115V, 9.9 amp, 2-speed motor, with a 2-speed switch.

The unit comes complete with 16” diameter inlet & outlet collars, wall switch & cover plate.

The 1500-D ducted air cleaner is completely self-contained, and can be mounted from either the wall or in the ceiling.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
10-011
Modular Side Access Housing- Ducted Air Cleaner
pre-engineered-ducted-ceiling-mount-air-filters-dust-gases-smoke-no-fan - Main Image
The modular filter housing is a blower-less filtration housing designed with up to 5 stages of filtration for filtering out airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial applications. individual units have an airflow rating of 500-4000 CFM. Airflow of combined units ranges from 1000-20000 CFM.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options, allowing for installation in congested areas.


This filter system comes standard with 3 sets of modular tracks to hold 1", 2", or any other filters with a 1" header. The modular aspect of this model is useful for achieving the correct sizing and number of filters required for the specific application.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The mounting options range from the ceiling to the wall, and can either be suspended or directly mounted.

Main Options:
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
