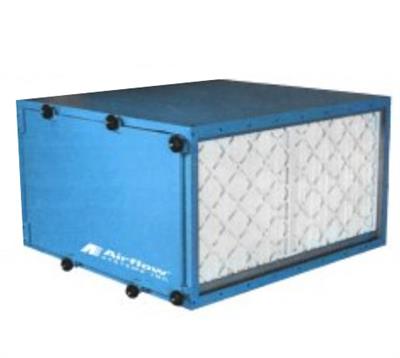

202 - 4000 CFM

The 202 Ducted Air Cleaner is a blower-less unit designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration. This model features a flow rate anywhere from 2000 - 4000 CFM (multiple units can be combined for greater CFM).

  • Largest filtration, smallest dimensions
  • Modular configuration options allow for installation in congested/tight areas
FUNCTION
Blower-less filtration housing designed with up to 4 stages of filtration for industrial applications. Filter system comes standard with (2) 4” (100mm) deep 30% pleated pre-filter, (2) 65% bag filter, 120ft² of media (per filter). The system can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • 16 ga. welded zinc-coated steel cabinet
  • Two part chemical and oil resistant paint
  • ULTRA-SEAL filter mounting system
  • Hinged side access doors to filters
  • Blower less
KEY CRITERA
  • Contaminant-Specific Designs: Ability to tailor filter selection for specific contaminant, including air-cloth ratio
  • Variable Flowrate between 2000-4000CFM, giving the ability to set flowrate to suit specific applications
  • Welded Construction: Eliminates the possibility of leaks between panels often found with bolted panel construction
  • Ideal as an after filter for dust collectors, where higher efficiency is needed
  • Environmental Resistance: Finished with a two part chemical and oil resistant paint, making it very resistant to harmful elements found in industrial facilities
  • Modular: Multiple units can be combined for higher flowrates to meet the spec required for any application
  • Ultra-Seal Filter Mount eliminates potential contaminant bypass of filters
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
202
Modular air cleaner, blower less - includes:
  • (2) 4” (100mm) pleated 30% pre-filters
  • (2) 95% main filters, 120 sq. ft.
MS202-CV
Modular air cleaner, blower less - includes:
  • (2) 4” (100mm) pleated 30% pre-filters
  • (2) 95% main filters, 120 sq. ft.

Part #
Description
200-0.65
65% Bag Filter Option for Standard 200 Unit.
202-2A
(2) 2" (50mm) aluminum mesh filter in place of (2) 4" (100mm) pleated pre-filter.
202-2P
(2) 2" (50mm) polyester filter, 4.0 sq.ft. in place of 4" (100mm) pleated pre-filter; metal frame with replaceable pad.
202-95DOP
95% DOP HEPA Filter Option for Standard 202 Unit.
202-AD
Adsorption option, includes:
  • (2) 4" (100mm) pre-filter
  • (2) 95% short bag filter (64 sq.ft.)
  • (2) refillable, v-bank absorber modules
  • (2) 2" (50mm) pleated after-filter, 100 lbs. capacity, rate 4000 cfm
Order charcoal separately. (Adds 44 lbs. to ship weight)
202-AR
Auto-Roll Pre-filter Option for Standard 202 Unit.
202-CV
CHEVRON® option, includes:
  • (2) 2" (50mm) aluminum mesh pre-filter
  • (2) 4" (100mm) CHEVRON ® mist eliminator
  • (2) 95% bag filter (120 sq.ft.)
  • (2) drains in cabinet (3/4 FPT)
202-EC
(2) Easy clean, polyester membrane, cleanable bag filter, 80% efficiency; replaces standard 95% throw-away filter.
202-HEPA
99.97% DOP HEPA Filter Option for Standard 202 Unit
202-HEPA
99.97% DOP HEPA Filter Option for Standard 202 Unit
FO200-0.65-CV
65% Bag Filter Option for Standard 200 Unit.
FO202-2A-CV
(2) 2" (50mm) aluminum mesh filter in place of (2) 4" (100mm) pleated pre-filter.
FO202-2P-CV
(2) 2" (50mm) polyester filter, 4.0 sq.ft. in place of 4" (100mm) pleated pre-filter; metal frame with replaceable pad.
FO202-95DOP-CV
95% DOP HEPA Filter Option for Standard 202 Unit.
FO202-AD-CV
Adsorption option, includes:
  • (2) 4" (100mm) pre-filter
  • (2) 95% short bag filter (64 sq.ft.)
  • (2) refillable, v-bank absorber modules
  • (2) 2" (50mm) pleated after-filter, 100 lbs. capacity, rate 4000 cfm
Order charcoal separately. (Adds 44 lbs. to ship weight)
FO202-AR-CV
Auto-Roll Pre-filter Option for Standard 202 Unit.
FO202-CV-CV
CHEVRON® option, includes:
  • (2) 2" (50mm) aluminum mesh pre-filter
  • (2) 4" (100mm) CHEVRON ® mist eliminator
  • (2) 95% bag filter (120 sq.ft.)
  • (2) drains in cabinet (3/4 FPT)
FO202-EC-CV
(2) Easy clean, polyester membrane, cleanable bag filter, MERV 12; replaces standard 95% throw-away filter.
FO202-HEPA-CV
99.97% DOP HEPA Filter Option for Standard 202 Unit.

Part #
Description
202-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
PM202-PG-10-CV
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
202-VERTICAL
Vertical Door Kit.
MO202-VERTICAL-CV
Vertical Door Kit.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DLPF-6-24
Pre-filter 24" x 6" complete with mounting hardware.
  • Replacement pads sold separately
  • Part Number: PP-24-6

Part #
Description
16258
24" x 24" x 12" Merv 11 Cartidge Filters SH.
2AF1-9032
Easy Clean Bag Filter.
  • Net Dimensions 28"L x 24"W x 24"H
2AF4-9100
Chevron Filter - Impingement filter.
2AF9-0006
Adsorber v-bank module.
  • (2) are need for Pac 91
7FB6-5119
65% Short Bag Filter (24" x 24" x 17").
7FB6-5126
65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB9-0126
95% fiberglass bag filter for filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FB9-0132
95% Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, F-480 complete with:
  • Loops
  • Minimum Order: (2) Filters
7FC5-0203
FILTER, CHARCOAL, 50%, (24" x 24" x 2").
7FJ9-5005
95% @ 0.3 micron DOP Filter for MP30.
7FJ9-5005-OEM
95% DOP Filter, 4 Deep
7FJ9-5112
95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
ESMV-75
75% CLEANABLE extended surface main replacement filter.
ESMV-85
85% CLEANABLE extended surface main replacement filter.
ESMV-95
95% CLEANABLE extended surface main replacement filter.
ESMV-98
12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
PP-24-6
Polyester replacement pad for Pre-filter (24" x 6").
