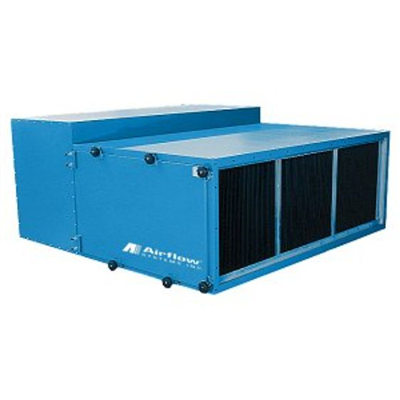

F360 - 9000 CFM

F360 models are designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration. This model features a flow rate of 9000 CFM.

  • Largest filtration, smallest dimensions

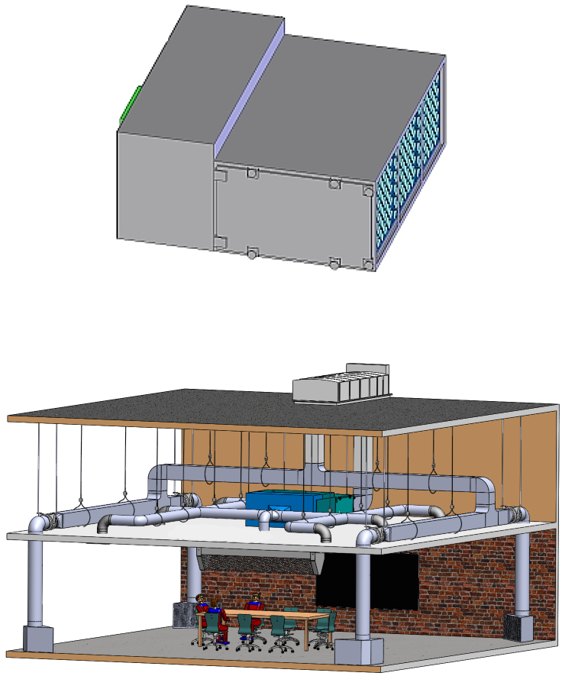

  • Multiple configurations allows for installation in congested areas
FUNCTION
The F360 ducted Industrial Air Cleaner comes standard with (3) 4” (100mm) deep 30% pleated pre-filter, (3) 65% bag filter, 96ft² of media each, and a 10 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

The unit can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • 16 ga. steel cabinet with powder-coat finish
  • Ultra-Seal® filter sealing system
  • Side access door to filters
  • Internal belt drive
  • Ball bearing Class II blower with fixed speed pulleys
  • 4-way adjustable airfoil blade exhaust grille
  • Motor wired to external junction box
KEY CRITERA
  • Class II Belt-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark-resistant.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
  • Prewired to Junction Box: For fast, easy installation.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
F360
9000 cfm industrial air cleaner with:
  • (3) 4" (100mm) deep
  • 30% pleated pre-filters
  • (3) 65% bag filters, 120 sq.ft. of media each
  • (1) 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA.

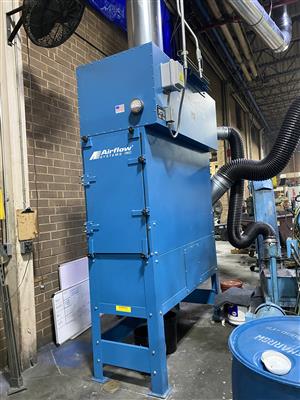

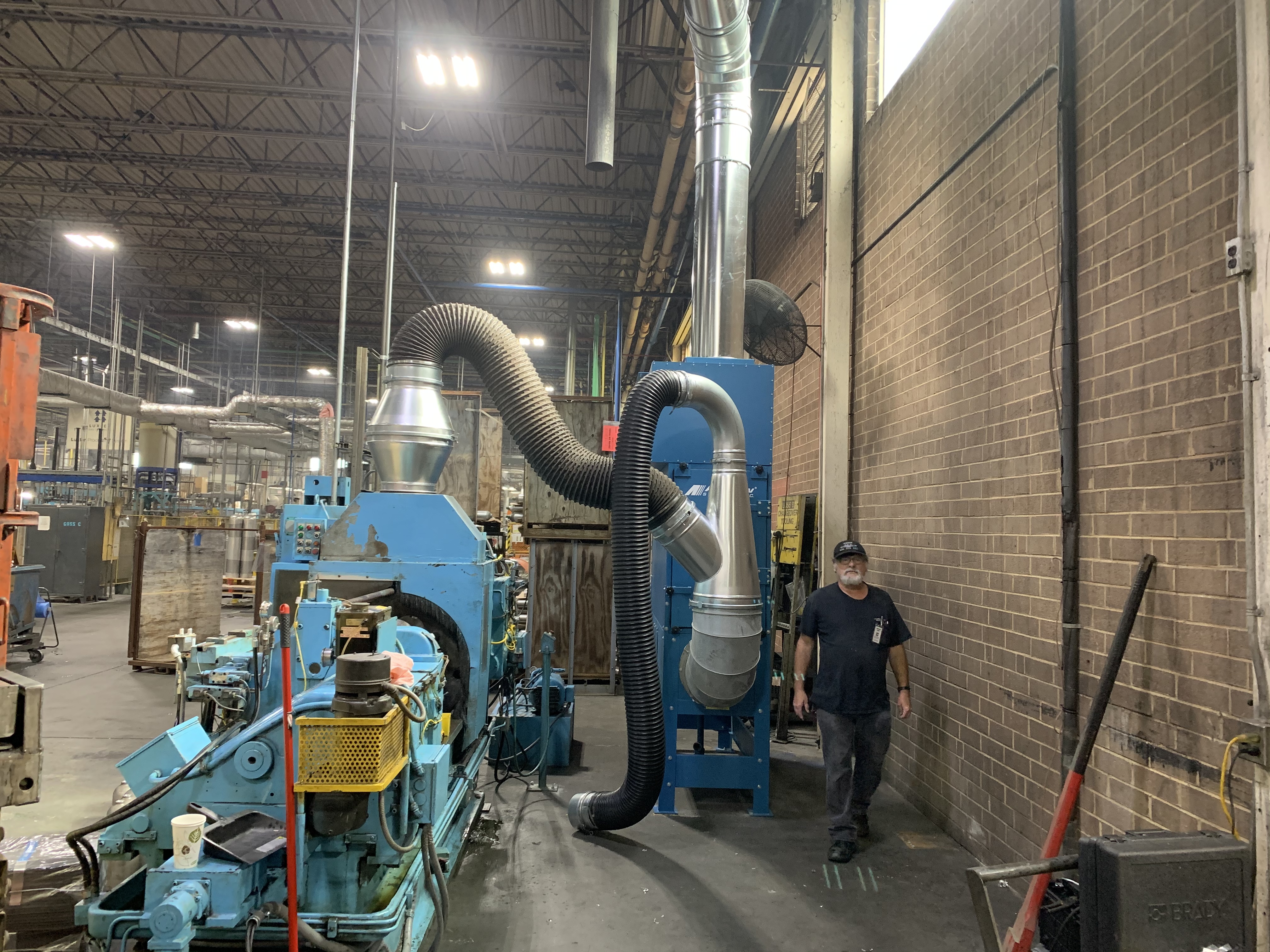

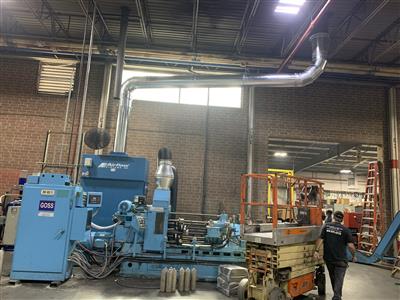

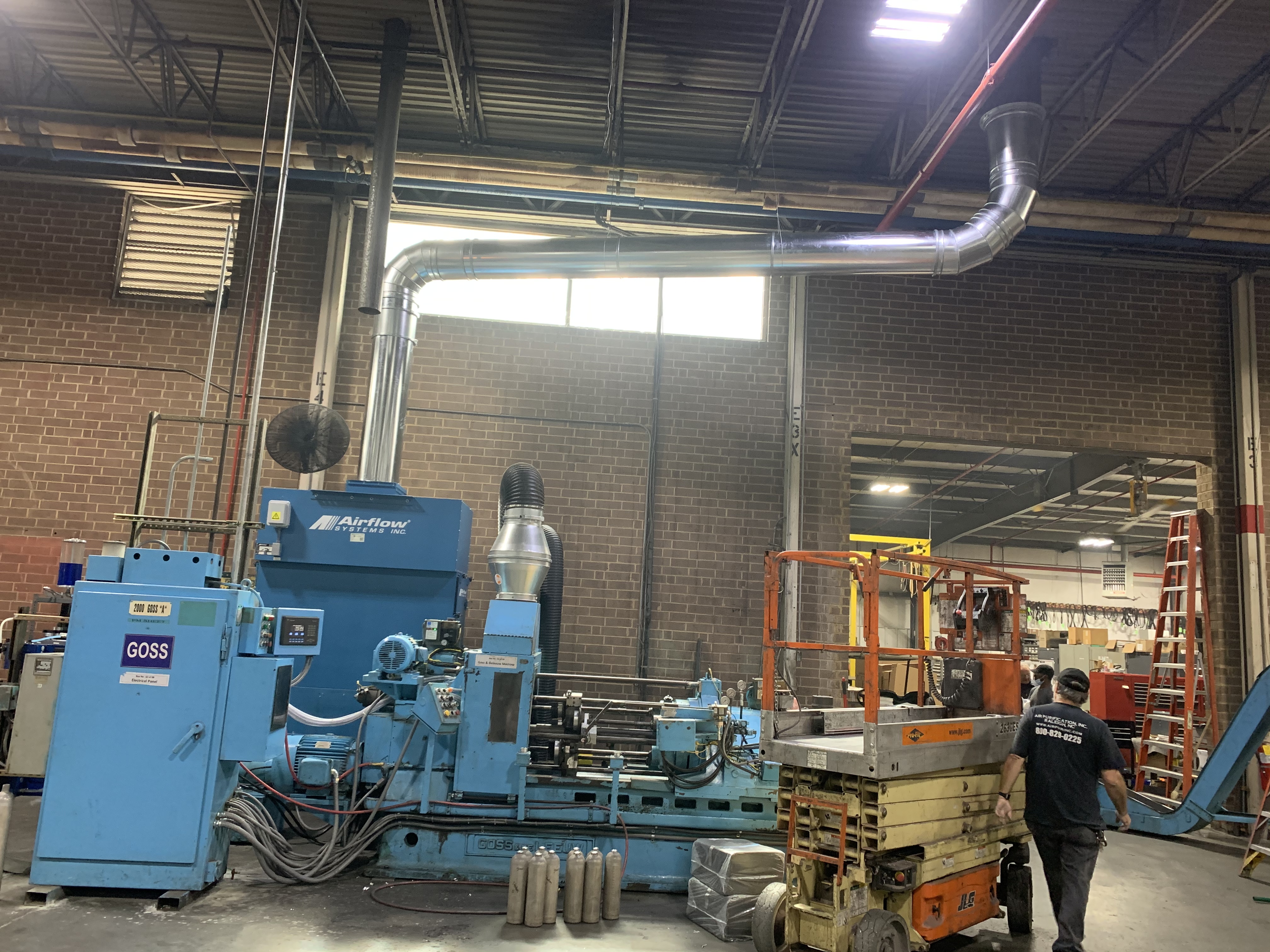

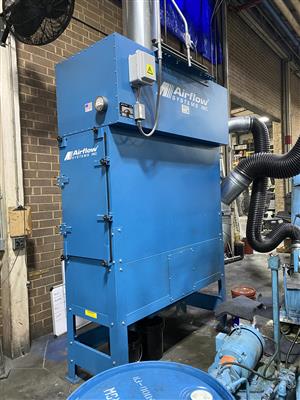

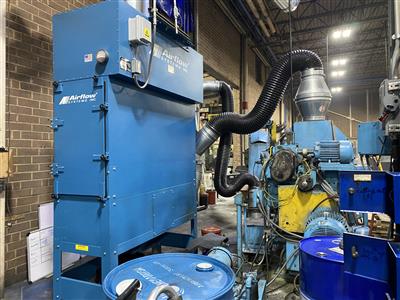

F360-VERTICAL
9000 cfm industrial air cleaner with:
  • (3) 4" (100mm) deep, 30% pleated pre-filters
  • (3) 65% bag filters, 120 sq.ft. of media each
  • (1) 10 HP TEFC motor
  • Please specify voltage when ordering
Vertical configuration includes:
  • Seam welded source capture plenum
  • 24" floor stand
  • Vertical door arrangement
MSF360-CV
9000 cfm industrial air cleaner with:
  • (3) 4" (100mm) deep, 30% pleated pre-filters
  • (3) 65% bag filters, 120 sq.ft. of media each
  • (1) 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA/
MSF360-VERTICAL-CV
9000 cfm industrial air cleaner with:
  • (3) 4" (100mm) deep, 30% pleated pre-filters
  • (3) 65% bag filters, 120 sq.ft. of media each
  • (1) 10 HP TEFC motor
  • Please specify voltage when ordering
Vertical configuration includes:
  • Seam welded source capture plenum
  • 24" floor stand
  • Vertical door arrangement

Part #
Description
F360-2A
(3) 2" (50mm) aluminum mesh filters in place of 4" (100mm) pleated pre-filters.
F360-2P
(3) 2" (50mm) polyester filters with frame, 4.0 sq.ft. each, in place of 4" (100mm) pleated pre-filters; metal frames with replaceable pads.
F360-95%
(3) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
F360-95DOP
95% DOP HEPA Filter Option for Standard F360 Unit.
F360-AD
Adsorption option, includes:
  • (3) 4" (100mm) pre-filters
  • (3) 95% short bag filters (64 sq.ft. each)
  • (6) refillable, v-bank absorber modules
  • (3) 2" (50mm) pleated after-filters, 150 lbs. capacity; rated 6000 cfm.
Order charcoal separately. (Adds 66 lbs. to ship weight)
F360-CV
CHEVRON ® option, includes:
  • (3) 2" (50mm) aluminum mesh pre-filters
  • (3) 4" (100mm) CHEVRON® mist eliminators
  • (3) 95% bag filters (120 sq.ft. each)
  • (3) drains in cabinet (3/4 FPT)
F360-EC
Easy Clean Bag Filter Option for Standard F360 Unit.
F360-HEPA-12
12'' (300mm) - 99.97% DOP HEPA Filter Option for Standard F360 Unit.
FOF360-2A-CV
(3) 2" (50mm) aluminum mesh filters in place of 4" (100mm) pleated pre-filters.
FOF360-2P-CV
(3) 2" (50mm) polyester filters with frame, 4.0 sq.ft. each, in place of 4" (100mm) pleated pre-filters; metal frames with replaceable pads.
FOF360-95%-CV
(3) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
FOF360-95DOP-CV
95% DOP HEPA Filter Option for Standard F360 Unit.
FOF360-AD-CV
Adsorption option, includes:
  • (3) 4" (100mm) pre-filters
  • (3) 95% short bag filters (64 sq.ft. each)
  • (6) refillable, v-bank absorber modules
  • (3) 2" pleated after-filters, 150 lbs. capacity; rated 6000 cfm.
Order charcoal separately. (Adds 66 lbs. to ship weight)
FOF360-CV-CV
CHEVRON ® option, includes:
  • (3) 2" (50mm) aluminum mesh pre-filters
  • (3) 4" (100mm) CHEVRON® mist eliminators
  • (3) 95% bag filters (120 sq.ft. each)
  • (3) drains in cabinet (3/4 FPT)
FOF360-EC-CV
Easy Clean Bag Filter Option for Standard F360 Unit.
FOF360-HEPA-12-CV
12'' (300mm) - 99.97% DOP HEPA Filter Option for Standard F360 Unit.

Part #
Description
F360-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
PMF360-PG-10-CV
0-10" Magnahelic pressure gauge, approximately 5" (125m)Ø size.
  • Surface mounted

Part #
Description
F-360-Merv14-4
New MERV14 pleated, synthetic, washable filter option.
MOF-360-Merv14-4-CV
New MERV14 pleated, synthetic, washable filter option.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DLPF-6-24
Pre-filter 24" x 6" complete with mounting hardware.
  • Replacement pads sold separately
  • Part Number: PP-24-6

Part #
Description
F360-S
Silencer. (Add 21" to length & 50 lbs to ship weight).
F360-S-EXT
Silencer Option for Standard F360 Unit.
SAF360-S-CV
Silencer. (Add 21" to length & 50 lbs to ship weight).
SAF360-S-EXT-CV
Silencer Option for Standard F360 Unit.

Part #
Description
16258
24" x 24" x 12" Merv 11 Cartidge Filters SH.
2AF1-9032
Easy Clean Bag Filter.
  • Net Dimensions 28"L x 24"W x 24"H
2AF2-9001
2" (50mm) Polyester AFTER-filter pad & frame.
2AF4-9100
Chevron Filter - Impingement filter.
2AF9-0006
Adsorber v-bank module.
  • (2) are need for Pac 91
2AZ2-0004
2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FA8-0101
2" (50mm) Aluminum Mesh Pre-filter. For filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FA8-0101-OEM
Aluminum Mesh Pre-filter.
  • For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119
65% Short Bag Filter (24" x 24" x 17").
7FB6-5126
65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB6-5132-OEM
65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202, & 203.
7FB9-0119-OEM
95% Short Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, & F-480.
  • 24"L x 24"W x 17"H
7FB9-0126
95% fiberglass bag filter for filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FB9-0132
95% Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, F-480 complete with:
  • Loops
  • Minimum Order: (2) Filters
7FC5-0203
FILTER, CHARCOAL, 50%, (24" x 24" x 2").
7FH9-9112
99.97% HEPA Filter - WOOD FRAME.
7FJ9-5112
95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FJ9-9113
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FJ9-9113-OEM
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FM8-0002
Roll stock filter, MERV 12 2"thick x 24.5 wide x 65' long (F240 for Auto-Roll option).
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP3-0102
2" (50mm) Pleated PRE-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0102-AAF
2" (50mm) Pleated pre-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0104
4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-AAF
4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
CFH-2-10
Refillable Charcoal Filter Holder.
  • Holds 10 lbs of charcoal
  • Charcoal not included
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
ESMV-75
75% CLEANABLE extended surface main replacement filter.
ESMV-85
85% CLEANABLE extended surface main replacement filter.
ESMV-95
95% CLEANABLE extended surface main replacement filter.
ESMV-98
12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
PP-24-6
Polyester replacement pad for Pre-filter (24" x 6").
