10-004

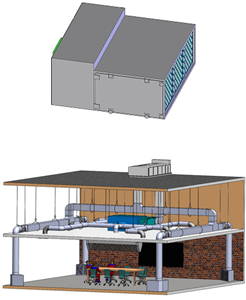

F360 - Ducted Air Cleaner

F360 models are designed to collect airborne dust, smoke, oil mist, oil smoke and other atmospheric pollutants in industrial plants, shops, schools and factories with high-efficiency multi-stage filtration . This model features a flow rate anywhere from 3000 - 6000 CFM .

Function:

The F360 ducted Industrial Air Cleaner comes standard with (3) 4” deep 30% pleated pre-filter, (3) 65% bag filter, 96ft² of media each, and a 10 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

The unit can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives

Construction:

16 ga. steel cabinet with powder-coat finish. Includes Ultra-Seal® filter sealing system, side access door to filters, internal belt drive, ball bearing, Class II blower with fixed speed pulleys, 40way adjustable airfoil blade, exhaust grille and motor wired to external junction box.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MSF360-VERTICAL-CV 48"H x 84"W x 132"D 2000 lbs
MSF360-CV 43.75"H x 79.5"W x 84.5"D 1680 lbs
F360-VERTICAL 48"H x 84"W x 132"D 2000 lbs
F360 43.75"H x 79.5"W x 84.5"D 1680 lbs

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil Mist Wood Dust Oil Smoke Plastic Fumes Cannabis Dust Dusts, Mists & Gases
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: Make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
F360
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA.
F360-VERTICAL

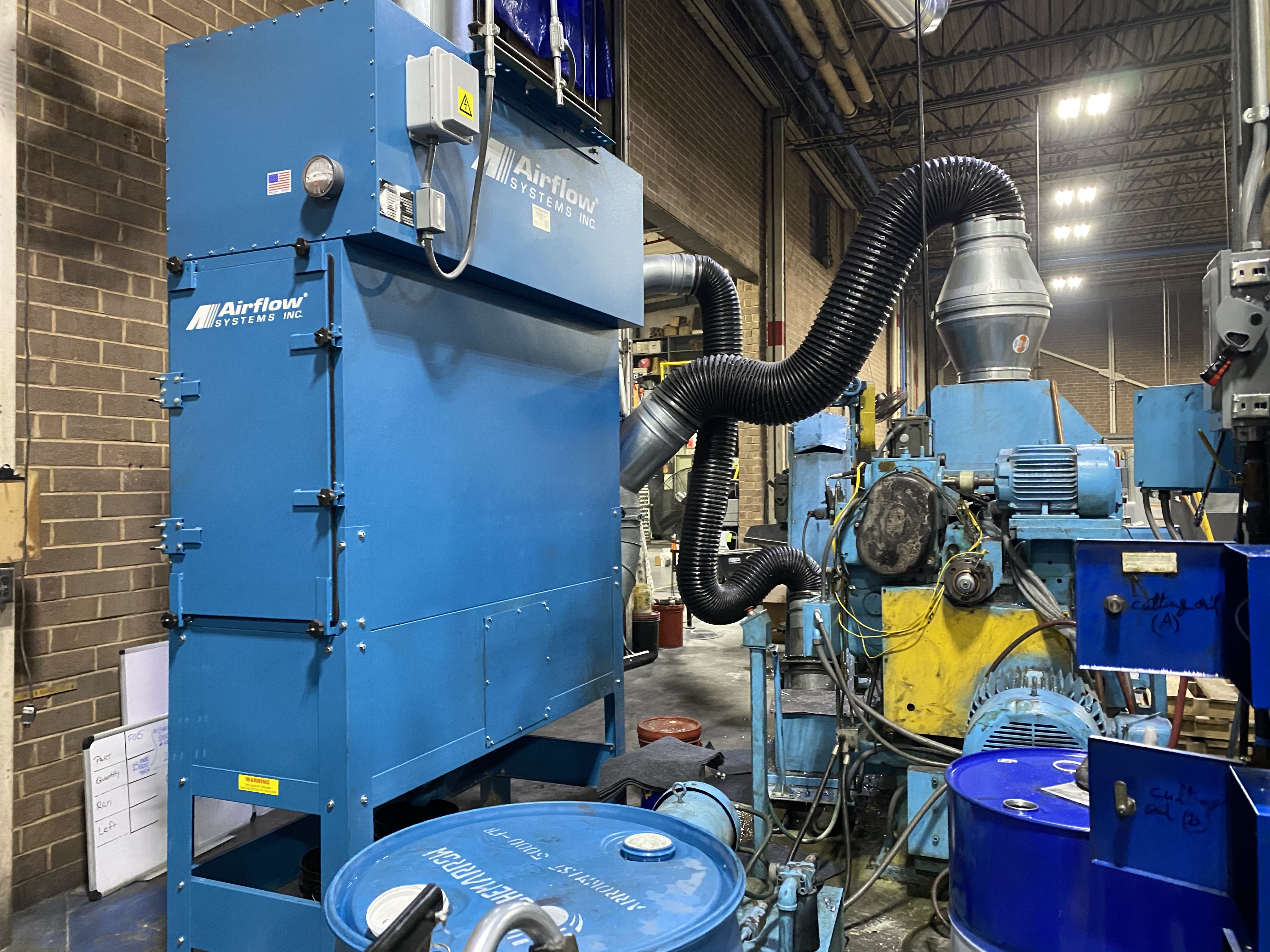

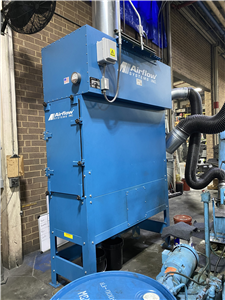

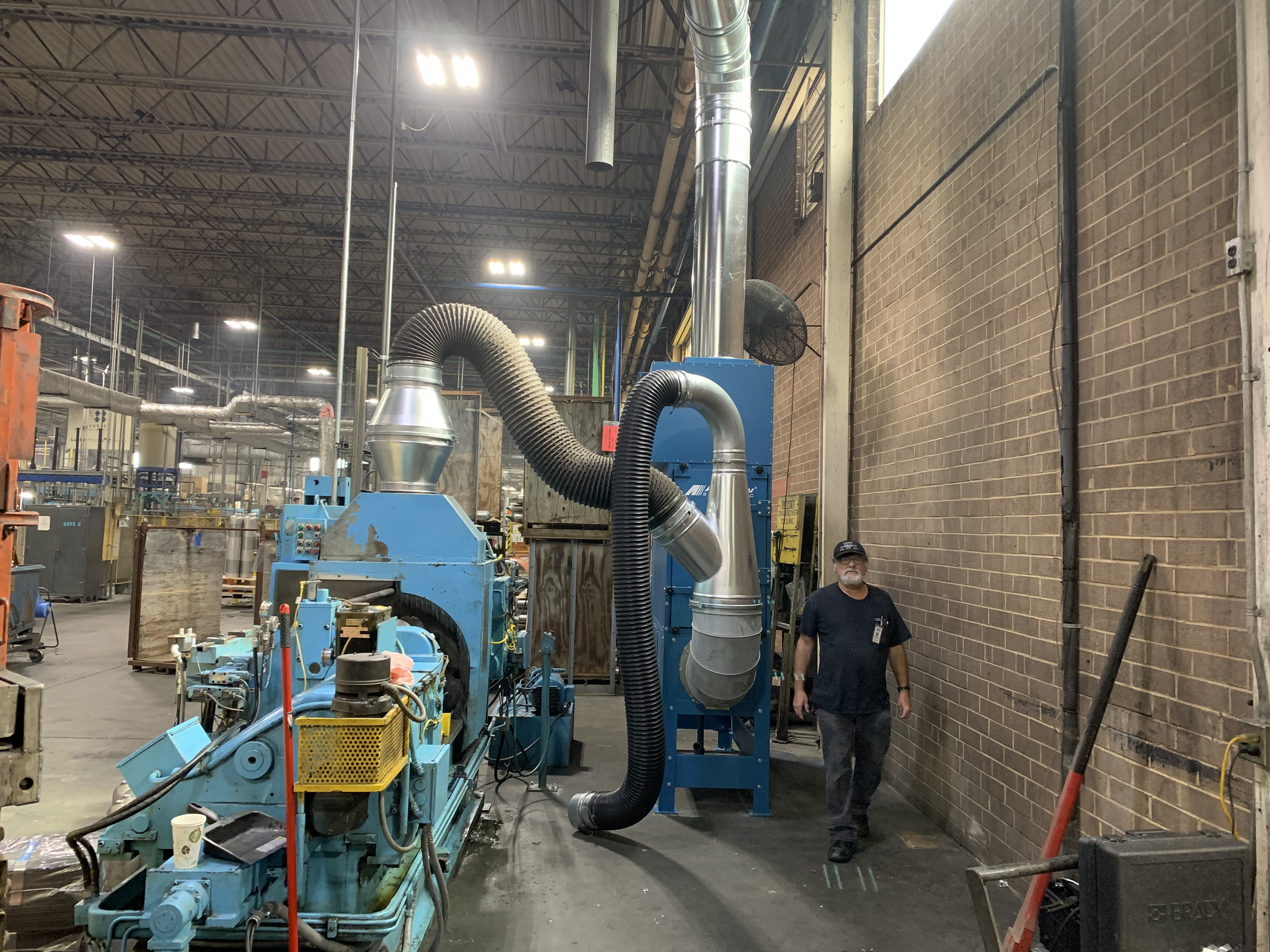

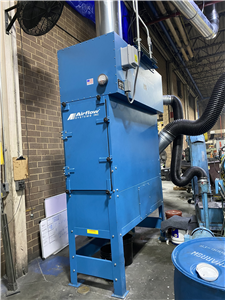

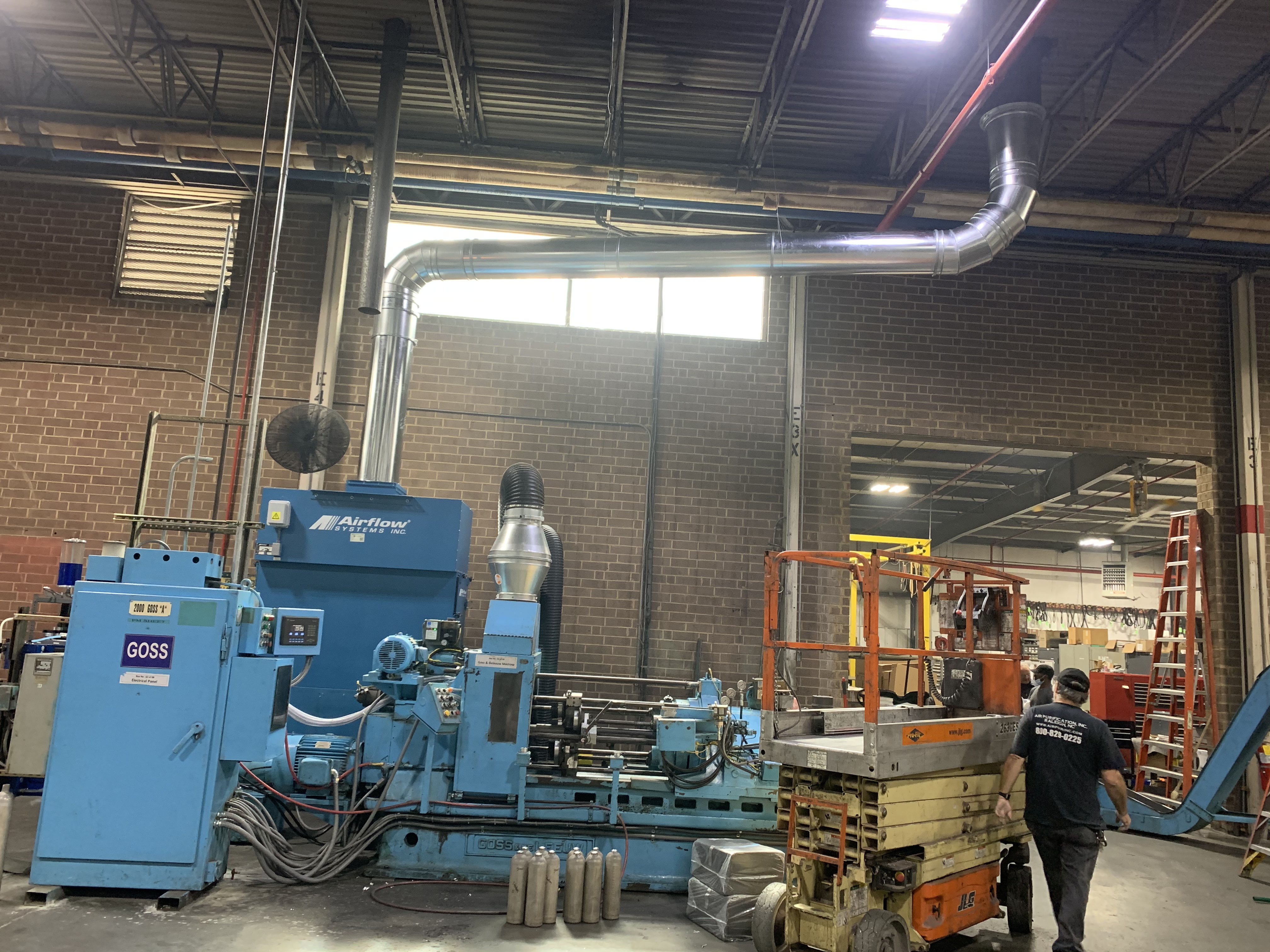

9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes seam welded source capture plenum, 24 floor stand and vertical door arrangement.
MSF360-CV
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA.
MSF360-VERTICAL-CV
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes seam welded source capture plenum, 24 floor stand and vertical door arrangement.

Frequently bought together these options:

Part #
Qty
Description
VOLT-115-230
To indicate the voltage for the specified unit.
  • 115/208-230/1/60
  • VOLT-230/3/60
    To indicate the voltage for the specified unit.
  • 230/3/60
  • VOLT-230-460/3/60
    To indicate the voltage for the specified unit.
  • 208-230-460/3/60
  • Motor starter and power cord not included
  • VOLT-575/3/60
    To indicate the voltage for the specified unit.
  • 575/3/60
  • Motor starter and power cord not included
  • Part #
    Qty
    Description
    F360-2A
    Three (3) 2 aluminum mesh filters in place of 4 pleated prefilters.
    F360-2P
    Three (3) 2 polyester filters with frame, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
    F360-95%
    Three (3) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
    F360-95DOP
    95% DOP HEPA Filter Option for Standard F360 Unit
    F360-AD
    Adsorption option; includes (3) 4 prefilters, (3) 95% short bag filters (64 sq.ft. each), (6) refillable, v-bank absorber modules, and (3) 2 pleated after-filters, 150 lbs. capacity; rated 6000 cfm. Order charcoal separately. (Adds 66 lbs. to ship weight)
    F360-CV
    CHEVRON ® option; includes (3) 2 aluminum mesh prefilters, (3) 4 CHEVRON® mist eliminators, (3) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
    F360-EC
    Easy Clean Bag Filter Option for Standard F360 Unit
    F360-HEPA-12
    12'' - 99.97% DOP HEPA Filter Option for Standard F360 Unit
    FOF360-2A-CV
    Three (3) 2 aluminum mesh filters in place of 4 pleated prefilters.
    FOF360-2P-CV
    Three (3) 2 polyester filters with frame, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
    FOF360-95%-CV
    Three (3) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
    FOF360-95DOP-CV
    95% DOP HEPA Filter Option for Standard F360 Unit
    FOF360-AD-CV
    Adsorption option; includes (3) 4 prefilters, (3) 95% short bag filters (64 sq.ft. each), (6) refillable, v-bank absorber modules, and (3) 2 pleated after-filters, 150 lbs. capacity; rated 6000 cfm. Order charcoal separately. (Adds 66 lbs. to ship weight)
    FOF360-CV-CV
    CHEVRON ® option; includes (3) 2 aluminum mesh prefilters, (3) 4 CHEVRON® mist eliminators, (3) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
    FOF360-EC-CV
    Easy Clean Bag Filter Option for Standard F360 Unit
    FOF360-HEPA-12-CV
    12'' - 99.97% DOP HEPA Filter Option for Standard F360 Unit
    Part #
    Qty
    Description
    DLPF-6-24
    Pre-filter 24" X 6" complete with mounting hardware. Replacement pads sold separately. Part No.: PP-24-6
    Part #
    Qty
    Description
    F360-S
    Silencer. (Add 21" to length & 50 lbs to ship weight).
    F360-S-EXT
    Silencer Option for Standard F360 Unit
    SAF360-S-CV
    Silencer. (Add 21" to length & 50 lbs to ship weight).
    SAF360-S-EXT-CV
    Silencer Option for Standard F360 Unit
    Part #
    Qty
    Description
    F360-PG-10
    0-10 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.
    LEV-MC-PG-5
    Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
    PG-10
    Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
    PMF360-PG-10-CV
    0-10 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.
    Part #
    Qty
    Description
    VFD-KIT-1HP-115-230-3
    1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 1 HP Motor
    • Able to support HP lower than 1HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
    VFD-KIT-2HP-115-230-3
    2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 2 HP Motor
    • Able to support lower HP between 1HP - 2HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
    VFD-KIT-3HP-220-230-3
    3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 3 HP Motor
    • Able to support lower HP between 2HP - 3HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
