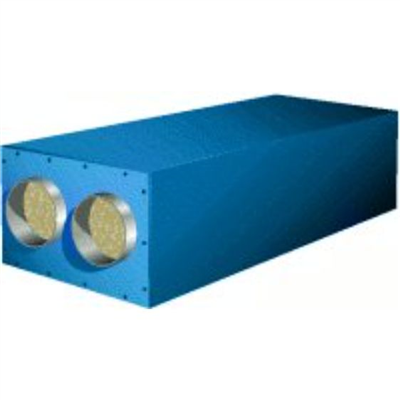

1000-D - 1000 CFM

The 1000-D above ceiling air cleaner features a flow rate of 1000 CFM. This model is great for rooms where space below the ceiling is challenging but has space above the ceiling for mounting.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options. Can be configured for congested areas
FUNCTION
The first stage pre-filter is a multi-density, 2" (50mm) thick polyester that removes dust and larger particles with 88% dust resistance and can be cleaned or replaced when dirty.

The second stage multi-pocket extended surface high-efficiency filter has 99% dust arrestance efficiency and 95% efficiency on atmospheric dust removing smoke, dust, bacteria, and other sub-micron size particles from the air. Its large surface area ensures long life.

The third stage, 1/2" thick charcoal filter traps odours and gases. Final ODOR/EX cartridge permits room deodorization in addition to odour removal.

The mounting solutions for this model can be either from the wall or tucked up inside the ceiling.

Main options:
  • Filter options
  • Replacement Hoses
  • Variable Frequency Drives
CONSTRUCTION
  • All welded 18 ga. steel cabinet
  • 12" (300mm) outlet and (2) 8" (200mm) inlets
  • 2” (50mm) polyester pre-filter
  • 95% main filter
  • 39 ft2
  • ½” charcoal after filter
  • ODOR/EX deodorizer cartridge
  • ½ HP, 115V, 2 speed motor, 7.4 amps, includes 2 speed wall switch, (1) 12” (300mm) outlet, (2) 8” (200mm) inlets
KEY CRITERA
  • Complete, Above-Ceiling Unit: Installs completely concealed; quiet operation.
  • Direct-Drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
  • ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odor control.
  • Disposable/Cleanable Media Filters: Can be vacuumed or replaced when dirty, no tools needed.
  • Commercial Duty Cabinet with Textured Epoxy Finish: Durable protection, aesthetic appeal.
  • Remote Wall Switch: 2-speed lighted switch.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Commercial Facilities
  • Offices
  • Schools
  • Retirement Homes
  • Warehouses
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
1000-D
1000 CFM above ceiling air cleaner. Includes:
  • 2" (50mm) polyester pre-filter
  • 95% main filter (39 sq.ft.)
  • 1/2" charcoal after-filter
  • ODOR/EX deodorizer cartridge
  • 1/2 Hp motor, 115/1/60Hz (7.4 amps)

Part #
Description
1000-D-2C
2" (50mm) charcoal filter in place of 1/2" (12mm) charcoal after-filter.
1000-D-AD
Charcoal adsorber option, includes:
  • 2" (50mm) polyester pre-filter
  • 95% short bag filter (18 sq.ft.), refillable, v-bank absorber module (20 lbs. capacity)
  • 2" (50mm) pleated after-filter, rated at 600 cfm
  • Order charcoal separately (Adds 15 lbs. to ship weight)
1000-D-HE
HEPA filter option, includes:
  • 2" (50mm) polyester pre-filter
  • 95% short bag filter (18 sq.ft.)
  • 99.97% HEPA, rated at 600 cfm (Adds 15 lbs. to ship weight)

Part #
Description
1000-PG-3
0-3" liquid gauge.
  • Surface mounted option for Standard 1000 Unit
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
1000-D-D2
Ducted system with (2) inlets and (2) outlets. Adds 50' of 8" dia. Duct, (1) 12" x 8" wye, (2) supply and (2) return grilles.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
7HD14001-25
8" (200mm)Ø Flex Vinyl Hose (25 ft.).

Part #
Description
TQP-FF679
Industrial Grade Shop Top Workbench. Top Size 36" x 72". 161 lbs.

Part #
Description
2AF9-0010
V-bank absorption module.
2AZ2-0002
2" (50mm) Polyester Pre-filter.
7CH3-7001-BOX
ODOR/EX - QTY (12).
  • Price per each
7CH3-7001-EACH
ODOR/EX cartridge.
  • Price per each
7FB9-0812
95% Short Bag Filter.
7FB9-0822
95%bag filter for 1000 and 1000-D filter systems Net dimensions L 20x W18xH12 4 bags
7FC5-0801
1/2" (12mm) Charcoal Filter.
7FC7-5802
Charcoal Filter (17 7/8 x 13 1/4).
7FH9-9812
99.97% HEPA Filter - WOOD FRAME.
7FP6-0801
2" (50mm) Pleated Filter 60% - 12" x 18" x 2".
7RK31001
Mounting Clip for ODOR/EX with self adhesive strip.
