1000-D-AD

$987.54  $740.66 CAD
25% OFF SAVE $246.88

Overview

Standard Product
Out of Stock
Charcoal adsorber option, includes:
  • 2" (50mm) polyester pre-filter
  • 95% short bag filter (18 sq.ft.), refillable, v-bank absorber module (20 lbs. capacity)
  • 2" (50mm) pleated after-filter, rated at 600 cfm
  • Order charcoal separately (Adds 15 lbs. to ship weight)

Specificiations


Shipping Specificiations

Shipping Weight 1.0 lbs.
Shipping Length 1 in.
Shipping Width 1 in.
Shipping Height 1 in.

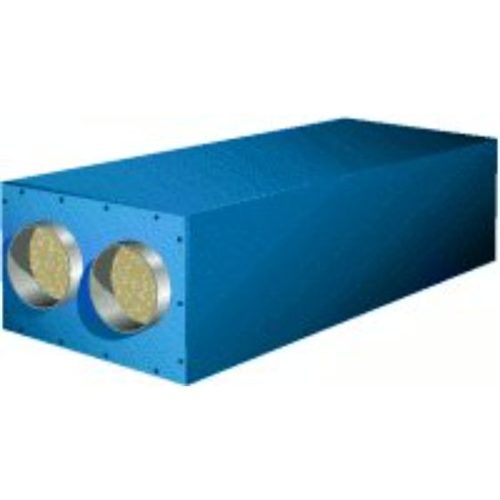

Model 10-000: 1000-D - 1000 CFM
The 1000-D above ceiling air cleaner features a flow rate of 1000 CFM. This model is great for rooms where space below the ceiling is challenging but has space above the ceiling for mounting.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options. Can be configured for congested areas

FUNCTION
The first stage pre-filter is a multi-density, 2" (50mm) thick polyester that removes dust and larger particles with 88% dust resistance and can be cleaned or replaced when dirty.

The second stage multi-pocket extended surface high-efficiency filter has 99% dust arrestance efficiency and 95% efficiency on atmospheric dust removing smoke, dust, bacteria, and other sub-micron size particles from the air. Its large surface area ensures long life.

The third stage, 1/2" thick charcoal filter traps odours and gases. Final ODOR/EX cartridge permits room deodorization in addition to odour removal.

The mounting solutions for this model can be either from the wall or tucked up inside the ceiling.

Main options:
  • Filter options
  • Replacement Hoses
  • Variable Frequency Drives

CONSTRUCTION
  • All welded 18 ga. steel cabinet
  • 12" (300mm) outlet and (2) 8" (200mm) inlets
  • 2” (50mm) polyester pre-filter
  • 95% main filter
  • 39 ft2
  • ½” charcoal after filter
  • ODOR/EX deodorizer cartridge
  • ½ HP, 115V, 2 speed motor, 7.4 amps, includes 2 speed wall switch, (1) 12” (300mm) outlet, (2) 8” (200mm) inlets

KEY CRITERA
  • Complete, Above-Ceiling Unit: Installs completely concealed; quiet operation.
  • Direct-Drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
  • ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odor control.
  • Disposable/Cleanable Media Filters: Can be vacuumed or replaced when dirty, no tools needed.
  • Commercial Duty Cabinet with Textured Epoxy Finish: Durable protection, aesthetic appeal.
  • Remote Wall Switch: 2-speed lighted switch.

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Commercial Facilities
  • Offices
  • Schools
  • Retirement Homes
  • Warehouses
