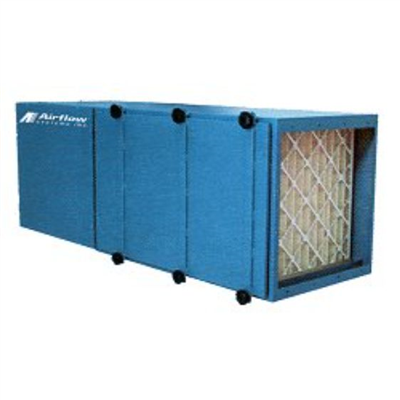

F120 - 3800 CFM

F120 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stage filtration . This model features a flow rate of 3800 CFM.

  • Largest filtration, smallest dimensions
  • Multiple configurations available, allows for installation in tight/congested areas
FUNCTION
The F120 ducted Industrial Air Cleaner comes standard with (1) 4” (100mm) deep 30% pleated pre-filter, (1) 65% bag filter, 120ft² of media, and a 2.0 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • 16 ga. steel cabinet with powder-coat finish
  • Ultra-Seal filter sealing system
  • Side access door to filters
  • Internal belt drive
  • Ball bearing 12 x 12 blower with adjustable speed motor pulley
  • 4-way adjustable airfoil blade exhaust grille
  • Motor wired to external junction box
KEY CRITERA
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
  • Prewired to Junction Box: For fast, easy installation.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
F120
3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep, 30% pleated pre-filter
  • (1) 65% bag filter (120 sq.ft. of media)
  • (1) 2 HP TEFC motor
Please specify voltage when ordering (6.5-6.2/3.1 amps) - 75 dBA.

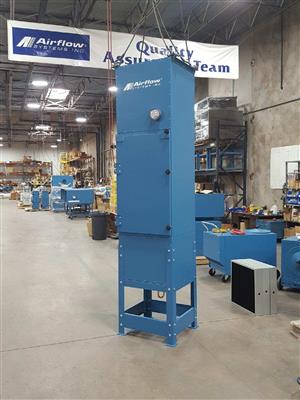

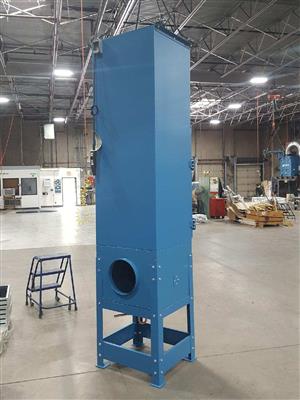

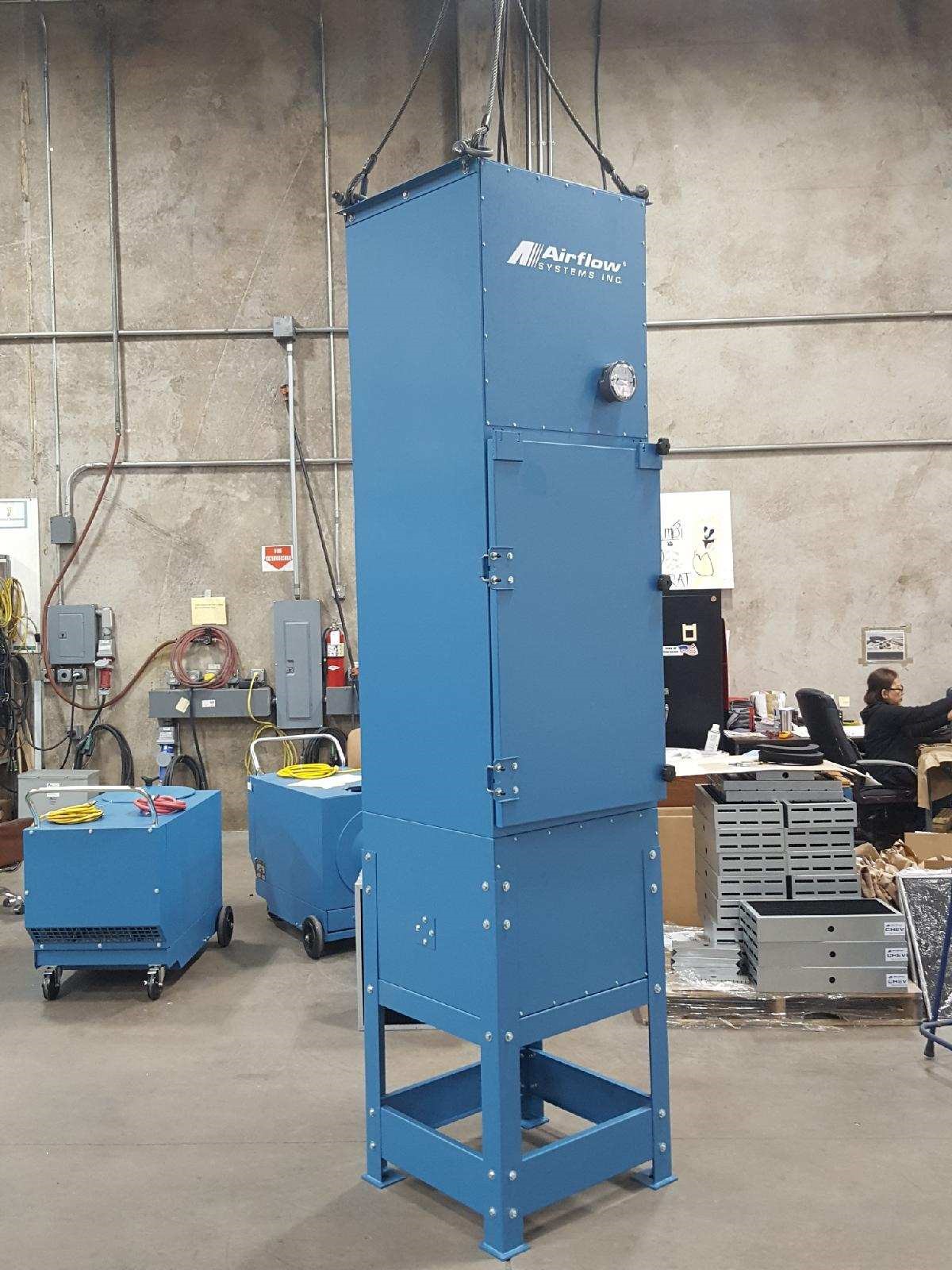

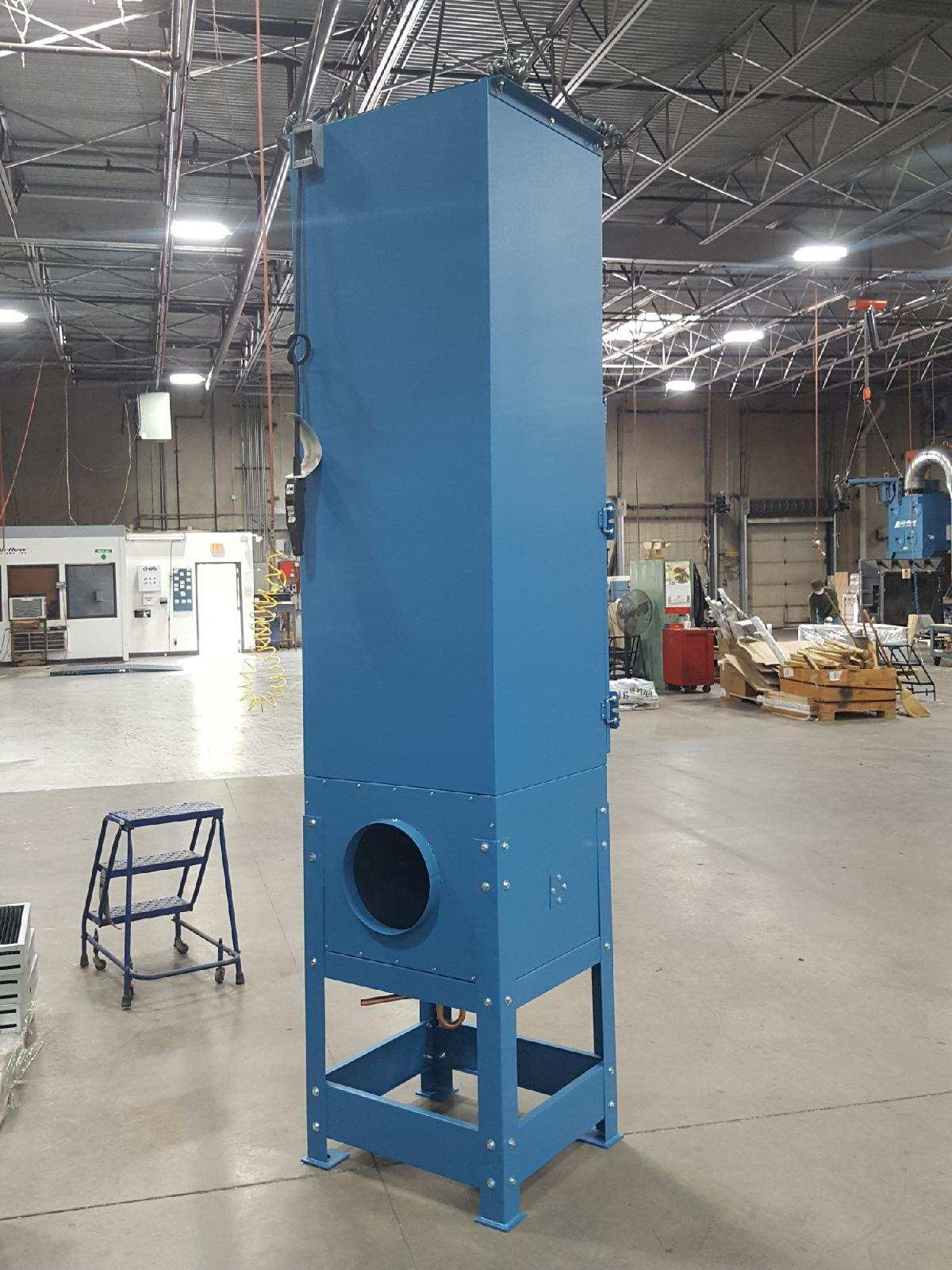

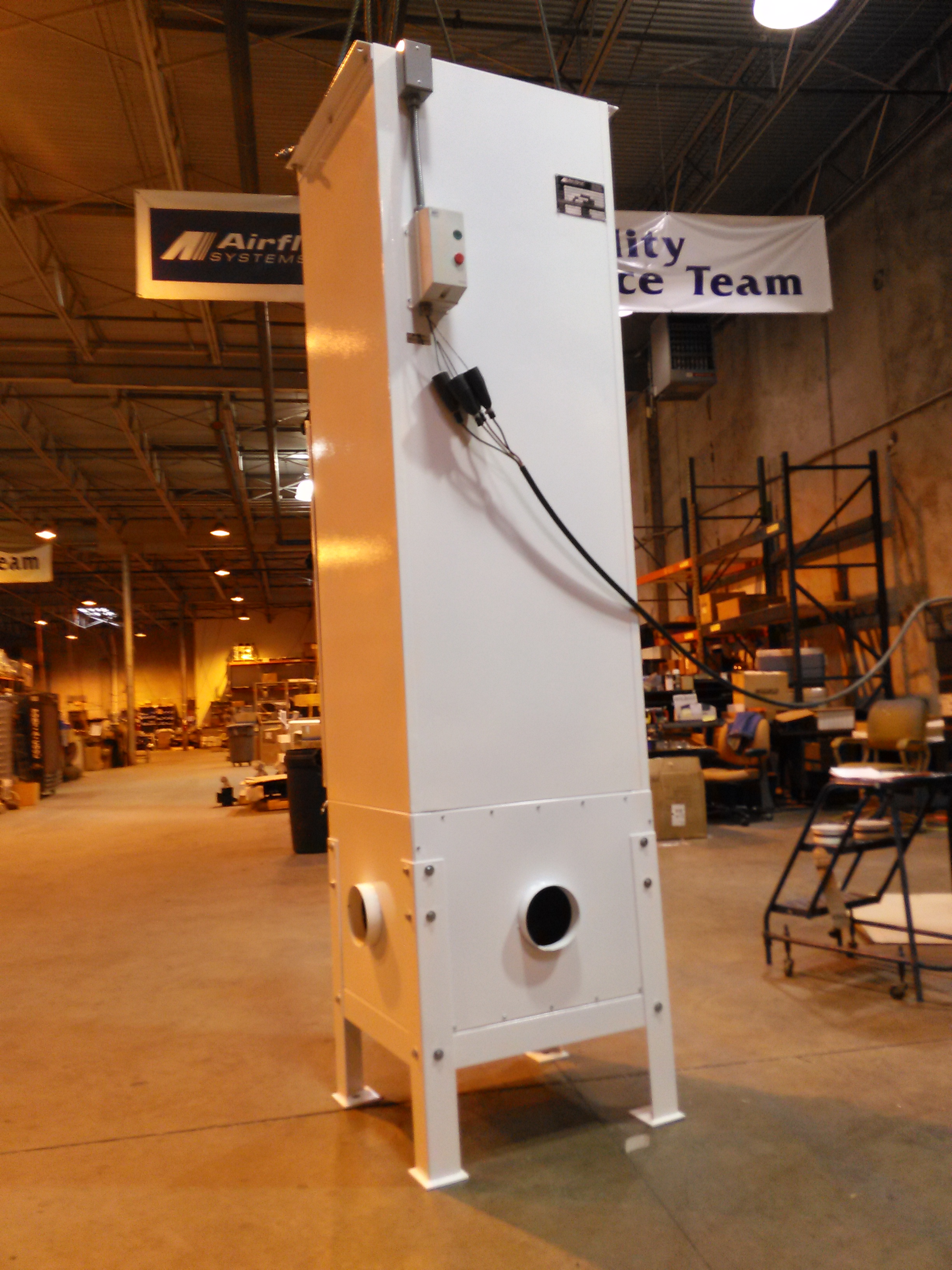

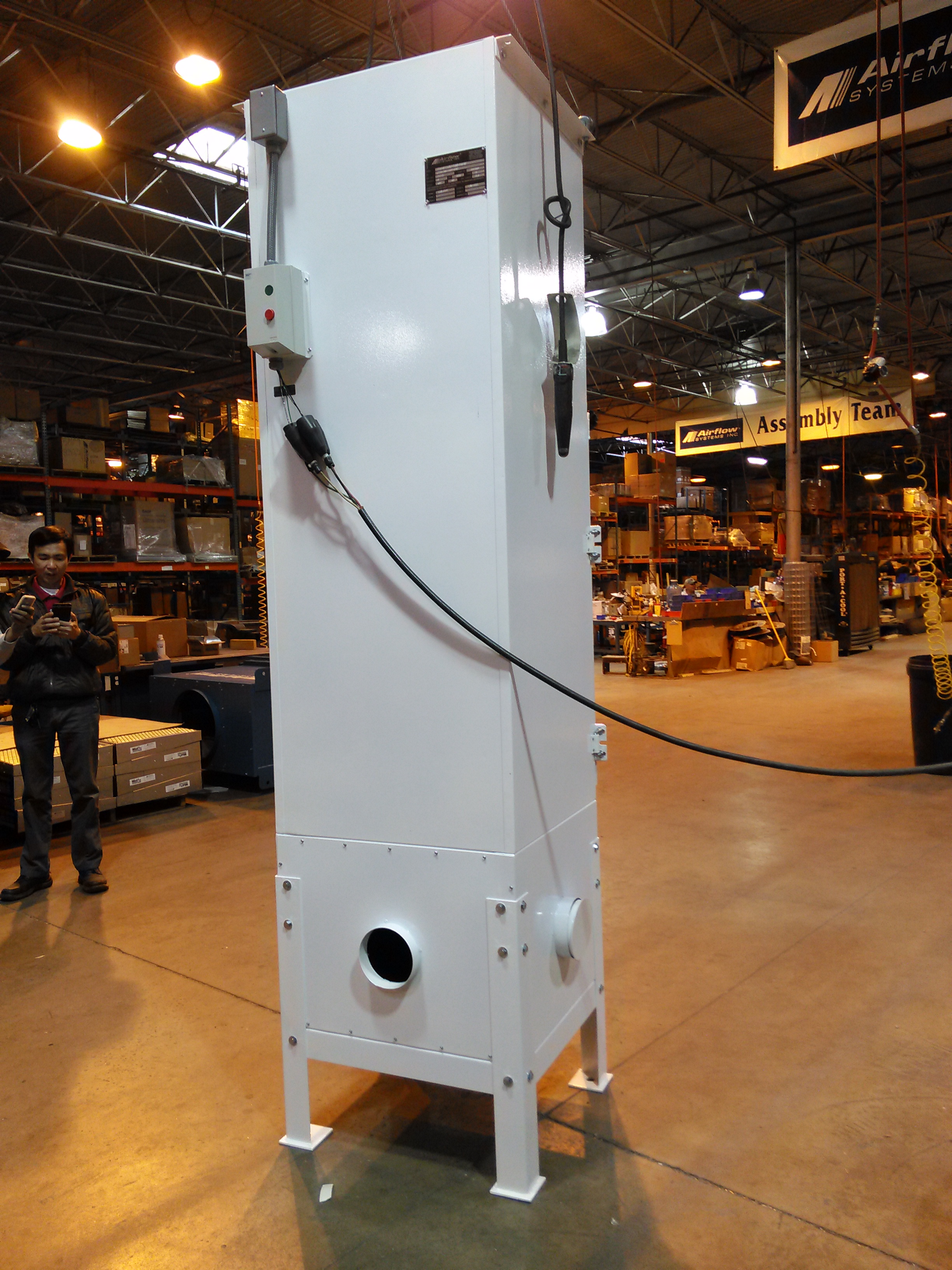

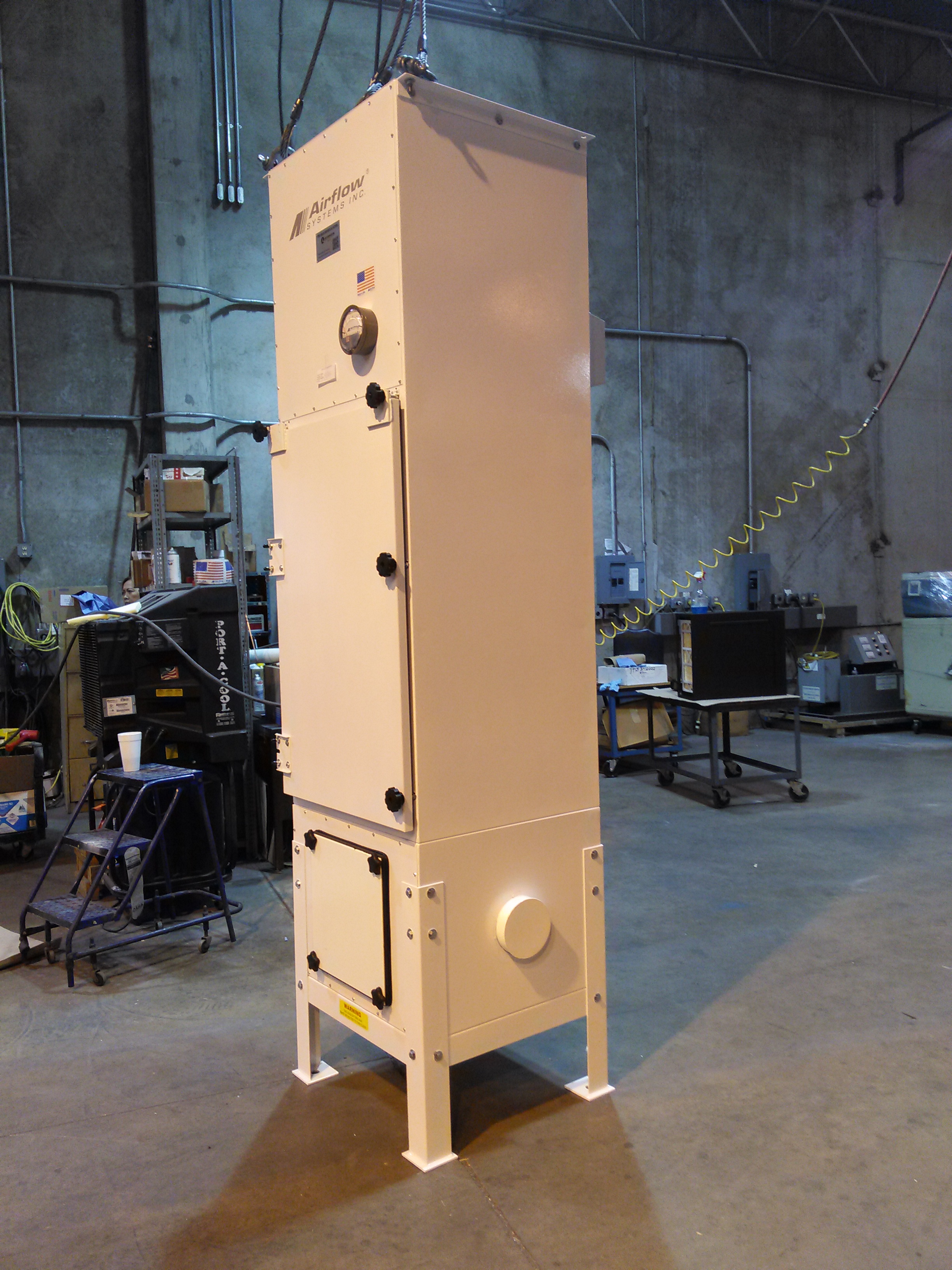

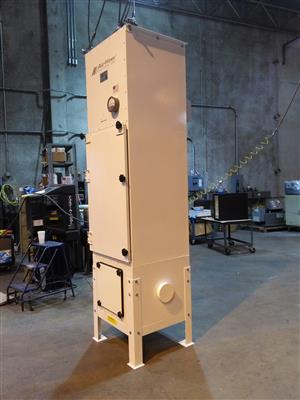

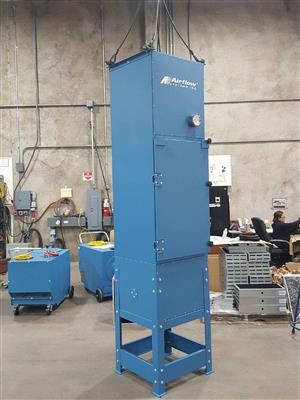

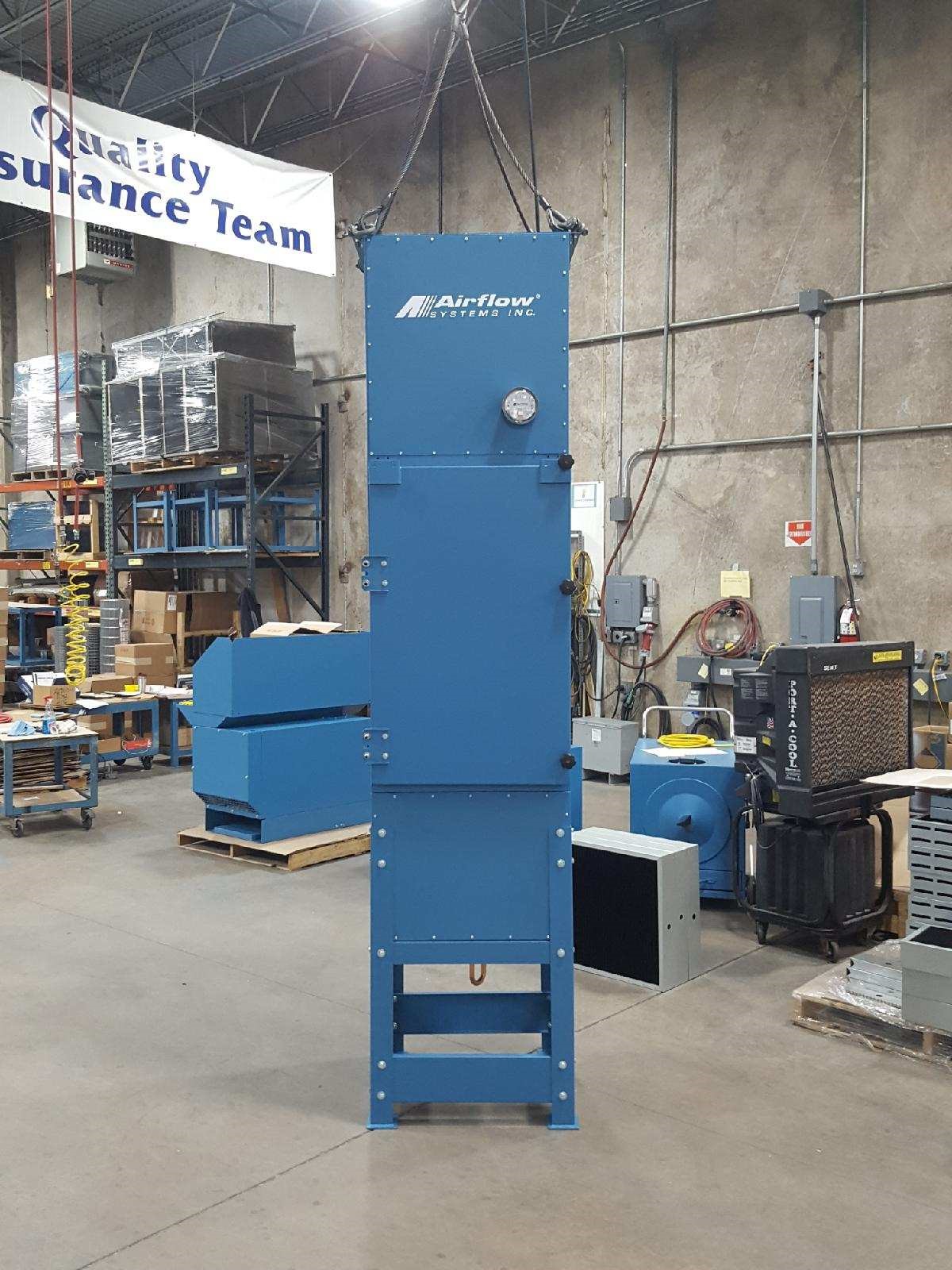

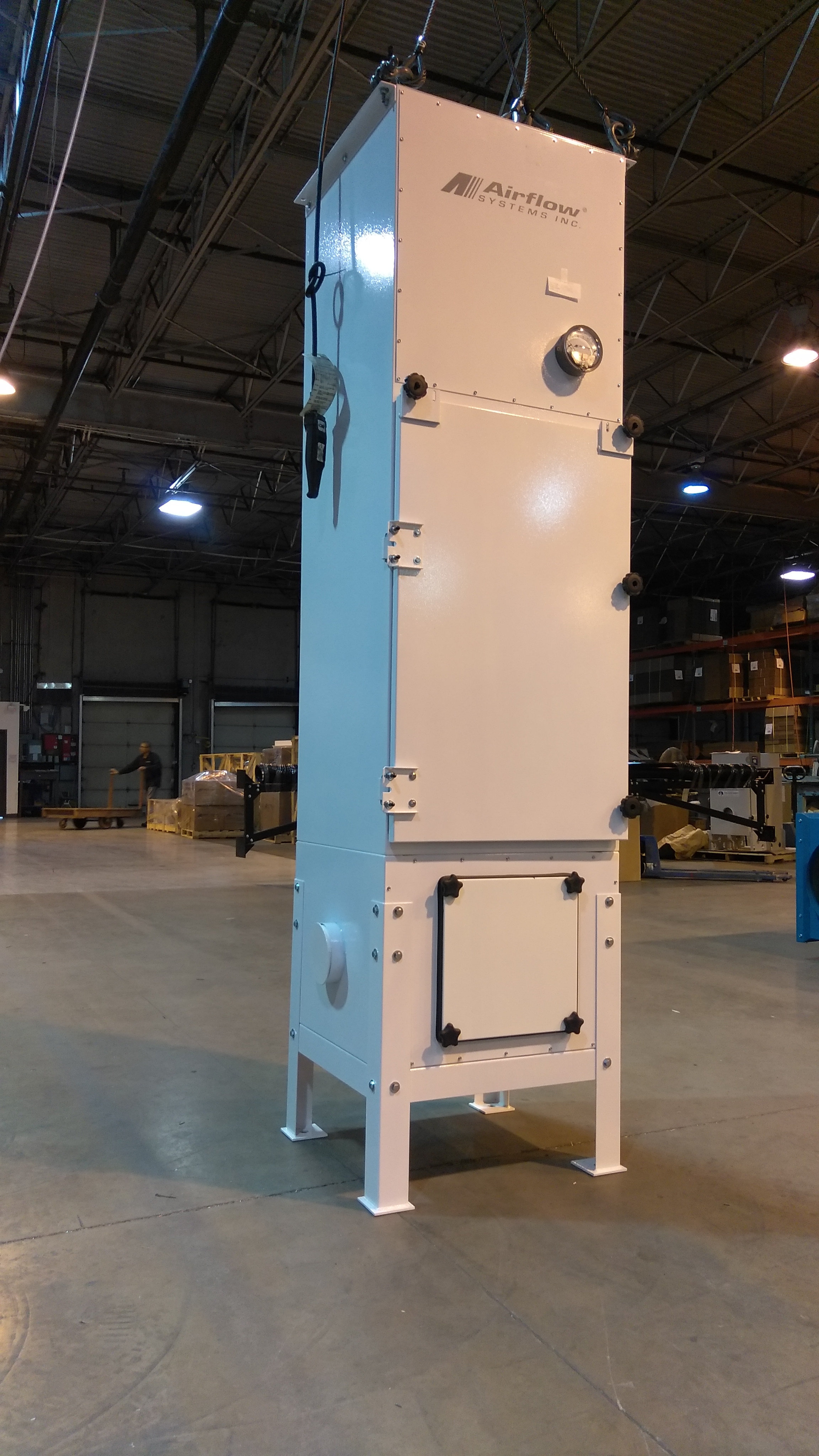

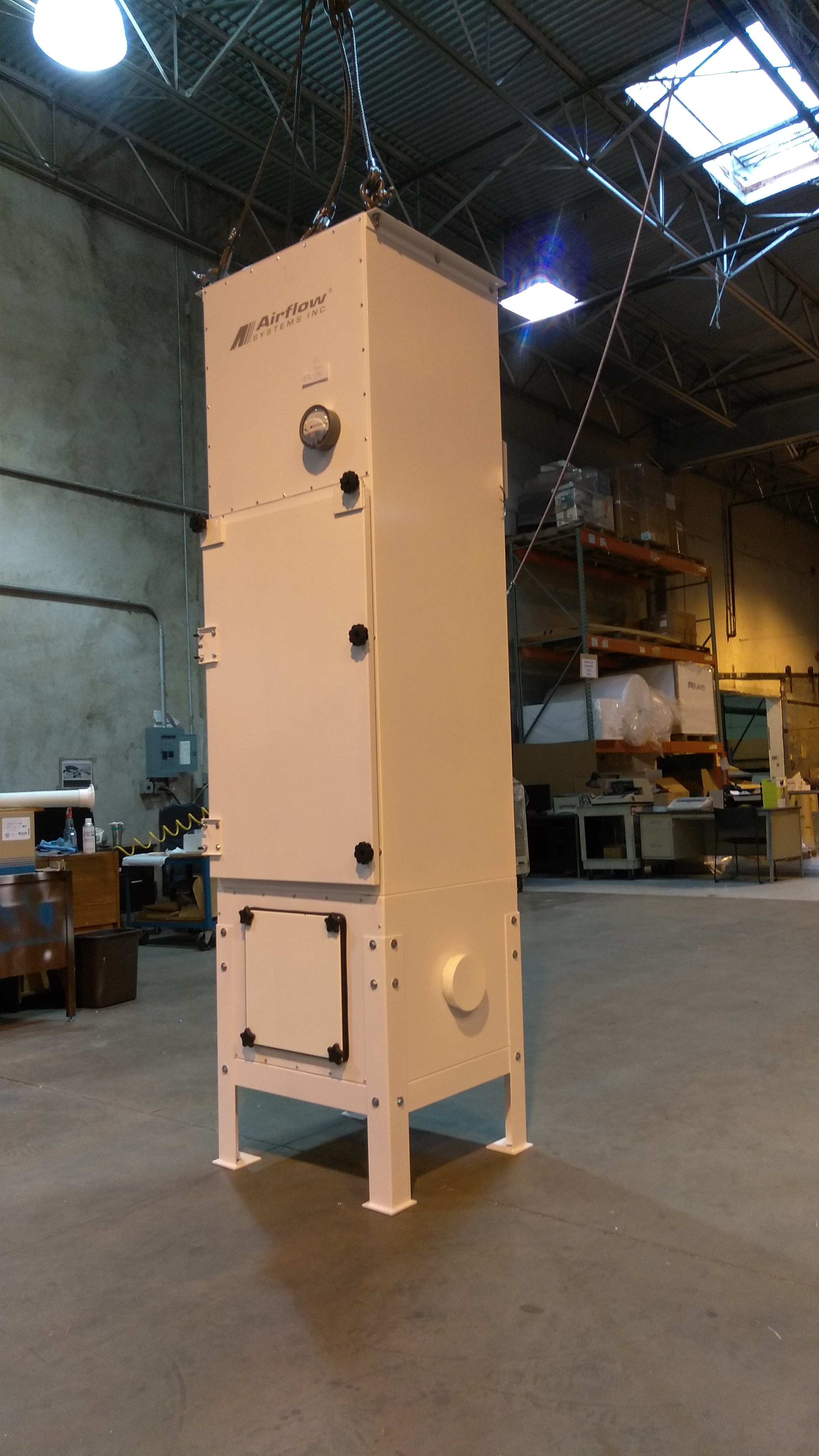

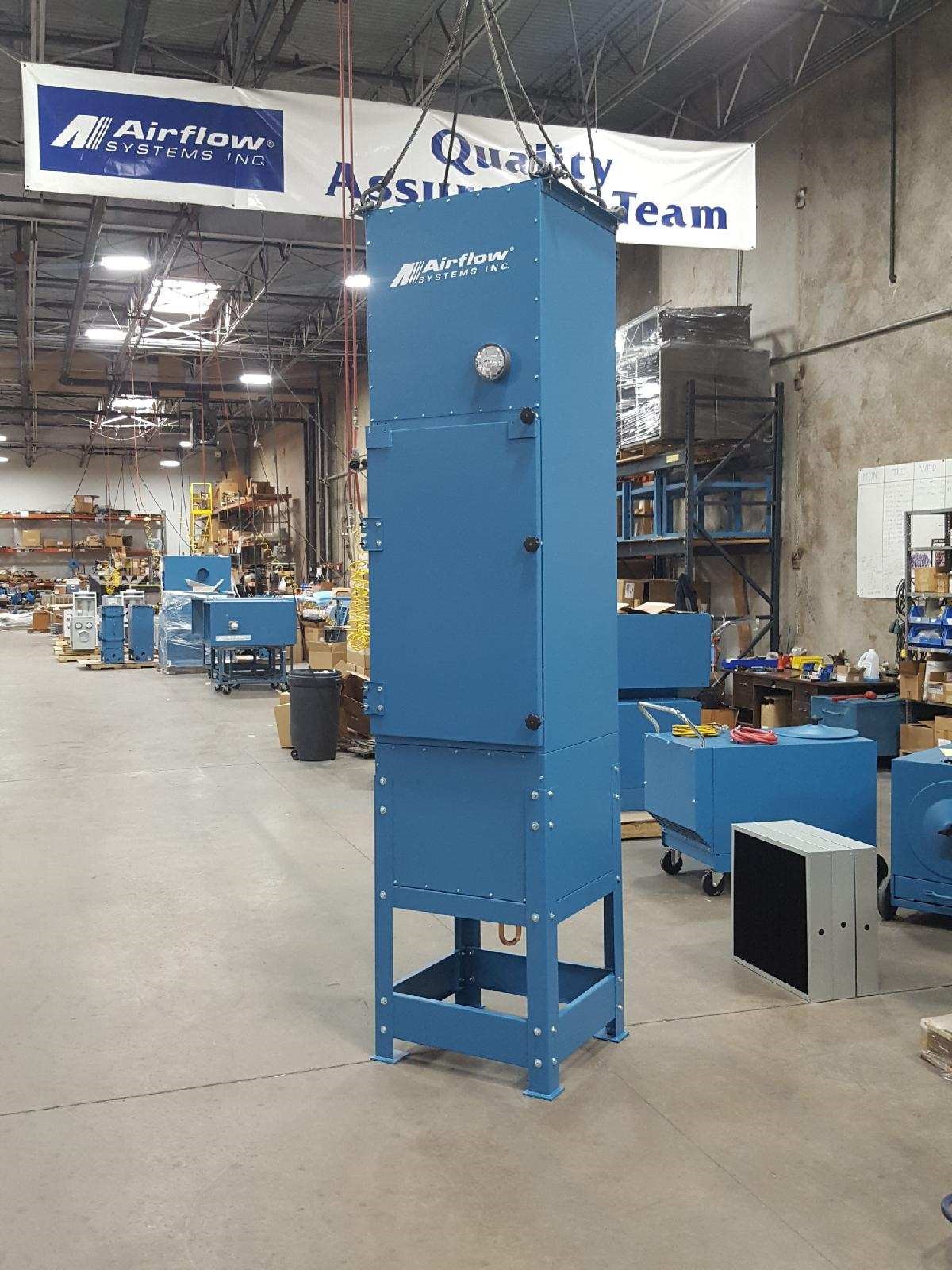

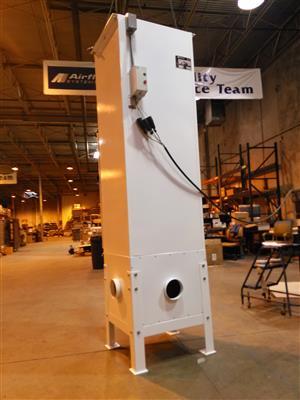

F120-VERTICAL
3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep, 30% pleated pre-filter
  • (1)65% bag filter, 120 sq.ft. of media
  • (1) 2 HP TEFC motor
  • Please specify voltage when ordering.(6.5-6.2/3.1 amps). 75 dBA
Vertical configuration includes:
  • Seam welded source capture plenum with 14D inlet
  • 24 Floor Stand
  • 14" D inlet to be on left hand side when looking at filter access door
MSF120-CV
3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep, 30% pleated pre-filter
  • (1) 65% bag filter (120 sq.ft. of media)
  • (1) 2 HP TEFC motor
Please specify voltage when ordering (6.5-6.2/3.1 amps) - 75 dBA.
MSF120-VERTICAL-CV
3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep 30% pleated pre-filter
  • (1) 65% bag filter, 120 sq.ft. of media
  • (1) 2 HP TEFC motor
  • Please specify voltage when ordering.(6.5-6.2/3.1 amps). 75 dBA
Vertical configuration includes:
  • Seam welded source capture plenum with 14" (350mm)Ø inlet
  • 24 Floor Stand
  • 14" (350mm)Ø inlet to be on left hand side when looking at filter access door

Part #
Description
F120-MERV14-4
Merv14 Pleated washable filter.
FOF-120-MERV14-4-CV
Merv14 Pleated washable filter.
7FB9-1109
FILTER, BAG, 95%, 24" x 24" x 17" - QTY (10) Main "Short" bag filter for F120.
F120-0.95
95% bag filter (120 sq.ft.) in place of standard 65% bag.
F-120-2A
2" (50mm) aluminum mesh filter in place of 4" (100mm) pleated pre-filter.
F-120-2P
2" (50mm) polyester filter with frame, 4.0 sq.ft. in place of 4" (100mm) pleated pre-filter; metal frame with replaceable pad.
F120-95DOP
95% DOP HEPA Filter Option for Standard F120 Unit
F-120-AD
AD Module Option for Standard F120 Unit includes:
  • (1) 4" (100mm) pre-filter
  • (1) 95% short bag filter (64 sq.ft.)
  • (2) refillable, v-bank absorber modules
  • (1) 2" (50mm) pleated after-filters, 50 lbs. capacity: rated 2000 cfm
  • Order charcoal separately. (Adds 22 lbs. to ship weight)
F-120-CV
CHEVRON® option, includes:
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 4" (100mm) CHEVRON ® mist eliminator
  • (1) 95% bag filter (120 sq.ft.)
  • (2) drains in cabinet (3/4 FPT)
F-120-EC
Easy Clean, polyester membrane, cleanable bag filter, 80% efficiency; replaces standard 65% bag filter.
F120-HEPA-4
HEPA filter option for F120; includes (1) 4" prefilter, (1) 95% short bag filter (88 sq.ft.), and (1) 99.97% HEPA (24" x 24" x 4") Minipleat filter, rated 1500 cfm. (Adds 40 lbs. to ship weight).
F-120-R
Reduced maintenance pre-filter, includes plenum & 10 sq.ft. polyester pad.
FOF-120-0.95-CV
95% bag filter (120 sq.ft.) in place of standard 65% bag.
FOF-120-2A-CV
2" (50mm) aluminum mesh filter in place of 4" (100mm) pleated pre-filter.
FOF-120-2P-CV
2" (50mm) polyester filter with frame, 4.0 sq.ft. in place of 4" (100mm) pleated pre-filter; metal frame with replaceable pad.
FOF-120-AD-CV
AD Module Option for Standard F120 Unit.
FOF-120-CV-CV
CHEVRON® option, includes:
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 4" (100mm) CHEVRON ® mist eliminator
  • (1) 95% bag filter (120 sq.ft.)
  • (2) drains in cabinet (3/4 FPT)
FOF-120-EC-CV
Easy Clean, polyester membrane, cleanable bag filter, MERV 12; replaces standard 65% bag filter.
FOF-120-HEPA-4-CV
99.97% DOP HEPA Filter Option for Standard F120 Unit.
FOF-120-R-CV
Reduced maintenance pre-filter, includes plenum & 10 sq.ft. polyester pad.

Part #
Description
PG-6
0-6" Magnahelic dial pressure gauge. Surface mounted
F120-PG-10
Pressure Gauge 0-10" for F120.
PMF120-PG-10-CV
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
2KT1-2701
AD or Hepa conversion Part for F120 or F90.
F120-DL
3/4" drain loop, no flange.
MOF120-DL-CV
3/4" drain loop, no flange.
2KT9-3007
Outdoor Option - Rain Shield to protect upper door gasket.
7MT4-5302
Explosion proof motor, Vapor (group D).
F120-HEPA
99.97% HEPA Filter Option for Standard F91 Unit.
F120-HEPA-12
12'' (300mm) - 99.97% DOP HEPA Filter Option for Standard F120 Unit.
F120-STAND
24 Floor Stand Option for Standard F120 Unit.
F120-VDK
VERTICAL DOOR KIT FOR F120 UNIT.
MOF120-HEPA-12-CV
12'' (300mm) - 99.97% DOP HEPA Filter Option for Standard F120 Unit.
MOF120-HEPA-CV
99.97% HEPA Filter Option for Standard F91 Unit.
MOF120-STAND-CV
24 Floor Stand Option for Standard F120 Unit.
MOF120-VDK-CV
VERTICAL DOOR KIT FOR F120 UNIT.
VFD-HP3-460
VFD with front facing dial.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
F-120-S-EXT
Exhaust silencer Option for Standard F120 Unit.
  • Adds 18" to length and 25 lbs. to ship weight
  • 2Hp=69 dBA, 3Hp=75 dBA.
SAF-120-S-EXT-CV
Exhaust silencer Option for Standard F120 Unit

Part #
Description
7ER00003
24 V air flow switch option for F120 unit (installed).
F120-DK
Drain kit for F120 unit (2 kits needed with Chevron Option)
MOF120-DK-CV
Drain kit for F120 unit (2 kits needed for horizontal Chevron Option).

Part #
Description
F-120-3HP
3 HP TEFC motor, 208-230/460/575/3/60Hz, high pressure, Class II, spark resistant, direct drive, B.I. blower. 79 dBA.
F-120-3HP-1P
3 HP TEFC motor, 230/1/60Hz, high pressure, Class II, spark resistant, direct drive, B.I. blower.
F120-EXPL-PROOF-MOTOR-3HP
3 HP Explosion proof motor, 208-230/460/575/3/60Hz, high pressure, Class I, Division I, Group C & D
FMF-120-3HP-1P-CV
3 HP TEFC motor, 230/1/60Hz, high pressure, Class II, spark resistant, direct drive, B.I. blower.
FMF-120-3HP-CV
3 HP TEFC motor, 208-230/460/575/3/60Hz, high pressure, Class II, spark resistant, direct drive, B.I. blower. 79 dBA.
FMF120-EXPL-PROOF-MOTOR-3HP-CV
3 HP Explosion proof motor, 208-230/460/575/3/60Hz, high pressure, Class I, Division I, Group C & D.

Part #
Description
2AF2-9001
2" (50mm) Polyester AFTER-filter pad & frame.
2AF4-9100
Chevron Filter - Impingement filter.
2AF9-0006
Adsorber v-bank module.
  • (2) are need for Pac 91
2AZ2-0004
2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FA8-0101
2" (50mm) Aluminum Mesh Pre-filter. For filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FA8-0101-OEM
Aluminum Mesh Pre-filter.
  • For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119
65% Short Bag Filter (24" x 24" x 17").
7FB6-5132-OEM
65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202, & 203.
7FB9-0119-OEM
95% Short Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, & F-480.
  • 24"L x 24"W x 17"H
7FB9-0126
95% fiberglass bag filter for filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FH9-9112
99.97% HEPA Filter - WOOD FRAME.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FJ9-9113
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FJ9-9113-OEM
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FM8-0002
Roll stock filter, MERV 12 2"thick x 24.5 wide x 65' long (F240 for Auto-Roll option).
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP3-0104
4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-AAF
4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-OEM
4" (100mm) Pleated filter for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, & PAC91
PP-24-6
Polyester replacement pad for Pre-filter (24" x 6").
2AF1-9032
Easy Clean Bag Filter.
  • Net Dimensions 28"L x 24"W x 24"H
2AZ2-0003
2" (100mm) Polyester pre filter (Pad only) 10 sq.ft. for reduced maintenance plenum (26" x 61" x 2").
7FB6-0126
Fiber Glass Bag Filter, (24" x 24" x 26").
7FB6-5126
65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB9-0132
95% Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, F-480 complete with:
  • Loops
  • Minimum Order: (2) Filters
7FC5-0203
FILTER, CHARCOAL, 50%, (24" x 24" x 2").
7FJ9-5112
95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP3-0102
2" (50mm) Pleated PRE-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0102-AAF
2" (50mm) Pleated pre-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
CFH-2-10
Refillable Charcoal Filter Holder.
  • Holds 10 lbs of charcoal
  • Charcoal not included
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
ESMV-75
75% CLEANABLE extended surface main replacement filter.
ESMV-85
85% CLEANABLE extended surface main replacement filter.
ESMV-95
95% CLEANABLE extended surface main replacement filter.
ESMV-98
12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
