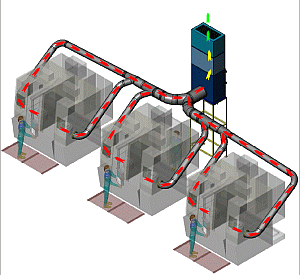

Animated diagram for Mist Collectors
Mist Collectors
1. What is it?
These units are designed to capture airborne contaminants such as oil mist and chemicals, while simultaneously extracting and containing dust and moisture created by the machining process. Our units use filters that are "SELF-DRAINING", which captures moisture, and dust at the same time, and as such, it is very important that the amount of dust being captured by these systems does not exceed more than 5% of the total extracted pollutant. If the dust quantity is kept to a minimum, filter life can be expected between 1 to 5 years depending on the application and runtime.
2. Suitable applications
3. Will it make my workplace safer?
These units can make the workplace safer by capturing harmful oil mists that otherwise mix with the air in industrial facilities. However, the effectiveness of our units relies on proper configuration, installation, and maintenance for the specific application. We offer a range of configurations that vary from standalone extraction systems with point source extraction, to integrated systems that extract directly from the machining process.
4. Suitable industries/environments
Our mist collectors are designed for precision metalwork applications, such as CNC machining, cold-heading, and lathing applications.
5. Available models & variants
To see our selection of products, check out our catalog below
6. What criteria to consider
  • Velocity: How much airflow is needed to pick up the contaminant?
  • Point-source or integrated system: Do you need to extract from a workstation, or from a machining process?
  • Portability: Do you need mist collection from multiple workstations, or integrated installation?
  • Filter selection: What filter do you need for your contaminant?
  • Positioning: Do you need an extraction arm to capture your source more effectively?
7. Preventing the spread of airborne fumes & chemicals
Industrial workers are exposed to a variety of health hazards every day. As a result, they risk the possibility of becoming sick, ill, or disabled for life. According to a WHO estimate (WHO, 2000), unintentional poisonings led to 300 000 deaths in the year 2000.

It's our goal to diminish that figure, but it only works if the correct equipment is used, and configured correctly. Our team works to make the process of answering your questions as straightforward and coherent as possible, and as such, will work with you to provide you with the system that best fits your needs. From accessibility and usability to reliability and longevity.

You can read more about the risks and preventions of fume extraction below:

OSHA
WHO
8. Here are some general design velocities when using "CAPTURE" Hoods:
Mist:
  • Capture Velocity 100 FPM
  • Transport Velocity 2250 FPM
  • Minimum Face Velocity 1766 FPM


Here are some general design velocities when using "ENCLOSING" Hoods:
Mist CNC:
  • Minimum Face Velocity 75 FPM
  • Transport Velocity 2250 FPM
11-002
MP4 - Mist Collector
mp4-oil-coolant-mist-collector - Main Image
The MP4 Oil Mist Collector produces 475 CFM with 95% filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, and a 6" bottom inlet. It features a 1" aluminum mesh pre-filter, a Mist-Plus primary filter, and a 3/4 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Hoses and mounting components.
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-003
MPH8 - Mist Collector
mph-8-oil-coolant-mist-collector - Main Image
The MPH8 Oil Mist Collector produces 800 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single or multiple metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes mounting angles to allow for surface and low ceiling roof mounting. The MPH8 comes equipped with 2 1" NPT drains for left-hand or right-hand requirements. It features a stage one Mist-Plus primary filter, a post-filter option, and a 1HP 3 PH TEFC motor

Typically, these units are directly mounted to machines vertically for direct capture of contaminants or can be suspended from any suitable roof support strut for low ceiling applications.

Main Options:
  • Motor Options
  • Filter Options
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-004
MPH10 - Mist Collector
mph10-oil-coolant-mist-collector - Main Image
The MPH10 Oil Mist Collector produces 1000 CFM with 95%+ filter efficiency and is a direct machine-mounted design for single-unit metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes the new removal bottom sump with a 3/4" drain, mounting angles to hang or surface mount, and an 8" bottom inlet. It features a 1" polyester pre-filter, a 4" MERV 14 primary filter, and a 1 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Fan/Motor Upgrades or Options
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
11-005
MP14 - Mist Collector
mp14-oil-coolant-mist-collector - Main Image
The MP14 Oil Mist Collector produces 1400 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. This unit includes a 2" aluminum mesh pre-filter, 3 Mist-Plus main filters. Mounting angles to hang or surface mount unit, and a 10" bottom inlet only. It features a 2" aluminum mesh pre-filter, a Mist-Plus primary filter, and a 1.5 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Sound Attenuation.
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-006
MP30 - Mist Collector
mp30-oil-coolant-mist-collector - Main Image
The Model MP30 Oil Mist Collector produces up to 3000 CFM with 95%+ filtration efficiency and is designed for medium- to heavy-duty metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, and a 14" bottom inlet. It features a 2" aluminum mesh pre-filter, (4) Mist-Plus primary filter, and a 5 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Motor Options
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-007
MP60 - Mist Collector
mp-60-oil-coolant-mist-collector - Main Image
The model MP60 Oil Mist Collector produces up to 6000 CFM with 95%+ filtration efficiency and is designed for medium- to heavy-duty metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, 24" high leg stand, and a 20" diameter (max) inlet collar mounted on either side or on back or 18" (max) collar on front. It features a 2" aluminum mesh pre-filter, (8) Mist-Plus primary filter, and a 10 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines vertically for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
003a - Client Installations - Case Studies with Video:
004 - Product Videos:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-008
MP120 - Mist Collector
mp120-oil-coolant-mist-collector - Main Image
The model MP120 Oil Mist Collector produces up to 12000 CFM with 95%+ filtration efficiency and is designed for medium- to heavy-duty metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, 24" high leg stand, a 28" diameter (max) inlet collar mounted on either side and one 12" side inlet. It features (2) 2" aluminum mesh pre-filter, (16) Mist-Plus primary filter, and a 20 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines vertically to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
006 - Local Exhaust and Ventilation Duct 3D Layouts:
11-025
MPH-5 - Mist Collectors
mph5-oil-coolant-mist-collector - Main Image
The model MPH-5 Oil Mist Collector produces up to 500CFM with 95%+ filtration efficiency and is designed to capture mist and smoke from various metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes an option for 24" leg stands, mounting angles to hang or surface mount, a rubber vibration isolator, and an 8" inlet collar on the bottom. It features (3) MistPlus II main filter, (1) MERV14 pleated synthetic washable filter, and a 1/2 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
11-045
Multi-Flex - Mist Collector
multi-flex-portable-mist-collector - Main Image
The Multi-Flex Portable Mist Collector produces intake speeds ranging from 650-2400 CFM with up 95%+ filter efficiency that utilizes the superior FLEXI Extraction Arm and its mobility to efficiently capture gases and vapors in the air, unseen by the human eye.

The system is best suited for capturing applications that include metalworking, cutting, forming, drilling, sawing, and shop environments across multiple industries and allows for maneuverability to any location that it is needed to be in order to perform.

The unit comes with FLEXI I/II extraction arm which supports a 6.5" diameter hose and an 8" diameter hose in 10 foot lengths, allowing for a large radius of reach from the central filter unit. It includes a HEPA main filter, Oil Mist Accumulator Prefilter option, and a 1.5HP motor.

Typically, these units can be used anywhere as they are meant to be used mobile, but can also be directly mounted to machines vertically for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Many Pre-filter and main filter options and configurations
  • Hoses and mounting components.
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
003a - Client Installations - Case Studies with Video:
11-015
1200 VOM - Mist Collector
1200-oil-mist-wet-dust-air-cleaner - Main Image
The 1200 VOM Oil Mist Collector produces 1200 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit has a vertical profile and includes mounting angles to hang or surface mount, an intake plenum with integral 3" sump, and a drain with four access doors. It features up to four stages of filtration , beginning with a 2" impingement pre-filter, a 2" aluminum mesh filter, a 12" 95% primary filter (option for a 99.97% HEPA filter), and lastly a 2" charcoal filtration (choice). The unit also comes with a standard 1 HP TEFC motor.

Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.

Main Options:
  • Many Pre-filter and main filter options and configurations
  • Hoses and mounting components.
  • Hood & Extraction Arm options
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
11-017
2400 VOM - Mist Collector
2400-vom-oil-mist-wet-dust-air-cleaner - Main Image
The 1200 VOM Oil Mist Collector produces 2400 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit has a vertical profile and includes mounting angles to hang or surface mount, a 12" diameter inlet on the left side, an intake plenum with an integral 3" sump, and a drain with four access doors. It features up to three stages of filtration , beginning with a 2" impingement pre-filter (2" aluminum mesh option), a 2" aluminum mesh filter (4" Chevron filter option), and a 12" 95% primary filter (option for a 99.97% HEPA filter). The unit also comes with a standard 1.5 HP TEFC motor (3 HP TEFC BB motor option).

Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.

Main Options:
  • Many Pre-filter and main filter options and configurations
  • Fan/Motor Upgrades or Options
  • Hoses and mounting components.
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
