Model

11-045

Image for Mobi-Oil .jpg

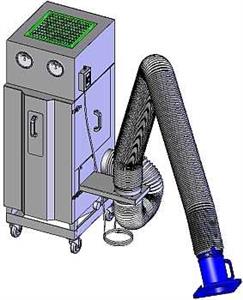

Multi-Flex - 2400 CFM

The Multi-Flex Portable Mist Collector produces intake speeds ranging from 650-2400 CFM with up 95%+ filter efficiency that utilizes the superior FLEXI Extraction Arm and its mobility to efficiently capture gases and vapors in the air, unseen by the human eye.

Function:

The system is best suited for capturing applications that include metalworking, cutting, forming, drilling, sawing, and shop environments across multiple industries and allows for maneuverability to any location that it is needed to be in order to perform.

The unit comes with FLEXI I/II extraction arm which supports a 6.33" (160mm)Ø hose and an 8" (200mm)Ø hose in 10' lengths, allowing for a large radius of reach from the central filter unit. It includes a HEPA main filter, Oil Mist Accumulator pre-filter option, and a 1.5HP motor.

Typically, these units can be used anywhere as they are meant to be used mobile, but can also be directly mounted to machines vertically for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Many Pre-filter and main filter options and configurations
  • Hoses and mounting components.
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

Construction:

  • Spark proof fan assemblies
  • Explosion-proof motors
  • 10' long, 6.33" (160mm) OR 8” (200mm)Ø FLEXI Extraction Arm with an advanced-parallelogram designed counterbalancing system
  • The extraction arm uses two fixed and two swivel casters locking mechanisms to allow for maneuverability and convenience

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
RF-OIL-7 60"H x 23"W x 32"D 150 lbs
RF-OIL-10 61"H x 23"W x 34"D 190 lbs
P-605 52"H x 24"W x 44"D 100 lbs
P-604 52"H x 24"W x 44"D 100 lbs
Mobi-Oil-120 52"H x 24"W x 44"D 100 lbs
MLT-FLEX-4000 93"H x 58"W x 41"D 700 lbs
MLT-FLEX-2000 93"H x 58"W x 41"D 700 lbs

Key Buying Criteria:

The features of this product include:
  • Can be configured to suit many applications such as oil mist, gases, vapours, and fine particulates
  • Optional HEPA and adsorption filters available
  • Spark proof fan assemblies and explosion proof motors
  • The unit comes with the option of the FLEXI-I or FLEXI-II extraction arm which supports either a 6.33" (160mm)Ø hose or 8" (200mm)Ø hose respectively.
  • Superior 10' long FLEXI Extraction Arm complete with an advanced design 'Parallelogram' counter-balancing system
  • (2) Fixed and (2) Swivel Casters locking mechanisms

Suitable For:

Top 5 contaminants/processes/applications:

  • Grinding
  • Oil mists
  • Milling machines
  • Lathes
  • Drilling machines
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
P-604 Mobi-Oil, 3 phase/.75kW/440V/50Hz. Start/Stop Hepa Filter. 4m cable (3 Phase Motor) - Unknown
P-605 Mobi-Oil with UL/CSA Motor - Unkown
Mobi-Oil-120 Mobi-Oil, 1.5HP 120V/1/60 fan, switch, overload, plug, & cord. (EU Motor)
RF-OIL-7 Mobi-Oil, 1.5HP 120V/1/60 fan complete with:
  • 7' Extraction arm, switch, overload, plug, & cord
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
RF-OIL-10 Mobi-Oil, 1.5HP 120V/1/60 fan complete with:
  • 10' Extraction arm, switch, overload, plug & cord
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part # Qty Description
MLT-FLEX-2000 Portable mechanical multi purpose 2000 M3/H (1200 CFM) filter with the following features:
  • Can be configured to suit many applications such as oil mist, gases, vapours, & fine particulate
  • Optional HEPA & Adsorption Filters available
  • Spark Proof fan assemblies and explosion proof motors
  • Superior 10ft long & 8" (200mm)Ø FLEXI-II Extraction Arm complete with an advanced design 'Parallelogram' counter balancing system
  • (2) Fixed & (2) Swivel Casters (Locking)
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MLT-FLEX-4000 Portable mechanical multi purpose 4000 M3/H (2400CFM) filter with the following features:
  • Can be configured to suit many applications such as oil mist, gases, vapours, & fine particulate
  • Optional HEPA & Adsorption Filters available
  • Spark Proof fan assemblies & explosion proof motors
  • Superior 10ft long and 8" (200mm)Ø FLEXI-II Extraction Arm complete with an advanced design 'Parallelogram' counter balancing system
  • (2) Fixed & (2) Swivel Casters (Locking)
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
CFH-R-40-ASM Assembly of Carbon Filter Holder with filter caps provided by lev-co Holds 40 lbs. of activated carbon.
  • Activated carbon not included
NX-1200-HEPA HEPA Filter Option ( 99.99%) for NOMEX© 2000. Not washable.
  • Replacement filter
NX-2400-4000-HEPA HEPA Filter Option ( 99.99%) for NOMEX© 4000. Not washable.
  • Replacement filter
NX-266 HEPA Filter Option (99.99%) for Nomex 4000 - 48m2. Replacement HEPA Filter Option ( 99.99%) for Nomex 4000/8000 For nx-8000 2 pieces needed. Final stage HEPA FILTER for Nomex 4000, HEPA FILTER for the Nomex 44 M2 H-13. Stage 3
NX-600-HEPA HEPA Filter Option ( 99.99%) for NOMEX© 1000. Not washable.
  • Replacement filter
OM-1000/2000/6000-HEPA HEPA Filter Option (99.99%) for Nomex 1000/2000- 24 m2. Stage 3
  • Replacement filter
P-265 HEPA Filter Option (99.99%) for Nomex 4000 - 24m²
  • Replacement filter

Part # Qty Description
BDT-ARM-160-1500 5’ (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-002 7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-167 5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-168 7’ (2000mm) Flexi-I Extraction arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-169 7’ (2000mm) Flexi-I Extraction 6.33" (160mm)Ø arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-003 10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-171 10' (3000mm) Flexi II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
ATEX-ARM-HSTD-160-2500 2m (0.5+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
P-606 6' 5" (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø with turning flange & damper with locking.
P-607 flexi Extraction arm 6.33" (160mm), 3m.

Part # Qty Description
NX-OMA-04 Pre-filter - Oil Mist Accumulator - 4" (100mm)Ø Inlet & Outlet.
NX-OMA-05 Pre-filter - Oil Mist Accumulator - 5" (125mm)Ø Inlet & Outlet.
NX-OMA-06 Pre-filter - Oil Mist Accumulator - 6" (150mm)Ø Inlet & Outlet.
NX-OMA-07 Pre-filter - Oil Mist Accumulator - 7" (180mm)Ø Inlet & Outlet.
NX-OMA-08 Pre-filter - Oil Mist Accumulator - 8" (200mm)Ø Inlet & Outlet.
NX-OMA-09 Pre-filter - Oil Mist Accumulator - 9" (230mm)Ø Inlet & Outlet.
NX-OMA-10 Pre-filter - Oil Mist Accumulator - 10" (250mm)Ø Inlet & Outlet.
NX-OMA-11 Pre-filter - Oil Mist Accumulator - 11" (280mm)Ø Inlet & Outlet.
NX-OMA-12 Pre-filter - Oil Mist Accumulator - 12" (300mm)Ø Inlet & Outlet.

Part # Qty Description
RELH-6-24-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version

Part # Qty Description
P-007-9-OIL Round Hood 6.33" (160mm)Ø with damper, black no lip internally supported hood for Flexi Arms.
  • Used on the Oil-mist

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge.
  • 3/16 inside diameter tubing ordered separately

Part # Qty Description
OM-134-10 Hood handle for Pro-Flex & Flexi.

Part # Qty Description
7FJ9-5112 95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
MAIN-FLTR-1000/2000/6000 Replacement Filter-box for Nomex 2000, washable, 16m2 (387 sq. ft.) Stage 2.
NX-1200-RF-1 Stage 1-Replacement Filter for NOMEX© 2000.
NX-1200-RF-2 Stage 2-Replacement Filter for NOMEX© 2000.
NX-4000-RF-1 Stage 1-Replacement Filter for NOMEX© 4000.
NX-4000-RF-2 Stage 2-Replacement Filter for MULTIFLEX & NOMEX© 4000.
NX-600-RF Replacement Filter for Nomex 1000.
P-320 Stage 1 Replacement Filter-box for Nomex 4000, washable, 24m2+24m2 (258 sq.ft.+258 sq.ft)
P-321 Stage 2 Replacement Filter-box for Nomex 4000, washable, 32m2 (387 sq.ft.)
PRE-FLTR-2000/6000 Replacement Filter-box for Nomex 1000/2000, washable, 12m2 (258 sq. ft.) Stage 1
P-311 Replacement Metal Mesh Filter (Washable) for FLX-1100/1600 (Labyrinth filter).
OM-400-HEPA Replacement HEPA filter (Suitable for applications where the coolant is burned & generates smoke), Hepa filter NX400.
OM-600-HEPA Replacement HEPA filter (Suitable for applications where the coolant is burned and generates smoke), Hepa filter OIL-EX-1000 & OIL-EX-2000.
OM-400-FLTR Replacement main filter, Self Draining for NX400
  • This filter is easily washable with warm water and mild soap. Estimated life span: 3-5 years
OM-600-FLTR Replacement main filter, Self Draining for Roll-Flex-oil and NX600
  • This filter is easily washable with warm water and mild soap. Estimated life span: 3-5 years
