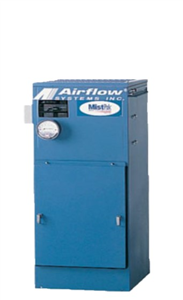

MP4 - 475 CFM

The MP4 Oil Mist Collector produces 475 CFM with 95% filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.

Function:

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, and a 6" bottom inlet. It features a 1" aluminum mesh pre-filter, a Mist-Plus primary filter, and a 3/4 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Hoses and mounting components.
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

Construction:

  • 18 gauge welded steel cabinet with the powder-coat finish
  • Quick-release filter access door
  • Ultra-Seal filter mounting system
  • Acoustically lined blower cabinet
  • Power cord (115V units only)
  • On/off switch (115V units only)
  • 115-volt units, 230/1 phase and 3 phase units are wired to a side junction box
  • The unit comes with the ability to be directly mounted to the machine
  • Max Door Opening: 7 ft ²

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MP4-3 17"H x 37"W x 17"D 125 lbs
MP4-2 48"H x 27"W x 27"D 135 lbs
MP4-1 48"H x 29"W x 30"D 162 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FJ9-9007 4"H x 15"W x 15"D 5 lbs
2AF7-3003 12"H x 12"W x 2"D 4 lbs
2AF7-3001-RSTRCT 1"H x 1"W x 1"D 0 lbs
2AF7-3001 18"H x 15"W x 15"D 10 lbs

Key Buying Criteria:

  • Exclusive Mist-Plus containment management system: Delivers over 95% filtration efficiency, reducing operating costs by reducing maintenance intervals
  • Welded steel cabinet: Eliminants contaminant escape commonly found in bolt on panel construction
  • Baked on powder coat finish: Resists harsh industrial environments
  • Front access filter door: Reduces filter changeout and maintenance time
  • Small footprint: Compact cabinet requires minimal floorspace, eases machine and wall mounting

Suitable For:

Top 5 contaminants/processes/applications:

  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
MP4-1 MP4 industrial air cleaner with a TEFC motor 115-230/1/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MP4-2 MP4 industrial air cleaner with a TEFC motor 208-230-460/3/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MP4-3 MP4 industrial air cleaner with a TEFC motor 575-600/3/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part # Qty Description
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
2AF7-3001 95% Mist-Plus Filter (1 required/ MP-4 unit)
  • Main Filter
2AF7-3001-RSTRCT 97% MIST-PLUS II filter, metal frame (1) required for MP-4 unit with built in adjustable inlet restrictor plate for balancing and increased filter efficiency
2AF7-3003 2 Polyester AFTER-filter for Mp-4 unit. Comes with Polyester pad and Frame.
2AF7-3004 Adsorber Module Option for MP-4
2AF7-3006 97% MIST-PLUS II filter, metal frame (1) required for MP-4 unit
2AF7-3006 97% MIST-PLUS II filter, metal frame (1) required for MP-4 unit
7FA8-0005 1 Aluminun Mesh Filter for MP4 Unit
  • Main Filter
7FJ9-9007 HEPA filter for MP4 and MPH-8

Frequently bought together these options:


Part # Qty Description
MP4-1P 1" Polyester Pad Option for Standard MP4 Unit
MP4-EXAD External adsorber module, 300 cfm, 12 lbs. capacity, with 2 polyester after-filter. Order charcoal separately.
MP4-EXDOP External 95% @ 0.3 micron DOP Option for Standard MP4 Unit
MP4-EXHE External HEPA, 99.97%, 300 cfm. .
MP4-EXHE/AD External 99.97% @ 0.3 micron HEPA with external adsorber module, 18lbs. Capacity with 2 polyester after-filter, 275 cfm. Order charcoal separately.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
MP4-PG-6 0-6 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.

Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD

Part # Qty Description
DM-113-02.0-104 2.0 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-03.0-104 3 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-04.0-104 4 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum) 4" X 6' HANGING ON WALL CLEAR
DM-113-05.0-104 5 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-06.0-104 6 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-08.0-104 8 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)

Part # Qty Description
HR-2-OM 2" dia. Hose Ring to connect oil mist hose to CNC machine
HR-3-OM 3" dia. Hose Ring to connect oil mist hose to CNC machine
HR-4-OM 4" dia. Hose Ring to connect oil mist hose to CNC machine
HR-5-OM 5" dia. Hose Ring to connect oil mist hose to CNC machine
HR-6-OM 6 dia. Hose Ring to connect oil mist hose to CNC machine
HR-8-OM 8 dia. Hose Ring to connect oil mist hose to CNC machine
