Model

11-009

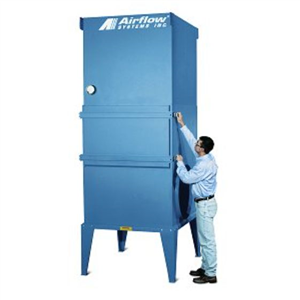

Image for mp120.jpg

MP120 - 12,000 CFM

The model MP120 Oil Mist Collector produces up to 12000 CFM with 95%+ filtration efficiency and is designed for medium- to heavy-duty metalworking applications.

Function:

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, 24" high leg stand, a 28" diameter (max) inlet collar mounted on either side and one 12" side inlet. It features (2) 2" aluminum mesh pre-filter, (16) Mist-Plus primary filter, and a 20 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines vertically to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

Construction:

  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 160 ft ²
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 12 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 20 HP
  • Noise Level (dBA): 79 dBA
  • Electrical: 230/460/3/60, 26/22 amps
  • Nominal Air Flow (CFM): 12,000

Dimensions (Inches):
  • Width = 49
  • Height = 131
  • Depth = 53

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MP120-1 60"H x 60"W x 194"D 1650 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9113 12"H x 24"W x 24"D 0 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
7FJ9-5112 12"H x 24"W x 24"D 23 lbs
3FM7-5702 "H x "W x "D 0 lbs
3FM7-5701 25"H x 13"W x 6"D 2 lbs
2AF7-5002 25"H x 25"W x 7"D 22 lbs
2AF7-5001 25"H x 25"W x 7"D 22 lbs

Key Buying Criteria:

  • Exclusive Mist-Plus® Containment Management System:Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
  • Welded steel cabinet: Eliminates contaminant escape common with bolt-on panel cabinets.
  • Baked-on powder coat finish:Resists harsh industrial environments.
  • Front access filter door: Eases filter access; reduces filter maintenance and changeout time.
  • Sloped drain pan:Facilitates reclamation of captured oil mist.
  • Lever locking Filter Mounting:Eliminates contaminant bypass of filters.
  • 24-in. Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
  • Continuous draining:Provides for longer filter life.
  • Direct-drive blower:High static pressure blower, spark resistant; greater reliability, no belts or pulleys to replace.

Suitable For:

Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MP120-1 12,000 cfm source capture industrial air cleaner with two (2) 2 aluminum mesh prefilters, (16) MIST-PLUS ™ main filters, 20 Hp TEFC motor, 208-230/460/575/3/60Hz (53-48/24/19.2), a 28 (MAXIMUM) INLET COLLAR MOUNTED ON EITHER SIDE, and 24 high leg stand
MP120-2 12,000 CFM source capture industrial air cleaner with a 20 Hp TEFC motor 575/3/60 Hz
Part # Qty Description
2AF7-5001 95% Mist-Plus Filter (4 required / MP-30 unit, 8 required / MP-60 unit, 16 required / MP-120 unit).
2AF7-5002 97% MIST-PLUS II filter, metal frame. (4 each MP30 & PRO 2; 8 each MP60 & PRO 3; or 16 each MP120 & PRO 4).
2AF7-5006 MIST-PLUS ™ filter for MP30, MP 60 and MP120
2AF8-3001 2 replacement polyester filter (frame and pad), (49 x 21).
2AZ2-0021 2 Replacement Polyester Filter, pad only for. 49 x 21 x 2 For MP120
3FM7-5701 Media Pack Refill kit (Mist- Plus) for MP-30, MP-60 and MP-120. (4 each MP30; 8 each MP60; or 16 each MP120). Price is Per Kit. You would need to order (4) of this P/N in order to be able to replace the media in all four filters in the MP30. When you order (1) 3FM7-5701. You’ll receive (2) sets of media. This would replace the media on both side of the “V” shaped filter
3FM7-5702 Media Pack Refill kit (Mist- Plus II) for MP-30, MP-60 and MP-120. (4 each MP30; 8 each MP60; or 16 each MP120). Each kit consists of 2 filter packs.
7FA8-0009 2 Aluminum Mesh Filter (49 x 21)
7FJ9-5005 95% @0.3 micron DOP Filter for MP30
7FJ9-5112 95% @ 0.3 micron DOP filter c/w metal frame, 72 Deep
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FJ9-9113 HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FJ9-9113-OEM HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Frequently bought together these options:

Part # Qty Description
MP120-2P 2" Polyester Pad Option for Standard MP120 Unit
MP120-EXAD External AD option. Twelve (12) external adsorber modules, 25 lbs. capacity each, 300 lbs. total capacity, 1100 CFM in a cop mounted cabinet (Adds 38 to height).
MP120-EXHE External 99.97% HEPA option. Six (6) 24 x 24 x 12 99.97% HEPA filters in a top mounted cabinet, 12,000 cfm. (Adds 30 to height)
MP120-EX-MERV 14 external MERV14 pleated, synthetic filter option. Six (6) 95% DOP filters in a top mounted cabinet, 12,000 cfm. (Adds 30 to height)
Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part # Qty Description
DM-113-03.0-104 3 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-04.0-104 4 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum) 4" X 6' HANGING ON WALL CLEAR
DM-113-05.0-104 5 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-06.0-104 6 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-08.0-104 8 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-10.0-104 10 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-12.0-104 12 Ø Master Pur-SL-FG Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-14.0-104 14 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
DM-113-16.0-104 16 Ø Master Pur-SL Hose. Super lightweight polyester/polyurethane w/wire reinforcement. Very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR. Price per ft. (25' Length Minimum)
Part # Qty Description
HR-10-OM 10 dia. Hose Ring to connect oil mist hose to CNC machine
HR-12-OM 12" dia. Hose Ring to connect oil mist hose to CNC machine
HR-14-OM 14" dia. Hose Ring to connect oil mist hose to CNC machine
HR-16-OM 16" dia. Hose Ring to connect oil mist hose to CNC machine
HR-3-OM 3" dia. Hose Ring to connect oil mist hose to CNC machine
HR-4-OM 4" dia. Hose Ring to connect oil mist hose to CNC machine
HR-5-OM 5" dia. Hose Ring to connect oil mist hose to CNC machine
HR-6-OM 6 dia. Hose Ring to connect oil mist hose to CNC machine
HR-8-OM 8 dia. Hose Ring to connect oil mist hose to CNC machine
