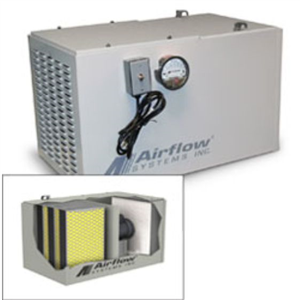

MPH-5 - 500 CFM

The model MPH-5 Oil Mist Collector produces up to 500CFM with 95%+ filtration efficiency and is designed to capture mist and smoke from various metalworking applications.

Function:

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes an option for 24" leg stands, mounting angles to hang or surface mount, a rubber vibration isolator, and an 8" inlet collar on the bottom. It features (3) MistPlus II main filter, (1) MERV14 pleated synthetic washable filter, and a 1/2 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

Construction:

  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 40 ft ²
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 18 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 1/2 HP,
  • Noise Level (dBA): 71 dBA
  • Electrical: 115/1/60, 7.2 amps
  • Nominal Air Flow (CFM): 500

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MPH-5-7FP1-4502 4"H x 19"W x 18"D 10 lbs
MPH5 33"H x 33"W x 43"D 251 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
2AF8-4900 1"H x 1"W x 1"D 15 lbs

Key Buying Criteria:

  • 95% Collection Efficiency at 1 to 4 Microns:Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
  • MERV 14 Collection Efficiency:MERV 14 rated after-filter provides an additional contaminant barrier. Collection efficiency is increased; filter life is extended.
  • Sealed Cabinet Construction:18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
  • Lever locking Filter Placement System:Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance. Top access door speeds filter maintenance.
  • Low-profile Cabinet Design:Machine-top orientation enables installation directly above the machine tool-even in low ceiling applications; saves floor space.
  • Superior Liquid Drainage: 8-inch bottom inlet allows for 24-hour, 7-day operation with no need for manual handling of collected liquids.
  • Extended Filter Life, Reduced Maintenance:MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
  • Backward-Inclined Blower: Energy-efficient; superior air flow, low horsepower requirement, higher static pressure operation; acoustically-lined blower cabinet.

Suitable For:

Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MPH5 500 cfm source capture mist collector with (3) MIST-PLUS II main filter. ½ Hp 115/1/60 Hz (7.2/3.6 amps) 71 dBA, with rubber vibration isolator.
  • Grey Colour
  • Inlet underneath the unit
  • 115V motor
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Part # Qty Description
2AF8-4900 97% MIST-PLUS ™ II filter, metal frame. (3) required. (Horizonal Holes)
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
MPH-5-7FP1-4502 Filter pleated. (18" x 19" x 3.75"). MERV 14 efficiency. Synthetic, Washable. (1) Required.

Frequently bought together these options:

Part # Qty Description
2AF8-4550 MIST-PLUS ™II filter, metal frames. for MPH5
7FJ9-9004 HEPA, 99.97% filter for MP-14, PR01, MPH5, MPH10.
7FP1-4502 Filter pleated. Synthetic, Washable. MERV 15 efficiency.
Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
