Animated diagram for Ambient Air Cleaners
Ambient Air Cleaners
1. What is it?
Ambient Air Cleaners involve the use of large “Washable, Cleanable or Replaceable Media” filters. These units, both filter and re-circulate the air back into the work place.

Installation Configurations:
Free Hanging "Negative Pressure"
“Race Track”
"Cross Dilution"

Depending upon the designed air pattern, these systems "scrub" the ambient air of contaminants, and the result is a dramatic reduction of airborne pollution. These systems are best used in combination with source-collection equipment.
3. Will it make my workplace safer?
Yes, but only when systems are configured, installed, and maintained for the correct use application. The filter selection is paramount to ensuring the reliability, effectiveness, and safety of the unit you use.
4. Suitable industries & environments
For a full list of industries, refer to our Industry solution page.
5. Available models and variants
For a list of available models, check out our catalog below.
6. What criteria to consider
  • What is the volume of the room you want to clean? (cubic dimension: L'xW'xH')
  • How many times would you like to change the air in your room? (eg: Welding=8 AC/H)
  • How much contaminant do I generate? (eg: dust, smoke, fume)
  • Where am I going to mount these units?
  • Can I use these units to create a negative pressure in my work area?
  • Do I want "throw away", "washable", "cleanable" or "self cleaning" filters?
7. Preventing the spread of airborne fumes and chemicals
Industrial workers are exposed to a variety of health hazards every day. As a result, these workers risk the possibility of becoming sick, ill, and disabled for life. According to a WHO estimate (WHO, 2000), unintentional poisonings led to 300 000 deaths in the year 2000.

It's our mission to diminish that figure, but it only works if the correct equipment is used, and configured correctly. Our team works to make the logistics of those questions as straightforward and coherent as possible, and as such, will work with you to provide you with the best extraction system that fits your worker's needs. From accessibility and usability to reliability and longevity.

You can read more about the risks and preventions of fume extraction below:

OSHA
WHO
09-000
Free hanging filter - Ambient Air Cleaner
1000-free-hanging-ambient-air-filter - Main Image
The Free hanging filter unit is an ideal solution for collecting airborne dust, smoke, odors, and other atmospheric pollutants in plants, shops, schools, offices, and factories. Provides airflow rating of 1000 CFM.

This system is best suited for air cleaning applications involving small rooms, offices, restaurants, or warehouses. When selecting this unit for industrial uses, the "Reduced Maintenance" pre-filter model is recommended.

This unit comes complete with; a 1" washable urethane foam pre-filter, 95% bag filter (39 sq. ft. of media), 1/2" charcoal filter, ODOR/EX deodorizer, and wall mounting bracket/cleat.

Typically multiple units are wall-mounted or free hung from the ceiling. Installed to achieve a "race track" or "crisscross" air pattern.

Main options:
  • Multiple filter types and configurations
  • Sound Attenuation
  • Preventative Maintenance Pressure Gauges (when ordering main unit)
  • Variable Frequency Drives
  • Installation Accesories
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
09-001
F70-R - Ambient Air Cleaner
f70r-free-hanging-ambient-air-cleaner-reduced-maintenance - Main Image
The F70-R collects dust, smoke, oil mist, oil smoke, and other atmospheric pollutants. Designed for use in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stages of filtration. This model features a flow rate of 2500 CFM.

The F70-R filter unit comes standard with (1) 10ft² reduced maintenance pre-filter; (1) micro-glass multi-pocket bag filter 65% efficiency; (1) 3/4 HP totally enclosed, 2-speed motor 115/1/60Hz.

"Free-Hanging" (also called "Packaged") reduced maintenance air cleaner complete with an integrated Blower and filter system. Ideal for "Cross-Dilution" and filtration of airborne pollutants that can't be easily captured at source.

There are multiple filter configurations available featuring washable and/or disposable filters. Typically, units are wall-mounted or free hung from the ceiling.

Main Options:
  • Filter Options
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
09-002
T-3000 - Ambient Air Cleaner
t-3000-t-style-ambient-air-cleaner - Main Image
The T-3000 Model collects dust, smoke and other airborne pollutants in factories, schools, shops, labs, assembly areas and repair shops with a high efficiency, 2-stage filtration system. This model features a flow rate of 3000 CFM.

The F70-R filter unit comes standard with (2) pleated prefilters, (2) 95% bag filters, 64 ft2 each. The first stage of filtration is a 40% pleated pre-filter that will trap dust and larger particles. The second stage is a micro-glass multi-pocket bag filter that will remove smoke and other sub-micron size particles from the air.

A complete, packaged air filter unit designed as a “free-hanging” system for efficient and economical air cleaning when at-the-source capture of pollutants is not possible or practical. Strategic placement of one or several units in an area will result in a dramatic reduction of the bothersome smoke, dust or haze in your facility.

There are multiple filter configurations available featuring washable and/or disposable filters. Typically, units are wall-mounted or free hung from the ceiling.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
09-007

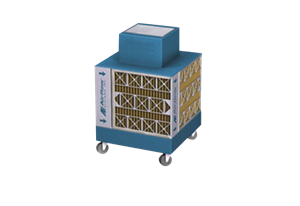

AIRPOD Series - Ambient Air Cleaner
airpod-series-portable-ambient-air-cleaner-dust-gases-voc-1 - Main Image
Free-standing Ambient Collection System. AirPods consists of 1 to 3 modules that stack up to three modules high, easily adapting to multiple filtration configurations. The flow rates for the different configurations range from 2500 - 5000 CFM.

The AirPod Industrial Air Cleaner is a cost-effective, user-friendly industrial air filtration system for fine, airborne dust. The free-standing modular air cleaner offers a choice of panel filters, depending on the specific needs of the application. The AirPod provides ambient air filtration for processes such as grinding, sanding, surface finishing, woodworking, metal fabrication, and chemical / powder processing, warehousing, and training labs at vocational schools.

The way these systems work is they draw in airborne dusts & gases that settle at floor level. Particles are drawn into the four-sided air intake, where they are then filtered and discharged vertically above the work area. By drawing in the air near the floor, Cooled air is discharged into the warmer air near the ceiling creating an effective dilutionary & energy savings air pattern

All AirPods feature washable pre-filters, a primary box filter, and optional HEPA after-filters combine to provide 99.97% filtration efficiency at noise levels as low as 66 dBa. These are portable units, rather than being fixed in place with a mounting solution.

Main Options:
  • Filter Options
  • After Filter for Absorption Media
  • Motor Voltage Selection
  • Caster Options
  • Variable Frequency Drives
  • Control Panel Accessories
Attachments
001 - Equipment Specification and Dimension Drawings:
09-009
TC-4 - Ambient Air Cleaner
tc-4-free-hanging-air-cleaner-self-cleaning-filters - Main Image
The TC-4 Ambient Air Cleaner is ideal for heavy dust loading applications or applications involving hard to reach areas where regular maintenance of the collector would be impractical. This model features a flow rate of 4,000 CFM

The TC-4 Ambient Air Cleaner comes complete with (4) Clean-2® cartridge filters, (150ft² of media each), ON-DEMAND, AUTO-CLEAN VIBRA-PULSE® filter cleaning system, 3 HP TEFC motor and a ½” NPT regulator.

Pollutants pass through the inlet at each end of the cabinet into the dirty air chambers, where the baffling system directs heavier particles toward the bottom of the unit. Lighter particles follow the airstream behind the baffles where they are filtered from the air by the CLEAN 2® cartridge filter. (The CLEAN 2® is the standard filter shipped in the TC-4 units. Other filters are available and may be used in your specific application). The CLEAN 2® filter removes particles with a high degree of efficiency. The air then moves to the clean air chamber, where it is drawn out of the unit by the fan.

This model is a "T" style unit, which features a "free-Hanging" or "Packaged" air cleaner design. The main mounting method for this model is to freely hang from most ceilings, allowing for versatility when placing the unit in a workspace. This unit is self-cleaning, so the filter replacement period is prolonged.

Main Options:
  • Sound Attenuation
  • Variable Frequency Drives
  • Pressure Gauges
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
09-010
FM600 - Ambient Air Cleaner
fm600-t-bar-ceiling-air-cleaner-24-24-1 - Main Image
The FM600 Ambient Air Cleaner is a great solution for above-ceiling mounting when faced with a standard 2' x 2' ceiling tile opening. This model features a flow rate of 600 CFM.

The FM600 Ambient Air Cleaner comes complete with (1) ½” aluminum mesh pre-filter, (1) 95% main filter (14ft²), (1) ½” charcoal after-filter and an ODOR/EX deodorizer.

For your Safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "Clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

Mounting configurations for this particular unit are completely above the ceiling with a T-bar mount, and can be mounted flush with the ceiling tiles. The FM600 features washable and/or disposable filters

Main Options:
  • Filter Options
  • Fan Upgrades
  • Motor Upgrades
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
09-011
FM1000 - Ambient Air Cleaner
fm1000-t-bar-ceiling-air-cleaner-24-48-1 - Main Image
The FM1000 Ambient Air Cleaner is a great solution for above-ceiling mounting when faced with a standard 2' x 4' ceiling tile opening. This model features a flow rate of 1000 CFM.

The FM1000 Ambient Air Cleaner comes complete with (1) ½” aluminum mesh pre-filter, (1) 95% main filter (14ft²), (1) ½” charcoal after-filter and an ODOR/EX deodorizer.

For your Safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "Clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

Mounting configurations for this particular unit are completely above the ceiling with a T-bar mount, and can be mounted flush with the ceiling tiles. The FM1000 features washable and/or disposable filters.

Main options:
  • Filter Options
  • Fan Upgrades
  • Motor Upgrades
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
09-012
T140 - Ambient Air Cleaner
t140-ducted-air-cleaner-self-cleaning-filters-1 - Main Image
T-140 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 stages of filtration. This model features a flow rate anywhere from 3600 - 4500 CFM.

Ideal for "Cross-Dilution" and filtration of airborne pollutants that can't be easily captured at source. The T-STYLE configuration allows the contaminated air to enter from both ends of the unit and the cleaned air to exit from the center of the housing. This allows the air to be filtered by twice the media resulting in a much lower "AIR-TO-CLOTH" ratio which in turn means greater filter life, quite often 2 to 4 times the average filter life of that of a regular uni-directional "Flow-Through" filter system. The center exhaust also allows for better dilution of the contaminated air, and in the case of large plants, it has an added energy-saving effect.

For your Safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "Clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

These "Free-Hanging" (also called "Packaged") units are mounted from most ceilings inside factories and industrial settings. Each air cleaner comes complete with 65% efficient washable and/or disposable filters.

Main Options:
  • Filter Options
  • Fan Upgrades
  • Motor Upgrades
  • Sound Attenuation
  • Pressure Gauges
  • Variable Frequency Drives
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
