Model

09-000

Image for 1000.png

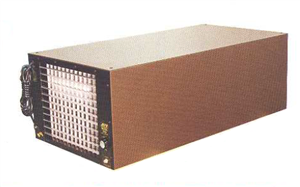

Free Hanging Filter - 1000 CFM

The Free Hanging Filter unit is an ideal solution for collecting airborne dust, smoke, odors, and other atmospheric pollutants found in plants, shops, schools, offices, and factories. Provides airflow rating of 1000 CFM.

Function:

This system is best suited for air cleaning applications involving small rooms, offices, restaurants, or warehouses. When selecting this unit for industrial uses, the "Reduced Maintenance" pre-filter model is recommended.

This unit comes complete with; a 1" (25mm) washable urethane foam pre-filter, 95% bag filter (39 sq. ft. of media), 1/2" charcoal filter, ODOR/EX deodorizer, and wall mounting bracket/cleat.

Typically multiple units are wall-mounted or free hung from the ceiling. Installed to achieve a "race track" or "crisscross" air pattern.

Main options:
  • Multiple filter types and configurations
  • Sound Attenuation
  • Preventative Maintenance Pressure Gauges (when ordering main unit)
  • Variable Frequency Drives
  • Installation Accessories

Construction:

  • 18 ga. steel cabinet
  • Brown epoxy powder coat
  • Direct drive, 9 x 9 blower
  • P.S.C. motor 115V, single-phase, 1.7 amps
  • 3-speed switch
  • Running light
  • 10’ power cord
  • 4-way adjustable exhaust grill

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
1000-R "H x "W x "D 0 lbs
1000 18.25"H x 24.25"W x 44.25"D 147 lbs

Key Buying Criteria:

  • Belt Drive Blower: Higher static and flow performance.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Four-Way Adjustable Airfoil Grille: For precision direction of air back into facility. Maximum airflow design for light to medium applications: Improves operating efficiency.
  • Prewired to Junction Box: For fast, easy installation.
  • Cleanable Filters: Reduces filter replacement costs.

Suitable For:

Top 5 contaminants/processes/applications:

  • Airborne viruses
  • Atmospheric dust
  • Wild fire smoke
  • Cardboard dust
  • Dust from new construction
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
1000 Wall Mount 1000 CFM air cleaner, complete with:
  • Washable urethane foam pre-filter
  • 95% bag filter
  • Charcoal filter
  • ODOR/EX deodorizer
  • Cleat wall bracket
1000-R 1000 cfm Wall Mount Air Cleaner; complete with:
  • Washable urethane foam pre-filter
  • 95% bag filter
  • Charcoal filter
  • ODOR/EX deodorizer
  • Reduced maintenance pre-filter
  • 4.2 sq.ft. of media. 115V/1/60

Frequently bought together these options:


Part # Qty Description
1000-2A With 2" (50mm) final charcoal filter, 4.6 lb.
1000-2C Charcoal after-filter, 4.6 lbs. in place of standard. Charcoal filter.
1000-AD Adsorption option; Refillable, v-bank adsorber module, 15 lbs. capacity, and pleated after-filter (60% efficiency) in place of standard bag filter.
  • Order charcoal separately
1000-EC Easy Clean Bag Filter Option for Standard 1000 Unit.
1000-HEPA HEPA option; (1) 99.97% HEPA filter in place of standard 95% bag filter.

Part # Qty Description
1000-S External Silencer, JAWS® II Option for Standard 1000 Unit.
  • Adds 15 lbs. to ship weight
2AU3-9005 External Silencer JAWS (adds 15 lbs to ship weight) 56DBA (high) 52cBA (Medium), 46dBA (low)

Part # Qty Description
1000-PG-3 0-3" liquid gauge.
  • Surface mounted option for Standard 1000 Unit
1000-WHITE Off-white paint - Option for Standard 1000 Unit (Call for availability).
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge.
  • 3/16 inside diameter tubing ordered separately

Part # Qty Description
2AG7-0004 Eyebolts, factory installed: replaces standard cleat wall bracket.
2PG3-1000 0-3" liquid gauge.
  • Surface mounted

Part # Qty Description
2AF1-4022 Easy Clean Bag Filter.
2AF9-0010 V-bank absorption module.
2AZ2-0006 2 Polyester Prefilter
7CH3-7001-BOX ODOR/EX - QTY (12).
  • Price per each
7CH3-7001-EACH ODOR/EX cartridge.
  • Price per each
7FB9-0812 95% Short Bag Filter.
7FB9-0822 95%bag filter for 1000 and 1000-D filter systems Net dimensions L 20x W18xH12 4 bags
7FC5-0801 1/2" (12mm) Charcoal Filter.
7FC7-5802 Charcoal Filter (17 7/8 x 13 1/4).
7FF1-0801 1" (25mm) Washable Foam Pre-filter.
7FH9-9812 99.97% HEPA Filter - WOOD FRAME.
7FP6-0801 2" (50mm) Pleated Filter 60% - 12" x 18" x 2".
7RK31001 Mounting Clip for ODOR/EX with self adhesive strip.
