Model

09-007

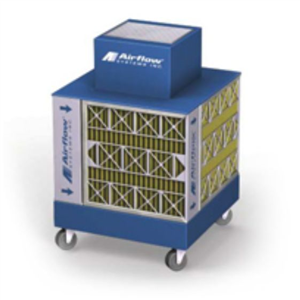

Image for airpod.jpg

AIRPOD Series - 5000 CFM

Free-standing Ambient Collection System. AirPods consists of 1 to 3 modules that stack up to three modules high, easily adapting to multiple filtration configurations. The flow rates for the different configurations range from 2500 - 5000 CFM.

Function:

The AirPod Industrial Air Cleaner is a cost-effective, user-friendly industrial air filtration system for fine, airborne dust. The free-standing modular air cleaner offers a choice of panel filters, depending on the specific needs of the application. The AirPod provides ambient air filtration for processes such as grinding, sanding, surface finishing, woodworking, metal fabrication, chemical / powder processing, warehousing, and training labs at vocational schools.

The way these systems work is they draw in airborne dusts and gases that settle at floor level. Particles are drawn into the four-sided air intake, where they are then filtered and discharged vertically above the work area. By drawing in the air near the floor, cooled air is discharged into the warmer air near the ceiling creating an effective dilutionary and energy savings air pattern.

All AirPods feature washable pre-filters, a primary box filter, and optional HEPA after-filters combine to provide 99.97% filtration efficiency at noise levels as low as 66 dBa. These are portable units, rather than being fixed in place with a mounting solution.

Main Options:
  • Filter Options
  • After Filter for Absorption Media
  • Motor Voltage Selection
  • Caster Options
  • Variable Frequency Drives
  • Control Panel Accessories

Construction:

  • 12/14/16 ga. Welded zinc-coated steel cabinet
  • Blue powder-coat finish
  • Blower Pkg (HP): AirPod I & II: 2-speed forward curve, direct drive
  • Blower Pkg (HP): Optional AirPod II and III: Dynamically balanced BI blower, non-sparking, motor/blowers
  • AirPod I and II, standard: 3/4 HP,115/1/60, 9.4 amps
  • AirPod III, standard: 3 HP, 208-230/460/3/60, 7.8-7.2/4 amps; optional: 3 HP, 230/1/60 11.7 amps

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
AirPod-II-STD 80"H x 46"W x 46"D 390 lbs
AirPod-III 110"H x 46"W x 46"D 675 lbs
AirPod-II-A 86"H x 46"W x 46"D 520 lbs
AirPod-I 66"H x 46"W x 46"D 345 lbs

Key Buying Criteria:

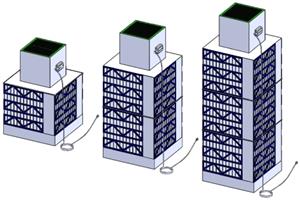

  • Flexibility: AirPod modules may be stacked one, two, or three high, providing as much filtration capacity as needed.
  • Versatility: The AirPod I comes standard with casters allowing the unit to be moved to the dust source with ease. The larger units can be easily positioned within the work area, each requiring a small 31" x 31" footprint.
  • Maximized Filter Surface Area: Each AirPod module features standard panel filters on all four sides.
  • Efficient Filtration: Standard filter has MERV 11 efficiency (98% at 1.0 to 3.0 microns) with UL® Class 2 flame-retardant filters; other MERV and AD/carbon filter configurations are also available.
  • Easy Maintenance: Fully visible, easy-access filters simplify monitoring and replacement.
  • Low Cost of Operation: The AirPod uses standard disposable filters and requires no compressed air.

Suitable For:

Top 5 contaminants/processes/applications:

  • Metal Sparks
  • Wood Dust
  • Plastic Dust
  • VOC/Paint Fumes
  • Paper Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
AirPod-I 2500cfm Portable Ambient Air Cleaner with no filters, silencer with airfoil upward directional vanes, 3/4 HP 115/1/60Hz (11.4 amps), 65 dBA (Low) 66 dBA (High) TEAO dual speed motor, 7' power cord, on/off toggle switch on top of unit. Unit comes without filters.
  • Unit does not include filters, see options*
  • The chosen filters will be installed on the unit at the time of shipment and the unit is wrapped in plastic. Except the AD filters for Airpod III will be shipped in a separate box
AirPod-II-STD 2500cfm Portable Ambient Air Cleaner, silencer with airfoil upward directional vanes, 3/4 HP 115/1/60Hz (11.4 amps), 64 dBA (Low) 68 dBA (High) TEAO dual speed motor, taller filter housing to accommodate (8) filters (not included ), 7' power cord, on/off toggle switch on top of unit. Order filters separately - (8) sets of filters required.
  • Unit does not include filters, see options*
  • The chosen filters will be installed on the unit at the time of shipment and the unit is wrapped in plastic. Except the AD filters for Airpod III will be shipped in a separate box.
AirPod-II-A 5500cfm Ambient Air Cleaner with no filters, 3HP 208-230/3/60Hz 77 dBA,TEFC direct drive BI blower assembly, built in silencer with acoustical lining. Includes Poly Pre-Filter with spring loaded frame (24" x 24" x 2") with refillable modulus. (24" x 24" x 3") & poly after-filter with plastic frame (24" x 24" x 1") holds 25 lbs charcoal. Rated 450cfm.
  • Unit does not include filters, see options*
AirPod-III 5000 cfm floor mounted ambient air cleaner with no filters, built in Silencer with acoustical lining, 3HP 208-230/575/3/60Hz (7.8-7.2/4.0 amps) 77 dBA, TEFC direct drive BI blower assembly. Unit comes without filters.
  • Unit does not include filters, see options)
  • The chosen filters will be installed on the unit at the time of shipment & the unit is wrapped in plastic. Except the AD filters for Airpod III will be shipped in a separate box.

Frequently bought together these options:


Part # Qty Description
Mesh Filter-1 1" (25mm) Mesh Filter (washable).

Part # Qty Description
AirPod-I-FILTER-PKG-OPTION A Filter package A for Airpod I. Consists of:
  • QTY (12) Filter, Pleated (24" x 24" x 2")
  • MERV 11 Three Stage
AirPod-I-FILTER-PKG-OPTION B Filter Package B for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Merv 11 Pleated Filter (24" x 24" x 2")
AirPod-I-FILTER-PKG-OPTION C Filter Package C for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (4) Merv 11 Pleated Filter 25 SF (24" x 24" x 4")
AirPod-I-FILTER-PKG-OPTION D Filter Package D for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (4) Merv 11 Mini Pleated Filter 122 SF (24" x 24 "x 4")
AirPod-I-FILTER-PKG-OPTION E Filter Package E for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (4)Merv 17 HEPA , 99.97% Filter, Metal frame (24" x 24" x 4"), rated 450CFM
AirPod-I-FILTER-PKG-OPTION F Filter Package B for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (4) Merv 14 Pleated Synthetic, Washable Filter, 122 SF (24" x 24" x 4")
AirPod-I-FILTER-PKG-OPTION G Filter Package G for Airpod I. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (4) Refillable modules (24" x 24" x 3")
  • QTY (4) Poly After-Filter with plastic frame (24" x 24" x 1") rated 450CFM
  • Holds 25 lbs of charcoal
AirPod-I-FILTER-PKG-OPTION H Filter Package H for Airpod I\. Consists of:
  • QTY (4) Poly Pre-Filter with spring loaded frame (24" x 24 "x 2")
  • QTY (8) Charcoal filter impregnated (24" x 24" x 2")
AirPod-I-FILTER-PKG-STANDARD Standard Filter Package for Airpid I. Consists of:
  • QTY (4) Filter, Pleated (24" x 24" x 6") MERV 11
AirPod-II-FILTER-PKG-OPTION A Filter Package A for Airpod II. Consists of:
  • QTY (24) Filter, Pleated (24" x 24" x 6") MERV 11 Three stage
AirPod-II-FILTER-PKG-OPTION B Filter Package B for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (16) Merv 11 Pleated Filter (24" x 24" x 2")
AirPod-II-FILTER-PKG-OPTION C Filter Package C for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Merv 11 Pleated Filter 25 SF (24" x 24" x 4")
AirPod-II-FILTER-PKG-OPTION D Filter Package D for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Merv 11 Mini Pleated Filter 122 SF (24" x 24" x 4")
AirPod-II-FILTER-PKG-OPTION E Filter Package E for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Merv 17 HEPA 99.97% Filter, metal frame (24" x 24" x 4"), rated 450CFM
AirPod-II-FILTER-PKG-OPTION F Filter Package F for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Merv 14 Pleated Synthetic, Washable Filter, 122 SF (24" x 24" x 4")
AirPod-II-FILTER-PKG-OPTION G Filter Package G for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (8) Refillable modules (24" x 24" x 3")
  • QTY (8) Poly After-Filter with plastic frame (24" x 24" x 1"), rated 450CFM
  • Holds 25 lbs of charcoal
AirPod-II-FILTER-PKG-OPTION H Filter Option H for Airpod II. Consists of:
  • QTY (8) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (16) charcoal filter impregnated (24" x 24" x 2')
AirPod-II-FILTER-PKG-STANDARD Standard Filter Package for Airpod II. Consists of:
  • QTY (8) Filter, Pleated (24" x 24" x 6") MERV 11
AirPod-III-FILTER-PKG-OPTION A Filter Option A for Airpid III. Consists of:
  • QTY (36) Filter, Pleated (24" x 24" x 6") MERV 11 Three stage
AirPod-III-FILTER-PKG-OPTION B Filter Option B for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (24) with Merv 11 Pleated Filter (24" x 24" x 2")
AirPod-III-FILTER-PKG-OPTION C Filter Package C for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (12) Merv 11 Pleated Filter 25 SF (24" x 24" x 4")
AirPod-III-FILTER-PKG-OPTION D Filter Package D for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24 "x 2")
  • QTY (12) Merv 11 Mini Pleated Filter 122 SF (24" x 24" x 4")
AirPod-III-FILTER-PKG-OPTION E Filter Package E for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (12) Merv 17 HEPA 99.97% Filter, metal frame (24" x 24" x 4"), rated 450CFM
AirPod-III-FILTER-PKG-OPTION F Filter Package F for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (12) Merv 14 Pleated Synthetic, Washable Filter, 122 SF (24" x 24" x 4")
AirPod-III-FILTER-PKG-OPTION G Filter Package G for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (12) Refillable modules (24" x 24" x 3")
  • QTY (12) Poly After-Filter with plastic frame (24" x 24" x 1"), rated 450CFM
  • Holds 25 lbs of charcoal
AirPod-III-FILTER-PKG-OPTION H Filter Option H for Airpod III. Consists of:
  • QTY (12) Poly Pre-Filter with spring loaded frame (24" x 24" x 2")
  • QTY (24) Charcoal filter impregnated (24" x 24" x 2")
AirPod-III-FILTER-PKG-STANDARD Standard Filter Option for Airpod III. Consists of:
  • QTY (12) Filter, Pleated (24" x 24" x 6") MERV 11

Part # Qty Description
2AF1-9002 Poly After- Filter (24" x 24" x 1") with Plastic Frame MERV 7.
7FP3-0401 1" (25mm) Pleated Filter 30% efficiency - Used as after-filter for AD.
7FP3-0401-OEM 1" (25mm) pleated after filter.

Part # Qty Description
AirPod-I-Casters Not Required for the AirPod-I.
AirPod-I-II-A-Casters Casters Kit Option for AirPod 1 & II. Caster kit includes:
  • 5" (125mm) casters, (2) fixed, & (2) swivel
AirPod-III-Casters Casters Kit Option for AirPod III. Caster kit includes:
  • 5" (125mm) casters, (2) fixed, (2) swivel, & counter weight base plate & hardware

Part # Qty Description
PG-3-AFS 0-3"liquid gauge, surface mounted pressure gauge for T140

Part # Qty Description
7FP1-4505-OEM MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
2AF7-9001 Refillable module, holds 30 Ibs.of charcoal - order separate.
2AF7-9865 Poly Pre-Filter with Spring Loaded Frame for PANEL FILTER POWERBOOTH & PANEL FILTER BOOTH.
2AZ1-0006 Cut 1" (25mm) poly, Blue/White, for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, & EASY BENCH.
2FC7-5604 Charcoal Filter, impregnated - Use with AirPod I/II/III, Powerbooth.
2KS0-4P11 Standard Filter, pleated (24 x 24 x 6) Merv 11.
  • For Airpod I
  • Each KIT includes (4) filters
7FA8-0101-OEM Aluminum Mesh Pre-filter.
  • For use with F-120/AirPod I/II/III/PAC-91
7FC7-5604 Charcoal pad, 75%, 1" (25mm) impregnated carbon filter with Poly.
  • QTY (4) per 2FC7-5604
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-1214 2" (50mm) Filter, pleated. MERV11 efficiency.
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-1412-OEM Filter, pleated for PANEL FILTER POWERBOOTH & PANEL FILTER BOOTH.
7FP1-1427-OEM Filter, pleated for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, & EASY BENCH.
7FP1-3412 Filter, Puracell for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, & EASY BENCH.
7FP1-4412 Filter, Puracell for PANEL FILTER POWERBOOTH and PANEL FILTER BOOTH.
7FP1-4505 High Efficiency DOP 95 HEPA Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod.
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
EF2-0101 Aluminum Mesh Replacement Filter 23 3/8 x 23 3/8 x 2
  • Galvanized steel frame
MEDIA-P15500SBR 1" (25mm) High Efficiency Filter Media.
  • PRICE PER SQUARE FOOT
MP45 Merv 16 000-327C WinAirPlt-2" (50mm) Merv 16 filter for Air Pod.
PP-24-6 Polyester replacement pad for Pre-filter (24" x 6").
