Model

09-001

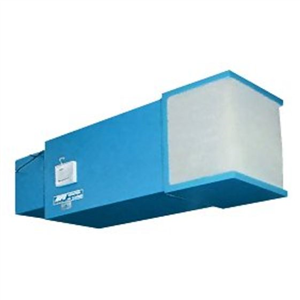

Image for f70r.jpg

F70-R - 2500 CFM

The F70-R collects dust, smoke, oil mist, oil smoke, and other atmospheric pollutants. Designed for use in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stages of filtration. This model features a flow rate of 2500 CFM.

Function:

The F70-R filter unit comes standard with (1) 10ft² reduced maintenance pre-filter; (1) micro-glass multi-pocket bag filter 65% efficiency; (1) 3/4 HP totally enclosed, 2-speed motor 115/1/60Hz.

The "Free-Hanging" (also called "Packaged") reduced maintenance air cleaner is complete with an integrated blower and filter system. Ideal for "Cross-Dilution" and filtration of airborne pollutants that can't be easily captured at source.

There are multiple filter configurations available featuring washable and/or disposable filters. Typically, units are wall-mounted or free hung from the ceiling.

Main Options:
  • Filter Options
  • Variable Frequency Drives

Construction:

  • 18 Ga. steel cabinet
  • Powder-coat blue finish
  • Direct drive, 10 x 10 blower
  • 4-way adjustable airfoil blade exhaust grille
  • 6’ power cord with plug
  • Mounting eye bolts (factory installed)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
F70R 36"H x 34"W x 75"D 237 lbs

Key Buying Criteria:

  • Capacities to 2500 CFM: Handles toughest industrial applications.
  • Direct-Drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
  • Prewired: 2-speed switch and cord. (std. motor) ON/OFF toggle switch (opt. motors)

Suitable For:

Top 5 contaminants/processes/applications:

  • Airborne viruses
  • Atmospheric dust
  • Wildfire smoke
  • Cardboard dust
  • Dust from new construction
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
F70R 2500 CFM air filter unit complete with:
  • (1) 10ft² reduced maintenance pre-filter
  • (1) micro-glass multi-pocket bag filter 65% efficiency
  • (1) 3/4 HP totally enclosed, 2-speed motor 115/1/60Hz

Frequently bought together these options:


Part # Qty Description
F70C-65% 65% bag filter in place of standard 95% bag.
  • Comes with main unit
F70R-2C 2 Charcoal After-Filter Option for Standard F70R Unit.
F70R-95% 95% bag filter in place of standard 65% bag for standard F70R unit
F70R-DP Deduct Reduced Maintenance Pre-filter Option for Standard F70R Unit.
F70R-EC Easy Clean Reusable Bag Filter (95% arrestance and 50% efficiency) Option for Standard F70R Unit.
  • Recommended for applications where the material to be collected is of a coarser nature

Part # Qty Description
2AU4-9001 Silencer, right angle discharge 62dBA.
F70R-S-EXT Silencer-Straight Through Discharge Option for Standard F70R Unit.
F70R-SR Silencer-Right Angle Discharge Option for Standard F70R Unit.

Part # Qty Description
GAUGE-OIL-MAN Red Gauge Oil for Manometers - 3/4 oz. bottle
F70R-PG-3 0-3" liquid gauge manometer.
  • Surface mounted option for Standard F70R
Manometer EB80 0-3 Manometer.

Part # Qty Description
F70R DRAIN-LOOP Drain loop kit, includes:
  • 1.5 x 3/4 reducer fitted with 3/4 copper p-trap pipe with fittings
  • Instructions
F70R-CART Cart with Casters option for Standard F70R Unit.
2AE1-7070 Remote wall switch.

Part # Qty Description
2AF1-9022 Easy Clean Bag Filter, 80% efficiency (24" x 24" x 22").
2AZ2-0004 2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FB6-5119 65% Short Bag Filter (24" x 24" x 17").
7FB6-5119-OEM 65% Short Bag Filter for F-120, F122, F240, F360, F480, 200, 202, & 203 - 64 sq.ft. (24" x 24" x 17").
7FB6-5122 65% Bag Filter - Replacement for F70-C & T-140 (24" x 24" x 22").
7FB6-6104 Synthetic Pleated Filter with cardboard frame maximum pleat 610 (24" x 24" x 22")
  • Comes in box of (6)
7FB9-0119 95% Short Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, & F-480.
  • L13 x W24 x H24
7FB9-0119-OEM 95% Short Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, & F-480.
  • 24"L x 24"W x 17"H
7FC7-5002 FILTER, 21.38" x 23.50" x 1.88" 50% CHARCOAL
7FC7-LC212 Refillable carbon filter for F70R.
  • Holds 12 lbs of carbon
  • Comes complete with washable PRE & POST filter media
7FM8-0003 Auto roll stock media, 100 yards.
7FM8-0003-OEM Roll stock filter media, 75% efficiency, 2" thick x 24.5" wide x 65' long (For AR option).
7FP3-0104 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-AAF 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-OEM 4" (100mm) Pleated filter for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, & PAC91
PP-24-6 Polyester replacement pad for Pre-filter (24" x 6").
2AZ2-0003 2" (100mm) Polyester pre filter (Pad only) 10 sq.ft. for reduced maintenance plenum (26" x 61" x 2").
2AZ2-1001 Spark arresting pre-filter for F70R - made of fire resistant fiberglass.
7FB6-5122-OEM Replacement 65% Bag Filter for the following units:
  • F70R T-3000, T-3500, T-4500 T-6000, T-7500, & T-140 units (24" x 24" x 22").
7FB9-0122 Replacement 95% Bag Filter for the following units:
  • F70R T-3000, T-3500, T-4500 T-6000, T-7500, & T-140 units (24" x 24" x 22")
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
ESMV-75 75% CLEANABLE extended surface main replacement filter.
