High-Pressure / Low-Volume HPLV
1. What is it?
Mobile HEPA vacuums and hi-vacuum/pressure dust collectors, designed for tough industrial applications. toughest use. We use a variety of filtration stages.

EG: Pre-separators, Pre-filters, spark traps, cleanable or self-cleaning main filter, HEPA filters, and VOC/ODOUR control final filters. Certified Leak tested HEPA filters are tested for effectiveness and safety of the personnel using the equipment.
3. Will it make my workplace safer?
This is true, but only if the system is configured, installed, and maintained for the correct use. Proper filter selection is paramount to ensuring the reliability, effectiveness, and safety of the unit you use.
4. Suitable industries & environments
For a full list of industries, refer to our Industry solution page
5. Available models and variants
For a list of available models, check out our catalog below.
6. Preventing the spread of airborne fumes & chemicals
Industrial workers are exposed to a variety of health hazards regularly. These workers risk becoming sick, ill, and in some cases, permanently disabled. According to a WHO estimate (WHO, 2000), unintentional poisonings led to 300 000 deaths in the year 2000.

It's our mission to consistently reduce that figure, but it only works if the correct equipment is used. Our team works to make choosing the right product as straightforward and coherent as possible, and as such, will work with you to deliver the best extraction system that fits your worker's needs. From accessibility and usability to reliability and longevity.

You can read more about the risks and preventions of fume extraction below:

OSHA
WHO
04-045
DC-8-HP - HIGH-PRESSURE / LOW-VOLUME HPLV
dc-8-hp-dust-collector - 3D Main Image 300
The DC-8-HP is a horizontally oriented cartridge, high-pressure fume & dust collector. Capture welding fumes and grinding dust at-source before they enter the workspace.

The DC-8-HP is an 8 cartridge filter dust collector and media filter dust collection system that effectively captures airborne contaminants before they reach open work areas.

This unit has a self-cleaning filter system built in. As well as a pressure gauge kit that indicates when filters require cleaning, a Block-off Filter Cleaning System that cleans while the unit is in operation and a collection hopper with a short floor stand and drum. The nominal airflow is 500 – 2000 CFM.

Available Options:
  • Fan/Motor Upgrades or Options
  • Additional Sound Attenuation
  • Back-up Contactor
  • Gas Phase Adsorption Module
  • Filter and After Filter Options
  • Custom Cartridge Media: For specific applications
  • Pressure Gauge Kit
  • Hopper with Short Floor Stand: For 5-gallon reinforced pail
Attachments
001 - Equipment Specification and Dimension Drawings:
12-001
Porta-Flex - HIGH-PRESSURE / LOW-VOLUME HPLV
porta-flex-portable-air-cleaner - 3D Main Image 300

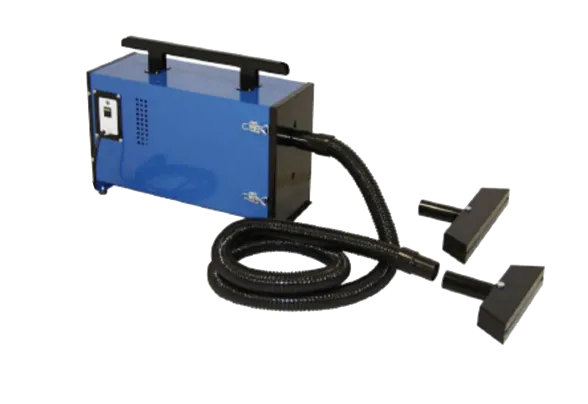

At 28 lbs. the Porta-Flex units are a lightweight suitcase model that will go anywhere. Designed for use in confined spaces and areas where portability is a must. The one-person portable unit quickly removes harmful airborne smoke and particulate from the breathing and work zone through the 8' flexible hose, optional positioning arm, and nozzles with a magnetic base.

Porta-Flex units draw away polluted air and filters it through a 3 stage filtration system. These Plug and Play units have flow rates of 160 and 280 m3/H.

The P-610 Porta-Flex is a single motor unit designed for use with smokeless welding torches and lighter duty applications for the collection of dust and smoke at the source.

The P-612 Porta-Flex unit is a dual-powered fan system assuring consistent and effective performance.

The P-614 Porta-Flex unit is a single motor unit with an automatic start & stop feature.

The selection of filter combinations allows these units to effectively capture and remove airborne smoke, dust, fumes, grit, or other contaminants from welding and other industrial processes.

Available Options:
  • Pre-Filter Option
  • After-Filter Option
  • Hood & Nozzle Accessories
  • Replacement Hoses
  • Single and Dual Motor Options
Attachments
12-002
V1 - HIGH-PRESSURE / LOW-VOLUME HPLV
v1-portable-high-vacuum-hvlp-dust-and-smoke-collector - 3D Main Image 300

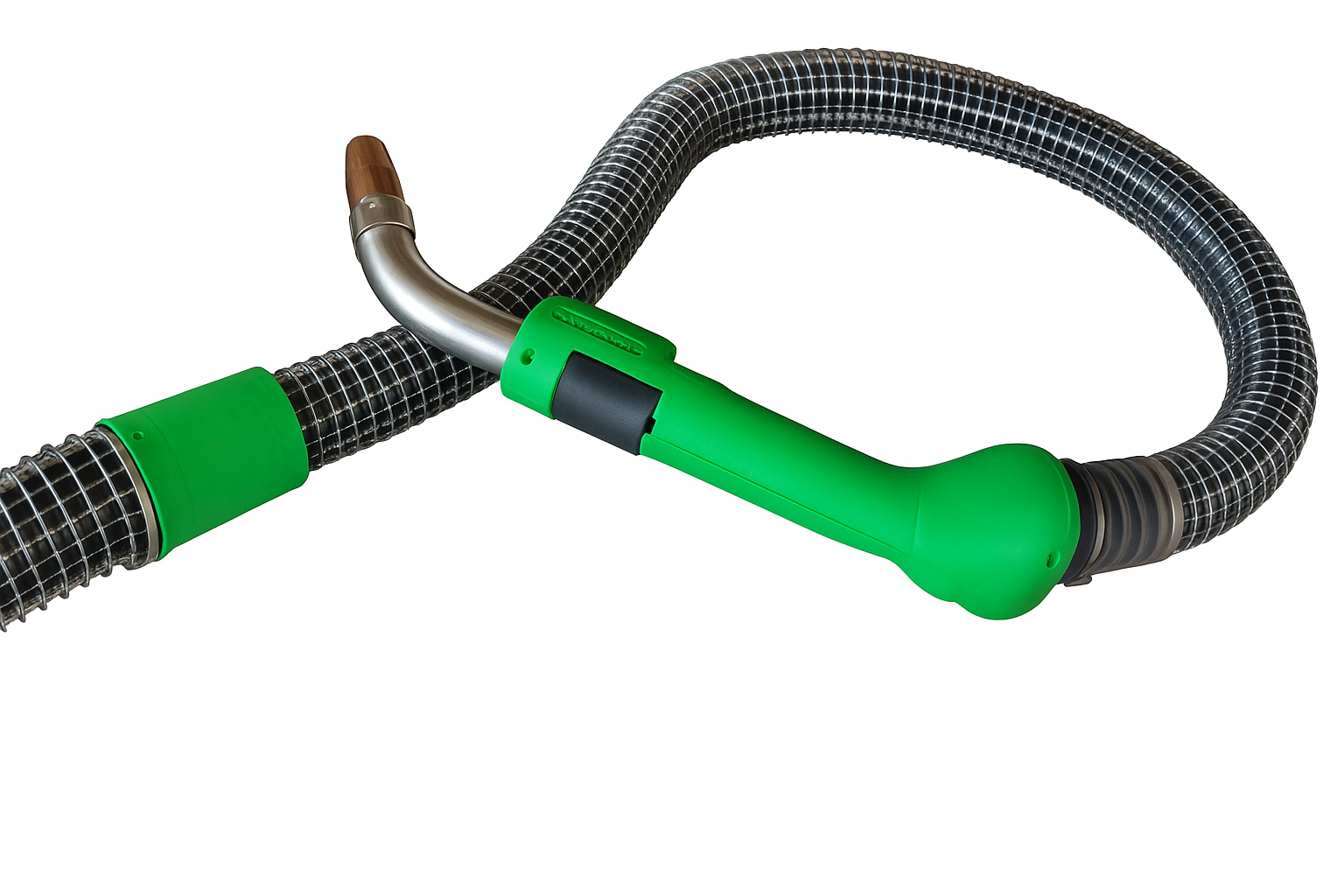

The V Series High Vacuum Systems are filtration systems designed to be used to capture fumes & dust as close to the source of emission as possible. Typically fumes & dust are captured “On-Tool” (in the case of handheld grinders) or “On-Gun” (in the case of welding guns).

This portable High Vacuum is a dust, smoke and fume collector w/high efficiency cleanable and/or disposable filters, with a nominal airflow of 107-200 CFM.

These collectors are typically sold in portable configurations, however they can also be configured as fixed systems with hoppers: wall mounted or equipment mounted
Available Options:
  • Cyclone Prefilter and other Filter Options
  • Hood & Nozzle Accessories
  • Fan / Motor Upgrades or Options
  • Preventative Maintenance Pressure Gauges
  • "Hi-Vac" Hose Options
  • Hose Connectors and Fittings
  • Variable Frequency Drives
  • Big Wheel Kit Option
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
12-003
V2 - HIGH-PRESSURE / LOW-VOLUME HPLV
v2-portable-high-vacuum-hplv-dust-and-smoke-collector-with-hepa-filter - 3D Main Image 300
The V Series High Vacuum Systems are filtration systems designed to be used to capture fumes & dust as close to the source of emission as possible. Typically fumes & dust are captured “On-Tool” (in the case of handheld grinders) or “On-Gun” (in the case of welding guns).

The V2 is a portable high vacuum cartridge collector with an easy to use self-cleaning feature. It is designed for use with multiple users and has a low noise level for user satisfaction.
PERFORMANCE:
  • 100 CFM @ 60" W.G. - 2.5 HP Motor
  • 120 CFM @ 60" W.G. - 3.5 HP Motor
12-004
V410 - HIGH-PRESSURE / LOW-VOLUME HPLV
v410-portable-high-vacuum-hplv-dust-and-smoke-collector-with-hepa-filter - 3D Main Image 300
The V Series High Vacuum Systems are filtration systems designed to be used to capture fumes & dust as close to the source of emission as possible. Typically fumes & dust are captured “On-Tool” (in the case of handheld grinders) or “On-Gun” (in the case of welding guns).

The V410 is a portable high vacuum cartridge collector with a manual Vibra-Pulse® cleaning system. The unit can easily be moved around the shop with casters or strategically positioned in a stationary spot to maximize its function to a specific location. It is designed for use with multiple workstations.

With the V410, air bearing pollutants passes through the inlet and must make a 180 degree turn to pass through a spark screen where large particles fall out of the air stream. The particulate laden air then passes through the main cartridge filters where particles are captured. After passing through the filtering system the cleaned air is then discharged through the top of the unit.

Available Options:
  • Filter Options
  • Fan/Motor Upgrades or Options
  • Preventative Maintenance Pressure Gauges
  • Sound Attenuation
  • "Hi-Vac" Hoses: Crush Resistant and Wire Reinforcement
  • Hose Connectors and Fittings
  • Variable Frequency Drives


PERFORMANCE:
150 CFM @ 60" W.G. - 5 HP Motor
350 CFM @ 60" W.G. - 10 HP Motor
Attachments
001 - Equipment Specification and Dimension Drawings:
004 - Product Videos:
