Model

12-006

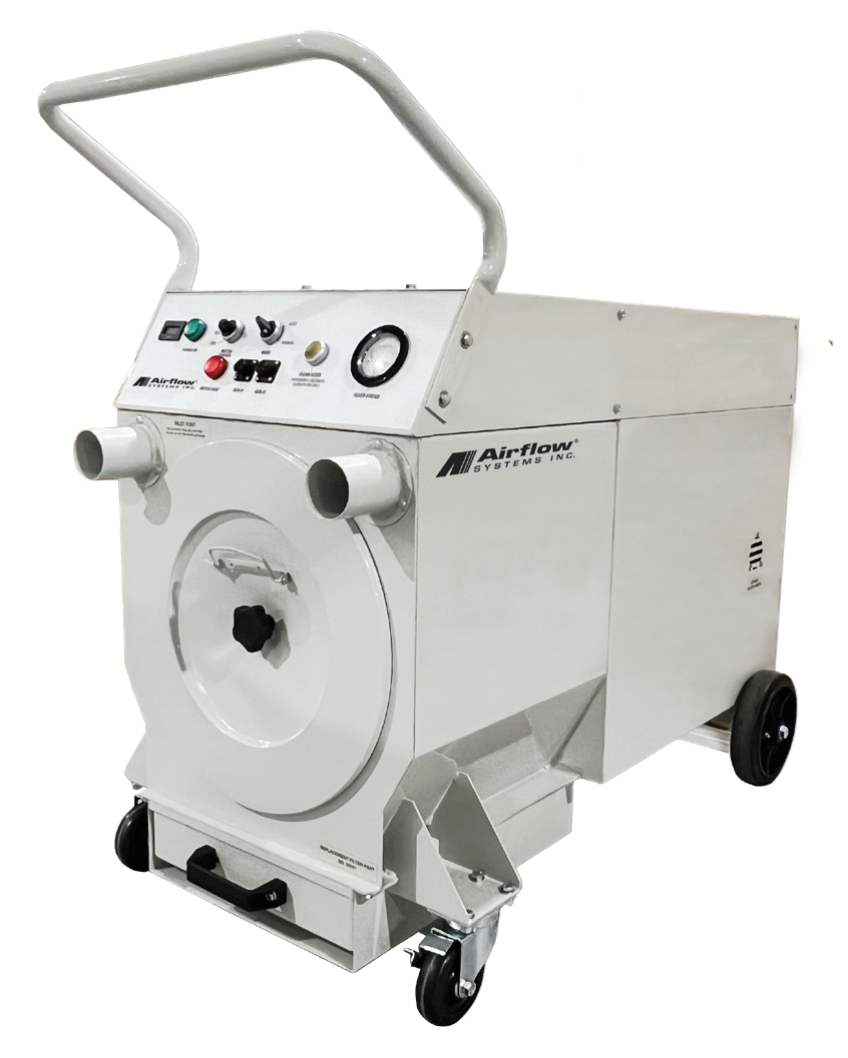

Image for Airflow FVH-Series.png

FVH Series - High Vacuum Fume Extractor

The FVH Series is a high-vacuum, portable fume extraction system designed to provide powerful, continuous-duty weld fume capture at the source. With capacities of up to 800 CFM and vacuum levels reaching 180” w.g., these units deliver industry-leading performance for manual, robotic, and automated welding applications. Featuring advanced MERV 15 FR Ultralife filter media rated at 99.9% efficiency @ 0.5 µm, the FVH ensures superior air quality while reducing filter change frequency. Its compact, maneuverable design, along with remote start and automated control options, makes it the most efficient and versatile solution for demanding industrial environments.

Function:

The FVH1 and FVH2 are engineered to capture hazardous weld fumes directly at the torch, eliminating exposure before contaminants spread into the workplace. The FVH1 powers a single ErgoMax MIG gun, while the FVH2 supports two guns simultaneously, making it adaptable for small shops or large-scale continuous welding operations. Both models are also configurable for robotic and automated welding setups, ensuring comprehensive fume extraction coverage.

Operators benefit from intelligent features such as an auto/manual switch for flexible operation, current-sensing remote start, and a 3-speed motor control for adjustable vacuum performance. An onboard differential pressure gauge, service indicator light, and hour meter simplify filter monitoring and maintenance scheduling, while the unique vibration/compressed-air cleaning system maximizes filter lifespan and consistent performance.

The FVH’s design combines portability with heavy-duty construction. A compact, low-profile cabinet provides a stable base that can even accommodate wire feeder mounting. Quick-lock dust trays make disposal fast and clean, and large 2.5” inlets ensure sufficient airflow for single or dual-gun setups. With a noise level of just 78 dB at 5 feet, it operates quietly even in high-demand environments.

Main options include:

  • 300A, 400A, and 500A ErgoMax MIG Guns
  • Flexible and Direct-Connect Automatic Welding Torches
  • Custom Robotic Extraction Kits
  • FumeVac EZ-Reach Weld Boom & ErgoBoom Torch Extension Systems
  • Protective Gun Hose Covers (3 ft, 7 ft, 10 ft)
  • Lightweight PVC or heavy-duty polyurethane vacuum hoses
  • Vacuum hose adapters, reducers, and elbows
  • Replacement Ultralife filter media (158 ft², MERV 15 FR)

Construction:

The FVH is built with a rugged steel cabinet finished in durable powder coating to withstand industrial use. It comes equipped with heavy-duty wheels and casters for easy maneuvering across shop floors. Dimensions are L-38” x W-24.5” x H-30” (965 x 622 x 762 mm), with a weight range of 226–255 lbs (103–116 kg). A standard 25 ft (7.6 m), 4-conductor 460V input power cable provides flexible installation. The system features maintenance-free, high-performance brushless motors with thermal and overload circuit protection. Filtration is handled by a 158 ft² (14.8 m²) MERV 15 FR Ultralife cartridge, rated for 99.9% efficiency at 0.5 µm, supported by a push-button manual cleaning system that extends filter life. The quick-locking dust tray simplifies debris disposal, while the compact cabinet allows for integration into confined spaces or direct equipment mounting.

Key Buying Criteria:

  • Continuous Duty Reliability: Brushless motor design ensures long service life without the maintenance associated with brush-type systems.
  • High Extraction Power: Up to 800 CFM free airflow and 180” w.g. vacuum levels for superior fume capture.
  • Superior Filtration: MERV 15 FR Ultralife media with 99.9% efficiency at 0.5 µm protects against fine weld fumes.
  • Flexible Configurations: Single- or dual-gun setups, robotic welding, or torch extensions.
  • Ease of Use: Auto/manual modes, current sensing remote start, push-button filter cleaning, and quick-lock dust tray.
  • Compact & Mobile: Heavy-duty wheels and casters with a low-profile cabinet for tight spaces.
  • Quiet Operation: 78 dB at 5 feet for comfortable use in busy workshops.

Suitable For:

Top 5 contaminants/processes/applications:

  • Weld Fumes
  • Hexavalent Chromium
  • Manganese
  • Robotic Welding Fumes
  • Manual MIG Welding Fumes
  • Automated Torch Welding Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
FVH-1 FumeVac FV-190SC-1 Single Gun Extraction System
  • Requires single fume gun and accessories to be ordered separately
FVH-2 FumeVac FV-190SC-2 Single Gun Extraction System
  • Requires 2 fume guns and accessories ordered separately

Frequently bought together these options:

Part # Qty Description
FVH-ADPT-LINCOLN Euro Adapter - Lincoln
FVH-ADPT-MILLER Euro Adapter - Miller
FVH-AUTO-START Auto Start/Stop Weld Current Activated
FVH-FG ErgoMax 400 Amp, 60 Deg. Short Neck, .035-.045 Standard CuZr, 5/8" Copper Nozzle, 15ft, Euro
FVH-SLEEVE ErgoMax Gun Protective Sleeve - 10ft
  • recommended to be used with Ergomax fume gun
Part # Qty Description
FVH-56980 Trigger Plug Adapter - Miller-Female to Lincoln-Male
FVH-57558 ErgoBoom- 8' Arm Replacement w/Labels
FVH-57924 ErgoBoom Wire Liner, ePower Steel, Wire Dia.: .052-1/16, 26.5'lg
FVH-ERGOBOOM-9 ErgoBoom- 6' Arm - 35/45 Euro w/ 6' Wire Feeder and 6' Trigger Extension Cable
FVH-ERGOBOOM-CART ErgoBoom Cart w/Casters - Demo Portability Use Only
Part # Qty Description
FVH-PE-HT-HOSE-2.5 HD Polyurethane High Temp Hose (PUR355) 2.5" - Black
  • Price per foot
  • recommend 12.5ft per gun
FVH-VAC-CLAMP SS HOSE CLAMP, VACUUM-TIGHT, FOR FVH-PE-HT-HOSE
  • 2 required per welding gun assembly
Part # Qty Description
FVH-DIF-001 Gas Diffusor
FVH-INS-002 Fume Shroud
FVH-INS-004 Fume Shroud - Bell
FVH-INS-005 Diffuser Insulator - Flat
FVH-INS-006 Swan Neck Insulator (Thin) (Qty 2 Required)
FVH-LINER-S3545-17 Wire Liner, Steel, Wire Dia.: .030-.045, 17'lg (Blue)
FVH-LINER-S52116-17 Wire Liner, Steel, Wire Dia.: .052-1/16", 17'lg (Red)
FVH-NOZ-62 Gas Nozzle - Cu - Ø 5/8"
FVH-TIP-.052 Contact Tip - Cu - 0.052
FVH-TIP-035C Contact Tip - Cu - 0.035
FVH-TIP-045C Contact Tip - Cu - 0.045
FVH-TIP-116 Contact Tip - Cu - 1/16"
Part # Qty Description
FVH-55541 Marv 15 replacement filter for FVH units
