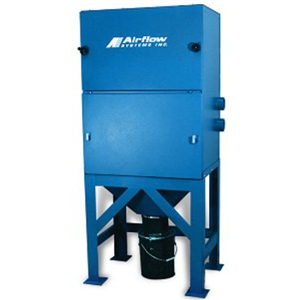

V410 - Portable High Vacuum System

The V Series High Vacuum Systems are filtration systems designed to be used to capture fumes and dust as close to the source of emission as possible. Typically fumes and dust are captured “On-Tool” (in the case of handheld grinders) or “On-Gun” (in the case of welding guns).

Function:

The V410 is a portable high vacuum cartridge collector with a manual Vibra-Pulse® cleaning system. The unit can easily be moved around the shop with casters or strategically positioned in a stationary spot to maximize its function to a specific location. It is designed for use with multiple workstations.

With the V410, air bearing pollutants passes through the inlet and must make a 180° turn to pass through a spark screen where large particles fall out of the air stream. The particulate laden air then passes through the main cartridge filters where particles are captured. After passing through the filtering system the cleaned air is then discharged through the top of the unit.

Available Options:
  • Filter Options
  • Fan/Motor Upgrades or Options
  • Preventative Maintenance Pressure Gauges
  • Sound Attenuation
  • "Hi-Vac" Hoses: Crush Resistant and Wire Reinforcement
  • Hose Connectors and Fittings
  • Variable Frequency Drives


PERFORMANCE:
280 CFM @ 85" W.G. - 5 HP Motor (60 Hz)
390 CFM @ 83" W.G. - 10 HP Motor (50 Hz)
510 CFM @ 93" W.G. - 10 HP Motor (60 Hz)

Construction:

  • 12 Gauge steel cabinet
  • Finished with a 2-part chemical and oil resistant finish
  • Includes front access doors to filters and motor
  • Removable 8” (200mm) deep dust pan
  • 5” (125mm) swivel casters
  • 36" W x 26" D x 53" H
  • Self-cleaning Vibra-Pulse® back flush system
  • Motor wired to junction box outside unit: (Motor starter NOT included)
  • (2) Clean 2® filter cartridges 150ft² each

Key Buying Criteria:

  • Ideal for up to (10) users.
  • Can be mounted in a stationary location if desired by ordering it with the optional hopper.
  • Continuous-Duty Bower: Provides longer life and greater reliability.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Over 99% Efficient Collection: Simplifies OSHA and insurance compliance.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Easy Filter Backflush: Push-button operation eliminates cleanup hassle and reduces downtime.

Suitable For:

Top 5 contaminants/processes/applications:

  • Dry Dust Applications
  • MIG welding
  • Finish Grinding and Solder Applications
  • On-tool Grinding
  • Smokeless gun
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
V410 Portable, high vacuum, cartridge collector, with:
  • (2) CLEAN-2 ® cartridge filters (150 sq.ft. of media each)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 10 Hp TEFC motor, 208-230/460/3/60 Hz (27.5-27.2/13.6 amps) with vacuum blower
  • 8" (200mm) deep internal dust tray. 510 cfm. 77 dBA.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
V410-10-2 Portable, high vacuum, cartridge collector, with (2) CLEAN-2 ® cartridge filters (150 sq.ft. of media each), manual VIBRA-PULSE ® filter cleaning systems, and a 10 Hp TEFC motor, 575/3/60 Hz (27.5-27.2/13.6 amps) with vacuum blower, and 8 deep internal dust tray. 510 cfm. 77 dBA. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part # Qty Description
V-410-CYCLONE LID 55 Gallon Drum Lid Option for Standard V410 Unit.
V-410-EXAD External AD Module Option for Standard V410 Unit.
V-410-EXHE External 99.97% HEPA Filter Option for Standard V410 Unit.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
V-410-REG Regulator Gauge Option for Standard V410 Unit.

Part # Qty Description
V-410-AP-3 Off Line Auto Clean, 3 Phase Option for Standard V410 Unit.
V-410-HOPPER-5 5 Gallon Hopper Option for Standard V410 Unit.
V-410-HOPPER-55 Hopper and stand for 55 gallon drum. (LESS DRUM) includes 55 gallon lid.
  • This is the only other option apart from a tray or a 5 gallon pail
V-410-HOSE 1.75" (45mm) Flame Retardant Flex Hose - 25' Option for Standard V410 Unit.

Frequently bought together these options:


Part # Qty Description
V-410-S Muffler Option for Standard V410 Unit.

Part # Qty Description
HVH-CR-1.25 1.25" (30mm)Ø HI VAC Flexible hose - price per foot.
HVH-CR-1.5 1.5" (40mm)Ø HI VAC Flexible hose (crush resistant) - price per foot. Min order 50'
HVH-CR-1.75 1.75" (45mm)Ø "HI VAC" flexible hose. PKS System Code: S
HVH-CR-2.0 2" (50mm)Ø HI VAC Flexible hose - price per foot.
HVH-CR-2.5 2.5" (65mm)Ø "HI VAC" flexible hose. PKS System Code: S
HVH-CR-3.0 3" (75mm)Ø HI VAC Flexible hose - price per foot.

Part # Qty Description
HVH-WR-0.75 0.75" (20mm)Ø HI-VAC hose - price per foot.
HVH-WR-1.0 1" (25mm)Ø HI-VAC hose - price per foot.
HVH-WR-1.25 1.25" (30mm)Ø HI-VAC hose - price per foot.
HVH-WR-1.5 1.5" (40mm)Ø HI-VAC hose - non crush resistance with wire reinforcement. Sold in 50' lengths
HVH-WR-1.75 1.75" (45mm)Ø HI-VAC hose - price per foot.
HVH-WR-2.0 2" (50mm)Ø HI-VAC hose - price per foot.
HVH-WR-2.25 2.25" (55mm)Ø "HI-VAC" hose - price per foot.
HVH-WR-2.5 2.5" (65mm)Ø HI-VAC hose - price per foot. Minimum order 50" through supplier
HVH-WR-3.0 3" (75mm)Ø HI-VAC hose - price per foot.
HVH-WR-4.0 4" (100mm)Ø HI-VAC hose - price per foot.

Part # Qty Description
7HD9-1011 2" x 1.5"Ø reducer to connect 2" (50mm) hose to the 7TL0-9002 - (2) piece wand.
7TL09002 (2) Piece Wand, 54" Long, 1.5" (40mm)Ø.
HOSE-C-1.25 Hose Connector (steel) - Connects 1 1/4" to 1.5" (40mm) vacuum hose.
HOSE-C-1.75 Hose Connector (steel) - Connects 1 3/4" hose to 2" (50mm) vacuum hose.

Part # Qty Description
M-MTR-RGB-390-100 Regenerative Motor Blower 15 HP, 3/60/575V.
  • 390 CFM @ 100 SP
  • Integral inlet & outlet silencers.
  • Precision cast aluminum impeller.
  • 3.5” (90mm) NPT inlet & outlet connections
  • 3/60/575V, 12.5 kW, 3450 RPM, IP54 rated motor complete
    • with CSA (Canada & US) certification for use in all US states and Canadian provinces. *CSA Approved Motor*
V-410-V280 5 Hp vacuum motor, 208-230/460/575/3/60Hz (12/6 amps) in place of 10 Hp vacuum motor, 280 cfm.

Part # Qty Description
V410-S Silencer for V410 unit.

Part # Qty Description
2AF9-0006 Adsorber v-bank module.
  • (2) are need for Pac 91
7FH9-9312 HEPA, 99.97% filter, wood frame, external.
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
7FR0-2016 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend. Replacement filter for POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, DT3000
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2016-OEM Clean 2 Cartridge Filter for POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, DT3000
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2017 FiberDust Cartridge Filter used in the following equipment: POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, DT3000
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2028 Cartridge Filter - Teflon with steel caps.
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
CF-2201612402 16" OD x 9.625" ID x 11.5"OAL open/closed 65ft² black HO polyester media (Teflon treated).
  • Comes complete with aluminized end caps
