Model

12-001

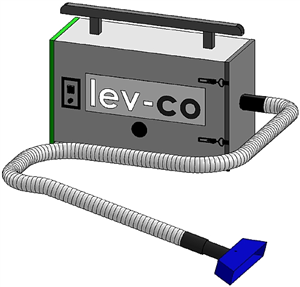

Image for Porta-Flex-w-logo.jpg

Porta-Flex - 165 CFM

At 28 lbs. the Porta-Flex units are a lightweight suitcase model that will go anywhere. Designed for use in confined spaces and areas where portability is a must. The one-person portable unit quickly removes harmful airborne smoke and particulate from the breathing and work zone through the 8' flexible hose, optional positioning arm, and nozzles with a magnetic base.

Function:

Porta-Flex units draw away polluted air and filters it through a 3 stage filtration system. These Plug and Play units have flow rates of 160 and 280 m3/H.

The P-610 Porta-Flex is a single motor unit designed for use with smokeless welding torches and lighter duty applications for the collection of dust and smoke at the source.

The P-612 Porta-Flex unit is a dual-powered fan system assuring consistent and effective performance.

The P-614 Porta-Flex unit is a single motor unit with an automatic start & stop feature.

The selection of filter combinations allows these units to effectively capture and remove airborne smoke, dust, fumes, grit, or other contaminants from welding and other industrial processes.

Available Options:
  • Pre-Filter Option
  • After-Filter Option
  • Hood & Nozzle Accessories
  • Replacement Hoses
  • Single and Dual Motor Options

Construction:

  • All steel construction: Weight (28 Lbs:13kg)
  • Heavy duty 14 ga. electrical cable and plug 15' (4.5M)
  • Light Weight Extraction Hose 2" dia. (50mm), 8' long (2.5m)
  • Compact design 650mm x 250mm x 450mm
  • "Plug & Play" design: 110V/1/60Hz

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PF-1-115 24"H x 13"W x 26"D 42 lbs
P-612 23.5"H x 12"W x 26"D 50 lbs

Key Buying Criteria:

  • User friendly, Plug and Play unit
  • Low operation costs
  • Ability to carry with ease especially into small areas and zones where access is limited such as roofs and basements
  • Ability to plug into any standard circuit
  • Saves space in production area

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding in confined spaces
  • Chromium fume
  • Maintenance and repair work
  • Stone cutting
  • Mechanic shops
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
P-612 Porta-Flex 200 (2 Motor)

The Porta-Flex is a user-friendly, portable welding fume extractor with 2 Fans - 1.6 KW 280 m3/H and a Built-in filter for Welding Fumes & Smoke. It has 2.5m flexible hose and a P-615 magnetic nozzle .

Suitable for welding in confined spaces or difficult to reach locations. Perfect for service and repair work.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
P-614 Porta-Flex 200 (1 motor) but with Automatic start & stop. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PF-1-115 Porta-Flex 200 (1 Motor)
The Porta-Flex is a user-friendly, portable welding fume extractor with 1 Fan - 1KW 160 m3/H and a Built-in filter for Welding Fumes & Smoke. It has 2.5m flexible hose and a P-615 magnetic nozzle .
Suitable for welding in confined spaces or difficult-to-reach locations. Perfect for service and repair work.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
P-610-Spark Trap Spark Trap for P-610 units

Part # Qty Description
P-610-AD Activated carbon filter for the Porta Flex. Holds 5 lbs. of carbon.

Part # Qty Description
P-620 Replacement HEPA filter for the Porta-Flex
CF-619 Replacement main filter for the Porta-Flex

Part # Qty Description
EX-NOZ-618 80 MM Porta-Flex nozzle c/w Magnetic Base and adjustable steel hose
EX-NOZ-617 200 MM Porta-Flex nozzle c/w Magnetic Base
EX-NOZ-616 300 MM Porta-Flex nozzle c/w Magnetic Base
EX-NOZ-615 400 MM Porta-Flex nozzle c/w Magnetic Base
