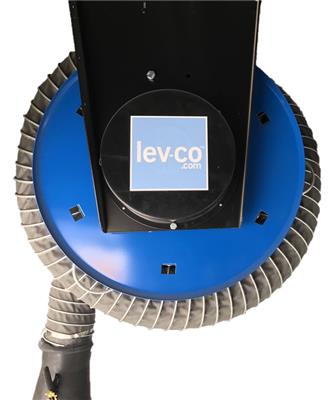

Spring Recoil Hose Reel - 4''/ 5''/ 6''/ 8'' Ø

Spring Recoil Hose Reels efficiently store hoses that capture and expel exhaust gases from vehicles using manual force and mechanical motion.
FUNCTION
These hose storage reels feature a locking mechanism for precise hose placement on tailpipes or stacks, ensuring smooth lowering and retraction. They are an effective solution for reducing tripping hazards in the workplace and are perfect for environments such as bus depots, garages, and service stations.

The hose is lowered manually against spring tension and locked into position with the reel’s locking-ratcheting mechanism. Further pulling releases the lock, allowing the hose to automatically retract.

Hose reels can be mounted under a roof, on a wall, supporting column, or at the end of an extension boom. They typically support flow rates ranging from 300 CFM to 2000 CFM, and can store up to 50' of hose; providing flexibility for various applications.

Main options include:
  • Low Temperature Hose (up to 350º F)
  • High Temperature Hose (up to 850º F)
  • Direct Mount Fans (0.5HP to 5HP)
  • Tailpipe adapters
  • Overhead Stack Adapters
  • Variable Frequency Drives
CONSTRUCTION
  • Complete with 4''/5”/6”/8” Ø hose connection
  • 6.33" or 8" diameter outlet duct connection
  • Powder-coated finish spring recoil reel
  • 18ga galvanized steel drum
  • 18ga stamped powder coated steel side discs
  • 12ga powder coated steel triangulated hose reel support and connecting bars
  • 4''/5”/6”/8” Ø hose with hose stop and hose clamps
Note: Hose will be shipped in a separate box.
KEY CRITERA
  • Space Saving: The hose reel is capable of holding up to 25' of hose in a standard configuration and up to 50' in a custom configuration
  • Typically used in: Bus stations, garages, or service stations
  • Easy Installation: The Hose Reel can be shipped complete with direct mount fans and auto ON/OFF switches
  • Mounting Configurations: Can be used for either wall mounting configurations or ceiling mounted configurations
  • Easy Operation: Much like an extraction arm, this system is easily pulled down for use, and doesn't require any adjustment before placement
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Chemical Fumes
  • Grinding Sparks
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
HR-M-4-XXX
Hose Reel for use with 4” (100mm)Ø hose, complete with hose stop & 4” (100mm) inlet connection.
  • Order hose separately
  • Please specify hose length when ordering
HR-M-5-XXX
Hose Reel for use with 5” (125mm)Ø hose - complete with hose stop & 5” (125mm) inlet connection.
  • Order hose separately
  • Please specify hose length when ordering
HR-M-6-XXX
Hose Reel for use with 6” (150mm)Ø hose - complete with hose stop & 6” (150mm) inlet connection.
  • Order hose separately
  • Please specify hose length when ordering
HR-M-8-XXX
Hose Reel for use with 8” (200mm)Ø hose - complete with hose stop and 8” (200mm) inlet connection.
  • Order hose separately
  • Please specify hose length when ordering.

Part #
Description
HRM-4-25-LT
4" (100mm) Spring Recoil Hose Reel complete with 7.5m (25') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-4-33-LT
4" (100mm) Spring Recoil Hose Reel complete with 10m (33') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-5-25-LT
5" (125mm) Spring Recoil Hose Reel complete with 7.5m (25') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-5-33-LT
5" (125mm) Spring Recoil Hose Reel complete with 10m (33') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-6-25-LT
6" (150mm) Spring Recoil Hose Reel complete with 7.5m (25') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-6-33-LT
6" (150mm) Spring Recoil Hose Reel complete with 10m (33') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-8-25-LT
8" (200mm) Spring Recoil Hose Reel complete with 7.5m (25') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-8-33-LT
8" (200mm) Spring Recoil Hose Reel complete with 10m (33') of 350° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*

Part #
Description
HRM-4-25-HT
4" (100mm) Spring Recoil Hose Reel complete with 7.5m (25') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-4-33-HT-850
4" (100mm) Spring Recoil Hose Reel complete with 10m (33') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-5-25-HT-850
5" (125mm) Spring Recoil Hose Reel complete with 7.5m (25') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-5-33-HT-850
5" (125mm) Spring Recoil Hose Reel complete with 10m (33') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-6-25-HT
6" (150mm) Spring Recoil Hose Reel complete with 7.5m (25') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
  • Please note, the hose for this hose reel is shipped installed with tension. If you would like to have the hose shipped separately, a deduction of $75.00 will appear on the order
HRM-6-33-HT-850
6" (150mm) Spring Recoil Hose Reel complete with 10m (33') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-8-25-HT
8" (200mm) Spring Recoil Hose Reel complete with 7.5m (25') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*
HRM-8-33-HT-850
8" (200mm) Spring Recoil Hose Reel complete with 10m (33') of 850° F hose.
  • Fan & Tailpipe adapter SOLD SEPERATELY*

Part #
Description
H-MAX-HR-1-HT-2M-850
2m (6.5') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° F high temperature 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-1-HT-3M-850
3m (10') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° high temp 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-1-HT-4M-850
4m (14') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-2M-850
7' (2130mm) H-MAX Boom Kit for 8" (200mm) Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • 8D Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-3M-850-200
10' (3050mm) H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-4M-850
14' (4270mm) H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom.

Part #
Description
2PLY-GPH-10
10" (250mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-4
4" (100mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-6
6" (150mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
GPH-4
4" (100mm)Ø Polyester fabric, general purpose hose. Neoprene coated single ply with wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-5
5" (125mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)
GPH-6
6" (150mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-8
8" (200m)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)
FREQUENTLY BOUGHT TOGETHER

Part #
Description
HRM-4-25-HT-600
4" (100mm) Spring Recoil Hose Reel complete with 7.5m (25') of 600° F hose.
HRM-4-33-HT-600
4" (100mm) Spring Recoil Hose Reel complete with 10m (33') of 600° F hose.
HRM-5-25-HT-600
5" (125mm) Spring Recoil Hose Reel complete with 7.5m (25') of 600° F hose.
HRM-5-33-HT-600
5" (125mm) Spring Recoil Hose Reel complete with10m (33') of 600° F hose.
HRM-6-25-HT-600
6" (150mm) Spring Recoil Hose Reel complete with 7.5m (25') of 600° F hose.
HRM-6-33-HT-600
6" (150mm) Spring Recoil Hose Reel complete with 10m (33') of 600° F hose.
HRM-8-25-HT-600
8" (200mm) Spring Recoil Hose Reel complete with 7.5m (25') of 600° F hose.
HRM-8-33-HT-600
8" (200mm) Spring Recoil Hose Reel complete with 10m (33') of 600° F hose.

Part #
Description
RCA-4
10" (250mm) Diesel Stack Adapter with:
  • 4" (100mm) opening for exhaust pipe
RCA-4/D
10" (250mm) Diesel Stack Adapter with:
  • 4" (100mm) opening for exhaust pipe
  • Manual damper
RCA-5
10" (250mm) Diesel Stack Adapter with:
  • 5" (125mm) opening for exhaust pipe
RCA-5/D
10" (250mm) Diesel Stack Adapter with:
  • 5" (125mm) opening for exhaust pipe
  • Manual damper
  • Tailpipe clips
RCA-6
10" (250mm) Diesel Stack Adapter with:
  • 6" (150mm) opening for exhaust pipe
RCA-6/D
10" (250mm) Diesel Stack Adapter with:
  • 6" (125mm) opening for exhaust pipe
  • Manual damper
  • Tailpipe clips
RCA-6-EXT-PVEC
10" (250mm) Diesel Stack Adapter with 6' extension hose for portable vehicle exhaust cart (P2D2-R1-V3)
RCA-2MAG-KIT
Magnet Mounting Kit for RCA nozzle with:
  • (2) 30lb magnets for sticking the nozzle to the side of metal equipment
RCA-8
8" (200mm) Diesel Stack Adapter with:
  • 10" (250mm) opening for exhaust pipe
RCA-8/D
10" (250mm) Diesel Stack Adapter with:
  • 8" (200mm) opening for exhaust pipe
  • Manual damper
QC-RCA-8
10" (250mm) Diesel Stack Adapter with:
  • 8" (200mm) quick lock duct connection
RCA-8-EXT-PVEC
10" (250mm) Diesel Stack Adapter with 15' extension hose for portable vehicle exhaust cart
RCA-12
12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipes
RCA-12-12
12" (300mm) Diesel Stack Adapter with:
  • 12" (300mm) opening for exhaust pipes
RCA-12/D
12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipe
  • Manual damper

Part #
Description
PYRO-4-850
4" (100mm)Ø, silicone nomex 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Colour: Orange
PYRO-4-1200
PYRO-4-1200.
PYRO-5-850
5" (125mm)Ø, 2ply hose 850° F - Suitable for use in CONTINUOUSLY flexing applications such as hose reels (price per foot).
  • Color: Orange
PYRO-5-1200
PYRO-5-1200.
PYRO-6-850
6" (150mm)Ø, 2ply Silicone/Nomex hose (price per foot), colour Orange.
  • Standard factory cut ends
PYRO-6-1200
PYRO-6-1200.
PYRO-8-3/4P-850
Custom 8" (200mm)Ø, 2ply hose 850° F with:
  • 3/4" pitch - Suitable for use in constant flexing applications or with hose reels (price per foot)
  • Minimum length 25' Max length 50'
PYRO-8-850
8" (200mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: Orange
  • Minimum length 25' Max length 50'
PYRO-9-850-3/4
9" (230mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-8-1200
8" (200mm)Ø, 2 ply hose 1200° F - Suitable for use in constant flexing applications or with hose reels (price per foot). Color BLACK

Part #
Description
RELH-6-24-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-24-EXT
Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-36-EXT
Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-24-EXT
Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-36-EXT
Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
AG-Hood
Air Gouging hood for 8" (200mm) hose connection.
  • 12 sq.ft Opening
  • 14G, Aluminum
  • For sparks/molten metal up to 3000° F
To be used for Arc Air Gouging process

Part #
Description
DSIC** P-147-2
P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1
P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3
P-Max direct drive fan 0.5 HP 575V/3/60.

Part #
Description
P-148-1
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3
P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-149-4
P-Max© direct drive fan 1.5 HP.
M-P-152-1
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-115/230
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-2
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-2-230/460
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-3
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-3-575
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP

Part #
Description
P-153-1
2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-2
2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-3
2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Part #
Description
P-154-1
P-Max© direct drive fan 3 HP 208-230V/460V/3/60
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-154-2
P-Max© direct drive fan 3 HP 575V/3/60
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-155-1
5 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-155-2
5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
RCA-UCC
Under Carriage Clip for RCA Nozzle. For quick connection to under carriage tailpipes

Part #
Description
P-033-HR
P-MAX fan mounting bracket for motorized & spring recoil hose reels.
  • Suitable only for the P-147, P-148, P-149 & P-152
REM-FAN-BR-160
P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L
P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1
6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2
6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3
Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
LD-240-BRACKET
Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK
Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L
Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R
Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20
LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB
Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L
Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R
Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP
Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
REM-FAN-BR-200
P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans

Part #
Description
LHS-4
Lev-Co Hose stop for 4" (100mm) hose.
  • Low temperature up to 450° F
LHS-4-HT
Lev-Co Hose stop for 4" (100mm) hose.
  • High temperature up to 850° F
LHS-6
Lev-Co Hose stop for 6" (150mm) hose.
  • Low temperature up to 450° F
LHS-6-HT
Lev-Co Hose stop for 6" (150mm) hose.
  • High temperature up to 850° F
LHS-8
Lev-Co Hose stop for 8" (200mm) hose.
  • Low temperature up to 450° F
LHS-8-HT
Lev-Co Hose stop for 8" (200mm) hose.
  • High temperature up to 850° F

Part #
Description
Gripple-2-5
Gripple Hanger Loop No. 2, 5ft.
Gripple-2-10
Gripple Hangers Loop No. 2, 10ft.
Gripple-2-15
Gripple Hangers Loop No. 2, 15ft. - XP
Gripple-2-20
Gripple Hanger Loop, No. 2, 20ft.
Gripple-3
No. 3 Stainless Steel Loop Hanger - 10ft length.
Gripple-4
Stainless Steel No. 4 Straight eyelet 10ft, gripples.
ROPE-BLUE-3/8
3/8" Blue Rope, sold by complete spool of 30 meters.
ROPE-YELLOW-5/16
Yellow Rope 5/16 - Polypropylene Price per foot
HR-Handle
Break-away handle to hang from hose reels & boom arms for easy positioning.
  • Orange cord & break-away handle to be used to uncoil hose on hose reel drum or to position boom arms
  • Handle to break off cord at 25lbs of force if caught on vehicle as to not pull down hose reel equipment
PDK-RF-8
Industrial grade duct kit for direct exhausting of P-Max fans - for Ceiling/Roof exhaust. Complete with Gravity Back Draft Damper
IN-NLS-8
8" (200mm) No-Loss Stack, 20 gauge galvanized, 2' overall height.
  • Complete with Internal Backdraft Damper
  • Alternate heights available upon request
IN-NLSH-BDD-8
8" (200mm) No-Loss Stack, 20 gauge galvanized, 2' overall height.
  • Complete with Internal Backdraft Damper
  • Alternate heights available upon request
TP-6-12
6' - 12' Telescoping Pole.
