LD-240-BRACKET

$7,040.51  $5,280.38 CAD
25% OFF SAVE $1,760.13

Overview

Standard Product
In Stock

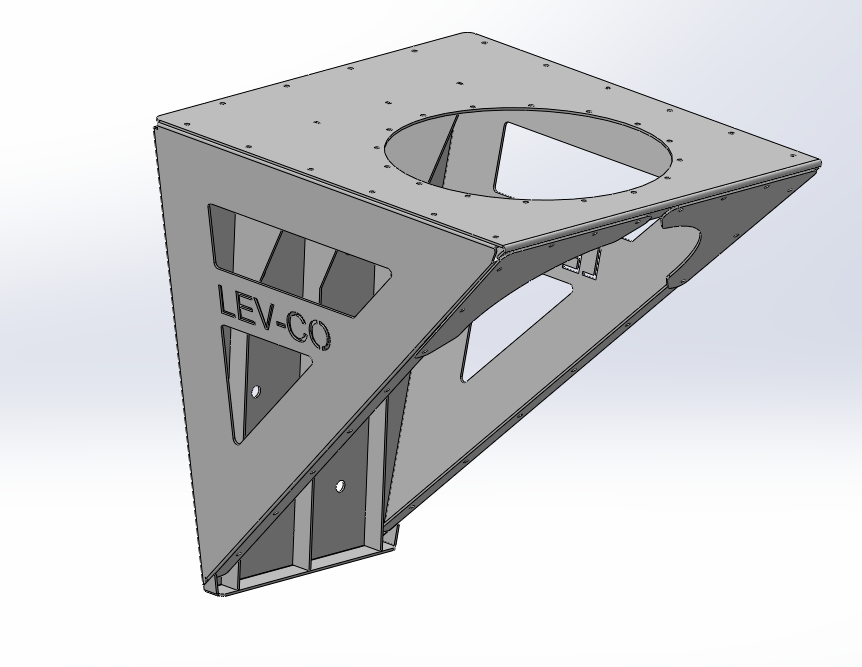

Support bracket for the LD-240-3 Fan.

Specificiations


Shipping Specificiations

Shipping Weight 40.0 lbs.
Shipping Length 21 in.
Shipping Width 17 in.
Shipping Height 7 in.
Model 14-074: Patriot Series Articulating Crane with Hose Reel Drop - Ø10'' /12'' /14'' Hoses
The Patriot Series Articulating Crane with Hose Reel Drop is a high-performance, long-reach vehicle exhaust extraction system engineered to capture airborne contaminants directly at the source. Designed for heavy-duty facilities where large vehicles or multiple bays require extended coverage, this system delivers up to 7000 CFM and 7500 FPM of exhaust removal power. The combined articulating crane and hose reel configuration ensures precise fume capture while maintaining easy maneuverability, full workspace access, and superior operator safety.
FUNCTION
The Patriot Series integrates a rugged articulating boom with a high-capacity hose reel drop to provide total control of contaminant capture. The hose reel—available as either motorized or spring-return—enables smooth deployment and retraction of large-diameter hoses, allowing operators to position the nozzle or hood directly at the emission source with minimal effort. Once activated, the system immediately removes exhaust gases, dust, and vapors before they can disperse into the breathing zone.

With a total horizontal reach of up to 45 feet, the articulating crane provides full access to every area of the service bay. Its multi-joint design allows for precise placement around vehicles or equipment, and when not in use, the boom folds neatly against the wall—freeing valuable floor space. This versatility makes the Patriot Series ideal for maintenance shops, fleet service centers, and industrial vehicle repair facilities.

Hose reels are available in 10”, 12”, and 14” diameters, accommodating a wide range of airflows and exhaust types. The system can be configured with fixed boom extensions (4’ or 10’) for added coverage and can integrate with direct-mount fans, ducting, and filtration units to meet specific application demands.

Main Options include:
  • Motorized Hose Reel (120V Motor, 200 N·m torque)
  • Spring-Return Hose Reel
  • Double Articulating Boom Arm (Comprised of 1 Herculean and 1 H-max boom)
  • Optional Motorized primary Articulation
  • Fixed Boom Extensions (4’ or 10’ options)
  • Ø10”, Ø12”, or Ø14” Hose Reels
  • Direct-Mount Exhaust Fans (1–30 HP)
  • Overhead Stack Adapters
  • Variable Frequency Drives
  • High-Temperature and Abrasion-Resistant Hose Options

CONSTRUCTION
The Patriot Series boom assemblies are built from powder-coated and galvanized steel for maximum corrosion resistance and mechanical durability. Each pivot joint features sealed ball bearings and disc-brake friction locks that provide 180° of smooth, controlled articulation and secure positioning during use.

The hose reel assembly is fabricated from 10–18 gauge galvanized steel and equipped with a 120V Centris electric motor producing 200 N·m of torque. The drive system draws 790 Watts at 6.6 Amps and supports 12 full hose rotations for consistent retraction performance. The drum utilizes sealed bearings on the motor side and a laser-cut Teflon bearing on the duct side to ensure minimal maintenance and long service life. Hoses are temperature- and abrasion-rated and reinforced with a steel wire helix to endure high heat and heavy-duty conditions.

KEY CRITERA
  • Extended Reach: Up to 45 ft of total reach with optional extensions for maximum coverage
  • High Flow Performance: Supports up to 7000 CFM and 7500 FPM for heavy-duty exhaust capture
  • Compact Storage: Ability to fold flat against the wall to preserve valuable workspace
  • Operator Efficiency: Single-person operation with smooth, motorized hose retraction control
  • Optional Motorized primary Articulation
  • Versatile Configurations: Multiple hose diameters, reel types, and boom options available
  • Rugged Durability: Heavy-gauge steel construction and sealed bearing joints for 24/7 use
  • Low Maintenance: Corrosion-resistant finishes and precision bearings for long service intervals

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Gasoline Exhaust Fumes
  • Vehicle Service Bays
  • Heavy Equipment Maintenance
  • Bus, Truck, and Emergency Vehicle Exhaust Extraction
