P-153-3

$5,362.02  $4,021.52 CAD
25% OFF SAVE $1,340.50

Overview

Standard Product
Out of Stock

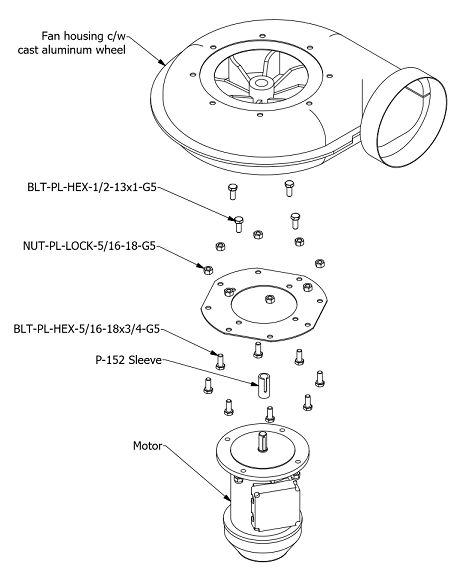

2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Specificiations


Shipping Specificiations

Shipping Weight 65.0 lbs.
Shipping Length 24 in.
Shipping Width 24 in.
Shipping Height 24 in.
Model 13-003: P-Max - 2300 CFM
The P-Max fan is designed to be a direct mount to extraction arms and hose reels. These fans are a good solution where space is limited due to their compact design. Depending on fan housings and motors, these fans boast flow rates anywhere from 200 - 2,300 CFM.
FUNCTION
P-Max© "Local Exhaust" fans are recommended for applications involving fumes, smoke and light dust. Suitable for direct mounting to a mounting bracket, most extraction arms, filter units, hose reels and simple hose drops.

These fans are versatile in the sense that they can be used for many applications. With good durability and construction, these fans can take on the toughest tasks required of them with ease.

Possible mounting configurations for these fans are atop hose reels and hose drops, directly mounting to a bracket or extraction arm, and most filter units. All Lev-Co P-max fans come in a standard configuration of clockwise rotation/top horizontal discharge. For alternate discharges, please indicate on your purchase order and approved submittal drawings. Alternate rotation is not available.

Main Options:
  • Numerous Motor Options
  • Fan Mounting Options
  • Sound Attenuation
  • Pressure Gauges
  • Hose Connectors and Fittings
  • Variable Frequency Drives
  • Fan Control Panel with Timer
  • Duct Systems

CONSTRUCTION
  • 16ga. steel fan housing
  • Cast Iron or Aluminum Motor
  • 8" (200mm) outer diameter outlet
  • Powder-coated
  • Radial impeller with curved blades direct connected to TEFC motor
  • P-Flange for direct duct mounting (Must be ordered separately)

KEY CRITERA
  • 100% Weather-Proof: Can be mounted outdoors/rooftop.
  • 45° Rotation: Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
  • Configurable: For a large variety of applications
  • Modular: Easily bolts into an existing ductwork system

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Cardboard Dust
  • Oil Smoke
  • Fibreglass Dust
  • Car Exhaust Fumes
  • Wood Dust
