H-MAX-HR-2-HT-2M-850

$5,497.90 CAD

Overview

Standard Product
Out of Stock

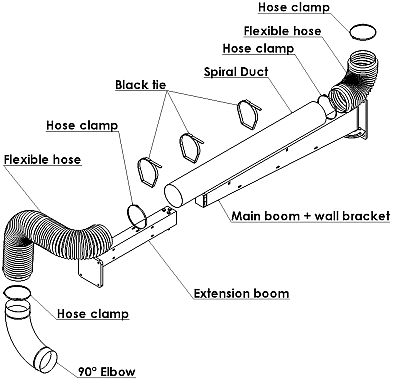

7' (2130mm) H-MAX Boom Kit for 8" (200mm) Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • 8D Spiral duct kit across the top of the boom

Specificiations


Shipping Specificiations

Shipping Weight 0.0 lbs.
Shipping Length 0 in.
Shipping Width 0 in.
Shipping Height 0 in.
Model 14-004: Spring Recoil Hose Reel - 4''/ 5''/ 6''/ 8'' Ø
Spring Recoil Hose Reels efficiently store hoses that capture and expel exhaust gases from vehicles using manual force and mechanical motion.
FUNCTION
These hose storage reels feature a locking mechanism for precise hose placement on tailpipes or stacks, ensuring smooth lowering and retraction. They are an effective solution for reducing tripping hazards in the workplace and are perfect for environments such as bus depots, garages, and service stations.

The hose is lowered manually against spring tension and locked into position with the reel’s locking-ratcheting mechanism. Further pulling releases the lock, allowing the hose to automatically retract.

Hose reels can be mounted under a roof, on a wall, supporting column, or at the end of an extension boom. They typically support flow rates ranging from 300 CFM to 2000 CFM, and can store up to 50' of hose; providing flexibility for various applications.

Main options include:
  • Low Temperature Hose (up to 350º F)
  • High Temperature Hose (up to 850º F)
  • Direct Mount Fans (0.5HP to 5HP)
  • Tailpipe adapters
  • Overhead Stack Adapters
  • Variable Frequency Drives

CONSTRUCTION
  • Complete with 4''/5”/6”/8” Ø hose connection
  • 6.33" or 8" diameter outlet duct connection
  • Powder-coated finish spring recoil reel
  • 18ga galvanized steel drum
  • 18ga stamped powder coated steel side discs
  • 12ga powder coated steel triangulated hose reel support and connecting bars
  • 4''/5”/6”/8” Ø hose with hose stop and hose clamps
Note: Hose will be shipped in a separate box.

KEY CRITERA
  • Space Saving: The hose reel is capable of holding up to 25' of hose in a standard configuration and up to 50' in a custom configuration
  • Typically used in: Bus stations, garages, or service stations
  • Easy Installation: The Hose Reel can be shipped complete with direct mount fans and auto ON/OFF switches
  • Mounting Configurations: Can be used for either wall mounting configurations or ceiling mounted configurations
  • Easy Operation: Much like an extraction arm, this system is easily pulled down for use, and doesn't require any adjustment before placement

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Chemical Fumes
  • Grinding Sparks
