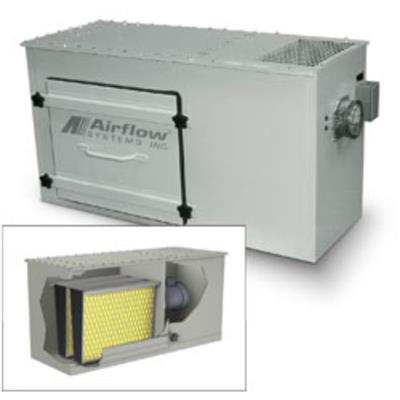

MPH8 - 800 CFM
The MPH8 Oil Mist Collector produces 800 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single or multiple metalworking applications.
FUNCTION
CONSTRUCTION
Specifications:
KEY CRITERA
SUITABLE FOR
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.
The unit comes with self-draining filters and has a horizontal profile. It includes mounting angles to allow for surface and low ceiling roof mounting. The MPH8 comes equipped with two (2) 1" (25mm) NPT drains for left-hand or right-hand requirements. It features a stage one Mist-Plus primary filter, a post-filter option, and a 1HP 3 PH TEFC motor.
Typically, these units are directly mounted to machines vertically for direct capture of contaminants or can be suspended from any suitable roof support strut for low ceiling applications.
Main Options:
The unit comes with self-draining filters and has a horizontal profile. It includes mounting angles to allow for surface and low ceiling roof mounting. The MPH8 comes equipped with two (2) 1" (25mm) NPT drains for left-hand or right-hand requirements. It features a stage one Mist-Plus primary filter, a post-filter option, and a 1HP 3 PH TEFC motor.
Typically, these units are directly mounted to machines vertically for direct capture of contaminants or can be suspended from any suitable roof support strut for low ceiling applications.
Main Options:
- Motor Options
- Filter Options
- Preventative Maintenance Pressure Gauges
- Variable Frequency Drives
CONSTRUCTION
- Includes filter access door on each side for left or right-hand applications
- Acoustically lined blower cabinet
- Max Door Opening: 11 ft ²
- Pressure gauge to indicate filter changes
- Single Phase Motor
Specifications:
- Construction: 18 Gauge welded steel cabinet with powder-coat finish
- Blower Pkg (HP): 1 HP
- Noise Level (dBA): 75 dBA
- Electrical: 115/1/60, 12 Amps
- Nominal Air Flow (CFM): 800
KEY CRITERA
- 95% Collection Efficiency at 1 to 4 Microns: Designed specifically for oil mist, the MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
- Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
- Lever locking Filter Placement System: Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance.
- Low-Profile Cabinet Design: Horizontal orientation allows for installation directly above the machine tool-even in low ceiling applications; saves floor space.
- Superior Liquid Drainage: 10" (250mm) bottom inlet and 2" (50mm) deep sump enable high-volume, 24-hour, 7-day operation; no manual handling of liquids.
- Extended Filter Life, Reduced Maintenance: MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
- Direct-Drive Blower: Energy-efficient; superior air flow and higher static pressure operation; no belts or pulleys to replace, acoustic-lined cabinet.
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Grinding sparks
- CNC Machining
- Lathe Work
- Aerospace Machining
- Food Processing that involves oil
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
MPH-8-LH
Low profile 800CFM NEW VERSION source capture mist collector with:
- (2) MIST PLUS™ main filters
- 1.0 HP TEFC motor, 115/1/60Hz, with high flow (75 dBA)
- Backward incline blower painted Airflow grey with 10 BOTTOM INLET COLLAR
- Mounting brackets
- Left handed version
MPH-8-RH
Low profile 800CFM NEW VERSION source capture mist collector with:
- (2) MIST PLUS™ main filters
- 1.0 HP TEFC motor, 115/1/60Hz, with high flow (75 dBA)
- Backward incline blower painted Airflow grey with 10 BOTTOM INLET COLLAR
- Mounting brackets
- Right handed version
Part #
Description
MPH24244DC
24" x 24" x 4" Hepa Filter, Paper Frame.
MPH-8-EXAD
External adsorber module, 650 cfm, 25 lbs charcoal capacity.
- Order charcoal separately - Adds 5" (125mm) to outlet height and 12 lbs to shipping weight
- For PG-6 use 2PG6-HEPA
MPH-8-EXDOP
External 95%@ 0.3 micron DOP filter, 700 cfm - Adds 5" (125mm) to outlet height and 10 lbs to shipping weight).
- For PG-6 use 2PG6-HEPA
MPH-8-EXHE
External 99.97% @0.3 micron HEPA filter, 700 cfm - Adds 5" (125mm) to outlet height and 10 lbs to shipping weight.
- For PG-6 use 2PG6-HEPA
MPH-8-EX-MERV 14
External MERV 14 pleated synthetic, washable filters - Adds 40 lbs. to ship weight.
- For PG6- use 2PG6-HEPA
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
MPH-8-PG-6
0-6" Magnahelic dial pressure gauge with AFS logo with mounting bracket, painted "Airflow Gray".
- Install close to the filter access door of MPH-8
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
2AU8-4703
External 95% DOP filter, 700 cfm.
2DL8-4002
Drain loop kit, includes 1" x 3/4" reducer fitting with 3/4: copper p-trap with fittings & instructions.
2KT8-4124
L type bracket kit for mounting mist collector to the wall - (2) required.
2PG5-MPH5
0-5" Minihelic dial pressure gauge.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
DM-113-02.0-104
2" (50mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
DM-113-03.0-104
3" (75mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
DM-113-04.0-104
4" (100mm)Ø Master Pur-SL Hose
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
- 4" x 6' HANGING ON WALL CLEAR
DM-113-05.0-104
5" (125mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
DM-113-06.0-104
6" (160mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
DM-113-08.0-104
8" (200mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
DM-113-10.0-104
10" (250mm)Ø Master Pur-SL Hose.
- Super lightweight polyester/polyurethane with wire reinforcement
- Very flexible and clear
- Minimum 5 times wear life improvement over PVC & TPR
- Price per ft. (25' Length Minimum)
Part #
Description
HR-2-OM
2" (50mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-3-OM
3" (75mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-4-OM
4" (100mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-5-OM
5" (125mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-6-OM
6" (150mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-8-OM
8" (200mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-10-OM
10" (250mm)Ø Hose Ring to connect oil mist hose to CNC machine.
Part #
Description
2AF7-3007
Adsorber module, refillable (15.5 x 15.5 x 3.25); holds 12 lbs of charcoal for MPH8.
2AF8-4000
95% MIST-PLUS filter assembly set.
- Consists of (2) MIST-PLUS filters on mounting plate - (1) assembly required / MPH-8 unit
2AF8-4003
97% Mist-Plus II, filter assembly set.
- Consists of (2) Mist-Plus II filters on mounting plate - (1) assembly required / MPH-8 unit
2AF8-4900
97% MIST-PLUS ™ II filter, metal frame - (3) required.
- Horizonal Holes
3FM8-4701
Media replacement PAK (MIST-PLUS™) Includes:
- (4) media paks for 2AF8-4000 - (1) required per unit
3FM8-4702
Media replacement PAK (MIST-PLUS™ II) Includes:
- (4) media paks for 2AF8-4003 - (1) required per unit
3FM8-4901
Media replacement PAK (MIST-PLUS™ II) - (3) required.
7FJ9-9007
HEPA filter for MP4 & MPH-8.
7FP1-4506
Pleated filter MERV 14, synthetic, washable for MPH8.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
