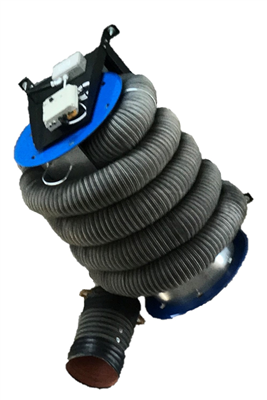

Motorized Hose Reel - Ø 4''/ 5''/ 6''/ 8''

The Motorized Hose Reels are designed to remove exhaust gasses emitted by exhaust pipes of every type of vehicle using an electric motor and controlled via a wireless remote controller. This system works well with cars, trucks, tractors, armoured vehicles, and means of public transport.
FUNCTION
Motorized Hose Reels are electric-driven and controlled via remote control for precise hose placement on a tailpipe or stack, allowing for easy lowering and retraction onto the reel. It is an ideal solution for eliminating tripping hazards in the work area and is perfect for bus depots, garages, service stations, and repair shops.

One universal hose reel allows the attaching of hoses of different diameters, lengths, and temperature ratings. The Lev-co Hose Reel stands out due to its unique high temperature 2000° bearings mounted within its side plates, duct connection, and supporting frame. The motor is a sealed IP 66 electric motor with a backup coil and recoil handle that allows the reel to be operated when no power is available.

The reel may be mounted under a roof, within a ceiling structure, as well as in a wall or at the end of an extension boom and have typical flow rates between 300CFM and 4300CFM.

Main Options include:
  • Low Temperature Hose: suitable for temperatures up to 350º F
  • High Temperature Hose: suitable for temperatures of 850º F
  • Ultra High temperature: suitable for temperatures up to 2500º F
  • Direct Mount Fans between 1HP to 30HP
  • Overhead Stack Adapters
  • Variable Frequency Drives
  • Horizontal Boom Extensions
NB: This reel is also an excellent solution for heavy welding, gouging, plasma, and flame cutting.
CONSTRUCTION
  • Powder-coated finishing electrical reel
  • 4''/5”/6”/8”/10''/12''/14''Ø hose with hose clamps and remote control
    (The nozzle is NOT included)
Note: Hose will be shipped in a separate box unless stated otherwise
KEY CRITERA
  • Space Saving: The hose reel is capable of holding up to 25 feet of hose in a compact package
  • Perfect for bus stations, garages, or service stations
  • Easy Installation: Saves money on the need for an third party contractor
  • Available as either wall, ceiling, or arm mounted, to accommodate multiple configurations
  • Versatile: With the use of flexible hose, our system can be manipulated for various exhaust configurations, including stack exhaust, and tailpipe
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Chemical Fumes
  • Grinding Sparks
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
HRE-4-NH
4'' (100mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 38' of Hose Length (Optional 55' & 74' available)
  • Driven by a 120 V Single Phase Motor
HRE-5-NH
5'' (125mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 32' of Hose Length (Optional 47' & 62' available)
  • Driven by a 120 V Single Phase Motor
HRE-6-NH
6'' (150mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 40ft of Hose Length (Optional 54ft Available)
  • Driven by a 120 V Single Phase Motor
HRE-8-NH
8'' (200mm) Motorized hose reel with no hose. Suitable for applications:
  • Up to 2000° F
  • Up to 42' of Hose Length
  • Driven by a 120 V Single Phase Motor
HRE-8-NH-LRG
8" (200mm) Motorized hose reel with no hose. Large 1830mm Drum Suitable for applications:
  • Up to 2000° F
  • Driven by a 120 V Single Phase Motor

Part #
Description
HRE-4-25-LT
4" (100mm) Motorized Hose Reel - comes with:
  • 7.5m (25') of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-4-33-LT
4" (100mm) Motorized Hose Reel - comes with:
  • 10m (33') of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-5-25-LT
5" (125mm) Motorized Hose Reel - comes with:
  • 7.5m (25') of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-5-33-LT
5" (125mm) Motorized Hose Reel - comes with:
  • 10m (33') of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-6-25-LT
6" (150mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-6-33-LT
6" (150mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-8-25-LT
8" (200mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-8-33-LT
8" (200mm) Motorized Hose Reel - complete with:
  • 33' (10000mm) of 350º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*

Part #
Description
HRE-4-25-HT
4" (100mm) Motorized Hose Reel - comes with:
  • 7.5m (25') of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-4-33-HT
4" (100mm) Motorized Hose Reel - comes with:
  • 10m (33') of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-5-25-HT
5" (125mm) Motorized Hose Reel - comes with:
  • 7.5m (25') of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-5-33-HT
5" (130mm) Motorized Hose Reel - complete with:
  • 33' (10000mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-6-25-HT
6" (150mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-6-33-HT
6" (150mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-8-25-HT
8" (200mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-8-33-HT
8" (200mm) Motorized Hose Reel - complete with:
  • 33' (10000mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Fan & Tailpipe adapter *SOLD SEPERATELY*

Part #
Description
H-MAX-HR-1-HT-2M-850
2m (6.5') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° F high temperature 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-1-HT-3M-850
3m (10') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° high temp 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-1-HT-4M-850
4m (14') H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 6" (150mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-2M-850
7' (2130mm) H-MAX Boom Kit for 8" (200mm) Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • 8D Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-3M-850-200
10' (3050mm) H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom
H-MAX-HR-2-HT-4M-850
14' (4270mm) H-MAX Boom Kit for Hose Reel. Comes complete with:
  • 850° High temp 8" (200mm)Ø hose
  • Ball Bearing swivel & friction brake
  • Spiral duct kit across the top of the boom.
H-MAX-2M
6.5' H-MAX Boom Kit
H-MAX-3M
10' H-MAX Boom Kit
H-MAX-4.5M
14' (4270mm) H-MAX Boom Kit.
H-MAX-4M
14' (4270mm) H-MAX Boom Kit
H-MAX-5M
14' (4270mm) H-MAX Boom Kit
P-190
15' (4570mm) HERCULIAN Articulating Extension Boom complete with hose.
  • Horizontal boom for Hercules 4m with (3) mounting brackets at the outer end for UK, SM, SP, PF, FLEXI & Super-Flex extractions
  • C-profile along bottom side
P-194
6' 5" (1980mm) HERCULIAN Articulating Extension Boom complete with hose.
P-195
10' (3050mm) HERCULIAN Articulating Extension Boom complete with hose.

Part #
Description
2PLY-GPH-10
10" (250mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-4
4" (100mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-6
6" (150mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
GPH-4
4" (100mm)Ø Polyester fabric, general purpose hose. Neoprene coated single ply with wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-5
5" (125mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)
GPH-6
6" (150mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-8
8" (200m)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)
FREQUENTLY BOUGHT TOGETHER

Part #
Description
RCA-4
10" (250mm) Diesel Stack Adapter with:
  • 4" (100mm) opening for exhaust pipe
RCA-4/D
10" (250mm) Diesel Stack Adapter with:
  • 4" (100mm) opening for exhaust pipe
  • Manual damper
RCA-5
10" (250mm) Diesel Stack Adapter with:
  • 5" (125mm) opening for exhaust pipe
RCA-5/D
10" (250mm) Diesel Stack Adapter with:
  • 5" (125mm) opening for exhaust pipe
  • Manual damper
  • Tailpipe clips
RCA-6
10" (250mm) Diesel Stack Adapter with:
  • 6" (150mm) opening for exhaust pipe
RCA-6/D
10" (250mm) Diesel Stack Adapter with:
  • 6" (125mm) opening for exhaust pipe
  • Manual damper
  • Tailpipe clips
RCA-2MAG-KIT
Magnet Mounting Kit for RCA nozzle with:
  • (2) 30lb magnets for sticking the nozzle to the side of metal equipment
RCA-8
8" (200mm) Diesel Stack Adapter with:
  • 10" (250mm) opening for exhaust pipe
RCA-8/D
10" (250mm) Diesel Stack Adapter with:
  • 8" (200mm) opening for exhaust pipe
  • Manual damper

Part #
Description
PYRO-4-850
4" (100mm)Ø, silicone nomex 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Colour: Orange
PYRO-4-1200
PYRO-4-1200.
PYRO-5-850
5" (125mm)Ø, 2ply hose 850° F - Suitable for use in CONTINUOUSLY flexing applications such as hose reels (price per foot).
  • Color: Orange
PYRO-5-1200
PYRO-5-1200.
PYRO-6-850
6" (150mm)Ø, 2ply Silicone/Nomex hose (price per foot), colour Orange.
  • Standard factory cut ends
PYRO-6-1200
PYRO-6-1200.
PYRO-8-3/4P-850
Custom 8" (200mm)Ø, 2ply hose 850° F with:
  • 3/4" pitch - Suitable for use in constant flexing applications or with hose reels (price per foot)
  • Minimum length 25' Max length 50'
PYRO-8-850
8" (200mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: Orange
  • Minimum length 25' Max length 50'
PYRO-9-850-3/4
9" (230mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-8-1200
8" (200mm)Ø, 2 ply hose 1200° F - Suitable for use in constant flexing applications or with hose reels (price per foot). Color BLACK

Part #
Description
RELH-6-24-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
AG-Hood
Air Gouging hood for 8" (200mm) hose connection.
  • 12 sq.ft Opening
  • 14G, Aluminum
  • For sparks/molten metal up to 3000° F
To be used for Arc Air Gouging process

Part #
Description
P-147-1
P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
DSIC** P-147-2
P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-2
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3
P-Max direct drive fan 0.5 HP 575V/3/60.

Part #
Description
P-148-1
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3
P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-149-1
P-Max© direct drive fan 1 HP 115-230V/1/60.
P-149-1
P-Max© direct drive fan 1 HP 115-230V/1/60.
P-149-1-1750RPM
P-Max© direct drive fan 1 HP 115-230V/1/60 with 1750 RPM motor.
M-P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-149-4
P-Max© direct drive fan 1.5 HP.
M-P-152-1
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-115/230
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-2
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-2-230/460
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-3
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-3-575
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
BI-135-100
Industrial Exhaust Fan 1800 CFM@1.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 1.5 HP, 115/230/1/60, 1750 RPM. AMCA type B

Part #
Description
P-153-1
2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-2
2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-3
2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Part #
Description
P-154-1
P-Max© direct drive fan 3 HP 208-230V/460V/3/60
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-154-2
P-Max© direct drive fan 3 HP 575V/3/60
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
BI-122-70-2
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 3 HP, 230-460V/3/60, 3600 RPM. AMCA Type B construction.
BI-122-70-3
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g.BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 3 HP, 575V/3/60, 3600 RPM. AMCA Type B construction.

Part #
Description
P-155-1
5 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-155-2
5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
BI-135-75-2
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 230-460V/3/60, 3600 RPM. AMCA type B
BI-135-75-3
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 575V/3/60, 3600 RPM. AMCA type B

Part #
Description
RCA-UCC
Under Carriage Clip for RCA Nozzle. For quick connection to under carriage tailpipes

Part #
Description
P-033-HR
P-MAX fan mounting bracket for motorized & spring recoil hose reels.
  • Suitable only for the P-147, P-148, P-149 & P-152
REM-FAN-BR-160
P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L
P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1
6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2
6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3
Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
LD-240-BRACKET
Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK
Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L
Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R
Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20
LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB
Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L
Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R
Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP
Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
REM-FAN-BR-200
P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV-560
Heavy duty galvanized fan mounting bracket with hardware to connect fan.

Part #
Description
P-156-1
7.5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-156-2
7.5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge
BI-150-90-2
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 7.5 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-150-90-3
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 7.5 HP, 575V/3/60, 3600 RPM. AMCA type B construction

Part #
Description
P-156-HF-1
10 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø nlet & outlet collar
P-156-HF-2
10 HP direct drive fan 575/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø inlet & outlet collar
BI-165-75-2
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA Type B Construction
BI-165-75-3
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 575V/3/60, 3600 RPM.AMCA Type B Construction

Part #
Description
BI-182-70-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-70-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 575V/3/60, 3600 RPM. AMCA type B construction

Part #
Description
BI-270-65-2
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 230-460V/3/60, 1750 RPM.
BI-270-65-3
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 575V/3/60, 1750 RPM.

Part #
Description
BI-270-85-2
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-85-3
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction

Part #
Description
BI-270-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-100-3
Industrial Exhaust Fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction

Part #
Description
LEV-P-018-200-4MAG
10' long 8" (200mm), 250° hose, hood, & (4) magnets.
LEV-P-018-200-4MAG-HT
10' long 8" (200mm), 850° hose, hood & (4) magnets.
Gripple-2-5
Gripple Hanger Loop No. 2, 5ft.
Gripple-2-10
Gripple Hangers Loop No. 2, 10ft.
Gripple-2-15
Gripple Hangers Loop No. 2, 15ft. - XP
Gripple-2-20
Gripple Hanger Loop, No. 2, 20ft.
Gripple-3
No. 3 Stainless Steel Loop Hanger - 10ft length.
Gripple-4
Stainless Steel No. 4 Straight eyelet 10ft, gripples.
TP-6-12
6' - 12' Telescoping Pole.
PDK-RF-8
Industrial grade duct kit for direct exhausting of P-Max fans - for Ceiling/Roof exhaust. Complete with Gravity Back Draft Damper
