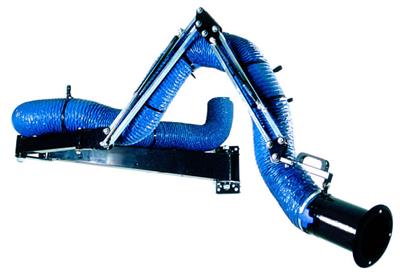

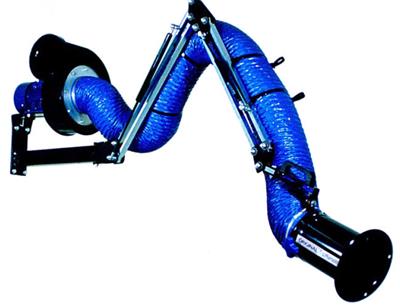

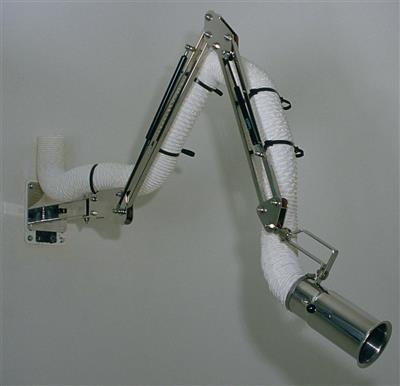

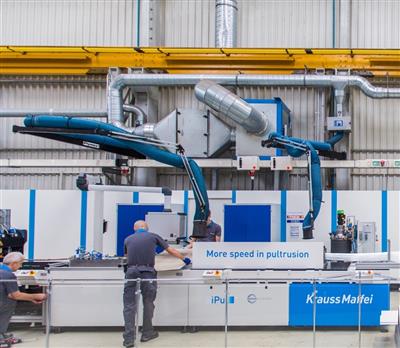

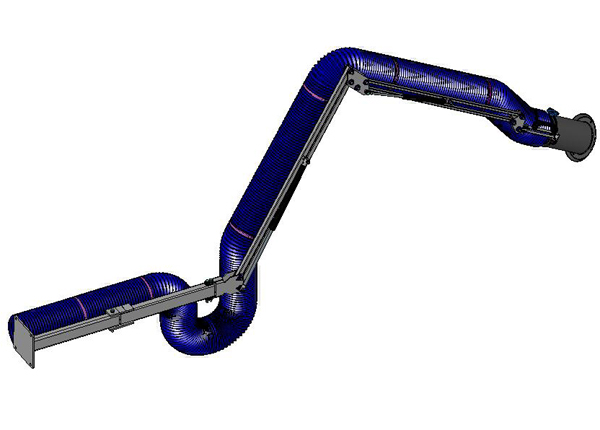

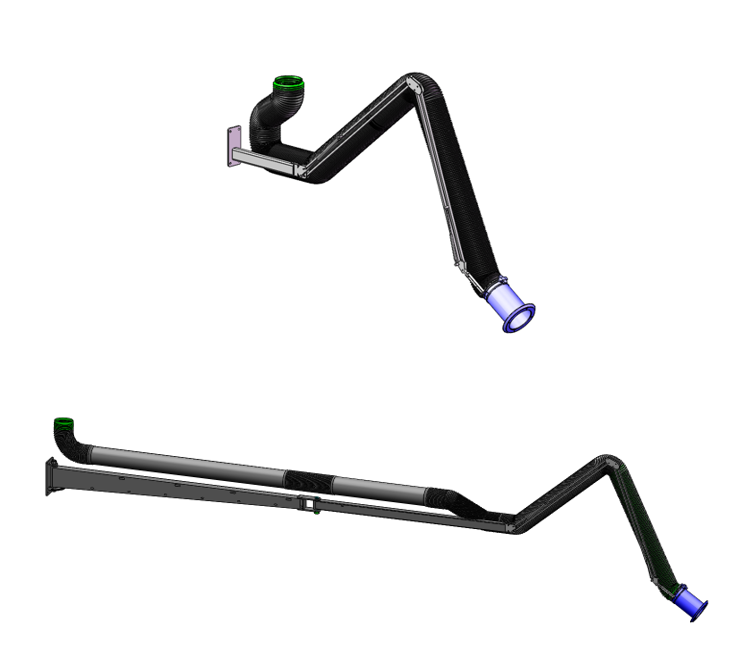

PKS - Ø 2.5'' to 12''

PKS - An Extraction Arm that is an excellent solution for capturing low flowing fumes and gases at the source, expelling it safely away from the users.
Available Hose Diameter Range: 2.5''-12"
Available length from 5' to over 40'
FUNCTION
The PKS extraction arm is modular and allows engineers and consultants to configure the extraction arm to suit their specific application or process.

Hoses can be customized to meet the specific requirements of the contaminants, including factors such as chemical resistance, temperature tolerance, pressure capacity, flexibility, and abrasion resistance.

The supporting structure and capture hood can be selected in either micro-polished stainless steel, zinc-coated steel, or powder-coated steel.

Available with:
  • Hood Options
  • Wall, Table or Ceiling Bracket
  • Hood and Nozzle Accessories
  • Extension Hood
  • Horizontal Boom Extensions
  • Fan Options
  • Stanchions and Wall Brackets
  • Tool Suspension kits for H-MAX Boom Extensions
  • Smooth Tube duct for PKS series extractors
  • Fan, Light, and Other Electrical Accessories
CONSTRUCTION
  • General: The extractor arms are built to industrial-grade standards, specifically engineered for the extraction of fumes, dust, mist, gases, and smoke. Constructed to endure the demanding conditions of these applications, they, when paired with the appropriate fans, effectively remove airborne pollutants in compliance with all relevant industrial ventilation standards.
  • Wall Bracket: Constructed from 6mm and 2.5mm steel, finished with a durable black baked-on enamel coating, the extractor arms are equipped with two integrated swivel bearing points for 360° continuous rotation. Additionally, they feature integrated duct connections and direct-mount fan connections for seamless installation and optimal functionality.
  • Internal Support: The support mechanism is constructed from a combination of 50 x 25mm and 22 x 22mm, 2.5mm steel tubing. Utilizing advanced "parallelogram" technology and three spring-assisted joints, this design ensures precise counterbalancing of both the inner and outer arms of the extractor for smooth and accurate operation.
  • Vertical Range of Motion: The 2-meter extraction arms have a vertical range of 2.5 meters below (90° below horizontal) and 1.5 meters above their respective mounting brackets (90° above horizontal).
  • The 3, 4, and 5 meter extraction arms shall have a vertical range of 3.5 meters below (90° below horizontal) and 2.5 meters above their mounting brackets (90° above horizontal).
  • Horizontal Range of Motion: The extraction arms have a horizontal radius of 2.0 and 3.0 meters respectively and are able to rotate continuously around their mounting brackets.
  • Hardware: All joints are provided with friction disks, "Belleville" washers and nylon insert locknuts. All parallelogram joints have been pre-assembled and tensioned by the factory
  • Hose: Round in construction, made of flameproof, double skin, fiberglass reinforced, and flexible PVC fabric resistant to UV radiation. Maximum operating temperature; 70° C.
  • Hood: The hood is constructed of 20ga, stamped steel, painted with a black, UV resistant, baked-on enamel paint. The hood comes with; an integrated damper with a positive seal (Optional on the 200mm extractors), ring handle, front handle, "Quick connect" flange and has a range of motion of 270° in all directions.
  • Hardware: The arm is supplied with all necessary hardware required for assembly and duct connection. Hardware for mounting the extractor to the wall or column is to be provided by the installing contractor or end-user.
KEY CRITERA
  • Modular Length: This allows you to precisely determine the working area covered
  • Ability to Select Diameters: Designed for precise transport velocities, flow rates and pressures.
  • Ability to change the type of hose: Hoses can be selected to suit the properties of the contaminants in terms of corrosive resistance, temperature, pressure, flexibility, and abrasion requirements
  • Arm Construction: Ability to select arm construction to the working environment
  • Advanced Parallelogram Design: Allows for easy placement and stay in place position.


PLEASE NOTE: the above specifications are to be considered as a minimum. Please refer to the quote details for precise specifications of each component, as specific components may have been selected to suit the requirements of your application/process.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding Smoke
  • Thermal Cutting Fumes
  • Grinding Dust
  • Chemical Fumes and Vapors
  • Food and Pharmaceutical Dusts
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Wall Bracket (0.33'-1.65'): Code A
Part #
Description
OM-001
4" (100mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A
OM-002
8" (200mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A
OM-003-RS
20" (510mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A

Table & Ceiling Brackets (1.65'): Code B
Part #
Description
OM-004
20" (510mm) Table/Ceiling Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: B

Horizontal Arm (2.3'): Code C
Part #
Description
OM-005
Assembly of Horizontal Arm 2' 3" (700mm). PKS System Code: C

Horizontal Arm (7.6'-9.5'): Code D
Part #
Description
OM-006
6' 2" (1900mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 4 hose bands
  • PKS System Code: D
OM-007
9' 5" (2900mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 4 hose bands
  • PKS System Code: D

Horizontal Arm (12.5'-16.8'): Code E
Part #
Description
OM-008
13' 5" (4000mm) Horizontal Arm. Includes wall bracket, 2 arms & 5 hose bands PKS System Code: E
OM-009
15' 4" (4700mm) Horizontal Arm. Includes wall bracket, 2 arms & 5 hose bands. PKS System Code: E

Parallelogram Arm Support (4.3'-12.5'): Code P
Part #
Description
OM-010
4' 3" (1300mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-011
6’ (1800mm)"Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-012
9' (2700mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-13
9' (3000mm) "Stay in place" Parallelogram arm support for hose, duct, & hood
  • PKS System Code: P
OM-013
12' 5" (3800mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P

Hood With/Without Damper (.66'): Code T
Part #
Description
R-028
1.75" (45mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
R-029
2.5” (63mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
R-030
2.5" (63mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
OM-067
3” (75mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
R-032
3” (75mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
OM-080
4" (100mm)Ø Hood D with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-068/OM-029
5" (125mm)Ø Round Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
R-056/OM-069
6.33" (160mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
OM-071
8" (200mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
OM-071-250-1-al
10" (250mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T
OM-071-300
12" (300mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system. Length: 8" (200mm). PKS System Code: T

General Purpose Extraction Hose (7'-33'): Code S
Part #
Description
HVH-CR-1.75
1.75" (45mm)Ø "HI VAC" flexible hose. PKS System Code: S
HVH-CR-2.5
2.5" (65mm)Ø "HI VAC" flexible hose. PKS System Code: S
S-100-1
4" (100mm)Ø Fire Retardant PVC Coated Polyester Hose. PKS System Code: S
S-127-1
5" (125mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-160-1
6.33" (160mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-200-1
8" (200mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-250-1
10" (250mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-315-1
12" (300mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
FREQUENTLY BOUGHT TOGETHER

Part #
Description
RELH-6-24-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT
Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT
Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-24-EXT
Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-36-EXT
Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-24-EXT
Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-36-EXT
Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version

Part #
Description
DSIC** P-147-2
P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1
P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3
P-Max direct drive fan 0.5 HP 575V/3/60.

Part #
Description
P-148-1
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3
P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-152-1
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-3
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-115/230
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-3-575
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
P-154-1.5HP-1
**DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60 Note: Must not be used below 8" SP 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Part #
Description
P-153-1
2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-2
2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-3
2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Part #
Description
P-025-120S-120V-1PH-2.0 HP
Energy Saver E- Man© 115V/1/60. Fan Motor control station. Rated up to 2 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-240V-1PH-3HP
Energy Saver E- Man© 240V/1/60. Fan Motor control station. Rated up to 3 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-575V-3PH-20HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-24S-230V-1PH-0.5HP
Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-230V-3PH-7.5 HP
Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-460V-3PH-20HP
Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-20HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-30HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

Part #
Description
P-024-1
115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection on/off 14A control power cord & plug
  • Overload rating according to the FLA of the motor
  • Field assembly & installation required
P-024-2
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
P-024-3
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
P-024-PORTABLE
Additional components for P-024 Fan Motor control station when used on portable units - Required for CSA Standards.
P-024-4
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
P-024-5
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 2.5-4A OVERLOAD ---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/6
P-024-6
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Price update Jan 30 2010 TC
MN32H010-AD1-HS-NR
0.63 - 1.0A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 0.63 - 1.0A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
MN32H016-AD1-HS-NR
1.0-1.6A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.0-1.6A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1@575/3/60
MN32H025-AD1-HS-NR
1.6-2.5A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.6-2.5A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/2/230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
MN32H040-AD1-HS-NR
2.5-4A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 2.5-4A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/60
MN32H063-AD1-HS-NR
4.0-6.3A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 4.0-6.3A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
MN32H100-AD1-HS-NR
6.3-10A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 6.3-10A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
MN32H160-AD1-HS-NR
10-16A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 10-16A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.0@115/1/60, 3.0@230/1/60, 5.0@230/3/60, 10@460/3/60, 15@575/3/60V
MN32H200-AD1-HS-NR
16-20A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 16-20A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
MN32H250-AD1-HS-NR
20-25A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 20-25A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 2.0@115/1/60, 3.0@230/1/60, 7.5@208/3/60, 7.5@230/3/60, 15@460/3/60, 20@575/3/60
MN32H320-AD1-HS-NR
25-32A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 25-32A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
P-024-7
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
P-024-8
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
P-024-9
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60

Part #
Description
OM-036
4' 3" (1300mm) Main Boom
  • Includes wall bracket, shaft, ball bearing, & disc-brake mechanism
OM-037
7' 5" (2300mm) Main Boom
  • Includes wall bracket, shaft, ball bearing, & disc-brake mechanism
P-023-HMAX-SING-R2
VIA-STAN®, heavy duty stanchion for mounting H-MAX boom's.
  • 9' 6" (2800mm) high

Part #
Description
HS-2500-160
2500°F Hose Shield for all 6.33" (160mm)Ø hoses. 30" (760mm) in length
HS-2500-200
2500°F Hose Shield for all 8" (200mm)Ø hoses. 30" (760mm) in length

Part #
Description
LD-240-BRACKET
Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK
Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L
Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R
Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20
LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB
Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L
Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R
Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP
Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
OC-SQ-CRP-400-STACK
Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-016
P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-016-HD
P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • Heavy Duty Version for P-153, P-154, P-155, P-156 & P-157 Fans
  • Complete with 4 - 3/8" x 1.5" bolts, nuts, & lock washers
REM-FAN-BR-160
P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L
P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1
6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2
6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3
Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200
P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV
Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE
Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.
P-766-LW-SS
Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part #
Description
PKS-ASSY
Charge to have PKS Component System Arm assembled at factory.

Part #
Description
TS-036
Trolley kit for 6' 5" (2000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys
TS-037
Trolley kit for 10' (3000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys
TS-038
Trolley kit for 13' (4000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys

Part #
Description
PKS-SD-012-72
3" (72mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 72mm aluminum tubes, & 3 flex hoses
PKS-SD-012-100
4" (100mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 100mm aluminum tubes, & 3 flex hoses
PKS-SD-012-125
5" (125mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 125mm aluminum tubes, & 3 flex hoses
PKS-SD-012-160
6.33" (160mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 160mm aluminum tubes, & 3 flex hoses
PKS-SD-012-200
8" (200mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 200mm aluminum tubes, & 3 flex hoses
PKS-SD-012-250
10" (250mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 250mm aluminum tubes, & 3 flex hoses
PKS-SD-012-315
12.5" (315mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 315mm aluminum tubes, & 3 flex hoses
PKS-SD-013-72
3" (72mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 72mm aluminum tubes, & 3 flex hoses
PKS-SD-013-100
4" (100mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm.
  • Kit comes complete with 5 hose clamps, 2 - 100mm aluminum tubes, & 3 flex hoses
PKS-SD-013-125
5" (125mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 125mm aluminum tubes, & 3 flex hoses
PKS-SD-013-160
6.33" (160mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 160mm aluminum tubes, & 3 flex hoses
PKS-SD-013-200
8" (200mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 200mm aluminum tubes, & 3 flex hoses
