Model

01-050

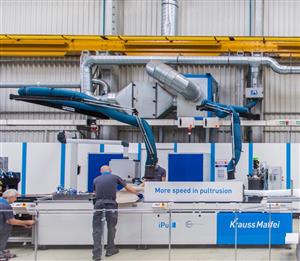

Image for pks.jpg Image for MicrosoftTeams-image (14).png

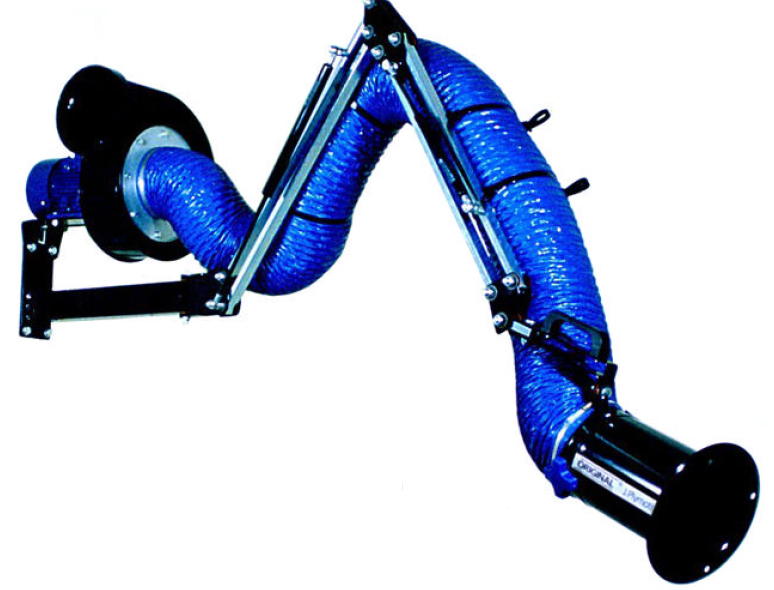

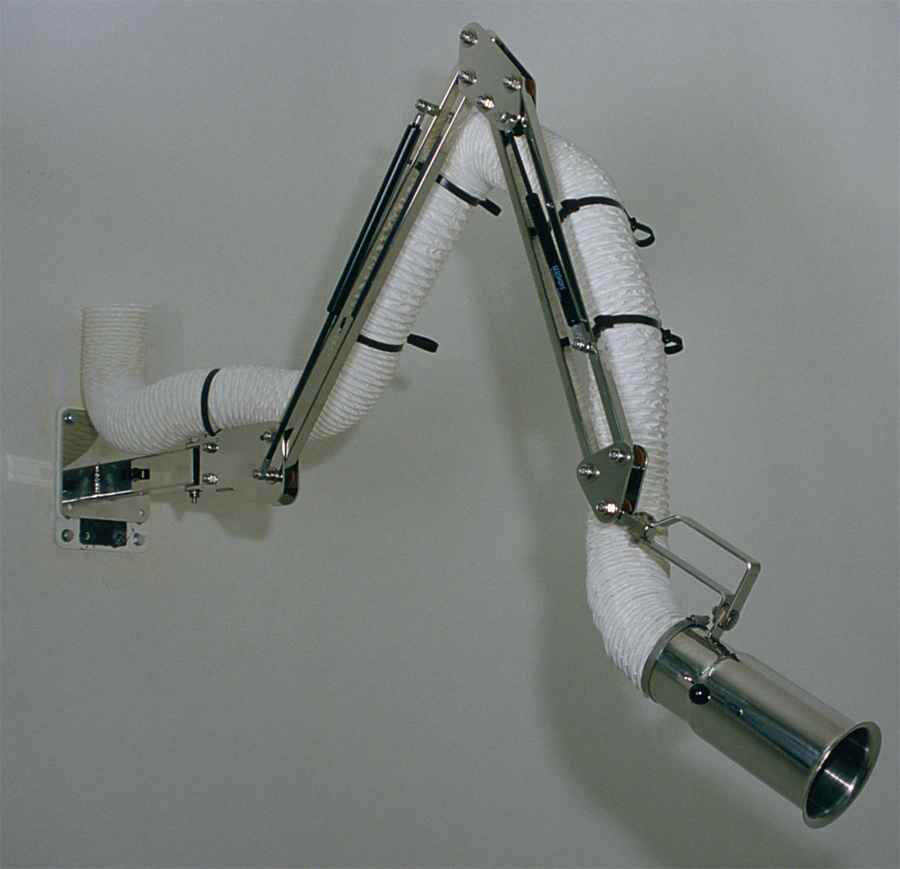

PKS - Ø 2.5'' to 12''

PKS - An Extraction Arm that is an excellent solution for capturing low flowing fumes and gases at the source, expelling it safely away from the users.
Available Hose Diameter Range: 2.5''-12"
Available length from 5' to over 40'

Function:

The PKS extraction arm is modular and allows engineers and consultants to configure the extraction arm to suit their specific application or process.

Hoses can be selected to suit the properties of the contaminants in terms of corrosive resistance, temperature, pressure, flexibility, and abrasion requirements.

The supporting structure and capture hood can be selected in either micro-polished stainless steel, zinc-coated steel, or powder-coated steel.

Available with:
  • Hood Options
  • Wall, Table or Ceiling Bracket
  • Hood and Nozzle Accessories
  • Extension Hood
  • Horizontal Boom Extensions
  • Fan Options
  • Stanchions and Wall Brackets
  • Tool Suspension kits for H-MAX Boom Extensions
  • Smooth Tube duct for PKS series extractors
  • Fan, Light, and Other Electrical Accessories

Construction:

  • General: The following extractor arms are of industrial quality and designed to be used for the extraction of fumes, dust, mist, gases and smoke. They are manufactured to withstand the environments associated with these applications and when the appropriate fans are selected, these extractors will remove pollutants in accordance with all industrial ventilation guidelines.
  • Wall Bracket: Constructed of 6 and 2.5-mm steel, painted with black baked-on enamel. Complete with 2 integrated swivel bearing points for 360° continuous rotation, integrated duct and direct-mount fan connections.
  • Internal Support: A combination of 50 x 25mm and 22 x 22mm, 2.5-mm steel tubing is used as the structure for the support mechanism. "Parallelogram" technology is used along with 3 spring-assisted joints to provide precise counterbalancing of the extractor's inner and outer arm.
  • Vertical Range of Motion: The 2-meter extraction arms have a vertical range of 2.5 meters below (90° below horizontal) and 1.5 meters above their respective mounting brackets (90° above horizontal).
  • The 3, 4, and 5 meter extraction arms shall have a vertical range of 3.5 meters below (90° below horizontal) and 2.5 meters above their mounting brackets (90° above horizontal).
  • Horizontal Range of Motion: The extraction arms have a horizontal radius of 2.0 and 3.0 meters respectively and are able to rotate continuously around their mounting brackets.
  • Hardware: All joints are provided with friction disks, "Belleville" washers and nylon insert locknuts. All parallelogram joints have been pre-assembled and tensioned by the factory
  • Hose: Round in construction, made of flameproof, double skin, fiberglass reinforced, and flexible PVC fabric resistant to UV radiation. Maximum operating temperature; 70° C.
  • Hood: The hood is constructed of 20ga, stamped steel, painted with a black, UV resistant, baked-on enamel paint. The hood comes with; an integrated damper with a positive seal (Optional on the 200mm extractors), ring handle, front handle, "Quick connect" flange and has a range of motion of 270° in all directions.
  • Hardware: The arm is supplied with all necessary hardware required for assembly and duct connection. Hardware for mounting the extractor to the wall or column is to be provided by the installing contractor or end-user.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
S-250-1 37"H x 9.5"W x 13"D 17 lbs
S-200-1 8"H x 8"W x 13"D 2 lbs
R-032 "H x "W x "D 0 lbs
R-030 5"H x 5"W x 13"D 5 lbs
R-029 "H x "W x "D 0 lbs
R-028 5"H x 10"W x 21"D 2 lbs
OM-13 "H x "W x "D 0 lbs
OM-080 10"H x 8"W x 8"D 5 lbs
OM-071-300 9"H x 15"W x 15"D 5 lbs
OM-071-250-1-al 0"H x 0"W x 0"D 0 lbs
OM-071 17"H x 13"W x 13"D 6 lbs
OM-068/OM-029 8"H x 8"W x 11"D 4 lbs
OM-067 4"H x 10"W x 11"D 2 lbs
OM-012 5"H x 11"W x 55"D 25 lbs
OM-011 4"H x 8"W x 40"D 10 lbs
OM-010 4"H x 11"W x 28"D 10 lbs
OM-009 "H x "W x "D 0 lbs
OM-008 "H x "W x "D 0 lbs
OM-007 "H x "W x "D 0 lbs
OM-006 "H x "W x "D 0 lbs
OM-005 4"H x 6"W x 35"D 12 lbs
OM-004 1"H x 1"W x 1"D 4 lbs
OM-003-RS "H x "W x "D 0 lbs
OM-001 6"H x 11"W x 11"D 4 lbs
HVH-CR-2.5 "H x "W x 13"D 0 lbs
HVH-CR-1.75 "H x "W x 13"D 0 lbs

Key Buying Criteria:

  • Modular Length: This allows you to precisely determine the working area covered
  • Ability to Select Diameters: Designed for precise transport velocities, flow rates and pressures.
  • Ability to change the type of hose: Hoses can be selected to suit the properties of the contaminants in terms of corrosive resistance, temperature, pressure, flexibility, and abrasion requirements
  • Arm Construction: Ability to select arm construction to the working environment
  • Advanced Parallelogram Design: Allows for easy placement and stay in place position.


PLEASE NOTE: the above specifications are to be considered as a minimum. Please refer to the quote details for precise specifications of each component, as specific components may have been selected to suit the requirements of your application/process.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Smoke
  • Thermal Cutting Fumes
  • Grinding Dust
  • Chemical Fumes and Vapors
  • Food and Pharmaceutical Dusts
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
OM-001 4" (100mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A
OM-002 8" (200mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A
OM-003-RS 20" (510mm) Wall Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: A

Part # Qty Description
OM-004 20" (510mm) Table/Ceiling Bracket for SM, SP, PF, & PKS Extraction Arms.
  • PKS System Code: B

Part # Qty Description
OM-005 Assembly of Horizontal Arm 2' 3" (700mm).
  • PKS System Code: C

Part # Qty Description
OM-006 6' 2" (1900mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 4 hose bands
  • PKS System Code: D
OM-007 9' 5" (2900mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 4 hose bands
  • PKS System Code: D

Part # Qty Description
OM-008 13' 5" (4000mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 5 hose bands
  • PKS System Code: E
OM-009 15' 4" (4700mm) Horizontal Arm.
  • Includes wall bracket, 2 arms & 5 hose bands
  • PKS System Code: E

Part # Qty Description
OM-010 4' 3" (1300mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-011 6’ (1800mm)"Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-012 9' (2700mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P
OM-13 9' (3000mm) "Stay in place" Parallelogram arm support for hose, duct, & hood
  • PKS System Code: P
OM-013 12' 5" (3800mm) "Stay in place" Parallelogram arm support for hose, duct, & hood.
  • PKS System Code: P

Part # Qty Description
R-028 1.75" (45mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
R-029 2.5” (63mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
R-030 2.5" (63mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-067 3” (75mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
R-032 3” (75mm)Ø Hood without damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-080 4" (100mm)Ø Hood D with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-068/OM-029 5" (125mm)Ø Round Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
R-056/OM-069 6.33" (160mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-071 8" (200mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-071-250-1-al 10" (250mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T
OM-071-300 12" (300mm)Ø Hood with damper & (4), 2 x hose clamp for externally supported arm, Super Max, Pro-Flex, & PKS component system.
  • Length: 8" (200mm)
  • PKS System Code: T

Part # Qty Description
HVH-CR-1.75 1.75" (45mm)Ø "HI VAC" flexible hose.
  • PKS System Code: S
HVH-CR-2.5 2.5" (65mm)Ø "HI VAC" flexible hose.
  • PKS System Code: S
S-100-1 4" (100mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-127-1 5" (125mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-160-1 6.33" (160mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-200-1 8" (200mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-250-1 10" (250mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S
S-315-1 12" (300mm)Ø Fire Retardant PVC Coated Polyester Hose.
  • PKS System Code: S

Frequently bought together these options:


Part # Qty Description
RELH-6-24-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-24-EXT Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-10-36-EXT Conical Bell Mouth hood extension for 10" (250mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-24-EXT Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-12-36-EXT Conical Bell Mouth hood extension for 12" (300mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version

Part # Qty Description
M-P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
P-153-1 2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 Minimum
P-153-2 2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 Minimum
P-153-3 2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 Minimum

Part # Qty Description
OM-036 4' 3" (1300mm) Main Boom
  • Includes wall bracket, shaft, ball bearing, & disc-brake mechanism
OM-037 7' 5" (2300mm) Main Boom
  • Includes wall bracket, shaft, ball bearing, & disc-brake mechanism
P-023-HMAX-SING-R2 VIA-STAN®, heavy duty stanchion for mounting H-MAX boom's.
  • 9' 6" (2800mm) high

Part # Qty Description
HS-2500-160 2500°F Hose Shield for all 6.33" (160mm)Ø hoses.
  • 30" (760mm) in length
HS-2500-200 2500°F Hose Shield for all 8" (200mm)Ø hoses.
  • 30" (760mm) in length

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20 LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
P-016 P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-016-HD P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • Heavy Duty Version for P-153, P-154, P-155, P-156 & P-157 Fans
  • Complete with 4 - 3/8" x 1.5" bolts, nuts, & lock washers
REM-FAN-BR-160 P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1 6.33" (160mm) Swivel Retention Plate for P-045.
  • 14 GA GALVANIZED
P-045-R1-2 6.33" (160mm) Swivel with 1/2" collar for P-045.
  • 16 GA GALVANIZED
P-045-R1-3 Lev-Co formed P-045 Mounting Bracket.
  • 12 GA Mild Steel
REM-FAN-BR-200 P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE Heavy duty galvanized telescopic fan mounting bracket with hardware to connect fan.
P-766-LW-SS Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part # Qty Description
PKS-ASSY Charge to have PKS Component System Arm assembled at factory.

Part # Qty Description
TS-036 Trolley kit for 6' 5" (2000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys
TS-037 Trolley kit for 10' (3000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys
TS-038 Trolley kit for 13' (4000mm) H-MAX extension booms
  • Complete with 1 double-wheel main trolley & 4 single-wheel trolleys

Part # Qty Description
PKS-SD-012-72 3" (72mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 72mm aluminum tubes, & 3 flex hoses
PKS-SD-012-100 4" (100mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 100mm aluminum tubes, & 3 flex hoses
PKS-SD-012-125 5" (125mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 125mm aluminum tubes, & 3 flex hoses
PKS-SD-012-160 6.33" (160mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 160mm aluminum tubes, & 3 flex hoses
PKS-SD-012-200 8" (200mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 200mm aluminum tubes, & 3 flex hoses
PKS-SD-012-250 10" (250mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 250mm aluminum tubes, & 3 flex hoses
PKS-SD-012-315 12.5" (315mm) "Smooth Tube" duct kit for OM-012 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 315mm aluminum tubes, & 3 flex hoses
PKS-SD-013-72 3" (72mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 72mm aluminum tubes, & 3 flex hoses
PKS-SD-013-100 4" (100mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm.
  • Kit comes complete with 5 hose clamps, 2 - 100mm aluminum tubes, & 3 flex hoses
PKS-SD-013-125 5" (125mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 125mm aluminum tubes, & 3 flex hoses
PKS-SD-013-160 6.33" (160mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 160mm aluminum tubes, & 3 flex hoses
PKS-SD-013-200 8" (200mm) "Smooth Tube" duct kit for OM-013 PKS extractor arm
  • Kit comes complete with 5 hose clamps, 2 - 200mm aluminum tubes, & 3 flex hoses
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
5DBBB981D02C4E1F897A386C22EB7185
