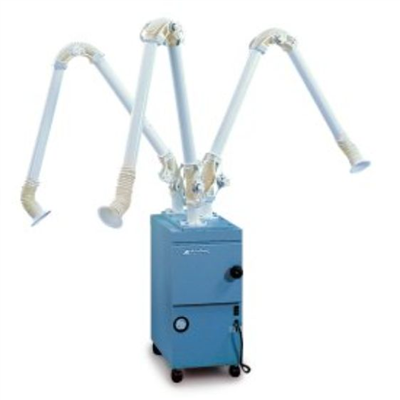

Image for mini-vac.jpg
Specification Drawings Case Studies Video Case Studies

Solutions
Industries
  • Aerospace Aerospace
  • Art's Art's
  • Auto body repair Auto body repair
  • Bio & Pharma Bio & Pharma
  • Chemicals and Plastics Chemicals and Plastics
  • Construction Construction
  • Dental Offices Dental Offices
  • Educational Educational
  • Electronics Electronics
  • Farm & Heavy Equipment Farm & Heavy Equipment
  • Food & Beverage Food & Beverage
  • Forensics Forensics
  • Machine Shop Machine Shop
  • Marine Marine
  • Metalworking Metalworking
  • Mining & Quarrying Mining & Quarrying
  • Misc. Operations Misc. Operations
  • MRO MRO
  • Municipal & DOT Garage Municipal & DOT Garage
  • Museums & Artifacts Museums & Artifacts
  • National Defense National Defense
  • Painting Painting
  • Process Engineering Process Engineering
  • Public Transportation Public Transportation
  • Refineries & Energy Refineries & Energy
  • Vehicle Repair Vehicle Repair
  • Welding Shops Welding Shops
  • Woodworking Woodworking
Processes
  • Abrasive Cut-Off Saw
  • Animal Food Manufacturing
  • Artifact Cleaning
  • Auto Shop
  • Band Saw
  • Buffing and Polishing
  • Chainsaw
  • Circular Automatic Buffing
  • Circular Saw
  • Copper Alloy Welding
  • Core Grinding
  • Deburring
  • Drilling
  • Electronics Assembly Line
  • Equipment Cleaning
  • Farm Equipment Repair
  • Food Packaging Plant
  • Forensic Laboratories
  • Heavy Equipment Repair
  • Hull Building
  • Jewelry Manufacturing
  • Lead Smelting
  • Machine Shop
  • Magnesium Welding
  • Manual Buffing and Polishing
  • Metal Polishing Belt
  • Metal Spinning
  • Military Vehicle Repair
  • Mortar/Plaster Mixer
  • Nickel Welding
  • Operating Room
  • Paint Spray Gun
  • Painting and Marking
  • Paleontology
  • Pesticide Manufacturing
  • Petroleum Refining
  • Pill Productions
  • Plastic Manufacturing
  • Portable Chipping and Grinding Table
  • Procedure Room
  • Prosthetics & Orthotics
  • Pump Room Cleaning
  • Rubber Calender Rolls
  • Small Paint Booth
  • Soldering
  • Stainless Welding
  • Steel Welding
  • Straight Line Automatic Buffing
  • Subway Maintenance and Repair
  • Surface Grinders
  • Tablet Press Machine
  • Tank Stripping
  • Torch Cutting Ventilation
  • Vertical Spindle Disc Grinder
  • Welding Shop
  • Wood Shop
Engineering Control Methods
No control methods exist for this product

MiniVac - 300 CFM

The MiniVac portable air cleaner is designed for source extraction and filtration of dust and smoke. These small air cleaners are ideal when combined with self-supported extraction arm(s) or for ducted "source-capture" applications.
FUNCTION
The Mini-Vac is designed for direct source capture of pollutants through one or two 3” (75mm) flexible, self-supported pickup hoses.

Dirty air enters the unit through the top or side and enters the first stage 2” (50mm) pleated filter that removes large particles.

The second stage is a 6” (150mm) deep, extended surface cartridge filter rated at 95% efficiency.

The third stage is a 1” (25mm) charcoal filter for gas/odor control. The air then exits through the motor/blower, into the built-in silencer, and then out through the bottom grille.

Available Options:
  • Filter Options
  • Extraction Arms
  • After Filter for Absorption Media
  • Hood and Nozzle Accessories
  • Sound Attenuation
  • Fan, Light, and Other Electrical Accessories

Multipurpose Airflow:
  • 120 CFM - single arm
  • 210 CFM - dual arms (105 CFM/arm)
  • 250 CFM - three arms (80 CFM/arm)
  • 300 CFM@ 1.5" (40mm) w.g. (no arms)
CONSTRUCTION
  • 18 gauge powder coated steel cabinet
  • 2.5” (65mm)Ø Extraction Arm
  • 2” (50mm) pleated pre-filters
  • 95% main filter
  • 1” (25mm) charcoal after-filter
  • Pressure gauge
  • Direct drive motor
  • 1/2 HP 115/1/60
  • Power cord and plug (115V units only)
KEY CRITERA
  • 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-phase voltage optional)
  • Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, and no installation required.
  • Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability. No wear items such as pulleys or belts to replace.
  • "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
  • Efficient Source Capture: 99.5% filter efficiency produces cleaner air. (99.97% @ 0.3 micron with HEPA filter option)
  • Fire/Melt-proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
  • Integrated Spark Deflector: Reduces fire risk in high sparking applications.
  • Heavy Duty 25-ft. Power Cord: High visibility 12 gauge cord. Maximizes system portability and positioning during operation.
  • Narrow Width Design: Permits access and maneuverability in tight spaces
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • VOC's
  • Odor
  • Spray Painting
  • Soldering and Plastic Fumes
  • Composites and Epoxies
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
66-0
MiniVac portable air cleaner with (2) 3" (75mm) inlets on top.
  • Arms not included
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
66-1E
MiniVac portable air cleaner with (1) E-Z Arm 2.5” (65mm)Ø, 6'L arm mounted on top of unit.
  • 115V/1/60
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation
66-2E
210CFM portable air cleaner with (2) 6' L 2.5" (65mm)Ø E-Z Arm. Complete with:
  • Fume extractor
  • Filter
  • Charcoal after-filter
  • Motor
  • Direct drive blower
  • Pressure gauge
  • Includes two E-Z arms
  • Wall Bracket must be ordered separately
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
66-3E
250 CFM MiniVac portable air cleaner with (3) 6'L 2.5" (65mm)Ø E-Z Arm fume extractor.
  • Arms mounted on top of unit
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
68-0
MiniVac portable air cleaner with (3) 3" (75mm) inlets on side
  • Arms not included
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
MINI-VAC-AD
Internal adsorption option, includes:
  • (1) 2 pleated pre-filter
  • (1) refillable v-bank adsorber module 7 lbs. capacity
  • (1) 1" (25mm) polyester after-filter
  • Order charcoal separately (Adds 20 lbs. to ship weight)
MINI-VAC-HEPA
99.97% HEPA Filter Option for Standard MINI-VAC Unit

Part #
Description
2KT0-2704
Light kit, 20 watt, 115v.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
2E04-DD
E-Z Arm Jr. 2.5” (65mm)Ø extraction arm, 4’L down-flange configuration.
  • Comes complete with wall bracket
2E06-DD
E-Z Arm Jr. 2.5” (65mm)Ø extraction arm, 6’L down-flange configuration.
  • Comes complete with wall bracket
MINI-VAC-3AA3
3" (75mm) arm assembly. 42" long (26" compressed, 42" extended) with metal internal support, complete with:
  • Universal mounting bracket (up, down or through table) plenum assembly
  • 3" (75mm)Ø white plastic hose & a 3" (75mm) x 6" (150mm) white plastic hood
  • For use with 66-0 & 68-0 units only
MINI-VAC-3AA5
3" (75mm) arm assembly. 60" long (42" compressed, 60" extended) with metal internal support, complete with:
  • Universal mounting bracket (up, down or thru table) plenum assembly
  • 3" (75mm)Ø white plastic hose and a 3" (75mm) x 6" (150mm) white plastic hood
  • For use with 66-0 and 68-0 units only
MINI-VAC-4E05
4" (100mm)Ø High Performance Fume Arm, 5' L.
  • Option for Standard FUME-PAK 66-0 Unit only

Part #
Description
7FP3-0401
1" (25mm) Pleated Filter 30% efficiency - Used as after-filter for AD.

Part #
Description
MINI-VAC-ARM HOSE KIT(1)
Includes 5' of 3" (75mm) white hose, two (2) hose clamps, and two (2) white rubber hose clamp covers.
  • To be used with Model 66-0 or 68-0 and one (1) table mounted fume extraction arm
MINI-VAC-ARM HOSE KIT(2)
Includes 10' of 3" (75mm) white hose, four (4) hose clamps, and four (4) white rubber hose clamp covers.
  • To be used with Model 66-0 or 68-0 and two (2) table mounted fume extraction arms
MINI-VAC-ARM HOSE KIT(3)
Includes 15' of 3" (75mm) white hose, (6) hose clamps, & (6) white rubber hose clamp covers.
  • To be used with Model 68-0 & (3) table mounted fume extraction arms

Part #
Description
7FJ9-9406
HEPA, 99.97% filter, metal frame internal and external use.
7FP3-0402
2" (50mm) Pleated Filter, 30% eff. PL. (10" x 20" x 2").
7FP9-5401
95% main filter, 14 sq.ft.
7FH9-9406
99.97% HEPA Filter wood frame (10" x 20" x 6")
7FC5-0401
1" (25mm) Charcoal Filter For Mini-Vac.
2AF9-0008
Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
CHARCOAL-10
10 lbs. Bag of non-recycled coconut shell-based, activated carbon.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
