2E06-DD

$1,939.22 CAD

Overview

Standard Product
Out of Stock

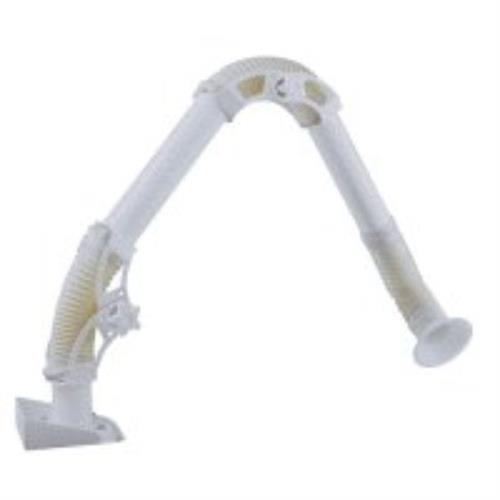

E-Z Arm Jr. 2.5” (65mm)Ø extraction arm, 6’L down-flange configuration.
  • Comes complete with wall bracket

Specificiations


Shipping Specificiations

Shipping Weight 1.0 lbs.
Shipping Length 1 in.
Shipping Width 1 in.
Shipping Height 1 in.
Model 01-004: E-Z-ARM JR. - Ø 2.5''
High-performance fume extraction arm with external support joints designed for lab and bench-tops.

Provides airflow rate of 150 CFM.
FUNCTION
3' or 5' long complete with angle cut nozzle. White tubes, hood, and hose (Does not include wall mounting bracket or motor/blower).

  • Filtration: HEPA, cartridge, and odour-control filters systems available based on application
  • Blower Packages: Multiple multiple options available based on specific application

CONSTRUCTION
  • 18 ga. extruded aluminum seamless tube with spiral flex duct
  • Arm lengths: 4 ft. (E-Z Arm 2.5 2EO4), 6 ft. (E-Z Arm 2.5 2EO6)
  • 2.5" (65mm)Ø arm in 4 or 6 foot lengths provides for high-efficiency source point collection
  • 4.75" (120mm)Ø intake hood increases collection area and efficiency
  • Strong, extruded aluminum tubing epoxy coated for corrosion resistance, lightweight for one-handed positioning
  • Triple-joint section design provides complete 360° range of movement
  • Heavy-duty stamped aluminum joints: external friction adjustments can handle continued repositioning without losing structural integrity

KEY CRITERA
  • Dental facilities
  • Low noise
  • Visually appealing
  • High pressure
  • No internal components for flow obstruction
  • Easy positioning and adjustment

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Soldering Fumes
  • Laboratory gases and dust
  • Food Dust
  • Pharmaceutical
  • Forensics labs
