Model Number

02-008

model_icon

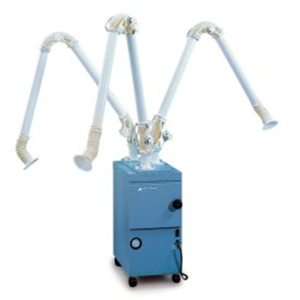

MiniVac - Portable Filter Unit

The MiniVac portable air cleaner is designed for source extraction and filtration of dust and smoke. These small air cleaners are ideal when combined with self-supported extraction arm(s) or for ducted "Source-capture" applications.

Function:

The Mini-Vac is designed for direct source capture of pollutants through one or two 3” flexible, self-supported pickup hoses.

Dirty air enters the unit through the top or side and enters the first stage 2” pleated filter that removes large particles.

The second stage is a 6” deep, extended surface cartridge filter rated at 95% efficiency.

The third stage is a 1” charcoal filter for gas/odor control. The air then exits through the motor/blower, into the built-in silencer, and then out through the bottom grille.

Available Options:
  • Filter Options
  • Extraction Arms
  • After Filter for Absorption Media
  • Hood &Nozzle Accessories
  • Sound Attenuation
  • Fan, Light & Other Electrical Accessories

Multipurpose Airflow:
  • 120 CFM - single arm
  • 210 CFM - dual arms (105 CFM/arm)
  • 250 CFM - three arms (80 CFM/arm)
  • 300 CFM@ 1.5" w.g. (no arms)

Construction:

  • 18 gauge poder coated steel cabinet
  • 2.5” Ø Extraction Arm
  • 2” pleated prefilters
  • 95% main filter
  • 1” charcoal after-filter
  • Pressure gauge
  • Direct drive motor
  • 1/2 HP 115/1/60
  • Power cord/plug

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
CHARCOAL-15 14"H x 10"W x 10"D 16 lbs
CHARCOAL-10 14"H x 10"W x 10"D 11 lbs
7FP9-5401 6"H x 19.5"W x 9.5"D 2 lbs
7FC5-0401 1"H x 20"W x 10"D 2 lbs
68-0 20.5"H x 27.375"W x 13.25"D 30 lbs
66-3E 76"H x 23"W x 30"D 186 lbs
66-2E 21"H x 28"W x 14"D 110 lbs
66-1E 76"H x 29"W x 25"D 160 lbs
66-0 21"H x 28"W x 14"D 20 lbs
2E04-DD 8"H x 24"W x 24"D 15 lbs
2AF9-0008 6"H x 20"W x 10"D 5 lbs

Key Buying Criteria:

  • Complete, self-contained unit: Versatile, easy to use; no installation required
  • High efficiency 3-stage filtration: Provides up to 99.97% filtration efficiency
  • Direct-drive blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace
  • Non-electrostatic operation: High reliability, low maintenance
  • Narrow width design: Permits access and maneuverability in tight spaces
  • Plug-in operation with any 115V outlet: Can be used anywhere, no special wiring required

Suitable For:

Top 5 contaminants/processes/applications:

  • VOC's
  • Odor
  • Spray Painting
  • Soldering & Plastic Fumes
  • Composites & Epoxies
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
2E04-DD
E-Z Arm Jr. 2.5” dia. extraction arm, 4’ long down-flange configuration.
  • comes with wall bracket
2E06-DD
E-Z Arm Jr. 2.5” dia. extraction arm, 6’ long down-flange configuration.
  • comes with wall bracket
66-0
MiniVac portable air cleaner with (2) 3 inlets on top (arms not included).
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
66-1E
MiniVac portable air cleaner with (1) E-Z Arm 2.5” Ø, 6' long arm mounted on top of unit.
  • 115V/1/60
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
66-2E
Portable air cleaner with E-Z Arm. Fume extractor, filter, charcoal after-filter, motor, direct drive blower and pressure gauge. (includes 2 E-Z arms)
  • Wall Bracket must be ordered separately
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
66-3E
MiniVac portable air cleaner with (3) E-Z Arm 2.5, 6' long arms mounted on top of unit.
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
68-0
MiniVac portable air cleaner with (3) 3 inlets on side (arms not included).
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Part #
Qty
Description
7FJ9-9406
HEPA, 99.97% filter, metal frame internal and external use.
7FP3-0402
2" pleated filter, 30% eff. PL. (10" x 20" x 2").
7FP9-5401
95% main filter, 14 sq.ft.
7FH9-9406
99.97% HEPA Filter wood frame (10" x 20" x 6")
7FC5-0401
1" Charcoal Filter For Mini-Vac
2AF9-0008
Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
CHARCOAL-10
10 lbs. Bag of non-recycled coconut shell-based, activated carbon.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20
20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40
40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Frequently bought together these options:

Part #
Qty
Description
MINI-VAC-AD
Internal adsorption option: includes (1) 2 pleated prefilter (1) refillable v-bank adsorber module 7 lbs. capacity and (1) 1 polyester after-filter. Order charcoal separately. (Adds 20 lbs. to ship weight.)
MINI-VAC-HEPA
99.97% HEPA Filter Option for Standard MINI-VAC Unit
Part #
Qty
Description
MINI-VAC-3AA3
3" arm assembly. 42" long (26" compressed, 42" extended) with metal internal support, complete with universal mounting bracket (up, down or thru table) plenum assembly. 3 diameter white plastic hose and a 3 x 6 white plastic hood. For use with 66-0 and 68-0 units only.
MINI-VAC-3AA5
3" arm assembly. 60" long (42" compressed, 60" extended) with metal internal support, complete with universal mounting bracket (up, down or thru table) plenum assembly. 3" diameter white plastic hose and a 3" x 6" white plastic hood. For use with 66-0 and 68-0 units only.
MINI-VAC-4E05
4" Dia. High Performance Fume Arm, 5' Long Option for Standard FUME-PAK 66-0 Unit only
Part #
Qty
Description
7FP3-0401
1 Pleated Filter 30% eff. Used as after-filter for AD.
Part #
Qty
Description
MINI-VAC-ARM HOSE KIT(1)
Includes 5' of 3 white hose, two (2) hose clamps, and two (2) white rubber hose clamp covers. (To be used with Model 66-0 or 68-0 and one (1) table mounted fume extraction arm.)
MINI-VAC-ARM HOSE KIT(2)
Includes 10' of 3 white hose, four (4) hose clamps, and four (4) white rubber hose clamp covers. (To be used with Model 66-0 or 68-0 and two (2) table mounted fume extraction arms.)
MINI-VAC-ARM HOSE KIT(3)
Includes 15' of 3 white hose, six (6) hose clamps, and six (6) white rubber hose clamp covers. (To be used with Model 68-0 and three (3) table mounted fume extraction arms.)
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part #
Qty
Description
E-Z ARM 2.5-LK
Light Kit 20 watt, 115V for use with Mini-Vac Arms.
