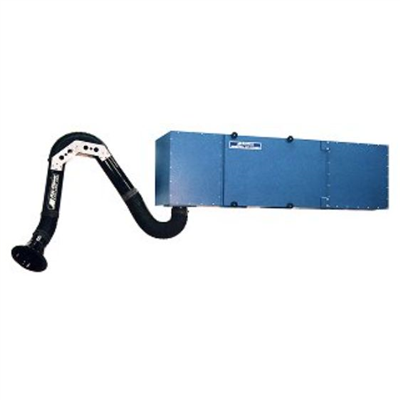

F91 - 1300 CFM

The F91 extraction system offers 2, 3, or 4 stage filtration, and with the use of Ultra-Seal® Filter Mounting, it eliminates contaminant bypass of filters.
When paired with our 10' Flexi extraction arm, this system provides source capture, removing contaminants.

Optional gas adsorption is available to remove gases as well as particulate matter. Washable pre-filters, a primary bag filter, and optional HEPA after-filters combine to provide 99.97% filtration efficiency at noise levels as low as 79 dB. The unit includes Class II BI blower direct drive with a 3 HP motor.

Available Options:

• Pressure Gauge Kit: Indicates when filters require cleaning.
• Silencer: Reduces noise by 3 dB.
• 14-ft. E-Z Arm® High Flow Extractor: Replaces standard 10-ft. E-Z Arm® Extractor for peak system performance, as needed
• Filter Options: Chevron® mist collector, Disposable 4" (100mm) pre-filter, 99.97% efficiency HEPA after-filter, multi-filter gas adsorption module.

• Cabinet: 16 ga. steel , powder coated
• Blower: Pkg (HP): 3.0
• Noise Level: (dB): 79
• Electrical: 3.0 HP - 208/230/460/3/60, 8.0/4.0 amps
• Nominal Air Flow (CFM): 1100 or 1300
• Filters: 2” (50mm) mesh pre-filter, 95% bag main filter

• 10-ft. E-Z Arm® High Flow Extractor: Increases collection efficiency over ambient systems
• Class II Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability; spark resistant; no belts or pulleys to replace
• Non-Electrostatic Operation: High reliability, low maintenance
• Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters

Top 5 contaminants/processes/applications:

• Oil Smoke
• Coolant Mist
• Smoke
• Dust
• Fumes

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
