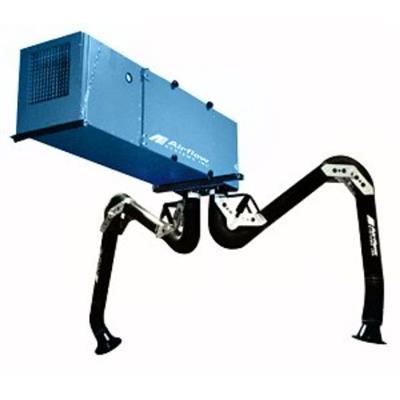

F122 - 2200 CFM

The F122 offers high efficiency and is an excellent solution for industrial plants, schools, shops, and factories with air-born chemicals. It has an airflow rating of 1100-2200 CFM through 7'' (175mm) hose.
FUNCTION
This overhead filtration system is a solution for air-born chemicals, and when paired with our 10' Flexi extraction arms, this system offers point source capture from (2) separate sources.
With the use of class II direct-drive blower motor, this system offers higher pressure, static flow, longer filtration life, and minimal maintenance, with no belt-drive replacements required. It has an Ultra-Seal® filter mounting which eliminates contaminant bypass of filters.

An optional gas adsorption is available to remove gases as well as particulate matter. Washable pre-filters, a primary bag filter, and optional HEPA after-filters can be combined to provide 99.97% filtration efficiency at noise levels as low as 78 dB.

Available Options:
  • Pressure Gauge Kit: Indicates when filters require cleaning
  • Silencer: Reduces noise by 3 dB
  • 14-ft. E-Z Arm® High Flow Extractors: Replaces standard 10-ft. E-Z Arm® Extractors for peak system performance
  • Available Filter Modules Chevron® mist collector, Disposable 4 prefilter, 99.97% efficiency HEPA safety filter, multi-filter gas adsorption module
CONSTRUCTION
Specifications:
  • Construction: 16 ga. steel cabinet, powder-coated
  • Blower Pkg (HP): 3.0 HP - 208/230/460/3/60
  • Noise Level (dBA): 78
  • Electrical: 3.0 HP - 208/230/460/3/60; 3.0 HP - 190/380/3/50, 11.3/5.65 amps.
  • Nominal Air Flow (CFM): 2200 with duel extraction
KEY CRITERA
  • Dual 10-ft. E-Z Arm® High Flow Extractors: Increases collection efficiency over ambient systems
  • Class II Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability; spark resistant; no belts or pulleys to replace
  • Non-Electrostatic Operation: High reliability, low maintenance
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Oil smoke
  • Coolant mist
  • Smoke
  • Dust
  • Welding fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
F122
2000 CFM source capture, industrial air cleaner with:
  • (2) 10' long E-Z Arm overhead high flow extractors
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 95% bag filter (120ft²) 3 HP TEFC motor, 208-230/460/575/3/60Hz (8/4 amps)
  • (1) high pressure, Class II, direct drive, BI blower

Part #
Description
F122-0.65
65% Bag Filter Option for Standard F122 Unit.
F122-2P
2" (50mm) Polyester Pre-filter Option for Standard F122 Unit.
F122-4P
4" (100mm) Pleated Pre-filter Option for Standard F122 Unit.
F122-95DOP
95% DOP HEPA Filter Option for Standard F122 Unit
F122-AD
Adsorption option, includes:
  • (1) 4" (100mm) pre-filter
  • (1) 95% short bag filter (64 sq.ft.)
  • (2) refillable, v-bank absorber modules
  • (1) 2" (50mm) pleated after-filter, 50 lbs. capacity: rated 1700 cfm
Adds 40 lbs. to ship weight.
F122-CV
CHEVRON® option, includes:
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 4" (100mm) CHEVRON ® mist eliminator
  • (1) 95% bag filter (120 sq.ft.)
  • (2) drains in cabinet (3/4 FPT)
F122-EC
Easy Clean, polyester membrane, cleanable bag filter, 80% efficiency; replaces standard 95% bag filter.
F122-HEPA-4
99.97% HEPA Filter Option for Standard F91 Unit.

Part #
Description
F122-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
F-122-Merv14-4
New MERV14 pleated, synthetic, washable filter option.
HEPA-12
12'' (300mm) - 99.97% DOP HEPA Filter Option for Standard F122 Unit.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
ARM PARTS
Order Arm Parts from E-Z Arm ® Page.
F122-7E14
Two (2) 14' long E-Z Arm ® high flow extractors in place of 10' long E-Z Arm ® high flow extractors.
  • Wall Bracket must be ordered separately

Part #
Description
Starter-Mag-F122
Magnetic starter,3HP, 208-460volt, shipped loose.
Starter-Man-F122
Manual Starter, 3HP, 208-460volt, shipped loose
Starter-MNT-F122
Kit for mounting Magnetic or Manual Starters.

Part #
Description
RCA-4
10" (250mm) Diesel Stack Adapter with:
  • 4" (100mm) opening for exhaust pipe

Part #
Description
F122-S-EXT
Exhaust silencer Option for Standard F122 Unit.

Part #
Description
16258
24" x 24" x 12" Merv 11 Cartidge Filters SH.
2AF1-9032
Easy Clean Bag Filter.
  • Net Dimensions 28"L x 24"W x 24"H
2AF2-9001
2" (50mm) Polyester AFTER-filter pad & frame.
2AF4-9100
Chevron Filter - Impingement filter.
2AF9-0006
Adsorber v-bank module.
  • (2) are need for Pac 91
2AZ2-0004
2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FA8-0101
2" (50mm) Aluminum Mesh Pre-filter. For filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FA8-0101-OEM
Aluminum Mesh Pre-filter.
  • For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119
65% Short Bag Filter (24" x 24" x 17").
7FB6-5126
65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB6-5132-OEM
65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202, & 203.
7FB9-0119-OEM
95% Short Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, & F-480.
  • 24"L x 24"W x 17"H
7FB9-0126
95% fiberglass bag filter for filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FB9-0132
95% Bag Filter For the following filter systems: 200, 202, 203, F-120, F-240, F-360, F-480 complete with:
  • Loops
  • Minimum Order: (2) Filters
7FH9-9112
99.97% HEPA Filter - WOOD FRAME.
7FJ9-5112
95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FJ9-9113
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FJ9-9113-OEM
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP3-0102
2" (50mm) Pleated PRE-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0102-AAF
2" (50mm) Pleated pre-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0104-OEM
4" (100mm) Pleated filter for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, & PAC91
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
ESMV-85
85% CLEANABLE extended surface main replacement filter.
ESMV-95
95% CLEANABLE extended surface main replacement filter.
ESMV-98
12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
