Model

07-003

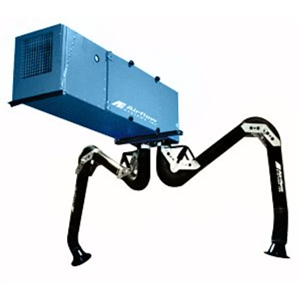

Image for f122.jpg

F122 - 2200 CFM

The F122 offers high efficiency and is an excellent solution for industrial plants, schools, shops, and factories with air-born chemicals. It has an airflow rating of 1100-2200 CFM through 7'' hose.

Function:

This overhead filtration system is a solution for air-born chemicals, and when paired with our 10' Flexi extraction arms, this system offers point source capture from 2 separate sources.
With the use of class II direct-drive blower motor, this system offers higher pressure, static flow, longer filtration life, and minimal maintenance, with no belt-drive replacements required. It has an Ultra-Seal® filter mounting which eliminates contaminant bypass of filters.

An optional gas adsorption is available to remove gases as well as particulate matter. Washable pre-filters, a primary bag filter, and optional HEPA after-filters can be combined to provide 99.97% filtration efficiency at noise levels as low as 78 dB.

Available Options:
  • Pressure Gauge Kit: Indicates when filters require cleaning
  • Silencer: Reduces noise by 3 dB
  • 14-ft. E-Z Arm® High Flow Extractors: Replaces standard 10-ft. E-Z Arm® Extractors for peak system performance
  • Available Filter Modules Chevron® mist collector, Disposable 4 prefilter, 99.97% efficiency HEPA safety filter, multi-filter gas adsorption module

Construction:

Specifications:
  • Construction: 16 ga. steel cabinet, powder-coated
  • Blower Pkg (HP): 3.0 HP - 208/230/460/3/60
  • Noise Level (dBA): 78
  • Electrical: 3.0 HP - 208/230/460/3/60; 3.0 HP - 190/380/3/50, 11.3/5.65 amps.
  • Nominal Air Flow (CFM): 2200 with duel extraction

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
F122 32.5"H x 35.5"W x 95"D 411 lbs
ESMV-98 "H x "W x "D 0 lbs
ESMV-95 12"H x 24"W x 24"D 13 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FP3-0104-OEM 4"H x 24"W x 24"D 2 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-4505-OEM 4"H x 24"W x 24"D 8 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9113 12"H x 24"W x 24"D 0 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
7FJ9-5112 12"H x 24"W x 24"D 23 lbs
7FH9-9112 12"H x 24"W x 24"D 38 lbs
7FB9-0132 4"H x 24"W x 24"D 7 lbs
7FB9-0126 5"H x 24"W x 24"D 3 lbs
7FB9-0119-OEM 17"H x 24"W x 24"D 5 lbs
7FB6-5132-OEM 32"H x 24"W x 24"D 4 lbs
7FB6-5126 24"H x 24"W x 3"D 3 lbs
7FB6-5119 25"H x 30"W x 5"D 5 lbs
7FA8-0101-OEM 2"H x 24"W x 24"D 7 lbs
7FA8-0101 25"H x 4"W x 25"D 3 lbs
2AZ2-0004 2"H x 24"W x 24"D 0 lbs
2AF9-0006 12"H x 24"W x 12"D 10 lbs
2AF4-9100 4"H x 24"W x 24"D 20 lbs
2AF1-9032 28"H x 24"W x 24"D 3 lbs

Key Buying Criteria:

  • Dual 10-ft. E-Z Arm® High Flow Extractors: Increases collection efficiency over ambient systems
  • Class II Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability; spark resistant; no belts or pulleys to replace
  • Non-electrostatic operation: High reliability, low maintenance
  • Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil smoke
  • Coolant mist
  • Smoke
  • Dust
  • Welding fumes
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
F122 2000 CFM source capture, industrial air cleaner with (2) 10' long E-Z Arm overhead high flow extractors, (1) 2 aluminum mesh prefilter, (1) 95% bag filter (120ft²) 3 HP TEFC motor, 208-230/460/575/3/60Hz (8/4 amps) and a high pressure, Class II, direct drive, BI blower.

Part # Qty Description
16258 24x24x12 Merv 11 Cartidge Filters SH
2AF1-9032 Easy Clean Bag Filter Net Dimensions L28 W24 H24
2AF2-9001 2 Polyester AFTER-filterpad and frame.
2AF4-9100 Chevron Filter. Impingement filter
2AF9-0006 Adsorber v-bank module.
  • 2 are need for Pac 91
2AZ2-0004 2" polyester filter. (Pad Only). 2P. (24" x 24" x 2")
7FA8-0101 Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FA8-0101-OEM Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119 65% Short Bag Filter, (24" x 24" x 17")
7FB6-5126 65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB6-5132-OEM 65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202 and 203
7FB9-0119-OEM 95% Short Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480, 24x24x17
7FB9-0126 95% fiberglass bag filter for F-120/122/240/360/480, 200/202/203, VOM 2400, L-M-30/35/40/60/70
7FB9-0132 95% Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480
  • C/W loops
  • Minimum Order: 2 Filters
7FH9-9112 99.97% HEPA Filter, wood fram
7FJ9-5112 95% @ 0.3 micron DOP filter c/w metal frame, 72 Deep
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FJ9-9113 HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FJ9-9113-OEM HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-OEM MERV 14 Filter, Synthetic, Washable. Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH and MP60.
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
7FP3-0102 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
7FP3-0102-AAF 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
7FP3-0104-OEM pleated filter for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM and PAC91 . (24" x 24" x 4").
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
ESMV-85 85% CLEANABLE extended surface main replacement filter
ESMV-95 95% CLEANABLE extended surface main replacement filter
ESMV-98 12" X 24" X 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER

Frequently bought together these options:


Part # Qty Description
F122-0.65 65% Bag Filter Option for Standard F122 Unit
F122-2P 2" Polyester Prefilter Option for Standard F122 Unit
F122-4P 4" Pleated Prefilter Option for Standard F122 Unit
F122-95DOP 95% DOP HEPA Filter Option for Standard F122 Unit
F122-AD Adsorption option; includes (1) 4 prefilter, (1) 95% short bag filter (64 sq.ft.), (2) refillable, v-bank absorber modules, and (1) 2 pleated after-filter, 50 lbs. capacity: rated 1700 cfm. (Adds 40 lbs. to ship weight).
F122-CV CHEVRON® option; includes (1) 2 aluminum mesh prefilter, (1) 4 CHEVRON ® mist eliminator, (1) 95% bag filter (120 sq.ft.) and (2) drains in cabinet (3/4 FPT).
F122-EC Easy Clean, polyester membrane, cleanable bag filter, 80% efficiency; replaces standard 95% bag filter.
F122-HEPA-4 99.97% HEPA Filter Option for Standard F91 Unit

Part # Qty Description
ARM PARTS Order Arm Parts from E-Z ARM Page
F122-7E14 Two (2) 14' long E-Z Arm ® high flow extractors in place of 10' long E-Z Arm ® high flow extractors.
  • Wall Bracket must be ordered separately

Part # Qty Description
Starter-Mag-F122 Magnetic starter,3HP, 208-460volt, shipped loose.
Starter-Man-F122 Manual Starter, 3HP, 208-460volt, shipped loose
Starter-MNT-F122 Kit for mounting Magnetic or Manual starters

Part # Qty Description
RCA-4 10" Diesel Stack Adapter with:
  • 4" opening for exhaust pipe

Part # Qty Description
F122-S-EXT Exhaust silencer Option for Standard F122 Unit

Part # Qty Description
F122-PG-10 0-10" magna-helic pressure gauge, approximately 5" diameter size. Surface mounted.
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
