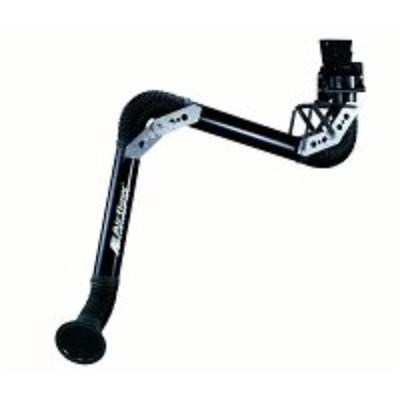

EZ-ARM Extractor - Ø 7''

The EZ-ARM High Flow Extractor provides an ideal solution for medium to high-volume extraction applications.

All arms come with 7" (175mm)Ø of hose.
FUNCTION
The EZ-ARM is equipped with Airflow Systems' patented friction release pawl-and-sprocket design, ensuring secure engagement when positioned, while allowing for effortless repositioning without resistance.

A large 13” (330mm)Ø inlet hood with a 360° flange handle allows simple positioning of the hood (versus single handle designs).

This extractor comes in multiple lengths - 2m (7’), 3m (10’), 4m (14'), 6m (20'), 8m (26') - and 7" (175mm)Ø.

Options:
  • 65 Watt Halogen Light Kit: Improves worker visibility and productivity.
  • Damper: Shut off air flow when not in use.
  • Blowers: Several sizes available.
  • Silencer: Reduces air flow noise for quieter operation.
  • Wall Brackets: Maximizes installation versatility.
  • Adjustable Height Floor Stand: Maximum height of 120" adds installation versatility.
  • Filtration Units: HEPA, cartridge, and odor-control filter systems available based on application.
  • Boom Extensions: System includes steel boom arm, boom arm wall bracket, tube kit, flex hose, and (1) transition to 8" (200mm)Ø.
CONSTRUCTION
Constructed from durable 21-gauge aluminum round duct, designed to withstand industrial conditions while remaining lightweight for easy handling and operation.

This arm is fully powder-coated both internally and externally. It features the industry's most durable flexible connections, utilizing a heavy-duty 'Hi-Flow' spiral wire-reinforced hose for enhanced strength and superior resistance to sparks and embers. A wall bracket and damper are included.

  • Patented friction release pawl-and-sprocket design: Ensures secure engagement when positioned, while allowing effortless removal without resistance.
  • Strong HDPE flat base joint: Designed for easy installation, the HDPE bearing material effectively seals the base without the need for collars or fittings
KEY CRITERA
  • Industrial environments
  • High volume capture
  • Easily maneuvered
  • High pressure applications
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Soldering
  • Grinding
  • Arc-air gouging
  • Thermal cutting
  • Abrasive dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
6EZ5
E-Z Arm® high flow fume extractor, 6" (150mm)Ø 5' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, Wall Bracket included, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
6EZ7
E-Z Arm® high flow fume extractor, 6" Diameter 7' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, Wall Bracket included, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
7E07
E-Z Arm® high flow fume extractor, 7' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
7E10 / 7A10
E-Z Arm® high flow fume extractor, 10' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration. 40 lbs.
  • Wall Bracket must be ordered separately
7E14
E-Z Arm® high flow fume extractor, 14' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
  • Wall Bracket must be ordered separately
7ES07
Stainless Steel E-Z arm high flow fume extractor, 7' long, complete with:
  • White plastic hood, stainless steel tubes & white food grade hose
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table-Top)
  • LIGHT KIT NOT AVAILABLE
  • Dampers & Wall Bracket are not included
7ES10
Stainless Steel E-Z arm ® high flow fume extractor, 10' long, complete with:
  • White plastic hood, stainless steel tubes & white food grade hose
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table-Top)
  • LIGHT KIT NOT AVAILABLE
  • Dampers & Wall Bracket are not included

Part #
Description
EZ ARM STAND
10' stand for E-Z Arm ®.
E-Z ARM-LTK65 L-3Phase
Light Kit, 65 Watt,12 Volt with Transformer 3 phase & switch for light on hood
E-Z ARM-LTK65-1phase
Light Kit, 65 Watt,12 Volt light assembly 1 phase.
E-Z ARM-LTK65-3Phase
Light Kit, 65 Watt,12 Volt with transformer & option for EZ Arm
E-Z ARM-LTK65L-1phase
Light Kit, 65 Watt,12 Volt with transformer
FREQUENTLY BOUGHT TOGETHER

Part #
Description
LD-120-2
1300 CFM @ 9" (230mm) w.g. to 2000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 3 HP, 230-460V/3/60, 3600 RPM
LD-120-3
1300 CFM @ 9" (230mm) w.g. to 2000 CFM @ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 3 HP 575V/3/60, 3600 RPM
LD-130-2
2000 CFM@ 10" (250mm) w.g. to 3000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 5 HP, 230-460V/3/60, 3600 RPM
LD-130-3
2000 CFM@ 10" (250mm) w.g. to 3000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 5 HP, 575-600V/3/60, 3600 RPM
LD-150-2
3000 CFM@ 9" (230mm) w.g. to 4500 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 7.5 HP, 230-460V/3/60, 3600 RPM
LD-150-3
3000 CFM@ 9" (230mm) w.g. to 4500 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 7.5 HP, 575V/3/60, 3600 RPM
LD-160-2
4000 CFM@ 10" (250mm) w.g. to 5000 CFM@ 6" (150mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 10 HP/3 PH, 230-460V/3/60, 3600 RPM
LD-160-3
4000 CFM@ 10" (250mm) w.g. to 5000 CFM@ 6" (150mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV comes complete 10 HP/3 PH, 230-460-575-600V/3/60, 3600 RPM
LD-180-1
5000 CFM@ 12" (300mm) w.g. to 7000 CFM@ 4" (100mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 15 HP/3 HP, 230-460V/3/60, 3600 RPM
LD-180-2
5000 CFM@ 12" (300mm) w.g. to 7000 CFM@ 4" (100mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 15 HP/3 HP, 575V/3/60, 3600 RPM
LD-240-2
10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 HP, 230-460V/3/60, 1750 RPM
LD-240-3
10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP, 575/3/60, 1750 RPM
LD-270-2
12,000 CFM@ 8" (200mm) w.g. to 14,500 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 25 HP/3 HP, 230/460/3/60, 1750 RPM
LD-270-3
12,000 CFM@ 8" (200mm) w.g. to 14,500 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 25 HP/ 3 HP, 575V/3/60, 1750 RPM

Part #
Description
BM07-BI
1/2 HP c-flange ball bearing motor with an AMCA type B spark resistant aluminum BI Wheel 115/208-230/1/60, 7/3.5-3.4 amps, 208-230/460/3/60. 1.7-1.6/8 amps outlet dBA:
DSIC** P-147-2
P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1
P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3
P-Max direct drive fan 0.5 HP 575V/3/60.

Part #
Description
BM08
3/4 HP c-flange ball bearing motor with a forward curve steel wheel & a 1.25 safety factor *for 4 Arm. 115/208-230/1/60, 10/5.2-5.0 amps 208-230/460/3/60. 2.5-2.4/1.2 amps outlet dBA 80dBA.
BM08-BI
3/4 HP c-flange ball bearing motor with an AMCA type B spark resistant aluminum BI wheel.115/208-230/1/60, 10/5.2-5.0 amps 208-230/460/3/60. 2.5-2.4/1.2 amps outlet dBA 80dBA.
P-148-1
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3
P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
M-P-152-3
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-3-575
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP

Part #
Description
P-153-1
2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-2
2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-3
2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Part #
Description
P-155-1
5 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-155-2
5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-025-120S-120V-1PH-2.0 HP
Energy Saver E- Man© 115V/1/60. Fan Motor control station. Rated up to 2 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-208/230V-3PH-7.5 HP
Energy Saver E- Man© 208-230V/3/60. Fan Motor control station. Rated up to 7.5 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-240V-1PH-3HP
Energy Saver E- Man© 240V/1/60. Fan Motor control station. Rated up to 3 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-575V-3PH-20HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-24S-230V-1PH-0.5HP
Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-230V-3PH-7.5 HP
Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-460V-3PH-20HP
Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-20HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-30HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

Part #
Description
MN32H010-AD1-HS-NR
0.63 - 1.0A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 0.63 - 1.0A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
MN32H016-AD1-HS-NR
1.0-1.6A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.0-1.6A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1@575/3/60
MN32H025-AD1-HS-NR
1.6-2.5A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.6-2.5A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/2/230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
MN32H040-AD1-HS-NR
2.5-4A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 2.5-4A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/60
MN32H063-AD1-HS-NR
4.0-6.3A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 4.0-6.3A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
MN32H100-AD1-HS-NR
6.3-10A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 6.3-10A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
MN32H160-AD1-HS-NR
10-16A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 10-16A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.0@115/1/60, 3.0@230/1/60, 5.0@230/3/60, 10@460/3/60, 15@575/3/60V
MN32H200-AD1-HS-NR
16-20A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 16-20A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
MN32H250-AD1-HS-NR
20-25A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 20-25A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 2.0@115/1/60, 3.0@230/1/60, 7.5@208/3/60, 7.5@230/3/60, 15@460/3/60, 20@575/3/60
MN32H320-AD1-HS-NR
25-32A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 25-32A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
P-024-1
115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection on/off 14A control power cord & plug
  • Overload rating according to the FLA of the motor
  • Field assembly & installation required
P-024-2
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
P-024-3
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
P-024-4
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
P-024-5
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 2.5-4A OVERLOAD ---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/6
P-024-6
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Price update Jan 30 2010 TC
P-024-7
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
P-024-8
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
P-024-9
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
P-024-PORTABLE
Additional components for P-024 Fan Motor control station when used on portable units - Required for CSA Standards.

Part #
Description
E-Z ARM-DAMPER
Air Flow Damper, adjustable aluminum baffle.
EZ ARM-LTK76LB
Light Kit, 65 Watt, with Remote ON/OFF Switch for Unit & Light Option for EZ Arm.
E-Z ARM-RAG GUARD
Rag Guard Option for EZ Arm.

Part #
Description
LD-240-BRACKET
Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK
Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L
Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R
Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20
LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB
Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L
Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R
Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP
Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
OC-SQ-CRP-400-STACK
Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-016
P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-016-HD
P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • Heavy Duty Version for P-153, P-154, P-155, P-156 & P-157 Fans
  • Complete with 4 - 3/8" x 1.5" bolts, nuts, & lock washers
REM-FAN-BR-160
P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L
P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1
6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2
6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3
Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200
P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV
Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE
Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.
P-766-LW-SS
Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part #
Description
P-156-1
7.5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-156-2
7.5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-156-HF-1
10 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø nlet & outlet collar
P-156-HF-2
10 HP direct drive fan 575/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø inlet & outlet collar

Part #
Description
H-MAX-EZ-1/D-2M-300
2m (7') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-EZ-2/D-3M-300
3m (10') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-EZ-3/D-4M-300
4m (14') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-F-4/D-5M-300
5m (17') H-MAX Boom Extension for FLEXI-I Extraction Arms.

Part #
Description
M-MTR-5HP-3600-B5-112-28-208-230-460/3/60
Motor 5HP 3600 RPM B5 Flange 208/230/460V, 28 Shaft size, 112 Frame. *CSA Approved Motor*

Part #
Description
BI-DRAIN
Drain, optional accessory for BI Fans, 1/2" push in connection.
  • Installed on site, step drill bit included with kit
  • To be installed at the lowest point on the fan
LD-130-DRAIN
Drain, Optional accessory for LD-130 Fans (LD-130-1 & LD-130-2).
LD-150-DRAIN
Drain, optional accessory for LD-150-1 & LD-150-2 fans.
LD-160-3-10HP
10HP adder for the LD-160-3 fan. 575/3/60.
LD-160-DRAIN
Drain, Optional accessory for LD-160 Fans (LD-160-1 & LD-160-2).
LD-180-DRAIN
Drain, Optional accessory for LD-180 Fans (LD-180-1 & LD-180-2, LD-180-3 & LD-180-4).
LD-240-DRAIN
Drain, Optional accessory for LD-240 Fans (LD-240-1 & LD-240-2).
LD-270-DRAIN
Drain, Optional accessory for LD-270 Fans (LD-270-1, LD-270-2, LD-270-3 LD-270-4).
