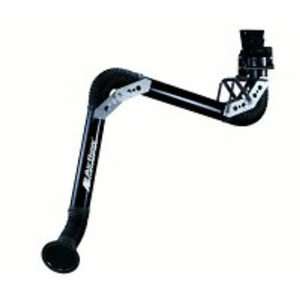

EZ-ARM Extractor - Ø 7''

The EZ-ARM High Flow Extractor provides an ideal solution for medium to high-volume extraction applications.

All arms come with 7" (175mm)Ø of hose.

Function:

The EZ-ARM is equipped with Airflow Systems' patented friction release pawl-and-sprocket design, ensuring secure engagement when positioned, while allowing for effortless repositioning without resistance.

A large 13” (330mm)Ø inlet hood with a 360° flange handle allows simple positioning of the hood (versus single handle designs).

This extractor comes in multiple lengths - 2m (7’), 3m (10’), 4m (14'), 6m (20'), 8m (26') - and 7" (175mm)Ø.

Options:
  • 65 Watt Halogen Light Kit: Improves worker visibility and productivity.
  • Damper: Shut off air flow when not in use.
  • Blowers: Several sizes available.
  • Silencer: Reduces air flow noise for quieter operation.
  • Wall Brackets: Maximizes installation versatility.
  • Adjustable Height Floor Stand: Maximum height of 120" adds installation versatility.
  • Filtration Units: HEPA, cartridge, and odor-control filter systems available based on application.
  • Boom Extensions: System includes steel boom arm, boom arm wall bracket, tube kit, flex hose, and (1) transition to 8" (200mm)Ø.

Construction:

Constructed from durable 21-gauge aluminum round duct, designed to withstand industrial conditions while remaining lightweight for easy handling and operation.

This arm is fully powder-coated both internally and externally. It features the industry's most durable flexible connections, utilizing a heavy-duty 'Hi-Flow' spiral wire-reinforced hose for enhanced strength and superior resistance to sparks and embers. A wall bracket and damper are included.

  • Patented friction release pawl-and-sprocket design: Ensures secure engagement when positioned, while allowing effortless removal without resistance.
  • Strong HDPE flat base joint: Designed for easy installation, the HDPE bearing material effectively seals the base without the need for collars or fittings

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
E-Z ARM-LTK65L-1phase "H x "W x "D 0.0000 lbs
E-Z ARM-LTK65-3Phase "H x "W x "D 0.0000 lbs
E-Z ARM-LTK65 L-3Phase "H x "W x "D 0.0000 lbs
EZ ARM STAND "H x "W x "D 0.0000 lbs
7ES10 22"H x 40"W x 75"D 186.0000 lbs
7ES07 51"H x 17"W x 27"D 75.0000 lbs
7E14 30"H x 20"W x 90"D 45.0000 lbs
7E10 / 7A10 36"H x 24"W x 72"D 75.0000 lbs
7E07 27"H x 48"W x 14"D 55.0000 lbs
6EZ7 27"H x 48"W x 14"D 55.0000 lbs
6EZ5 27"H x 48"W x 14"D 55.0000 lbs

Key Buying Criteria:

  • Industrial environments
  • High volume capture
  • Easily maneuvered
  • High pressure applications

Suitable For:

Top 5 contaminants/processes/applications:

  • Soldering
  • Grinding
  • Arc-air gouging
  • Thermal cutting
  • Abrasive dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
6EZ5 E-Z Arm® high flow fume extractor, 6" (150mm)Ø 5' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, Wall Bracket included, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
6EZ7 E-Z Arm® high flow fume extractor, 6" Diameter 7' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, Wall Bracket included, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
7E07 E-Z Arm® high flow fume extractor, 7' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
7E10 / 7A10 E-Z Arm® high flow fume extractor, 10' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration. 40 lbs.
  • Wall Bracket must be ordered separately
7E14 E-Z Arm® high flow fume extractor, 14' long, complete with:
  • Black aluminum hood, black aluminum tubes, black hose, damper included, & external joint plates
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table Top)
  • Lanyards only included in Up Flange configuration
  • Wall Bracket must be ordered separately
7ES07 Stainless Steel E-Z arm high flow fume extractor, 7' long, complete with:
  • White plastic hood, stainless steel tubes & white food grade hose
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table-Top)
  • LIGHT KIT NOT AVAILABLE
  • Dampers & Wall Bracket are not included
7ES10 Stainless Steel E-Z arm ® high flow fume extractor, 10' long, complete with:
  • White plastic hood, stainless steel tubes & white food grade hose
  • Specify if UP-FLANGE (Overhead) or DOWN-FLANGE (Table-Top)
  • LIGHT KIT NOT AVAILABLE
  • Dampers & Wall Bracket are not included

Part # Qty Description
EZ ARM STAND 10' stand for E-Z Arm ®.
E-Z ARM-LTK65 L-3Phase Light Kit, 65 Watt,12 Volt with Transformer 3 phase & switch for light on hood
E-Z ARM-LTK65-1phase Light Kit, 65 Watt,12 Volt light assembly 1 phase.
E-Z ARM-LTK65-3Phase Light Kit, 65 Watt,12 Volt with transformer & option for EZ Arm
E-Z ARM-LTK65L-1phase Light Kit, 65 Watt,12 Volt with transformer

Frequently bought together these options:


Part # Qty Description
LD-120-2 1300 CFM @ 9" (230mm) w.g. to 2000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 3 HP, 230-460V/3/60, 3600 RPM
LD-120-3 1300 CFM @ 9" (230mm) w.g. to 2000 CFM @ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 3 HP 575V/3/60, 3600 RPM
LD-130-2 2000 CFM@ 10" (250mm) w.g. to 3000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 5 HP, 230-460V/3/60, 3600 RPM
LD-130-3 2000 CFM@ 10" (250mm) w.g. to 3000 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 5 HP, 575-600V/3/60, 3600 RPM
LD-150-2 3000 CFM@ 9" (230mm) w.g. to 4500 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 7.5 HP, 230-460V/3/60, 3600 RPM
LD-150-3 3000 CFM@ 9" (230mm) w.g. to 4500 CFM@ 5" (125mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class II complete with 7.5 HP, 575V/3/60, 3600 RPM
LD-160-2 4000 CFM@ 10" (250mm) w.g. to 5000 CFM@ 6" (150mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 10 HP/3 PH, 230-460V/3/60, 3600 RPM
LD-160-3 4000 CFM@ 10" (250mm) w.g. to 5000 CFM@ 6" (150mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV comes complete 10 HP/3 PH, 230-460-575-600V/3/60, 3600 RPM
LD-180-1 5000 CFM@ 12" (300mm) w.g. to 7000 CFM@ 4" (100mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 15 HP/3 HP, 230-460V/3/60, 3600 RPM
LD-180-2 5000 CFM@ 12" (300mm) w.g. to 7000 CFM@ 4" (100mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 15 HP/3 HP, 575V/3/60, 3600 RPM
LD-240-2 10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 HP, 230-460V/3/60, 1750 RPM
LD-240-3 10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP, 575/3/60, 1750 RPM
LD-270-2 12,000 CFM@ 8" (200mm) w.g. to 14,500 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 25 HP/3 HP, 230/460/3/60, 1750 RPM
LD-270-3 12,000 CFM@ 8" (200mm) w.g. to 14,500 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 25 HP/ 3 HP, 575V/3/60, 1750 RPM

Part # Qty Description
BM07-BI 1/2 HP c-flange ball bearing motor with an AMCA type B spark resistant aluminum BI Wheel 115/208-230/1/60, 7/3.5-3.4 amps, 208-230/460/3/60. 1.7-1.6/8 amps outlet dBA:
DSIC** P-147-2 P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1 P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2 P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3 P-Max direct drive fan 0.5 HP 575V/3/60.

Part # Qty Description
BM08 3/4 HP c-flange ball bearing motor with a forward curve steel wheel & a 1.25 safety factor *for 4 Arm. 115/208-230/1/60, 10/5.2-5.0 amps 208-230/460/3/60. 2.5-2.4/1.2 amps outlet dBA 80dBA.
BM08-BI 3/4 HP c-flange ball bearing motor with an AMCA type B spark resistant aluminum BI wheel.115/208-230/1/60, 10/5.2-5.0 amps 208-230/460/3/60. 2.5-2.4/1.2 amps outlet dBA 80dBA.
P-148-1 P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2 P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3 P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-152-3 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-3-575 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP

Part # Qty Description
P-153-1 2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-2 2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum
P-153-3 2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
  • The required wire grade size: #10 minimum

Part # Qty Description
P-155-1 5 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-155-2 5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number: P-766/155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
E-Z ARM-DAMPER Air Flow Damper, adjustable aluminum baffle.
EZ ARM-LTK76LB Light Kit, 65 Watt, with Remote ON/OFF Switch for Unit & Light Option for EZ Arm.
E-Z ARM-RAG GUARD Rag Guard Option for EZ Arm.

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20 LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
OC-SQ-CRP-400-STACK Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-016 P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-016-HD P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • Heavy Duty Version for P-153, P-154, P-155, P-156 & P-157 Fans
  • Complete with 4 - 3/8" x 1.5" bolts, nuts, & lock washers
REM-FAN-BR-160 P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1 6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2 6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3 Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200 P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.
P-766-LW-SS Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part # Qty Description
P-156-1 7.5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-156-2 7.5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.)
  • Comes complete with an 10" (250mm)Ø inlet & outlet collar
  • If a mounting bracket is required please use part number P-766-155/156/156HF
  • 100% Weather-proof & can be mounted outdoors/rooftop. Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
P-156-HF-1 10 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø nlet & outlet collar
P-156-HF-2 10 HP direct drive fan 575/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" (250mm)Ø inlet & outlet collar

Part # Qty Description
H-MAX-EZ-1/D-2M-300 2m (7') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-EZ-2/D-3M-300 3m (10') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-EZ-3/D-4M-300 4m (14') H-MAX Boom Kit for E-Z Arms. Complete with duct kit - 300° F
H-MAX-F-4/D-5M-300 5m (17') H-MAX Boom Extension for FLEXI-I Extraction Arms.

Part # Qty Description
M-MTR-5HP-3600-B5-112-28-208-230-460/3/60 Motor 5HP 3600 RPM B5 Flange 208/230/460V, 28 Shaft size, 112 Frame. *CSA Approved Motor*

Part # Qty Description
BI-DRAIN Drain, optional accessory for BI Fans, 1/2" push in connection.
  • Installed on site, step drill bit included with kit
  • To be installed at the lowest point on the fan
LD-130-DRAIN Drain, Optional accessory for LD-130 Fans (LD-130-1 & LD-130-2).
LD-150-DRAIN Drain, optional accessory for LD-150-1 & LD-150-2 fans.
LD-160-3-10HP 10HP adder for the LD-160-3 fan. 575/3/60.
LD-160-DRAIN Drain, Optional accessory for LD-160 Fans (LD-160-1 & LD-160-2).
LD-180-DRAIN Drain, Optional accessory for LD-180 Fans (LD-180-1 & LD-180-2, LD-180-3 & LD-180-4).
LD-240-DRAIN Drain, Optional accessory for LD-240 Fans (LD-240-1 & LD-240-2).
LD-270-DRAIN Drain, Optional accessory for LD-270 Fans (LD-270-1, LD-270-2, LD-270-3 LD-270-4).
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
