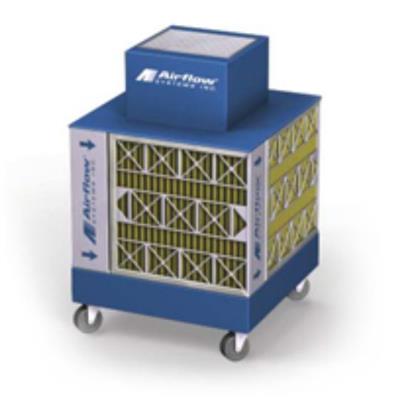

AIRPOD Series - 5000 CFM

The AirPod Industrial Air Cleaner is a cost-effective, user-friendly industrial air filtration system for fine, airborne dust. The free-standing modular air cleaner offers a choice of panel filters, depending on the specific needs of the application. The AirPod provides ambient air filtration for processes such as grinding, sanding, surface finishing, woodworking, metal fabrication, chemical / powder processing, warehousing, and training labs at vocational schools.

The way these systems work is they draw in airborne dusts and gases that settle at floor level. Particles are drawn into the four-sided air intake, where they are then filtered and discharged vertically above the work area. By drawing in the air near the floor, cooled air is discharged into the warmer air near the ceiling creating an effective dilutionary and energy savings air pattern.

All AirPods feature washable pre-filters, a primary box filter, and optional HEPA after-filters combine to provide 99.97% filtration efficiency at noise levels as low as 66 dBa. These are portable units, rather than being fixed in place with a mounting solution.

Main Options:

• Filter Options
• After Filter for Absorption Media
• Motor Voltage Selection
• Caster Options
• Variable Frequency Drives
• Control Panel Accessories

• 12/14/16 ga. Welded zinc-coated steel cabinet
• Blue powder-coat finish
• Blower Pkg (HP): AirPod I & II: 2-speed forward curve, direct drive
• Blower Pkg (HP): Optional AirPod II and III: Dynamically balanced BI blower, non-sparking, motor/blowers
• AirPod I and II, standard: 3/4 HP,115/1/60, 9.4 amps
• AirPod III, standard: 3 HP, 208-230/460/3/60, 7.8-7.2/4 amps; optional: 3 HP, 230/1/60 11.7 amps

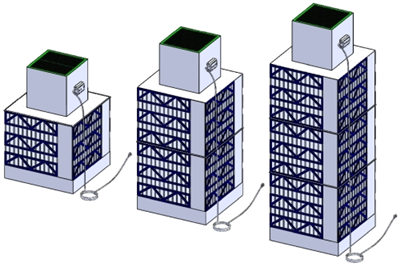

• Flexibility: AirPod modules may be stacked one, two, or three high, providing as much filtration capacity as needed.
• Versatility: The AirPod I comes standard with casters allowing the unit to be moved to the dust source with ease. The larger units can be easily positioned within the work area, each requiring a small 31" x 31" footprint.
• Maximized Filter Surface Area: Each AirPod module features standard panel filters on all four sides.
• Efficient Filtration: Standard filter has MERV 11 efficiency (98% at 1.0 to 3.0 microns) with UL® Class 2 flame-retardant filters; other MERV and AD/carbon filter configurations are also available.
• Easy Maintenance: Fully visible, easy-access filters simplify monitoring and replacement.
• Low Cost of Operation: The AirPod uses standard disposable filters and requires no compressed air.

Top 5 contaminants/processes/applications:

• Metal Sparks
• Wood Dust
• Plastic Dust
• VOC/Paint Fumes
• Paper Dust

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
