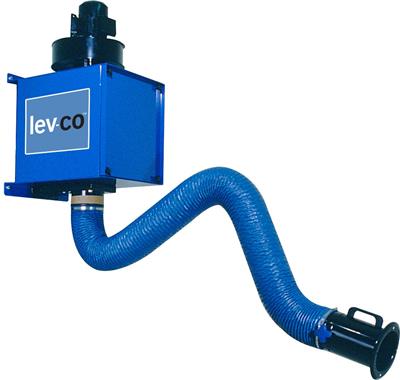

Wall Flex - 1400 CFM
Wall Flex (WF) - A Single/Dual Work-Station Filter Unit that includes a Polyester (washable) filter. With a max airflow rate of 300 CFM to 1400 CFM
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR

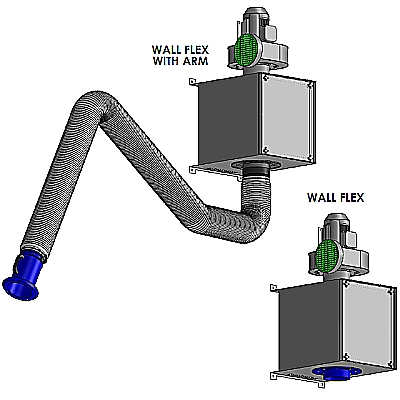

The WallFlex is a wall-mounted work-station filtration unit that collects particles/gases at the source to protect the user from harmful contaminants.
WallFlex is a mechanical filter unit, complete with direct mount to P-Max fan. Designed for use with extraction arms and/or ducted applications.
Available with:
WallFlex is a mechanical filter unit, complete with direct mount to P-Max fan. Designed for use with extraction arms and/or ducted applications.
Available with:
- Stanchions and Wall Brackets
- Hose Connectors and Fittings
- Variable Frequency Drives
- Silencer Option
CONSTRUCTION
- 10/12/14/16 gauge Powder-coated steel sheet.
- Complete with an integrated wall bracket and 6.33" (160mm) connection flange.
- 120V/1/60 1.5HP fan
- 1400 CFM Fan complete with motor starter, 12' cord and switch
- Please note extraction arms longer than 11' are required to be mounted to a column or wall and not to the underside of the filter unit. Additional sheet metal fittings and/or hoses and/or hose clamps may be required.
KEY CRITERA
- 115v Volts: The Wallflex can plug into any circuit for limited setup time and enhanced production
- Highly Temperature Resistance: With all steel construction, the Wallflex isn't susceptible to melting or warping
- Small Footprint: Allows for use in tight/cramped areas
- Effortless Positioning: Allows for quick and simple maneuvering
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Welding
- Composite Dust
- Deburring Dust
- Grinding Particles
- VOC gases
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
WF-CF-5
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 5' extraction arm 6.33" (160mm)Ø
WF-CF-7
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 7' extraction arm 6.33" (160mm)Ø
WF-CF-3000-115
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 10' extraction arm 6.33" (160mm)Ø
WF-CF-5-8
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 5' extraction arm 8" (200mm)Ø
WF-CF-7-8
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 7' extraction arm 8" (200mm)Ø
WF-CF-10-8
Wall Flex high efficiency filter system complete with:
- 1.5 HP fan 115/1/60 TEFC
- Switch
- Overload
- Plug
- Cord
- 10' extraction arm 8" (200mm)Ø
Part #
Description
EX-ARM-160-1500
5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø
Complete with damper & wall/fan bracket
EX-ARM-160-2000
7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø
Complete with damper & wall/fan bracket
EX-ARM-160-3000
10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø
Complete with damper & wall/fan bracket
EX-ARM-160-4000
14' (4000mm) Flexi-l Extraction Arm 6.33" (160mm)Ø
Complete with damper & wall/fan bracket
EX-ARM-160-5000
17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø
Complete with damper & wall/fan bracket
Part #
Description
EX-ARM-200-1500
5' (1500mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-2000
7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-3000
10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-4000
14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-145-H
13' 5" (4115mm) Flexi-II Extraction Arm 8" (200mm)Ø For use in horizontal position in applications such as off the top of a Wall Flex or on a Mobi-Pulse with Chimney.
EX-ARM-200-5000
17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-146-H
16' 5" (5000mm) Flexi-II Extraction Arm 8" (200mm)Ø.For use in horizontal position in applications such as off the top of a Wall Flex or on a Mobi-Pulse with Chimney.
Part #
Description
P-002
7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
P-003
10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
P-005
17' (5180mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket.
P-009-M
Flexi-I Extraction Arm 6.5” (165mm)Ø – 4m (13.5’)L. 9 Comes with Stand for Mobi-Pulse.
Part #
Description
P-167
5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-170
7’ (2000mm) Flexi II 8" (200mm)Ø Extraction Arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)Complete with damper & turning flange
P-171
10' (3000mm) Flexi II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) Complete with damper & turning flange
Part #
Description
OM-019/200
Standing Flange for mounting Flexi II arms on DCH/PCH units: 8" (200mm)Ø.
P-143-1
Wall Bracket for P-143, P-144, P-145, & P-146 - 8" (200mm)Ø.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
WF-1
Wall Flex high-efficiency filtration system complete with:
- 1.5 HP direct mount P-Max fan 115/1/60 TEFC motor
WF-2
Wall Flex high efficiency filtration system complete with:
- 2 HP direct mount P-Max fan 230/3/60 TEFC motor
WF-3
Wall Flex high efficiency filtration system complete with:
- 2 HP direct mount P-Max fan 575/3/60 TEFC motor
WF-4
Wall Flex high efficiency filtration system complete with:
- 2 HP direct mount P-Max fan 230/1/60 TEFC motor
Part #
Description
P-021
Ceiling/Floor Stanchion 3' 3" (1000mm) for Flexi & Pro-Flex Extraction Arms.
P-022
Ceiling/Floor Stanchion 6' 5" (2000mm) for Flexi & Pro-Flex Extraction Arms.
P-023
Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.
Part #
Description
Rigid Duct-WF-DMF
Rigid ductwork for Dual Miniflex arms onto a Wall Flex unit.
Part #
Description
R-060
5" (125mm)Ø inlet - galvanized, 8 bolts M8 x 16mm.
R-061
6" (150mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
Packed in plastic.
R-062
8" (200mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-063
4" (100mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-064
3" (75mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
Part #
Description
SIL-18
Silencer for P-Max series fan, 18" (200mm) (for use with P-Max Fans).
SIL-20
Silencer for P-Max series fan, 20" (200mm) (for use with P-Max Fans).
SIL-26
Silencer for P-Max series fan, 26" (200mm) (for use with P-Max Fans).
SIL-4
Silencer for P-Max series fan, 4" (200mm) (for use with P-Max Fans).
SIL-8
Silencer for P-Max series fan, 8" (200mm) (for use with P-Max Fans).
Part #
Description
IN-FD-8
Fire Dampers 8 CD-RD.
WFHOP-00-R0-1
Hopper for Wall Flex.
Part #
Description
7FR0-3150
Cell/poly blend 188 sq ft fire retardant filter, 16” (400mm) OD 9.6 ID total length 16” (400mm) w/a 3/16 gasket on each end. Open both ends external cage internal and external expanded metal.
- FOR USE WITH WF SELF CLEANING WITH HOPPER
CF-537
Replacement filter Rectangular for RF-CF-X, Roll Flex
- This filter is rectangular for units purchased after Dec 2013, prior units require P-160 round filter
- Please refer to Serial label for replacement filters for all units purchased after July 15, 2021
P-160
80/20 Cell Polyester blended replacement filter cartridge for standard Roll-Flex units.
- This filter is ROUND for units purchased BEFORE Dec 2013, more recent units require P-537 rectangular filter
- Please refer to Serial label for replacement filters for all units purchased after July 15, 2021
P-160-M
metalized high efficiency filter for flamable particulates.
Static free 100% washable with soap and low pressure power washing. Filter comes complete with all mounting hardware (Threaded rods, Nutserts, Alignment flange and wing nuts.
P-160-OEM
OEM Replacement filter for Mobi-Flex.
- Washable spun-bound polyester
- Cleanable with detergent & high pressure water
P-160-WF-OEM
OEM Replacement filter for Mobi-Flex. Washable spun-bound polyester. Cleanable with Detergent and high pressure water.
Rectangular
P-160-PTFE
P-160 with PTFE Media Teflon.
P-004-MFC-16
Filter, Gas/Micro - Combo Filter - spun bond polyester/activated carbon
- Comes with 15 lbs. of activated charcoal
P-004-WFC-16
Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 20 lbs.) 16" Deep.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
